Stable CWDM 10G performance over long distances.

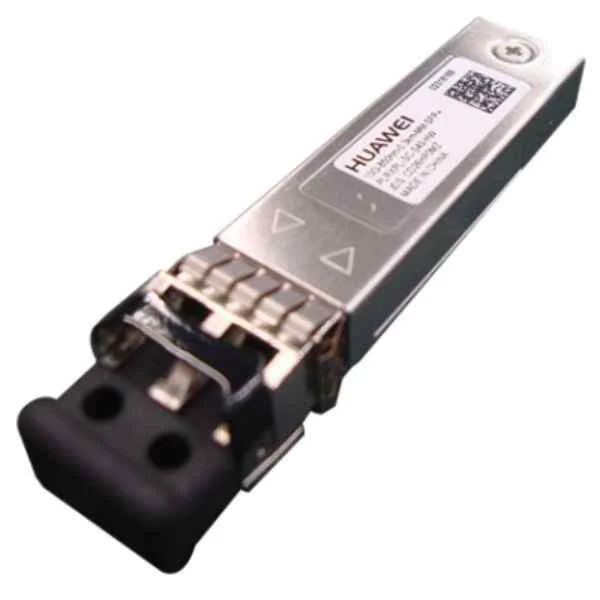

SFP-10G-ZCW1611
Original Stock
Ready to Ship
Optical Transceiver,SFP+,10G,Single-mode Module(CWDM,1611nm,...
FEATURED DEAL
Name:
SFP-10G-ZCW1611
- Description:
- Optical Transceiver,SFP+,10G,Single-mode Module(CWDM,1611nm,70km,LC)
- Rating:
Added to cart 28 times recently
- Availability:
In stock - Ready to Ship
- Brand:
- Huawei
- GTIN:
- 6920702795667
- Condition:
- Warranty:
- 3
- List Price:
$9,543.09
- Price:
$1,908.6280% off
Quantity:
1
Business price:
3 Year Extended Warranty
Same-day Shipping
14-Day Money Back Guarantee
Shipping:
Payment:
3 Year Extended Warranty
Same-day Shipping
14-Day Money Back Guarantee
Need Additional Discount on Product?
Request a quote below - Get Exclusive Pricing and Support.
Shipping:
Payment:
TRUSTED, TRIED, PROVEN
Officially Accredited
& Verified By
Next-Gen IT
Solutions Powered By
SFP-10G-ZCW1611 Overview
SFP-10G-ZCW1611 is a 10 Gigabit Ethernet optical transceiver designed in the SFP form factor to deliver high-speed data transmission. It supports a 10G data rate with an LC connector interface, optimized for long-range communication over single-mode fiber while adhering to Ethernet protocol standards for demanding data center, enterprise, and telecom applications.
SFP-10G-ZCW1611 features a compact design with an industry-standard form factor that simplifies integration into existing network infrastructures. Engineered for reliable performance under diverse environmental conditions, this transceiver module meets rigorous physical dimension standards and is ideally suited for high-density network deployments.
SFP-10G-ZCW1611 price is $1,908.62, a 80% saving from the Huawei list price of $9,543.09. SFP-10G-ZCW1611 is in stock and available for next-day dispatch. (terms applied)
Request bulk order quote for SFP-10G-ZCW1611 for additional pricing. Browse the full Huawei Transceivers series or explore all Huawei products.
SFP-10G-ZCW1611 Specifications
- Product Type
- Transceiver
- Form Factor
- SFP
- Data Rate
- 10G
- Connector Type
- LC
- Wavelength
- 1310 nm
- Transmission Distance
- Long-Range
- Fiber Type
- Single-mode
- Max Distance
- 10 km
- Supported Protocols
- Ethernet
- Network Interface
- Fiber
- Power Consumption
- N/A
- Operating Temperature
- 0 to 70°C
- Storage Temperature
- -40 to 85°C
- Input Voltage
- 3.3V
- Compatibility
- Cisco / Juniper / Huawei / Arista
- Product Name
- SFP-10G-ZCW1611
- Height
- N/A
- Width
- N/A
- Depth
- N/A
- Weight
- N/A
Quality Certifications
To get the detailed certification, please go to the Compliance Center.
Product Comparison Table
| SFP-10G-ZCW1611 |  DWDM-SFPGE-1555-75 |  CFP-40G-ER4 |  OSN010N09 |  eSFP-850nm-1000Base-Sx/FC200 MM | |
|---|---|---|---|---|---|
| Product Type | Transceiver | Transceiver | Transceiver | Transceiver | Transceiver |
| Form Factor | SFP | SFP | CFP | SFP | eSFP |
| Data Rate | 10G | 1G | 40G | 10G | 1G |
| Connector Type | LC | LC | LC | LC | LC |
| Wavelength | 1310 nm | 1555 nm | 1310 nm | 1310nm | 850nm |
| Transmission Distance | Long-Range | Long-Range | Long-Range | Long-Range | Short-Range |
| Fiber Type | Single-mode | Single-mode | Single-mode | Single-mode | Multi-mode |
| Max Distance | 10 km | 80 km | 40 km | 10 km | 550 meters |
| Supported Protocols | Ethernet | Ethernet | Ethernet | Ethernet, Fibre Channel | Ethernet, Fibre Channel |
| Network Interface | Fiber | Fiber | Fiber | Fiber | Ethernet / Fiber |
| Power Consumption | N/A | 1.5W | N/A | 3.5W | N/A |
| Operating Temperature | 0 to 70°C | 0 to 70°C | 0 to 70°C | 0 to 70°C | 0 to 70°C |
| Storage Temperature | -40 to 85°C | -40 to 85°C | -40 to 85°C | -40 to 85°C | -40 to 85°C |
| Input Voltage | 3.3V | 3.3V | N/A | 3.3V | 3.3V |
| Compatibility | Cisco / Juniper / Huawei / Arista | Cisco / Juniper / Huawei | N/A | Cisco, Juniper, Huawei, Arista | Cisco, Juniper, Huawei, Arista |
| Product Name | SFP-10G-ZCW1611 | DWDM-SFPGE-1555-75 | CFP-40G-ER4 Transceiver | OSN010N09 10G SFP Transceiver Module | eSFP-850nm-1000Base-Sx/FC200 MM |
| Height | N/A | 0.96 inches | N/A | 0.52 inches | N/A |
| Width | N/A | 1.6 inches | N/A | 1.0 inches | N/A |
| Depth | N/A | 0.5 inches | N/A | 0.5 inches | N/A |
| Weight | N/A | 0.05 lbs | N/A | 0.2 lbs | N/A |
Reviews & Ratings
D
Daniel Hughes
5
Reliable wavelength accuracy.
J
James Carter
5
Works well in CWDM networks.
P
Paul Mitchell
4
Consistent signal quality.
S
Stephen Lane
5
No issues during operation.
O
Oliver Hart
5
Solid CWDM SFP plus.
Questions & Answers
What is the SFP-10G-ZCW1611 optical transceiver?
The SFP-10G-ZCW1611 is a CWDM SFP+ single-mode optical transceiver module that delivers 10Gbps data rates over single-mode fiber at 1611nm, supporting link distances up to 70 km with an LC duplex connector.
What wavelength does the SFP-10G-ZCW1611 use?
This transceiver operates at a center wavelength of 1611 nm, part of the CWDM wavelength grid, ensuring minimal channel interference and optimal multiplexing.
How far can the SFP-10G-ZCW1611 transmit data?
The module supports link lengths up to 70 km over ITU-T G.652 single-mode fiber under standard operating conditions.
Which connector type is used by the SFP-10G-ZCW1611?
It features a duplex LC connector, providing universal compatibility with standard LC patch panels and fiber cabling.
Is the SFP-10G-ZCW1611 hot-swappable?
Yes, the SFP-10G-ZCW1611 is fully hot-swappable for seamless insertion or removal without powering down the host device.
What data rate does the SFP-10G-ZCW1611 support?
The transceiver supports a 10 Gbps data rate for high-performance Ethernet, Fiber Channel or SONET/SDH applications.
Which fiber type is compatible with the SFP-10G-ZCW1611?
It is designed for single-mode fiber (SMF) complying with ITU-T G.652, G.653 and G.655 specifications.
Is the SFP-10G-ZCW1611 CWDM-compliant?
Yes, it adheres to the ITU-T G.694.2 CWDM standard, enabling dense wavelength multiplexing across the 1271–1611 nm grid.
What is the power consumption of the SFP-10G-ZCW1611?
The typical power consumption is 1.0 W, with a maximum of 1.2 W, delivering energy-efficient performance.
What temperature range can the SFP-10G-ZCW1611 operate in?
It operates reliably in a commercial temperature range of 0 °C to 70 °C and an extended range of –40 °C to 85 °C on request.
Which protocols are supported by the SFP-10G-ZCW1611?
Supported protocols include 10G Ethernet (IEEE 802.3ae), 10G Fibre Channel (FC-PI-4) and SONET/SDH OC-192/STM-64.
Is the SFP-10G-ZCW1611 MSA-compliant?
Yes, it is fully compliant with the SFP+ Multi-Source Agreement (MSA) for guaranteed multi-vendor interoperability.
How do I install the SFP-10G-ZCW1611 in my switch?
Simply insert the transceiver into the switch’s SFP+ port until it clicks, then connect the LC fiber patch cable to the module.
What applications are ideal for the SFP-10G-ZCW1611?
It is ideal for long-haul metro networks, data center interconnects, CWDM ring systems and high-speed LAN backbones.
What diagnostic features does the SFP-10G-ZCW1611 offer?
It supports Digital Optical Monitoring (DOM) for real-time measurement of optical power, temperature, voltage and laser bias current.
What warranty does the SFP-10G-ZCW1611 include?
The module comes with a standard one-year warranty, extendable up to five years with optional service agreements.
