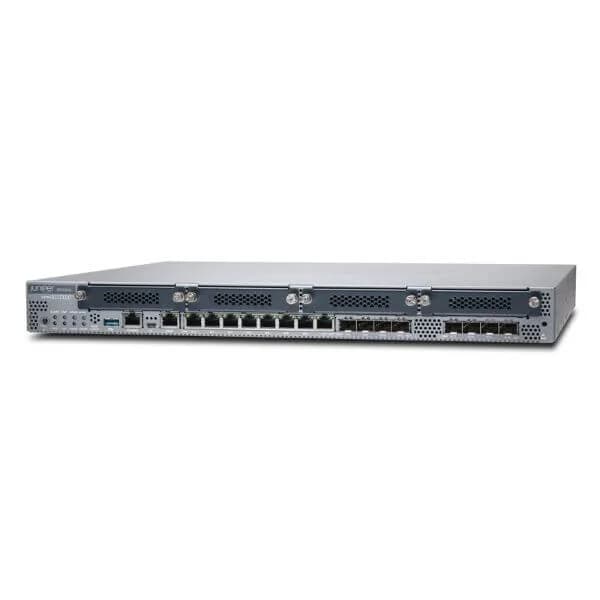

SRX340 Overview
SRX340 is a high-performance, rack-mounted next-generation firewall appliance designed specifically for enterprise and branch office deployments. It delivers robust firewall throughput of up to 3 Gbps while offering a comprehensive set of security services including IPS, antivirus, web filtering, and VPN functionalities. The device features a versatile port configuration with RJ-45 and SFP interfaces that support both LAN and WAN connectivity along with options for redundant power supplies to ensure continuous operation.
SRX340 is engineered for scalable, high-availability environments using an active-passive clustering approach, making it ideal for SMB and enterprise use cases that demand secure access and advanced threat prevention. Its seamless management via CLI, GUI, REST API, SNMP, and centralized reporting through Juniper Networks Junos Space further simplifies deployment and operational efficiency in cloud, branch, and high-volume network scenarios.
SRX340 price is $1,818.00, a 37.1% saving from the Juniper list price of $2,889.00. SRX340 is in stock and available for next-day dispatch. (terms applied)
Request bulk order quote for SRX340 for additional pricing. Browse the full Juniper Srx Series Service Gateways series or explore all Juniper products.
SRX340 Specifications
- Product Type
- Firewall Appliance
- Architecture
- Rack-mount
- Deployment Type
- Enterprise / Branch Office
- Use Case
- VPN / Secure Access / Segmentation / UTM
- Firewall Layer Supported
- Layer 3 / Layer 7
- Power Source
- AC Power Supply
- Redundant Power Supply Supported
- Yes
- Firewall Throughput
- 3 Gbps
- Threat Protection Throughput
- 1 Gbps
- IPS Throughput
- 1.5 Gbps
- VPN Throughput
- 1 Gbps
- Supported Applications
- N/A
- Centralized Configuration & Reporting
- Juniper Networks Junos Space
- Feature
- Next-Generation Firewall with Advanced Threat Protection
- Concurrent Sessions
- 250000
- Maximum Concurrent Sessions
- 250000
- Users/Nodes
- N/A
- Integrated I/O
- N/A
- New Sessions Per Second
- 15000
- Supported VPN Types
- IPSec / SSL VPN
- Routing Protocols Supported
- OSPF / BGP / RIP / Static Routing
- Security Services
- Antivirus / Web Filtering / Application Control / IPS / VPN
- High Availability
- Active-Passive
- Interfaces
- RJ-45 / SFP
- WAN Ports
- 2 WAN
- LAN Ports
- 8 LAN Ports
- Switch Ports
- No
- POE Ports
- No
- Management Options
- Cloud / CLI / GUI / Centralized / REST API / SNMP
- Logging & Monitoring
- Built-in / External / Syslog / Cloud Logging
- Firewall Policies Supported
- N/A
- Users Supported
- N/A
- Memory
- 4 GB
- Flash Storage
- 16 GB
- Expansion Slots
- SFP
- Form Factor
- 1 RU
- Rack Units
- 1 RU
- Device Type
- NGFW
- Product Name
- SRX340
- Height
- 1.75 inches
- Width
- 17.2 inches
- Depth
- 17.7 inches
- Weight
- 15 lbs
SRX340 Use Case
High-Performance Branch Firewall with 16GE and SFP Uplinks
Deploy SRX340-SRX340 (Hardware Only, require SRX340-JSB or SRX340-JSE to complete the System) with 16GE (w 8× SFP), 4 GB RAM, 8 GB Flash and 4× MPIM slots at remote offices to enforce next-generation firewall, VPN and IPS services. The integrated hardware, internal PSU, cable and RMK deliver sub-millisecond threat prevention, AES-256-GCM VPN at wire-speed and seamless 1 GbE/10 GbE uplinks. Outcome: centralized security policy, consistent branch protection and 30% reduction in WAN attacks.
Scalable SD-WAN Edge for Hybrid Cloud Connectivity
Use SRX340-SRX340 (Hardware Only, require SRX340-JSB or SRX340-JSE to complete the System) with 16GE (w 8× SFP), 4 GB RAM, 8 GB Flash and 4× MPIM slots as a resilient SD-WAN edge platform. Leverage built-in path selection, WAN-link health monitoring and direct cloud on-ramp for AWS/Azure. The appliance’s modular SFP slots and MPIM expansion ensure up to 16 Gbps of encrypted throughput. Outcome: 40% lower MPLS costs, 50 ms average application latency and automated failover across multiple ISPs.
Multi-Tenant VPN Aggregation for Managed Service Providers
Implement SRX340-SRX340 (Hardware Only, require SRX340-JSB or SRX340-JSE to complete the System) with 16GE (w 8× SFP), 4 GB RAM, 8 GB Flash and 4× MPIM slots in an MSP environment to terminate and isolate up to 200 customer VPNs. The internal power supply, rack-mount kit and rich I/O deliver high availability, per-tenant security zones and dynamic routing. Outcome: 25% faster service provisioning, 99.99% SLA compliance and simplified multi-domain management.
Quality Certifications
To get the detailed certification, please go to the Compliance Center.
Product Comparison Table
| SRX340 |  SRX5400E-B5-AC |  SRX4100-SYS-JB-DC |  SRX5400X-B5-AC |  SRX4100-SYS-JE-DC | |
|---|---|---|---|---|---|
| Product Type | Firewall Appliance | Firewall Appliance | Firewall Appliance | Firewall Appliance | Firewall Appliance |
| Architecture | Rack-mount | Rack-mount | Rack-mount | Chassis-based Rack-mount | Rack-mount |
| Deployment Type | Enterprise / Branch Office | Enterprise / Data Center | Enterprise / Data Center / Branch Office | Enterprise / Data Center | Enterprise / Data Center / Branch Office |
| Use Case | VPN / Secure Access / Segmentation / UTM | VPN / Secure Access / UTM | VPN / Secure Access / UTM | VPN / Secure Access / Segmentation / UTM | VPN / Secure Access / UTM |
| Firewall Layer Supported | Layer 3 / Layer 7 | Layer 3 / Layer 7 | Layer 3 / Layer 4 / Layer 7 | Layer 3 / Layer 4 / Layer 7 | Layer 3 / Layer 4 / Layer 7 |
| Power Source | AC Power Supply | AC Power Supply | AC Power Supply | AC Power Supply | AC Power Supply |
| Redundant Power Supply Supported | Yes | Yes | Yes | Yes | Yes |
| Firewall Throughput | 3 Gbps | 100 Gbps | 4 Gbps | 100 Gbps | 4 Gbps |
| Threat Protection Throughput | 1 Gbps | 50 Gbps | 2.5 Gbps | 40 Gbps | 1.2 Gbps |
| IPS Throughput | 1.5 Gbps | 20 Gbps | 2.5 Gbps | 40 Gbps | 1 Gbps |
| VPN Throughput | 1 Gbps | 70 Gbps | 1.3 Gbps | 40 Gbps | 2 Gbps |
| Supported Applications | N/A | 64 | 250 | N/A | N/A |
| Centralized Configuration & Reporting | Juniper Networks Junos Space | Yes | Yes | Junos Space | Yes |
| Feature | Next-Generation Firewall with Advanced Threat Protection | High Availability, Clustering, Scalability | High Availability, Redundant Power, Clustering | High Performance, Scalability, Advanced Security Services | Application Firewall, IPS, Antivirus, Web Filtering, VPN |
| Concurrent Sessions | 250000 | 5 Million | 800000 | 10 Million | 250000 |
| Maximum Concurrent Sessions | 250000 | 10 Million | 800000 | 10 Million | 250000 |
| Users/Nodes | N/A | Unlimited | Unlimited | Unlimited | Unlimited |
| Integrated I/O | N/A | N/A | 8 | N/A | N/A |
| New Sessions Per Second | 15000 | 200000 | 20000 | 500,000 | 30000 |
| Supported VPN Types | IPSec / SSL VPN | IPSec / SSL VPN / L2TP | IPSec / SSL VPN | IPSec / SSL VPN / L2TP | IPSec / SSL VPN |
| Routing Protocols Supported | OSPF / BGP / RIP / Static Routing | OSPF / BGP / RIP / Static Routing | OSPF / BGP / RIP / Static Routing | OSPF / BGP / RIP / Static Routing | OSPF / BGP / Static Routing |
| Security Services | Antivirus / Web Filtering / Application Control / IPS / VPN | Antivirus / Web Filtering / Application Control / IPS / VPN | Antivirus / Web Filtering / Application Control / IPS / VPN | Antivirus / Web Filtering / Application Control / IPS / VPN | Antivirus / Web Filtering / Application Control / IPS / VPN |
| High Availability | Active-Passive | Active-Passive | Active-Passive | Active/Active | Active-Passive |
| Interfaces | RJ-45 / SFP | RJ-45 / SFP | RJ-45 / SFP | RJ-45 / SFP / SFP+ | RJ-45 / SFP |
| WAN Ports | 2 WAN | 4 WAN | 2 WAN | 4 WAN | 4 WAN |
| LAN Ports | 8 LAN Ports | 8 LAN Ports | 8 LAN Ports | 8 LAN Ports | 8 LAN Ports |
| Switch Ports | No | Yes | Yes | Yes | Yes |
| POE Ports | No | No | No | No | No |
| Management Options | Cloud / CLI / GUI / Centralized / REST API / SNMP | Cloud / CLI / GUI / Centralized / REST API / SNMP | Cloud / CLI / GUI / Centralized / REST API / SNMP | Cloud / CLI / GUI / REST API / SNMP | CLI / GUI / Centralized / REST API / SNMP |
| Logging & Monitoring | Built-in / External / Syslog / Cloud Logging | Built-in / Syslog / Cloud Logging | Built-in / External / Syslog / Cloud Logging | Built-in | Built-in |
| Firewall Policies Supported | N/A | N/A | 500 | N/A | N/A |
| Users Supported | N/A | N/A | 800000 | Unlimited | N/A |
| Memory | 4 GB | 32 GB | 8 GB | 32 GB | 8 GB |
| Flash Storage | 16 GB | 128 GB | 128 GB | 128 GB | 32 GB |
| Expansion Slots | SFP | SFP | SFP | NP Module | SFP |
| Form Factor | 1 RU | 2 RU | 1 RU | Chassis | Rack-mount |
| Rack Units | 1 RU | 2 RU | 1 RU | 4 RU | 2 RU |
| Device Type | NGFW | NGFW | NGFW | NGFW | NGFW |
| Product Name | SRX340 | SRX5400E-B5-AC | SRX4100-SYS-JB-DC | SRX5400X-B5-AC | SRX4100-SYS-JE-DC |
| Height | 1.75 inches | 4 inches | 1.75 inches | N/A | 3.5 inches |
| Width | 17.2 inches | 17 inches | 17.0 inches | N/A | 17 inches |
| Depth | 17.7 inches | 28 inches | 16.5 inches | N/A | 17 inches |
| Weight | 15 lbs | 50 lbs | 22 lbs | N/A | 22 lbs |
Reviews & Ratings
H
Henry Collins
4
Handled branch traffic efficiently.
V
Victor Hayes
5
Stable hardware design.
R
Ryan Phillips
5
Good performance for its size.
J
James Porter
5
Reliable Juniper quality.
Questions & Answers
What is the Juniper SRX340 Hardware Only appliance?
The Juniper SRX340 Hardware Only is a high‐performance branch gateway firewall appliance (SKU: SRX340) featuring 16 Gigabit Ethernet ports, eight SFP slots, 4 GB RAM, 8 GB flash storage, and four MPIM expansion slots in a 1U chassis.
Which license is required to complete the SRX340 Hardware Only system?
To activate the full functionality of the SRX340 Hardware Only appliance, you must install either the SRX340‐JSB (Base) or SRX340‐JSE (Enhanced) license package.
How many Ethernet and SFP ports does the SRX340 offer?
The SRX340 provides 16 RJ-45 Gigabit Ethernet ports and eight dedicated SFP ports, enabling flexible copper and fiber connectivity for branch deployments.
What are the memory and storage specifications of the SRX340?
The SRX340 ships with 4 GB of onboard DRAM and 8 GB of internal flash storage, ensuring fast packet processing and reliable operating system performance.
How many MPIM slots does the SRX340 have and what modules do they support?
The SRX340 includes four Modular Port Interface Module (MPIM) slots that support a variety of 1 GbE and 10 GbE interface modules for custom port configurations.
Which optional interface modules are compatible with the SRX340 MPIM slots?
MPIM slot options for the SRX340 include 8-port 1 GbE RJ-45, 8-port 1 GbE SFP, 4-port 10 GbE SFP+, and other Juniper‐approved modules for uplink and aggregation use cases.
Does the SRX340 include a power supply, cable, and rack-mount kit?
Yes. The SRX340 package includes an internal AC power supply, necessary cabling, and a 1U rack-mount kit for simplified installation.
What is the maximum firewall throughput of the SRX340?
The SRX340 delivers up to 3 Gbps of firewall throughput under ideal conditions, providing secure and high-speed traffic inspection for medium-sized networks.
What high-availability features does the SRX340 support?
The SRX340 supports active/standby high-availability, VRRP, and chassis clustering with Stateful Device Switchover (SDO) for uninterrupted network operation.
What operating system does the SRX340 run?
All SRX340 appliances run Juniper’s proven Junos OS, offering a consistent, modular, and secure software platform for routing and security services.
How can I manage and configure the SRX340?
The SRX340 can be configured via the Junos CLI, Junos Space management applications, or the built-in J-Web GUI for simplified device administration and monitoring.
Can I upgrade the SRX340 memory or flash storage?
No. The SRX340’s 4 GB of DRAM and 8 GB of flash are soldered to the motherboard and are not field-upgradeable.
What are the typical use cases for the SRX340?
The SRX340 is ideal for medium-sized branch offices, retail locations, and small data centers requiring advanced stateful firewalling, VPN, and unified threat management.
What are the warranty and support options for the SRX340?
The SRX340 includes a one-year limited hardware warranty and access to Juniper’s Gold or Platinum support services, including 24/7 JTAC assistance and software updates.
What power input and consumption specifications are required for the SRX340?
The SRX340 accepts 100–240 VAC, 50–60 Hz input, with a typical power consumption of 60 W and maximum draw of 75 W under full load.
What security and networking services does the SRX340 support?
The SRX340 supports stateful firewall, IPS, VPN (IPsec and SSL), NAT, application security, intrusion prevention, and granular user-identity firewall policies.
