Question 1

What is a Cisco XFP module?

Accepted Answer

A Cisco XFP (10-Gigabit Small Form-Factor Pluggable) module is a hot-swappable transceiver designed for 10 Gbps optical or copper networking applications in Cisco switches and routers.

Question 2

What data rates do Cisco XFP modules support?

Accepted Answer

Cisco XFP modules support line rates up to 10 Gbps, enabling high-speed connectivity for enterprise and service-provider networks.

Question 3

What is the maximum reach of a Cisco XFP module?

Accepted Answer

Depending on the model and fiber type, Cisco XFP modules support distances from 300 m on multi-mode fiber to 80 km on single-mode DWDM fiber.

Question 4

Are Cisco XFP modules hot-swappable?

Accepted Answer

Yes. Cisco XFP modules are hot-swappable, allowing installation or removal without powering down the host device.

Question 5

Which connector types do Cisco XFP modules support?

Accepted Answer

Cisco XFP modules support LC connectors for fiber and RJ-45 for copper, depending on the transceiver variant.

Question 6

How do I choose the right Cisco XFP module for my network?

Accepted Answer

Select a Cisco XFP module based on required data rate (10 Gbps), fiber type (single-mode or multi-mode), reach, connector type, and wavelength to match your network design.

Question 7

Can I use third-party XFP modules in Cisco equipment?

Accepted Answer

Cisco recommends using Cisco-branded XFP modules to ensure compatibility, support, and warranty coverage; third-party modules may work but can void support agreements.

Question 8

How do I install a Cisco XFP module?

Accepted Answer

Power off the interface (if required), slide the Cisco XFP module into the port until it clicks, and then enable or power on the interface in the CLI or GUI.

Question 9

How can I verify that my Cisco device recognizes the XFP module?

Accepted Answer

Use the command “show interfaces transceiver details” in the Cisco IOS CLI to display model, serial number, wavelength, and status of the installed XFP module.

Question 10

What is the difference between Cisco XFP and SFP+ modules?

Accepted Answer

Cisco XFP modules have an external electrical interface and higher power budget, whereas SFP+ integrates clock data recovery and has a smaller form factor with lower power consumption.

Question 11

Are Cisco XFP modules MSA-compliant?

Accepted Answer

Yes. Cisco XFP modules comply with the XFP Multi-Source Agreement (MSA), ensuring interoperability across MSA-compliant devices.

Question 12

What wavelengths are available in Cisco XFP modules?

Accepted Answer

Cisco XFP modules are available in standard wavelengths such as 850 nm, 1310 nm, 1550 nm, and DWDM channels ranging from 1528.77 nm to 1563.86 nm.

Question 13

How do I troubleshoot a link failure with a Cisco XFP module?

Accepted Answer

Check the system logs and interface counters with “show interfaces” and “show interfaces transceiver details,” verify fiber cleanliness, and confirm matching transmit/receive wavelengths.

Question 14

Can Cisco XFP modules be used in DWDM networks?

Accepted Answer

Yes. Cisco offers DWDM-tuned XFP modules with precise ITU-grid wavelengths for integration into DWDM transport systems.

Question 15

How do I maintain and clean Cisco XFP module connectors?

Accepted Answer

Use an approved fiber-optic cleaning kit to gently remove dust and contaminants from the LC or RJ-45 connector before each insertion to maintain optimal signal integrity.

Networking Cisco XFP Module

XFP-10GZR-OC192LR (10GBASE-ZR and OC192 LR2 XFP Module)

XFP10GER-192IR-L (Low Power multirate XFP supporting 10GBASE-ER and OC-192 IR)

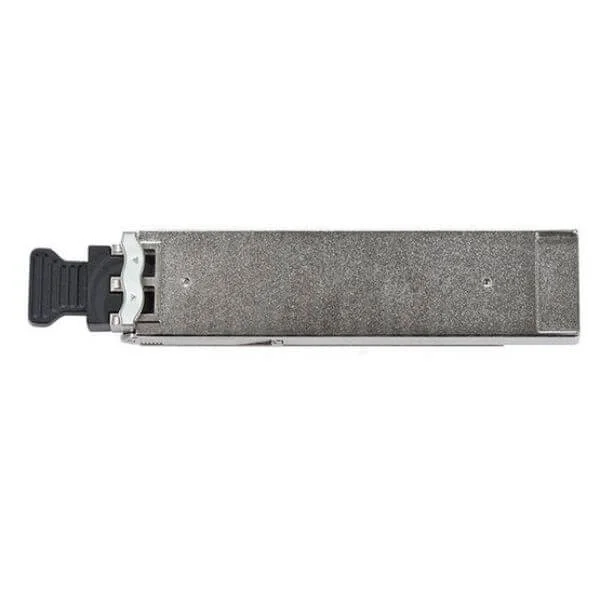

XFP-10GER-192IR+ (Cisco Multirate 10GBASE-ER and OC-192/STM-64 IR-2 XFP Module)

XFP-10GER-OC192IR (10GBASE-ER and OC192 IR2 XFP Module)

DWDM-XFP-30.33 (DWDM XFP 1530.33 nm XFP (100 GHz ITU grid))

DWDM-XFP-46.12 (DWDM XFP 1546.12 nm XFP (100 GHz ITU grid))

DWDM-XFP-31.12 (DWDM XFP 1531.12 nm XFP (100 GHz ITU grid))

DWDM-XFP-46.92 (DWDM XFP 1546.92 nm XFP (100 GHz ITU grid))

DWDM-XFP-31.90 (DWDM XFP 1531.90 nm XFP (100 GHz ITU grid))

DWDM-XFP-47.72 (DWDM XFP 1547.72 nm XFP (100 GHz ITU grid))

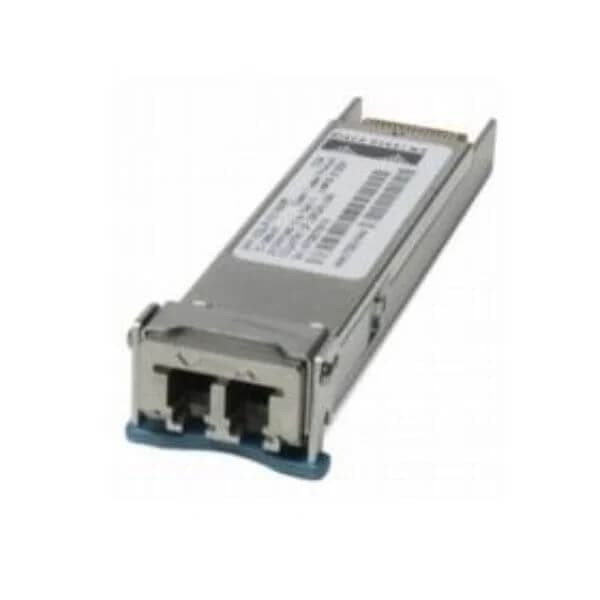

DWDM-XFP-32.68 (DWDM XFP 1532.68 nm XFP (100 GHz ITU grid))

DWDM-XFP-48.51 (DWDM XFP 1548.51 nm XFP (100 GHz ITU grid))

DWDM-XFP-34.25 (DWDM XFP 1534.25 nm XFP (100 GHz ITU grid))

DWDM-XFP-50.12 (DWDM XFP 1550.12 nm XFP (100 GHz ITU grid))

DWDM-XFP-35.04 (DWDM XFP 1535.04 nm XFP (100 GHz ITU grid))

DWDM-XFP-50.92 (DWDM XFP 1550.92 nm XFP (100 GHz ITU grid))

DWDM-XFP-35.82 (DWDM XFP 1535.82 nm XFP (100 GHz ITU grid))

DWDM-XFP-51.72 (DWDM XFP 1551.72 nm XFP (100 GHz ITU grid))

DWDM-XFP-36.61 (DWDM XFP 1536.61 nm XFP (100 GHz ITU grid))

DWDM-XFP-52.52 (DWDM XFP 1552.52 nm XFP (100 GHz ITU grid))
