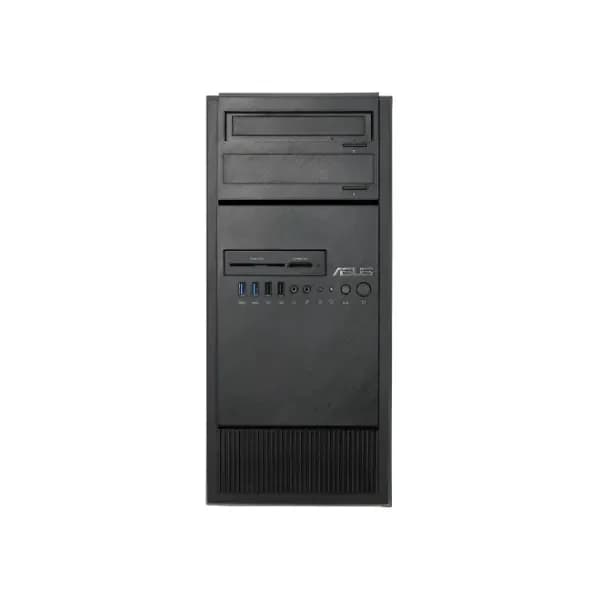

90SF00Q1-M00410

Specification Of 90SF00Q1-M00410

Processor
Built-in processor	No
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	6
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
HDMI ports quantity	1
VGA (D-Sub) ports quantity	1
DVI port	Yes
DVI-D ports quantity	1
DisplayPorts quantity	1
Microphone in	Yes
Headphone outputs	1
Ethernet LAN (RJ-45) ports	2
Number of SATA III connectors	8
Power
Power supply type	Internal power supply unit
Power supply	500 W
AC input voltage	220 - 240 V
AC input frequency	50/60 Hz
Number of power supply units	1
AC adapter output current	7 A
Design
Chassis type	Full-Tower
Product colour	Black
LED indicators	Yes
On/off switch	Yes
Cooling type	Active
Certification	BSMI, CCC, CE, FCC(Class B)
Graphics
On-board graphics card	No
Memory
Memory slots type	DIMM
Number of memory slots	4
Maximum internal memory	128 GB
Supported memory clock speeds	2400,2666 MHz
Supported memory types	DDR4-SDRAM
Memory channels	Dual-channel
ECC	Yes
Non-ECC	Yes
Storage
Number of storage drives supported	10
Storage drive interface	M.2, PCI Express, Serial ATA, Serial ATA II, Serial ATA III
Storage drive sizes supported	2.5,3.5,M.2
Supported storage drive types	HDD & SSD
RAID levels	0,1,5,10
Performance
Motherboard chipset	Intel C246
Processor socket	LGA 1151 (Socket H4)
Number of processors supported	1
Compatible processor series	Intel® Celeron®, Intel® Core™ i3, Intel Core i5, Intel Core i7, Intel Core i9, Intel® Pentium®, Intel® Xeon®
Expansion slots
PCI Express slots version	3.0
PCI Express x1 slots	2
PCI Express x16 slots	4
Number of M.2 (M) slots	2
Network
Ethernet LAN	Yes
Wi-Fi	No
LAN controller	Intel® I210-AT, Intel I219LM
Operational conditions
Operating temperature (T-T)	10 - 35 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	20 - 90 %
Weight &ensions
Width	190 mm
Depth	435 mm
Height	423 mm
Weight	12.7 kg
Package weight	14.5 kg
Packaging data
Power cord included	Yes
Drivers included	Yes
