Name: 802.11a,b/g Outdoor Mesh AP for Haz Loc, NA Cfg 1520 Series Mesh Access Points
Brand: Cisco
SKU: AIR-LAP1522HZ-N-K9
Price: 2282.00 USD
Availability: InStock

Question 1

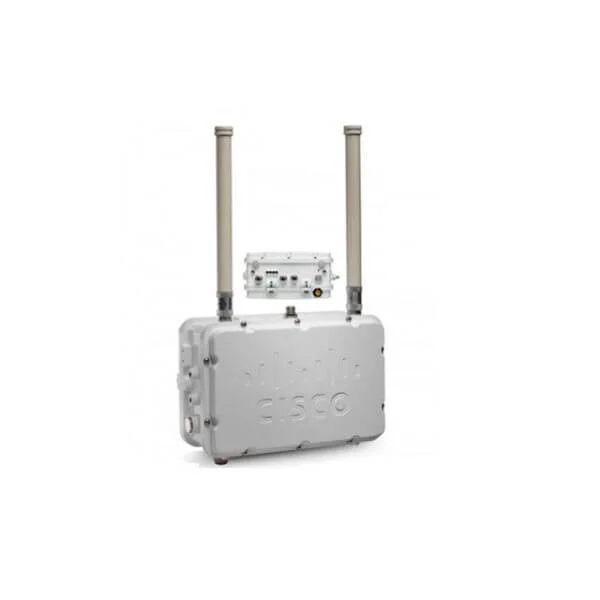

What is the Cisco AIR-LAP1522HZ-N-K9 Access Point?

Accepted Answer

The Cisco AIR-LAP1522HZ-N-K9 is an 802.11a/b/g outdoor mesh access point designed for hazardous locations in North America, delivering reliable wireless coverage in harsh environments.

Question 2

What environments is the AIR-LAP1522HZ-N-K9 suited for?

Accepted Answer

The AIR-LAP1522HZ-N-K9 is engineered for Class I, Division 2 hazardous outdoor environments with corrosive atmospheres, extreme temperature swings, wind, rain and snow.

Question 3

Which frequency bands and data rates does this AP support?

Accepted Answer

This model supports 2.4 GHz and 5 GHz bands with data rates up to 54 Mbps in 802.11a/b/g modes for flexible deployment and legacy device compatibility.

Question 4

How does the AIR-LAP1522HZ-N-K9 receive power?

Accepted Answer

The access point is powered via IEEE 802.3af Power over Ethernet (PoE), eliminating the need for separate power runs and simplifying installations.

Question 5

Does the AIR-LAP1522HZ-N-K9 support Cisco Mesh networking?

Accepted Answer

Yes, it supports Cisco self-forming, self-healing mesh technology to extend wireless coverage where cabling is impractical.

Question 6

What security features are available on this outdoor AP?

Accepted Answer

Security includes WPA2/WPA3 encryption, 802.1X authentication, rogue AP detection, wireless intrusion prevention system (wIPS) and secure management protocols.

Question 7

How is the AIR-LAP1522HZ-N-K9 managed and configured?

Accepted Answer

Manage and configure this AP centrally with Cisco Wireless LAN Controller (WLC) or Cisco Prime Infrastructure for policy, RF optimization and monitoring.

Question 8

What mounting options are available for installation?

Accepted Answer

The unit ships with a universal pole mount and wall-mount bracket designed for quick attachment to pipes, poles or flat surfaces.

Question 9

What operating temperature range does this AP support?

Accepted Answer

It operates reliably in temperatures from –40 °C to 60 °C (–40 °F to 140 °F), suitable for extreme outdoor conditions.

Question 10

Which regulatory approvals and certifications does the AIR-LAP1522HZ-N-K9 hold?

Accepted Answer

The device is UL listed, CE marked, FCC part 15 certified, and meets ATEX and IECEx standards for hazardous location equipment.

Question 11

What are the physical dimensions and weight of this access point?

Accepted Answer

The AP measures 330 mm × 200 mm × 100 mm (13 × 7.9 × 3.9 inches) and weighs 2.3 kg (5.1 lbs), compact for outdoor mounting.

Question 12

How does the AIR-LAP1522HZ-N-K9 handle firmware updates?

Accepted Answer

Firmware updates are automated via the Cisco WLC with staged rollouts, ensuring minimal downtime and secure patch management.

Question 13

What warranty and support options are available?

Accepted Answer

Cisco offers a limited lifetime warranty for the hardware and optional SMARTnet support for 24/7 technical assistance and advanced replacement.

Question 14

Is the AIR-LAP1522HZ-N-K9 compatible with existing Cisco Catalyst networks?

Accepted Answer

Yes, it integrates seamlessly with Cisco Catalyst and Aironet series infrastructure, ensuring consistent policy enforcement and roaming.

Question 15

What power budget should I plan for PoE deployments?

Accepted Answer

Allocate at least 15.4 W of PoE per AP to account for peak transmit power, mesh and radio operations under full load.

Question 16

Where can I purchase the Cisco AIR-LAP1522HZ-N-K9?

Accepted Answer

The AIR-LAP1522HZ-N-K9 is available through authorized Cisco channel partners and distributors. Contact your local reseller for pricing and stock availability.

	AIR-LAP1522HZ-N-K9	AIR-LAP1524SB-A-K9	AIR-LAP1522HZ-E-K9	AIR-LAP1522AG-N-K9	AIR-LAP1524PS-A-K9
Product Type	Wireless Access Point	Wireless Product	Wireless Product	Wireless Access Point	Wireless Access Point
Wireless Type	Access Point	Access Point	Access Point	Access Point	Access Point
Wi-Fi Standard	Wi-Fi 5	Wi-Fi 5	802.11a/b/g/n	802.11a/b/g/n	802.11a/b/g/n
Frequency Bands	2.4GHz / 5GHz	2.4GHz / 5GHz	2.4GHz / 5GHz	2.4GHz / 5GHz	Dual-Band (2.4GHz/5GHz)
Data Rate	1.3Gbps	1.3Gbps	300Mbps	300Mbps per radio	Up to 300Mbps per radio (aggregate up to 600Mbps)
Max Range	N/A	N/A	100 meters	N/A	N/A
Coverage Area	N/A	N/A	N/A	N/A	N/A
Connector Type	RJ-45	RJ-45	RJ-45	RJ-45	RJ-45
Antenna Type	Omnidirectional	Omnidirectional	Omnidirectional	Omnidirectional	Internal Omni-directional
Antenna Gain	N/A	5dBi	N/A	3dBi	N/A
MIMO Technology	MU-MIMO	MU-MIMO	SU-MIMO	SU-MIMO	SU-MIMO
Beamforming	Yes	Yes	Yes	Yes	No
Mounting Options	Ceiling Mount / Wall Mount	Ceiling Mount / Wall Mount	Ceiling Mount / Wall Mount	Ceiling Mount / Wall Mount	Ceiling Mount / Wall Mount
Power Supply	PoE	PoE	PoE	PoE	PoE
Mesh Networking	No	No	No	No	No
Ethernet Port	1x Gigabit	1x Gigabit	1x Gigabit	1x Gigabit	1x Gigabit
Max Number of Devices Supported	N/A	N/A	N/A	N/A	N/A
Protocols Supported	802.11a/b/g/n/ac	802.11a/b/g/n/ac	802.11a/b/g/n	802.11a/b/g/n	802.11a/b/g/n, Ethernet
Management Features	Cloud Management / On-Premises	On-Premises	On-Premises	Cloud Management / On-Premises / SNMP	On-Premises, SNMP
Security Features	WPA2 / WPA3 / 802.1X	WPA2 / WPA3	WPA2 / WPA3 / 802.1X	WPA2 / WPA3 / 802.1X	WPA2, 802.1X
Compliance	FCC / CE / RoHS	FCC / CE / RoHS	FCC / CE / RoHS	FCC / CE / RoHS	FCC, CE, RoHS
Processor	N/A	N/A	N/A	N/A	N/A
Memory	N/A	N/A	N/A	N/A	N/A
Outdoor Use	No	No	No	No	No
Product Name	AIR-LAP1522HZ-N-K9	AIR-LAP1524SB-A-K9	AIR-LAP1522HZ-E-K9	Cisco Aironet 1522AG Wireless Access Point	Cisco Aironet 1524 Wireless Access Point
Height	N/A	N/A	2.2 inches	N/A	N/A
Width	N/A	N/A	8.5 inches	N/A	N/A
Depth	N/A	N/A	11.4 inches	N/A	N/A
Weight	N/A	N/A	2.0 lbs	N/A	N/A
