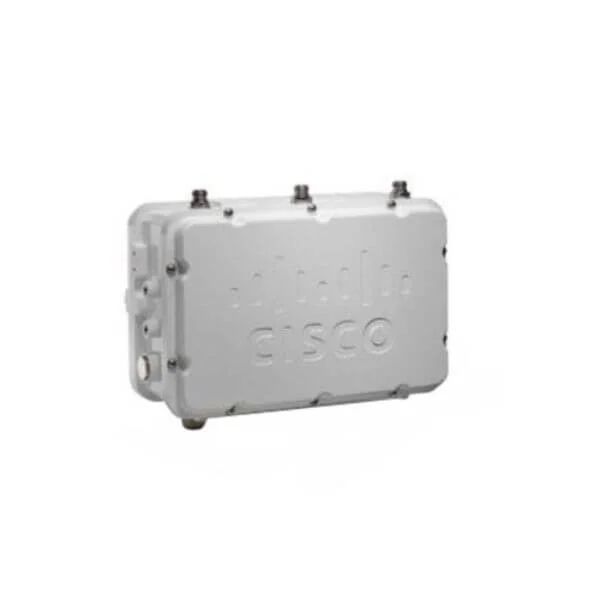

Name: 1524 Mesh AP, Dual Serial Backhaul, 2.4 Access, -M Cfg 1520 Series Mesh Access Points
Brand: Cisco
SKU: AIR-LAP1524SB-M-K9
Price: 2655.00 USD
Availability: InStock

Question 1

What is the Cisco AIR-LAP1524SB-M-K9?

Accepted Answer

The Cisco AIR-LAP1524SB-M-K9 is a 1524 Series mesh access point providing dedicated 2.4 GHz client access and dual serial backhaul for scalable outdoor wireless mesh networks.

Question 2

What are the key features of the 1524 Mesh AP?

Accepted Answer

Key features include dual serial backhaul radios for self-healing mesh, a 2.4 GHz access radio with 802.11n rates up to 300 Mbps, integrated antenna, and PoE support.

Question 3

What is dual serial backhaul on this Mesh AP?

Accepted Answer

Dual serial backhaul uses two independent radios to create redundant mesh links, enhancing network reliability and automatic failover in outdoor deployments.

Question 4

Which frequency band does the AIR-LAP1524SB-M-K9 support?

Accepted Answer

The AIR-LAP1524SB-M-K9 supports the 2.4 GHz band for client access and uses two separate backhaul radios operating in 2.4 GHz or 5 GHz as configured.

Question 5

How many client devices can the 1524 Mesh AP support?

Accepted Answer

The 1524 Mesh AP can handle up to 100 concurrent client associations per access radio, depending on network conditions and traffic profiles.

Question 6

What is the maximum data rate of the AIR-LAP1524SB-M-K9?

Accepted Answer

On the 2.4 GHz access radio, the AIR-LAP1524SB-M-K9 delivers up to 300 Mbps physical layer rate with 802.11n MIMO support.

Question 7

Is the AIR-LAP1524SB-M-K9 compatible with Cisco Unified Wireless LAN Controller?

Accepted Answer

Yes, it fully integrates with Cisco Unified Wireless LAN Controllers running AireOS, enabling centralized policy, RF management, and seamless roaming.

Question 8

How is the 1524 Series Mesh AP managed?

Accepted Answer

Management is handled via Cisco Wireless LAN Controller GUI/CLI or Cisco Prime Infrastructure for firmware updates, monitoring, and configuration.

Question 9

What security features does this Mesh AP support?

Accepted Answer

It supports IEEE 802.1X authentication, WPA2 with AES encryption, WPA TKIP, rogue detection, and secure mesh links using CAPWAP.

Question 10

What power options are available for the AIR-LAP1524SB-M-K9?

Accepted Answer

The device supports IEEE 802.3af PoE and a 12 VDC power input, simplifying installation in outdoor environments.

Question 11

What are the physical dimensions and weight?

Accepted Answer

The unit measures 200 mm x 200 mm x 43 mm (7.9” x 7.9” x 1.7”) and weighs approximately 0.55 kg (1.2 lbs).

Question 12

What environmental specifications does the Mesh AP meet?

Accepted Answer

It operates in temperatures from 0 °C to 40 °C, humidity up to 95% non-condensing, and complies with FCC, CE, IC, RCM, and ETSI standards.

Question 13

How do I upgrade the firmware on the AIR-LAP1524SB-M-K9?

Accepted Answer

Use your Cisco Wireless LAN Controller or Cisco Prime Infrastructure to upload and install the latest AireOS image via the built-in firmware management interface.

Question 14

What warranty and support options are available?

Accepted Answer

Cisco offers a limited lifetime hardware warranty with next-business-day replacement; extended support is available via Cisco SMARTnet contracts.

Question 15

What antenna options are supported on this AP?

Accepted Answer

It features an integrated dual-element patch antenna (2 dBi gain) and two RP-TNC connectors for optional external antennas.

Question 16

Which deployment scenarios are recommended for the 1524 Mesh AP?

Accepted Answer

Ideal for outdoor campus, smart city, municipal mesh, and retail canopy deployments requiring resilient wireless backhaul and scalable coverage.

	AIR-LAP1524SB-M-K9	AIR-LAP1522HZ-A-K9	AIR-LAP1522HZ-E-K9	AIR-LAP1522AG-A-K9	AIR-LAP1522AG-E-K9
Product Type	Wireless Access Point	Wireless Access Point	Wireless Product	Wireless Access Point	Wireless Access Point
Wireless Type	Access Point	Access Point	Access Point	Access Point	Access Point
Wi-Fi Standard	802.11ac (Wi-Fi 5)	802.11a/b/g/n	802.11a/b/g/n	802.11a/b/g/n	802.11a/b/g/n
Frequency Bands	2.4GHz / 5GHz	2.4GHz, 5GHz	2.4GHz / 5GHz	2.4GHz / 5GHz	2.4GHz / 5GHz
Data Rate	1.3Gbps	Up to 450 Mbps	300Mbps	300Mbps	1Gbps
Max Range	50 meters	N/A	100 meters	N/A	N/A
Coverage Area	Up to 2,000 square feet	N/A	N/A	N/A	N/A
Connector Type	RJ-45	RJ-45	RJ-45	RJ-45	RJ-45
Antenna Type	Internal Omnidirectional	Internal, Omnidirectional	Omnidirectional	Internal Omnidirectional	Omnidirectional
Antenna Gain	N/A	N/A	N/A	N/A	3dBi
MIMO Technology	MU-MIMO	N/A	SU-MIMO	SU-MIMO	SU-MIMO
Beamforming	Yes	No	Yes	No	Yes
Mounting Options	Ceiling Mount / Wall Mount	Ceiling Mount, Wall Mount	Ceiling Mount / Wall Mount	Ceiling Mount / Wall Mount	Ceiling Mount
Power Supply	PoE	PoE	PoE	PoE	PoE
Mesh Networking	No	No	No	No	No
Ethernet Port	1x Gigabit	1x Gigabit	1x Gigabit	1x Gigabit	1x Gigabit
Max Number of Devices Supported	N/A	N/A	N/A	N/A	N/A
Protocols Supported	802.11a/b/g/n/ac	802.11a/b/g/n, Ethernet	802.11a/b/g/n	802.11a/b/g/n, Ethernet	802.11a/b/g/n
Management Features	On-Premises (Cisco Mobility Express)	Cloud Management, SNMP	On-Premises	On-Premises	On-Premises
Security Features	WPA2 / WPA3 / 802.1X	WPA2, 802.1X	WPA2 / WPA3 / 802.1X	WPA2, 802.1X	WPA2, 802.1X
Compliance	FCC / CE / RoHS	FCC, CE, RoHS	FCC / CE / RoHS	FCC, CE, RoHS	FCC / CE / RoHS
Processor	N/A	N/A	N/A	N/A	N/A
Memory	N/A	N/A	N/A	N/A	N/A
Outdoor Use	No	No	No	No	No
Product Name	Cisco Aironet 1524 Series Access Point	AIR-LAP1522HZ-A-K9	AIR-LAP1522HZ-E-K9	AIR-LAP1522AG-A-K9	Cisco AIR-LAP1522AG-E-K9 Wireless Access Point
Height	N/A	N/A	2.2 inches	N/A	N/A
Width	N/A	N/A	8.5 inches	N/A	N/A
Depth	N/A	N/A	11.4 inches	N/A	N/A
Weight	N/A	N/A	2.0 lbs	N/A	N/A
