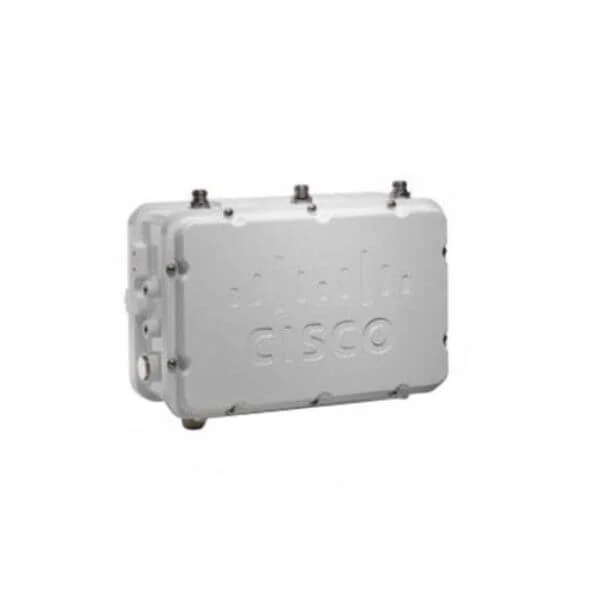

Name: 1524 Mesh AP, Dual Serial Backhaul, 2.4 Access, -C Cfg 1520 Series Mesh Access Points
Brand: Cisco
SKU: AIR-LAP1524SB-C-K9
Price: 2655.00 USD
Availability: InStock

Question 1

What is the Cisco AIR-LAP1524SB-C-K9 Mesh Access Point?

Accepted Answer

The Cisco AIR-LAP1524SB-C-K9 is a 2.4 GHz mesh access point in the 1520 Series offering dual-serial backhaul, centralized management via Cisco Wireless LAN Controller, and secure enterprise-grade connectivity.

Question 2

What are the key features of the AIR-LAP1524SB-C-K9?

Accepted Answer

Key features include dual-serial backhaul for high-availability links, 2.4 GHz access, CAPWAP support, lightweight AP mode, PoE powering, and compatibility with Cisco 1520 Series antennas.

Question 3

How does dual-serial backhaul improve network resilience?

Accepted Answer

Dual-serial backhaul provides two independent mesh links, ensuring automatic failover and uninterrupted wireless connectivity in case a primary backhaul path fails.

Question 4

What coverage can I expect from the 1524 Mesh AP?

Accepted Answer

Typical indoor coverage reaches up to 100 meters, depending on antenna choice and environmental factors; outdoor range extends to 300 meters with high-gain directional antennas.

Question 5

Which frequency bands does this mesh AP support?

Accepted Answer

The AIR-LAP1524SB-C-K9 supports the 2.4 GHz ISM band, providing IEEE 802.11b/g/n connectivity for client access and mesh backhaul.

Question 6

How do I configure the AIR-LAP1524SB-C-K9 Mesh AP?

Accepted Answer

After powering via PoE, join it to a Cisco Wireless LAN Controller and use the controller GUI or CLI to assign SSIDs, security profiles, and mesh parameters.

Question 7

Is the AIR-LAP1524SB-C-K9 compatible with Cisco Wireless LAN Controllers?

Accepted Answer

Yes, it is fully compatible with Cisco 5500, 2500 and 5508 Series Wireless LAN Controllers using CAPWAP for centralized management.

Question 8

Does this AP support CAPWAP tunneling?

Accepted Answer

Yes, the AIR-LAP1524SB-C-K9 uses CAPWAP to tunnel user traffic to the controller, ensuring secure and manageable wireless deployment.

Question 9

What power options are available for the 1524 Mesh AP?

Accepted Answer

The AP supports 802.3af PoE powering from Cisco Catalyst switches or third-party PoE injectors, eliminating the need for external power supplies.

Question 10

How does the AIR-LAP1524SB-C-K9 secure wireless traffic?

Accepted Answer

It supports WPA2/WPA3 encryption, 802.1X authentication, rogue AP detection, and firewall filtering under controller-enforced security policies.

Question 11

How many clients can this access point support?

Accepted Answer

The AIR-LAP1524SB-C-K9 can support up to 200 active clients, depending on traffic mix and controller resource allocation.

Question 12

Which antennas are compatible with the 1524 Mesh AP?

Accepted Answer

It supports Cisco 1520 Series omnidirectional and directional mesh antennas (e.g., AIR-ANT2412V-N or AIR-ANT2524DW-R) for flexible deployment.

Question 13

Can the AIR-LAP1524SB-C-K9 operate as a repeater?

Accepted Answer

Yes, in mesh mode it can extend network coverage by relaying traffic between other mesh nodes and the controller without wired backhaul.

Question 14

How do I upgrade the firmware on the 1524 Mesh AP?

Accepted Answer

Use the Wireless LAN Controller’s firmware management interface to upload and schedule the latest Cisco IOS code for automated AP upgrades.

Question 15

What mounting options are available for this mesh AP?

Accepted Answer

The unit includes bracket and pole-mount kits for wall, ceiling, or outdoor pole installations with weather-rated housing.

Question 16

Does the AIR-LAP1524SB-C-K9 require additional licensing?

Accepted Answer

It requires a valid Wireless LAN Controller access point license (Advanced or Mobility) but no extra license for mesh functionality.

	AIR-LAP1524SB-C-K9	AIR-LAP1522CV-A-K9	AIR-LAP1522AG-M-K9	AIR-LAP1522AG-C-K9	AIR-LAP1522AG-S-K9
Product Type	Wireless Access Point	Wireless Access Point	Wireless Product	Wireless Product	Wireless Access Point
Wireless Type	Access Point	Access Point	Access Point	Access Point	Access Point
Wi-Fi Standard	802.11a/b/g/n	Wi‑Fi 5	Wi-Fi 5 (802.11ac)	Wi-Fi 5 (802.11ac)	802.11a/b/g/n/ac
Frequency Bands	2.4GHz / 5GHz	2.4GHz / 5GHz	2.4GHz, 5GHz	2.4GHz / 5GHz	2.4GHz / 5GHz
Data Rate	300Mbps	1.3Gbps	1.3Gbps	Up to 1Gbps	Up to 1.3Gbps
Max Range	N/A	200 feet	N/A	N/A	N/A
Coverage Area	N/A	N/A	N/A	N/A	N/A
Connector Type	RJ-45	RJ‑45	RJ-45	RJ-45	RJ-45
Antenna Type	Internal Omnidirectional	Omnidirectional	Internal Omni-directional	Omnidirectional	Omnidirectional
Antenna Gain	N/A	N/A	N/A	N/A	N/A
MIMO Technology	SU-MIMO	MU‑MIMO	MU-MIMO	MU-MIMO	MU-MIMO
Beamforming	Yes	Yes	Yes	Yes	Yes
Mounting Options	Ceiling Mount / Wall Mount	Ceiling Mount / Wall Mount	Ceiling Mount, Wall Mount	Ceiling Mount / Wall Mount	Ceiling Mount / Wall Mount
Power Supply	PoE	PoE	PoE	PoE	PoE
Mesh Networking	No	No	No	No	Yes
Ethernet Port	1x Gigabit	1x Gigabit	1x Gigabit	1x Gigabit	1x Gigabit
Max Number of Devices Supported	N/A	N/A	N/A	N/A	N/A
Protocols Supported	802.11a/b/g/n / Ethernet	802.11a/b/g/n/ac	802.11a/b/g/n/ac	802.11a/b/g/n/ac	802.11a/b/g/n/ac
Management Features	Cisco CleanAir / On-Premises Controller	Cloud Management / SNMP / On‑Premises	Cloud Management, SNMP	Cloud Management / On-Premises	Cloud Management / On-Premises
Security Features	WPA2 / 802.1X	WPA2 / WPA3 / 802.1X	WPA2, WPA3, 802.1X	WPA2 / WPA3 / 802.1X	WPA2 / WPA3 / 802.1X
Compliance	FCC / CE / RoHS	FCC / CE / RoHS	FCC, CE, RoHS	FCC / CE / RoHS	FCC / CE / RoHS
Processor	N/A	N/A	N/A	N/A	N/A
Memory	N/A	N/A	N/A	N/A	N/A
Outdoor Use	No	No	No	No	No
Product Name	Cisco AIR-LAP1524SB-C-K9	AIR-LAP1522CV-A-K9	AIR-LAP1522AG-M-K9	AIR-LAP1522AG-C-K9	AIR-LAP1522AG-S-K9
Height	N/A	N/A	N/A	N/A	N/A
Width	N/A	N/A	N/A	N/A	N/A
Depth	N/A	N/A	N/A	N/A	N/A
Weight	N/A	N/A	N/A	N/A	N/A
