Is the AJ718A hot-pluggable?

Yes. The AJ718A SFP+ module is hot-pluggable, allowing installation or removal without powering down the host system.

Which HP switches and servers are compatible with AJ718A?

The AJ718A is certified for HP BladeSystem, ProLiant servers and HPE Fibre Channel switches such as the SN6000 and SN8000 series.

Can I use AJ718A with non-HP Fibre Channel equipment?

Yes. While optimized for HP SAN products, the AJ718A is interoperable with any FC-compliant SFP+ port that supports 8 Gb/s short-wave modules.

Does the AJ718A support Digital Optical Monitoring (DOM)?

Yes. The AJ718A includes DOM functionality for real-time monitoring of optical output, temperature, voltage and module current.

What form factor does the AJ718A use?

The transceiver uses the standard small form-factor pluggable plus (SFP+) footprint for 8 Gb/s Fibre Channel ports.

Which protocol does the AJ718A support?

The AJ718A is compliant with the Fibre Channel standard (ANSI INCITS 404-2005) and supports FC-PI and FC-PI-2 layers.

Is the AJ718A backward compatible with 4 Gb/s or 2 Gb/s links?

Yes. The module automatically negotiates down to 4 Gb/s or 2 Gb/s operation on FC switches that support lower speeds.

How is the AJ718A packaged?

Each AJ718A unit ships in individual ESD-safe packaging with an HP label, static shield bag and dust caps installed.

What warranty covers the AJ718A?

HP provides a one-year limited warranty for the AJ718A, covering defects in materials and workmanship under normal use.

How do I install the AJ718A in my host system?

Align the module’s notch with the SFP+ port, gently slide it in until it clicks, then connect the LC fiber cable and verify link lights.

How can I verify the AJ718A is functioning correctly?

Check the SFP+ port’s link/activity LED and use host Fibre Channel utilities to confirm link up at 8 Gb/s and monitor DOM parameters.

What troubleshooting steps resolve common AJ718A issues?

Verify correct fiber type and polarity, clean LC connectors, ensure SFP+ port settings match 8 Gb/s FC mode, and check DOM status via management tools.

FEATURED DEAL

Name:

AJ718A

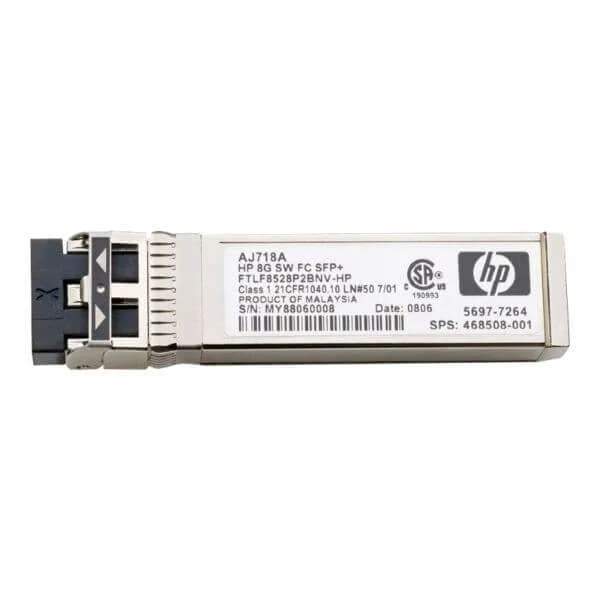

Name: HP 8Gb Short Wave FC SFP+ 1 Pack
Brand: Hpe
SKU: AJ718A
Price: 100.00 USD
Availability: InStock
Rating: 4.2 (5 reviews)

Description:: HP 8Gb Short Wave FC SFP+ 1 Pack
Rating:: 4.2(5)
Added to cart 28 times recently
Availability:: In stock - Ready to Ship
Brand:: Hpe
Condition:
Warranty:: 3
List Price:: $180.00
Price:: $100.0044.4% off

Quantity:

Business price:

Enroll your business for free

3 Year Extended Warranty

Same-day Shipping

14-Day Money Back Guarantee

Shipping:

Payment:

3 Year Extended Warranty

Same-day Shipping

14-Day Money Back Guarantee

Need Additional Discount on Product?

Request a quote below - Get Exclusive Pricing and Support.

Shipping:

Payment:

AJ718A

HP 8Gb Short Wave FC SFP+ 1 Pack

$180.00 $100.0044.4% off

11 in Global Warehouse Global

TRUSTED, TRIED, PROVEN

$5,000,000+

Inventory Delivered By

Officially Accredited

& Verified By

Next-Gen IT

Solutions Powered By

AJ718A Overview

AJ718A is a high-performance SFP+ optical transceiver designed for 10G Ethernet applications. It features LC connectors and supports short-range transmission over multi-mode fiber, making it a reliable solution for data centers, enterprise networks, and telecom environments. The transceiver adheres to industry standards in terms of form factor and physical dimensions, ensuring seamless integration with a range of network devices.

AJ718A is engineered to deliver optimal performance with support for fiber networking protocols and robust compatibility with major equipment vendors such as Cisco, Juniper, Huawei, and Arista. With its compact SFP+ form factor, precise dimensions, and low power consumption, this transceiver meets the stringent demands of modern high-speed optical communication systems.

AJ718A price is $100.00, a 44.4% saving from the Hpe list price of $180.00. AJ718A is in stock and available for next-day dispatch. (terms applied)

Request bulk order quote for AJ718A for additional pricing. Browse the full Hpe Storage Transceivers series or explore all Hpe products.

AJ718A Specifications

Product Type: Transceiver
Form Factor: SFP+
Data Rate: 10G
Connector Type: LC
Wavelength: 850 nm
Transmission Distance: Short-Range
Fiber Type: Multi-mode
Max Distance: 300 meters
Supported Protocols: 10G Ethernet
Network Interface: Fiber
Power Consumption: 3.5W
Operating Temperature: 0 to 70°C
Storage Temperature: -40 to 85°C
Input Voltage: 3.3V
Compatibility: Cisco / Juniper / Huawei / Arista
Product Name: AJ718A 10G SFP+ Optical Transceiver
Height: 0.57 inches
Width: 2.22 inches
Depth: 0.33 inches
Weight: 0.04 lbs

AJ718A Use Case

Scalable SAN Expansion with AJ718A-HP 8Gb Short Wave FC SFP+ in Enterprise Data Centers

In a multi-rack enterprise data center, IT architects deploy the AJ718A-HP 8Gb Short Wave FC SFP+ 1 Pack in HPE Fibre Channel switches to seamlessly expand SAN connectivity over OM3 multimode fiber. This solution delivers 8Gbps throughput with sub-2µs latency and high port density, reducing deployment complexity and cabling costs while enabling future growth.

High-Performance VMware vSphere Storage Connectivity with AJ718A-HP 8Gb FC SFP+

Virtualization teams integrate the AJ718A-HP 8Gb Short Wave FC SFP+ 1 Pack into HPE ProLiant server FC ports to connect VMware ESXi hosts to 3PAR storage arrays over short-wave multimode fiber. This setup ensures consistent 8Gbps bandwidth, minimizes I/O bottlenecks for vMotion and backups, and enhances VM performance and SLA compliance.

Synchronous Disaster Recovery Replication with AJ718A-HP 8Gb FC SFP+

Disaster recovery architects leverage the AJ718A-HP 8Gb Short Wave FC SFP+ 1 Pack to link primary storage arrays with remote recovery sites via OM4 multimode fiber. The ultra-low latency and reliable 8Gbps links facilitate real-time synchronous replication with near-zero RPO/RTO, ensuring business continuity and regulatory compliance.

Quality Certifications

To get the detailed certification, please go to the Compliance Center.

Product Comparison Table

	AJ718A	841716-B21	C8S75B	813874-B21	C8R23B
Product Type	Transceiver	Transceiver	Transceiver	Transceiver	Transceiver
Form Factor	SFP+	SFP+	SFP+	SFP+	SFP
Data Rate	10G	10G	10G	10G	10G
Connector Type	LC	LC	LC	LC	LC
Wavelength	850 nm	850 nm	850nm	850 nm	850nm
Transmission Distance	Short-Range	Short-Range	Short-Range	Short-Range	Short-Range
Fiber Type	Multi-mode	Multi-mode	Multi-mode	Multi-mode	Multi-mode
Max Distance	300 meters	300 meters	300m	300 meters	300 meters
Supported Protocols	10G Ethernet	Ethernet	Ethernet	Ethernet	Ethernet
Network Interface	Fiber	Fiber	Fiber	Fiber	Fiber
Power Consumption	3.5W	N/A	3.5W	2.5W	2.5W
Operating Temperature	0 to 70°C	0 to 70°C	0 to 70°C	0 to 70°C	0 to 70°C
Storage Temperature	-40 to 85°C	-40 to 85°C	-40 to 85°C	-40 to 85°C	-40 to 85°C
Input Voltage	3.3V	3.3V	3.3V	3.3V	3.3V
Compatibility	Cisco / Juniper / Huawei / Arista	Cisco / Juniper / Huawei / Arista	Cisco / Juniper / Huawei / Arista	Cisco / Juniper / Huawei / Arista	Cisco / Juniper / Huawei / Arista
Product Name	AJ718A 10G SFP+ Optical Transceiver	841716-B21 10GBASE-SR SFP+ Transceiver	C8S75B 10G SFP+ Multi-mode Transceiver	813874-B21 10G SFP+ Multi-Mode Fiber Transceiver	C8R23B 10G SFP Transceiver Module
Height	0.57 inches	N/A	0.33 inches	0.32 inches	0.28 inches
Width	2.22 inches	N/A	3.26 inches	0.87 inches	0.98 inches
Depth	0.33 inches	N/A	1.18 inches	1.48 inches	1.03 inches
Weight	0.04 lbs	N/A	0.10 lbs	0.09 lbs	0.1 lbs

Reviews & Ratings

Oliver Grant

8Gb FC SFP provided stable SAN connectivity.

Kashif Mehmood

Low error rates observed.

Uwe Brandt

Recognized immediately.

Juho Kallio

Reliable performance.

Sam Walker

Satisfied.

Questions & Answers

What is the HP 8Gb Short Wave FC SFP+ (AJ718A)?

The AJ718A is a hot-pluggable Fibre Channel SFP+ transceiver module from HP that delivers 8 Gb/s data transfer over short-wave optical fiber.

What data transfer rate does the AJ718A support?

The AJ718A supports a standardized Fibre Channel data rate of 8 Gb/s (up to 10 Gb/s signal rate) for high-performance SAN connectivity.

Which fiber cable type does the AJ718A require?

The module uses 50 µm multimode fiber with LC connectors and is optimized for short-wave (850 nm) transmission.

What is the maximum cable distance for AJ718A?

Using OM3 multimode fiber, the AJ718A supports reliable links up to 150 meters at 8 Gb/s.

Related Searches Hpe Storage Transceivers

AJ715A C8R23B AW538A AJ717A 330-2317-C AJ906A AJ716B AJ718A-C

AJ718A Overview

AJ718A price is $100.00, a 44.4% saving from the Hpe list price of $180.00. AJ718A is in stock and available for next-day dispatch. (terms applied)

Request bulk order quote for AJ718A for additional pricing. Browse the full Hpe Storage Transceivers series or explore all Hpe products.

AJ718A Specifications

Product Type

Transceiver

Form Factor

SFP+

Data Rate

10G

Connector Type

Wavelength

850 nm

Transmission Distance

Short-Range

Fiber Type

Multi-mode

Max Distance

300 meters

Supported Protocols

10G Ethernet

Network Interface

Fiber

Power Consumption

3.5W

Operating Temperature

0 to 70°C

Storage Temperature

-40 to 85°C

Input Voltage

3.3V

Compatibility

Cisco / Juniper / Huawei / Arista

Product Name

AJ718A 10G SFP+ Optical Transceiver

Height

0.57 inches

Width

2.22 inches

Depth

0.33 inches

Weight

0.04 lbs
