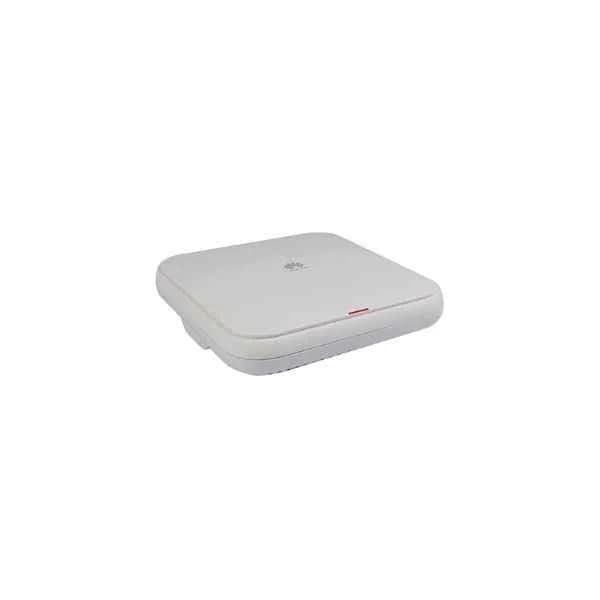

AP7052DN

AP7052DN Specification

Dimensions (H x W x D)

52 mm x 220 mm x 220 mm

Weight

1.68 kg

Interface type

1 x 10/100/1000M self-adaptive Ethernet interface (RJ45)

1 x 100/1000M/2.5G/5G self-adaptive Ethernet interface (RJ45)

1 x Management console port (RJ45)

1 x USB interface

IoT slot

One slot, supporting extension using ZigBee and RFID modules

Built-in Bluetooth

BLE4.1

LED indicator

Indicates the power-on, startup, running, alarm, and fault status of the system.

Power input

DC: 42.5 V to 57 V

PoE power supply: in compliance with IEEE 802.3at/bt; dual PoE power supply.

Maximum power consumption

DC/802.3bt power supply: 33 W (Excluding the output power of the USB port)

802.3at power supply: 25.5 W (The USB function and the 5 Gbit/s mode of network ports are unavailable. The IoT card power is lower than 0.5 W.)

NOTE

The actual maximum power consumption depends on local laws and regulations.

In 802.3at power supply mode, radio power is managed in self-adaptive mode.

Operating temperature

€“10°C to +50°C

Storage temperature

€“40°C to +70°C

Operating humidity

5% to 95% (non-condensing)

Dustproof and waterproof grade

IP41

Altitude

€“60 m to +5000 m

Atmospheric pressure

53 kPa to 106 kPa

Antenna type

built-in dual-band omnidirectional antennas

Antenna gain

2.4G / 5G (switchable): 2 dBi/ 2.8 dBi

5G (non-switchable): 2.8 dBi

Maximum number of SSIDs for each radio

‰¤ 16

Maximum number of users

‰¤ 512

NOTE

The actual number of users varies according to the environment.

Maximum transmitpower

2.4G /5G (switchable): 26 dBm/21 dBm (combined power)

5G (non-switchable): 24 dBm (combined power)

NOTE

The actual transmit power depends on local laws and regulations.

Power increment

1 dBm

Receiver sensitivity

2.4 GHz 802.11b : €“104 dBm @ 1 Mbit/s; €“95 dBm@ 11 Mbit/s

2.4 GHz 802.11g: -96 dBm @ 6 Mbit/s; -77 dBm @ 54 Mbit/s

2.4 GHz 802.11n (HT20): -95 dBm @ MCS0; -75 dBm @ MCS31

2.4 GHz 802.11n(HT40): -92 dBm @ MCS0; -73 dBm @ MCS31

5 GHz 802.11a : -95 dBm @ 6 Mbit/s; -79 dBm @ 54 Mbit/s

5 GHz 802.11n (HT20): -94 dBm @ MCS0; -74 dBm @ MCS31

5 GHz 802.11n (HT40): -93 dBm @ MCS0; -71 dBm @ MCS31

5 GHz 802.11ac (VHT20): -94 dBm @ MCS0NSS1; -70 dBm @ MCS8NSS4

5 GHz 802.11ac (VHT40): -91 dBm @ MCS0NSS1; -67 dBm @ MCS9NSS4

5 GHz 802.11ac (VHT80): -88 dBm @ MCS0NSS1; -62 dBm @ MCS9NSS4

5 GHz 802.11ac (VHT160): -85 dBm @ MCS0NSS1; -62 dBm @ MCS9NSS2

Safety standards

UL 60950-1

CAN/CSA 22.2 No.60950-1

IEC 60950-1

EN 60950-1

GB 4943

Radio standards

ETSI EN 300 328

ETSI EN 301 893

RSS-210

AS/NZS 4268

EMC standards

EN 301 489€“1

EN 301 489€“17

ETSI EN 60601-1-2

FCC Part 15

ICES-300

YD/T 1312.2-2004

ITU k.20

GB 9254

GB 17625.1

AS/NZS CISPR2

EN 55022

EN 55024

CISPR 22

CISPR 24

IEC61000-4-6

IEC61000-4-2

IEEE standards

IEEE 802.11a/b/g

IEEE 802.11n

IEEE 802.11ac

IEEE 802.11h

IEEE 802.11d

IEEE 802.11e

IEEE 802.11k

IEEE 802.11u

IEEE 802.11v

IEEE 802.11w

IEEE 802.11r

Security standards

802.11i, Wi-Fi Protected Access 2(WPA2), WPA

802.1X

Advanced Encryption Standards(AES), Temporal Key Integrity Protocol(TKIP)

EAP Type(s)

EMF

CENELEC EN 62311

CENELEC EN 50385

OET65

RSS-102

FCC Part1&2

FCC KDB series

RoHS

Directive 2002/95/EC & 2011/65/EU

REACH

Regulation 1907/2006/EC

WEEE

Directive 2002/96/EC & 2012/19/EU
