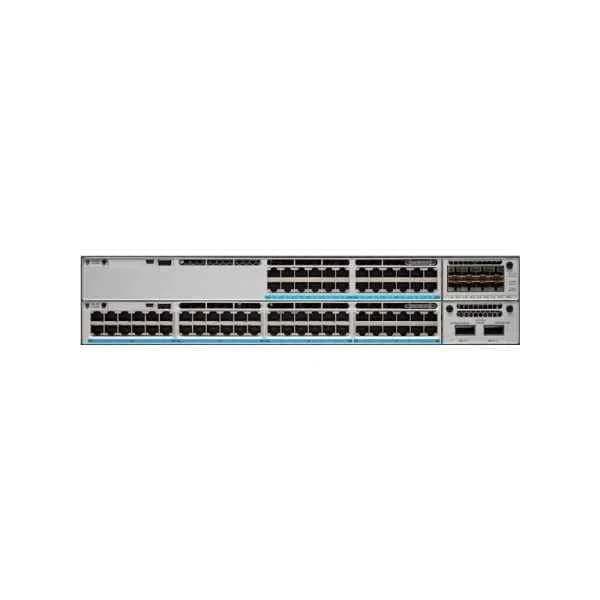

Name: C9300L-24UXG4X-10E
Brand: Cisco
Price: 5257.00 USD
Availability: InStock

Overview Of C9300L-24UXG4X-10E

Cisco Catalyst Switch C9300L-24UXG4X-10E is the most stackable switch for security, IoT, mobility, and cloud and serves as the building block for Cisco's premier corporate architecture, Software-Defined Access. The Cisco Catalyst C9300L-24UXG4X-10E Switch provides 24 x 10/100/1000 PoE+ 8xmGig Multi Gigabit copper ports with a default 1100W AC power supply, 272 switching capability, and 592 with stacking, along with 4 x 10G fixed uplink configurations. It has an optimised platform with improved architecture and enhanced memory.

Specification Of C9300L-24UXG4X-10E

C9300L-24UXG4X-10E Datasheet

Product Description	C9300L 24p PoE+ 8xmGig,Netw Ess,4x10G Uplink
FRU Power Supply	Yes
FRU Fans	Yes
Modular Uplinks	No
Stacking Bandwidth Support	320 Gbps
Cisco Stack Power	No
Catalyst 9800 Embedded WLC	Yes (50 APs)
SD-Access Support	Yes (256 Virtual Networks)
Total 10/100/1000,Multigigabit copper or SFP Fiber	24 PoE+ 8xmGig
Uplink Configuration	4x 10G fixed uplinks
Default AC power supply	1100W AC
Available PoE power	880W
Total number of MAC addresses	32,000
Total number of IPv4 routes (ARP plus learned routes)	32,000 (24,000 direct routes and 8000 indirect routes)
IPv6 routing entries	16,000
Multicast routing scale	8,000
QoS scale entries	5,120
ACL scale entries	5,120
Packet buffer per SKU	16 MB buffer for 24 and 48 port Gigabit Ethernet models
FNF entries	64,000 flow on 24- and 48-port Gigabit Ethernet models
DRAM	8 GB
Flash Memory	16 GB
VLAN IDs	4094
Total Switched Virtual Interfaces (SVIs)	1000
Jumbo frames	9198 bytes
Total routed ports per Catalyst 9300 Series stack	416
Switching capacity	272 Gbps
Switching capacity with stacking	592 Gbps
Forwarding rate	202.38 Mpps
Forwarding rate with stacking	440.47 Mpps
Mean Time Between Failures€“MTBF (hours)	332,640
Power connectors	€¢Customers can provide power to a switch by using the internal power at the back of the switch €¢Internal power supply connector The internal power supply is an auto-ranging unit. It supports input voltages between 100 (115 for 1100WAC) and 240 VAC. Use the supplied AC power cord to connect the AC power connector to an AC power outlet
