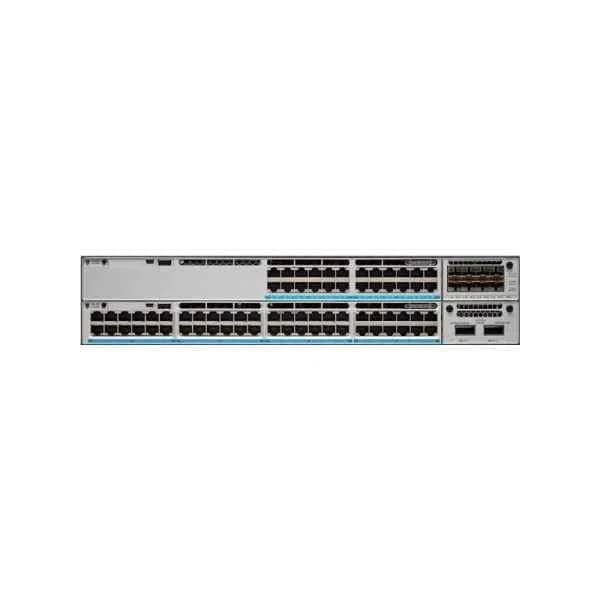

Name: C9300L-48UXG2Q-10E
Brand: Cisco
Price: 9029.00 USD
Availability: InStock

Overview Of C9300L-48UXG2Q-10E

Cisco Catalyst Switch C9300L-48UXG2Q-10E is the most stackable switch for security, IoT, mobility, and cloud. The Cisco Catalyst Switch C9300L-48UXG2Q-10E provides 48 x 10/100/1000 UPOE 12 Multigigabit (100M/1G/2.5G/5G/10G) + 36 x 10M/100M/1G Multi Gigabit copper or SFP Fiber ports, with a default 1100W AC power supply, 472 Gbps switching capability and 792 stacking, along with a 351.19 Mpps forward rate. The Cisco Switch C9300L-48UXG2Q-10E consists of 2 x 40G fixed uplink configurations and is built with advanced networking features.

Specification Of C9300L-48UXG2Q-10E

C9300L-48UXG2Q-10E Datasheet

Product Description	C9300L 48p PoE+ 12xmGig,Netw Ess,2x40G Uplink
FRU Power Supply	Yes
FRU Fans	Yes
Modular Uplinks	No
Stacking Bandwidth Support	320 Gbps
Cisco StackPower	No
Catalyst 9800 Embedded WLC	Yes (50 APs)
SD-Access Support	Yes (256 Virtual Networks)
Total 10/100/1000,Multigigabit copper or SFP Fiber	48 UPoE 12xmGig
Uplink Configuration	2x 40G fixed uplinks
Default AC power supply	1100W AC
Available PoE power	675W
Total number of MAC addresses	32,000
Total number of IPv4 routes (ARP plus learned routes)	32,000 (24,000 direct routes and 8000 indirect routes)
IPv6 routing entries	16,000
Multicast routing scale	8,000
QoS scale entries	5,120
ACL scale entries	5,120
Packet buffer per SKU	16 MB buffer for 24 and 48 port Gigabit Ethernet models
FNF entries	64,000 flow on 24- and 48-port Gigabit Ethernet models
DRAM	8 GB
Flash Memory	16 GB
VLAN IDs	4094
Total Switched Virtual Interfaces (SVIs)	1000
Jumbo frames	9198 bytes
Total routed ports per Catalyst 9300 Series stack	416
Switching capacity	472 Gbps
Switching capacity with stacking	792 Gbps
Forwarding rate	351.19 Mpps
Forwarding rate with stacking	589.28 Mpps
Mean Time Between Failures€“MTBF (hours)	275,010
Power connectors	€¢ Customers can provide power to a switch by using the internal power at the back of the switch €¢ Internal power supply connector The internal power supply is an auto-ranging unit. It supports input voltages between 100 (115 for 1100WAC) and 240 VAC. Use the supplied AC power cord to connect the AC power connector to an AC power outlet
