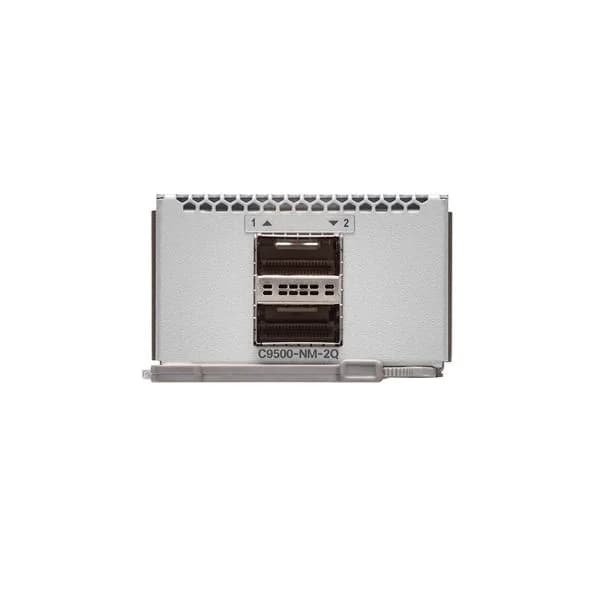

Name: Cisco Catalyst 9500 2 x 40GE Network Module
Brand: Cisco
SKU: C9500-NM-2Q
Price: 1301.00 USD
Availability: InStock
Rating: 4.2 (5 reviews)

Question 1

What is the Cisco Catalyst 9500 2 x 40GE Network Module (C9500-NM-2Q)?

Accepted Answer

The C9500-NM-2Q is a high-performance network module that provides two QSFP+ ports supporting 40 Gigabit Ethernet uplinks for Cisco Catalyst 9500 Series switches.

Question 2

Which Catalyst 9500 switch models support the C9500-NM-2Q?

Accepted Answer

The C9500-NM-2Q is compatible with all Cisco Catalyst 9500 Series switch platforms including C9500-24Q, C9500-32C, C9500-16X, and C9500-40X models.

Question 3

How many ports and what speeds does the C9500-NM-2Q offer?

Accepted Answer

This module delivers two QSFP+ ports, each supporting 40 Gbps native speed, for a total of 80 Gbps of uplink bandwidth.

Question 4

Can the 40GE QSFP+ ports be broken out to 4×10GE?

Accepted Answer

Yes, each QSFP+ port on the C9500-NM-2Q supports breakout cables to convert a single 40GE port into four independent 10GE ports.

Question 5

What transceiver modules are supported by the C9500-NM-2Q?

Accepted Answer

The module supports Cisco QSFP+ optical and copper transceivers, including SR4, LR4 and AOC/DAC cable assemblies, depending on link distance requirements.

Question 6

Is the Cisco Catalyst 9500 2 x 40GE Network Module hot-swappable?

Accepted Answer

Yes, the C9500-NM-2Q supports hot-swap capability, allowing you to replace or install the module without powering down the switch.

Question 7

Which software image is required to operate the C9500-NM-2Q?

Accepted Answer

The module requires Cisco IOS XE 16.9 or later, ensuring full feature support and optimal performance on Catalyst 9500 switches.

Question 8

What is the typical power consumption of the C9500-NM-2Q?

Accepted Answer

Under standard load, the module consumes approximately 10 Watts, subject to transceiver and breakout cable type.

Question 9

How do I install the C9500-NM-2Q in my Catalyst 9500 switch?

Accepted Answer

Power off the switch, insert the module into an available Network Module slot until it seats firmly, then power on and verify module recognition via the CLI.

Question 10

What warranty and support options are available for the C9500-NM-2Q?

Accepted Answer

Cisco provides a limited lifetime hardware warranty and offers SMARTnet support contracts for rapid replacement and 24/7 technical assistance.

Question 11

What are common use cases for the C9500-NM-2Q?

Accepted Answer

Typical use cases include high-density data center uplinks, aggregation layer connectivity, and campus core switching requiring 40GE bandwidth.

Question 12

Does the module support link aggregation (LACP)?

Accepted Answer

Yes, the C9500-NM-2Q fully supports IEEE 802.3ad link aggregation and LACP for load balancing and redundancy.

Question 13

Can I mix C9500-NM-2Q with other network modules in the same switch?

Accepted Answer

Yes, Catalyst 9500 switches support mixed modules in different slots, provided total power and thermal budgets are respected.

Question 14

What environmental specifications apply to the C9500-NM-2Q?

Accepted Answer

The module operates between 0°C to 40°C with a relative humidity of 5%–85% non-condensing and meets NEBS Level 3 standards.

Question 15

How do I verify that the C9500-NM-2Q is functioning correctly?

Accepted Answer

Use the ‘show platform software qfp active fwd-asic stats module’ command in the CLI to confirm port status, error counters, and throughput metrics.

Question 16

What licensing is required for the C9500-NM-2Q features?

Accepted Answer

Basic Layer 3 features are included; to enable advanced features like MPLS or Segment Routing, an IP Services or DNA Advantage license is required.

Question 17

Where can I purchase the Cisco Catalyst 9500 2 x 40GE Network Module?

Accepted Answer

You can buy the C9500-NM-2Q directly from Cisco’s authorized resellers, partners, or through the Cisco online store with global shipping options.

	C9500-NM-2Q	C9400-LC-48P	C9500-NM-8X=	C9300-NM-4M=	C9400-SUP-1
Product Type	Network Module	Network Module / Network Card	Network Module / Network Card	Network Module / Network Card	Supervisor Engine
Module Type	SFP+	Ethernet	Ethernet	Ethernet Module	Supervisor Card
Data Rate	40G	1Gbps	10Gbps	1Gbps	N/A
Connector Type	SFP+	RJ-45	SFP+	RJ-45	N/A
Supported Protocols	TCP/IP	TCP/IP	TCP/IP	TCP/IP	TCP/IP, OSPF, BGP, EIGRP, N/A
Form Factor	Modular	Modular	Modular	Modular	Modular
Operating Temperature	0 to 70°C	0 to 40°C	0 to 70°C	0 to 70°C	0 to 50°C
Storage Temperature	-40 to 85°C	-40 to 70°C	-40 to 85°C	-40 to 85°C	N/A
Input Voltage	N/A	N/A	N/A	N/A	N/A
Compatibility	Cisco	Cisco	Cisco Catalyst 9500 Series Switches	Cisco	Cisco Catalyst 9400 Series
Max Speed	40Gbps	1Gbps	10Gbps	1Gbps	N/A
Supported Features	Jumbo Frames / QoS	PoE, Auto-negotiation, Jumbo Frames, QoS	Auto-negotiation / Jumbo Frames / QoS	Auto-negotiation, Jumbo Frames, QoS	High Availability, Secure Boot, Advanced Layer 2/3 Functions
Power Consumption	15.6W	Up to 370W	N/A	N/A	N/A
Interface Ports	SFP+	Ethernet	SFP+	Ethernet	N/A
Expansion Slots	N/A	N/A	N/A	N/A	N/A
Product Name	Cisco Catalyst 9500 C9500-NM-2Q Network Module	Cisco Catalyst 9400 Series 48-Port PoE Line Card (C9400-LC-48P)	Cisco Catalyst 9500-NM-8X=	Cisco Catalyst 9300-NM-4M=	Cisco Catalyst 9400 Supervisor Engine 1
Height	N/A	N/A	N/A	N/A	N/A
Width	N/A	N/A	N/A	N/A	N/A
Depth	N/A	N/A	N/A	N/A	N/A
Weight	N/A	N/A	N/A	N/A	N/A
