CR8PM8BASAC1
Huawei NetEngine 8000 M8 Basic Configuration (Includes NetEn...
TRUSTED, TRIED, PROVEN
$5,000,000+
Inventory Delivered By
Officially Accredited
& Verified By
Next-Gen IT
Solutions Powered By
CR8PM8BASAC1 is a high-performance enterprise router built on a modular architecture that supports configurable WAN and LAN interfaces with redundant power options including both AC and DC supplies. It integrates advanced VPN features and robust firewall capabilities to ensure secure and reliable data transmission while delivering consistent throughput and high availability for mission-critical operations.
Designed with scalability in mind, the CR8PM8BASAC1 offers integrated services such as VPN and WAN optimization along with modular expansion slots for tailored network configurations. Its dual WAN configuration, proven redundancy, and industry-standard performance make it ideal for enterprise and industrial use cases requiring both reliability and flexible connectivity solutions.
CR8PM8BASAC1 price is is available on request. Get immediate quote.
Request bulk order quote for CR8PM8BASAC1 for additional pricing. Browse the full Netengine 8000 Universal Service Routers series or explore all Huawei products.
To get the detailed certification, please go to the Compliance Center.
| CR8PM8BASAC1 |  CR8PM8BASDC2 |  CR8DIPU480C1 |  CR8DIPU1T2C1 |  CR8PM8BASDC1 | |
|---|---|---|---|---|---|
| 5G Support | No | No | No | No | No |
| Architecture | Modular | Modular | Modular | Modular | Modular |
| Broadband | N/A | Fiber Optic / DSL | Fiber Optic | Fiber Optic | Fiber Optic |
| Built-in Security Features | Firewall / Intrusion Prevention / Malware Protection | Firewall, Intrusion Prevention, Malware Protection | Firewall, Intrusion Prevention, Malware Protection | Firewall, Intrusion Prevention | Firewall, Intrusion Prevention, Malware Protection |
| Compliance Standards | FCC / CE / RoHS | FCC, CE, RoHS | FCC, CE, RoHS | FCC, CE, RoHS | IEEE 802.3, IEEE 802.1Q |
| Connectivity Type | Wired | Wired | Wired | Wired | Wired |
| Depth | 12 | 15 inches | 18 inches | 18 inches | 20 inches |
| Device Type | Router | Router | Router | Router | Router |
| EMC | N/A | FCC, CE | N/A | N/A | FCC, CE |
| Ethernet Technology | 10/100/1000 | 10/100/1000 | 10/100/1000 | 10/100/1000 | 10/100/1000 |
| Expansion Slots | NIM / SFP+ | NIM | NIM, SFP+ | NIM | NIM |
| Features | VPN / Firewall / Intrusion Prevention / IPv6 Compatible | VPN, Firewall, IPv6 Compatible, Redundancy | VPN, Firewall, IPv6 Compatible, POE | VPN, IPv6 Compatible, Firewall, POE | VPN, Firewall, IPv6 Compatible |
| Firewall Features | Yes | Yes | Yes | Yes | Yes |
| Flash Memory | 512 MB | 512 MB | 512 MB | 512 MB | 512 MB |
| Form Factor | Rack-mount | Rack-mount | Rack-mount | Rack-mount | Rack-mount |
| Height | 1.75 | 2 inches | 4 inches | 1.75 inches | 2 inches |
| High Availability Support | Supported | Supported | Supported | Supported | Supported |
| Integrated Services | VPN / WAN Optimization | Voice, Video, WAN Optimization | Voice, Video, WAN Optimization | Voice, Video, WAN Optimization | Voice, Video |
| Interface Ports | RJ-45 / SFP+ | RJ-45, SFP | RJ-45, SFP+ | RJ-45, SFP | RJ-45, SFP+ |
| LAN Ports | 8 LAN Ports | 8 LAN Ports | 8 LAN Ports | 4 LAN Ports | 8 LAN Ports |
| Management | Managed | Managed | Managed | Managed | Managed |
| Memory | 4 GB | 4 GB | 4 GB | 4 GB | 4 GB |
| Modular Slots Available | 2 Slots | 2 Slots | 3+ Slots | 3+ Slots | 3+ Slots |
| Network Protocols | IPv4 / IPv6 | IPv4, IPv6 | IPv4, IPv6 | IPv4, IPv6 | IPv4, IPv6 |
| Power | 150W | 150W | 250W | 350 Watt | 350 Watt |
| Power Source | AC Power Supply / DC Power Supply / Redundant | AC Power Supply / Redundant | AC Power Supply / Redundant | AC Power Supply / Redundant | AC Power Supply / Redundant |
| Product Name | CR8PM8BASAC1 Enterprise Router | CR8PM8BASDC2 Enterprise Router | CR8DIPU480C1 Integrated Enterprise Router | CR8DIPU1T2C1 Enterprise Router | CR8PM8BASDC1 Enterprise Router |
| Product Type | Enterprise Router | Enterprise Router | Enterprise Router | Enterprise Router | Enterprise Router |
| QoS Features | Supported | Supported | Supported | Supported | Supported |
| Remote Management | Web GUI / CLI / SNMP | SSH, Telnet, SNMP | SSH, Telnet, SNMP | SNMP, CLI, Web UI | SSH, HTTPS, SNMP |
| Routing Protocols | OSPF / BGP / EIGRP / RIP / Static Routing | OSPF / BGP / Static Routing | OSPF / BGP / EIGRP / Static Routing | OSPF / BGP / EIGRP | OSPF / BGP / EIGRP / Static Routing |
| Safety | N/A | UL, CE | UL Listed | N/A | UL, CE |
| Speed/Capacity | Gigabit | Gigabit | Gigabit | Gigabit | Gigabit |
| Stacking Capability | Yes | Yes | Yes | Yes | Yes |
| Telecom | N/A | N/A | N/A | N/A | ETSI |
| Throughput Capacity | 2 Gbps | 1 Gbps | 10 Gbps | 10 Gbps | 10 Gbps |
| Use Case | Enterprise / Industrial | Enterprise | Enterprise | Enterprise | Enterprise |
| VPN Support | IPSec / SSL VPN | IPSec / SSL VPN | IPSec / SSL VPN / GRE / DMVPN / FlexVPN | IPSec / SSL VPN | IPSec / SSL VPN / DMVPN |
| WAN Configuration | Dual WAN | Dual WAN | Dual WAN | Dual WAN | Dual WAN |
| WAN Ports | 2 WAN | 2 WAN | 2 WAN | 2 WAN | 2 WAN |
| Weight | 15 lbs | 8 lbs | 25 lbs | 15 lbs | 25 lbs |
| Wi-Fi Standard | N/A | WiFi 6 | N/A | WiFi 6 | N/A |
| Width | 17 | 17 inches | 17 inches | 17 inches | 19 inches |
| Wireless Support | No | Yes | No | No | No |
AC-powered M8 with IPU-1T2 delivered dependable core performance. Stable uptime and predictable routing under load.
Smooth rollout and consistent throughput. Redundancy design gives strong confidence.
Reliable platform for backbone growth. Hardware has been steady in production.
Consistent performance during peak periods. AC configuration has been stable and easy to operate.
Great capacity and stable routing behavior. Ideal for scalable core deployments.
Predictable forwarding and strong stability. A solid choice for enterprise cores.

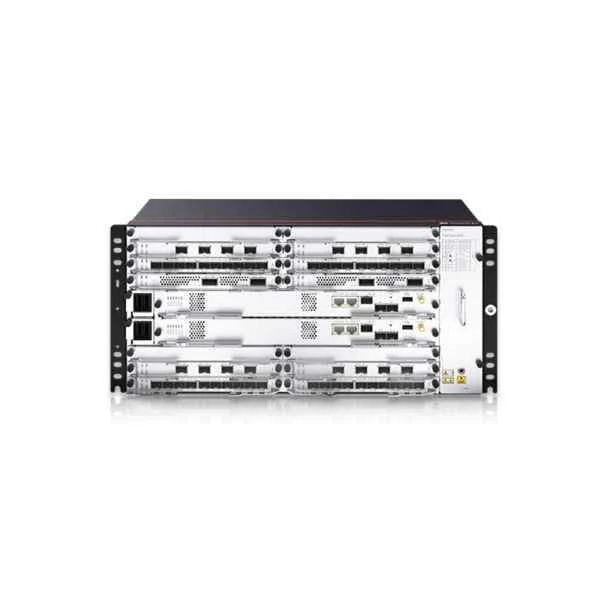

The Huawei NetEngine 8000 M8 Basic Configuration is a high-performance core router chassis package that includes the NetEngine 8000 M8 chassis, 2 IPU-1T2 forwarding units, and 2 AC power modules, without software licenses or documentation.
The package comprises: 1 NetEngine 8000 M8 chassis, 2 IPU-1T2 interface processing units, and 2 AC power supply modules.
No. Software licenses and optional feature packages must be purchased separately to enable advanced protocols and services.
With two IPU-1T2 units, the system delivers up to 2.4 Tbps of packet forwarding capacity.
Each IPU-1T2 module provides up to 1.2 Tbps of throughput for high-density service delivery.
The solution uses two AC power modules, offering N+1 redundancy for uninterrupted operation.
The NetEngine 8000 M8 chassis employs front-to-back air cooling with redundant fans for optimal thermal management.
Once licensed, it supports IPv4/IPv6, MPLS, EVPN, segment routing, and carrier-grade QoS features.
Ideal for carrier core networks, data center interconnects, and large-scale metro aggregation deployments.
Management is available via Huawei eSight, CLI, SNMP, and NetStudio for automated provisioning and monitoring.
It offers redundant power modules, hot-swappable IPUs, and stateful switchover support for continuous service.
Yes. You can add additional IPUs, interface cards, and software licenses to scale capacity and features.
It delivers ultra-high throughput, low latency, modular scalability, and carrier-grade reliability for demanding networks.
Huawei provides a one-year limited hardware warranty, with extended support options available through partners.
This product is available through Huawei authorized distributors and reseller partners—contact your local representative for a quote.
