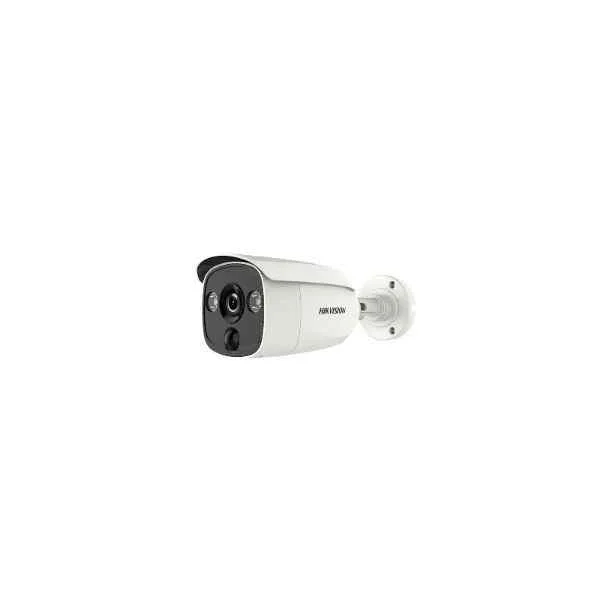

DS-2CE12H0T-PIRL

5 MP PIR Fixed Bullet Camera
Condition:
New Factory Sealed
IN STOCK Delivery within 48 hours
Warranty: 3 Years *
DS-2CE12H0T-PIRL Specification
DS-2CE12H0T-PIRL Specification
Camera

Lens2.8 mm, 3.6 mm fixed focal lens

Horizontal Field of View85.5° (2.8 mm), 80.1° (3.6 mm)

Lens MountM12

Visual AlarmYes

Day & NightIR cut filter

SynchronizationInternal synchronization

Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 180°, Rotate: 0° to 360°

Image Sensor5.0 megapixel progressive scan CMOS

Signal SystemPAL/NTSC

Frame RatePAL: 5 MP@20fps, 4 MP@25fps, 1080p@25fpsNTSC: 5 MP@20fps, 4 MP@30fps, 1080p@30fp

Resolution2560 (H) 1944 (V)

Min. illuminationColor: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR

Shutter TimePAL: 1/25 s to 1/50, 000 sNTSC: 1/30 s to 1/50, 000 s

Menu

White LightAlarm/Lighting/Off

AGCYes

Day/Night ModeAuto/Color/BW (Black and White)

White BalanceAuto/Manual

Backlight CompensationYes

LanguageEnglish

FunctionsBrightness, Contrast, Sharpness, Saturation, DNR, Mirror

Interface

Video Output1 HD analog output

General

Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)

Power Supply12 VDC ±25%

Power ConsumptionMax. 4 W

MaterialFront cover: MetalMain body: Plastic

IR RangeUp to 20 m

PIR RangeAngle: 110°, Range:11 m

CommunicationUp the coax, Protocol: HIKVISION-C (TVI output)

Dimensions88.6 mm 81.3 mm 224.7 mm (3.49" 3.20" 8.85" )

WeightApprox. 430 g (0.95 lb.)

Ingress ProtectionIP67
View full specification...

3 Years Extended Warranty	100% Ready Stock	Best Price Match
100% Genuine Products	24/7 Technical Support

DS-2CE12H0T-PIRL

5 MP PIR Fixed Bullet Camera

REQUEST A QUOTE

Overview Specification Support Warranty

Overview Of DS-2CE12H0T-PIRL

No Data Found

Specification Of DS-2CE12H0T-PIRL

DS-2CE12H0T-PIRL Datasheet

DS-2CE12H0T-PIRL Specification

Camera
Lens2.8 mm, 3.6 mm fixed focal lens
Horizontal Field of View85.5° (2.8 mm), 80.1° (3.6 mm)
Lens MountM12
Visual AlarmYes
Day & NightIR cut filter
SynchronizationInternal synchronization
Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 180°, Rotate: 0° to 360°
Image Sensor5.0 megapixel progressive scan CMOS
Signal SystemPAL/NTSC
Frame RatePAL: 5 MP@20fps, 4 MP@25fps, 1080p@25fpsNTSC: 5 MP@20fps, 4 MP@30fps, 1080p@30fp
Resolution2560 (H) 1944 (V)
Min. illuminationColor: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter TimePAL: 1/25 s to 1/50, 000 sNTSC: 1/30 s to 1/50, 000 s

Menu
White LightAlarm/Lighting/Off
AGCYes
Day/Night ModeAuto/Color/BW (Black and White)
White BalanceAuto/Manual
Backlight CompensationYes
LanguageEnglish
FunctionsBrightness, Contrast, Sharpness, Saturation, DNR, Mirror

Interface
Video Output1 HD analog output

General
Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
Power Supply12 VDC ±25%
Power ConsumptionMax. 4 W
MaterialFront cover: MetalMain body: Plastic
IR RangeUp to 20 m
PIR RangeAngle: 110°, Range:11 m
CommunicationUp the coax, Protocol: HIKVISION-C (TVI output)
Dimensions88.6 mm 81.3 mm 224.7 mm (3.49" 3.20" 8.85" )
WeightApprox. 430 g (0.95 lb.)
Ingress ProtectionIP67
