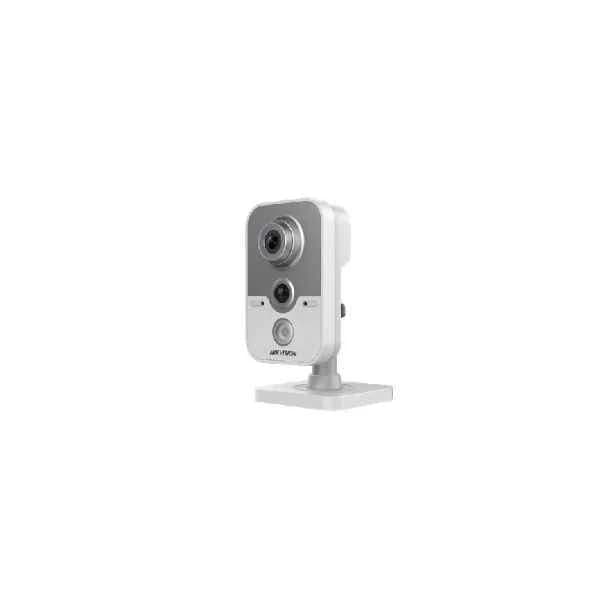

DS-2CE38D8T-PIR

Specification Of DS-2CE38D8T-PIR

DS-2CE38D8T-PIR Specification

DS-2CE38D8T-PIR Specification

• Camera
• Slow ShutterMax. 16 times
• Lens2.8 mm, 3.6 mm fixed focal lens
• Horizontal Field of View103.5° (2.8 mm), 80.3° (3.6 mm)
• Lens MountM12
• Day & NightIR cut filter
• SynchronizationInternal synchronization
• WDR (Wide Dynamic Range)> 120 dB
• Image Sensor2.0 megapixel progressive scan CMOS
• Signal SystemPAL/NTSC
• Frame RatePAL: 1080p@25fpsNTSC: 1080p@30fps
• Resolution1920 (H) 1080 (V)
• Min. illuminationColor: 0.005 Lux @ (F1.2, AGC ON), 0 Lux with IR
• Shutter TimePAL: 1/25 s to 1/50, 000 sNTSC: 1/30 s to 1/50, 000 s

• Menu
• AGCYes
• Day/Night ModeAuto/Color/BW (Black and White)
• White BalanceATW/MANUAL
• Privacy MaskON/OFF, 4 programmable privacy masks
• Motion Detection4 programmable motion areas
• Backlight CompensationWDR/BLC/OFF
• 3D DNR (Digital Noise Reduction)Level 1 to 10
• LanguageEnglish, Chinese
• FunctionsBrightness, Sharpness, Mirror, Smart IR

• Interface
• Video Output1 HD analog output
• Audio InBuilt-in microphone
• Audio Out1 RCA

• General
• Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
• Power Supply12 VDC ±25%
• Power ConsumptionMax. 5 W
• MaterialPlastic
• IR RangeUp to 20 m
• PIR RangeAngle: 110°, Range: 11 m
• CommunicationUp the coax, Protocol: HIKVISION-C (TVI output)
• Dimensions104 mm 66 mm 41.07 mm (4.1" 2.6" 1.62")
• WeightApprox. 210 g (0.46 lb.)

]
