DS-2CE56C0T-IRMM Overview

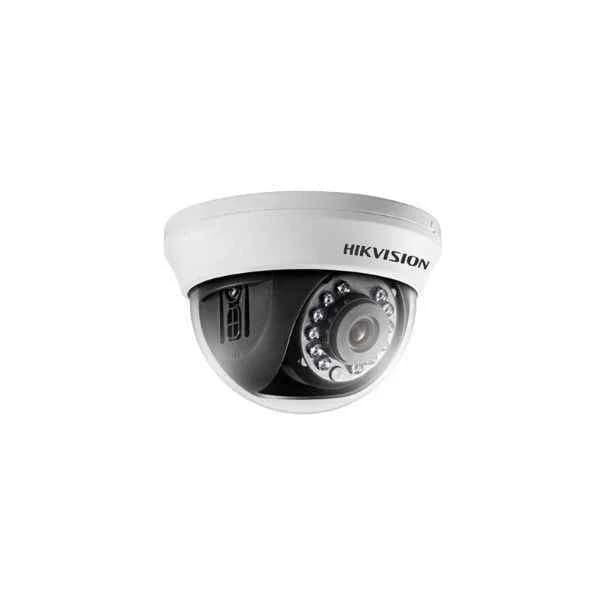

DS-2CE56C0T-IRMM is a 2MP analog dome camera equipped with a fixed 2.8mm lens and a 1/3" CMOS sensor. It features true day/night (ICR) functionality with EXIR-based infrared night vision up to 20m, delivering clear video via H.264 compression while using coaxial connectivity to interface with NVR systems.
This camera is engineered for high-performance surveillance in indoor retail environments, perimeter defense, license plate recognition, and warehouse monitoring. It is built with an IP66 weather rating for enhanced durability, does not support audio, and is not ONVIF compliant, making it a focused, cost-effective solution for dedicated security applications.
DS-2CE56C0T-IRMM price is is available on request. Get immediate quote.
Request bulk order quote for DS-2CE56C0T-IRMM for additional pricing. Browse the full category range or explore all Hikvision products.
DS-2CE56C0T-IRMM Specifications
- Weight
- 1.1 lbs
- Height
- 2.8 inches
- Depth
- 2.5 inches
- Width
- 2.8 inches
- Color
- Black
- Camera Type
- Dome
- Resolution
- 2MP
- Lens Type
- Fixed
- Image Sensor
- 1/3" CMOS
- Frame Rate
- 30 FPS
- Day/Night Mode
- True Day/Night (ICR)
- Vandal Resistance
- None
- Weather Rating
- IP66
- Audio Support
- No Audio
- Focal Length
- 2.8mm
- Max Storage Capacity
- N/A
- Low Light Technology
- EXIR
- Video Compression
- H.264
- Product Type
- Security Camera
- Use Case
- Retail
- Mounting Type
- Ceiling
- Infrared Night Vision
- 20m
- Smart Features
- N/A
- Technology
- Analog HD
- Power Type
- 12V DC
- ONVIF Compliant
- No
- Storage Option
- NVR
- Product Name
- DS-2CE56C0T-IRMM
Quality Certifications
To get the detailed certification, please go to the Compliance Center.
Product Comparison Table
 DS-2CE56C0T-IRMM |  DS-2CE70DF8T-PF |  DS-2CE79H8T-AIT3ZF |  DS-2CC52D9T-AVPIT3ZE |  DS-2CE59U8T-AVPIT3 | |
|---|---|---|---|---|---|
| Product Type | Security Camera | Security Camera | Security Camera | Security Camera | Security Camera |
| Camera Type | Dome | Bullet | Bullet | Bullet | Bullet |
| Technology | Analog HD | Analog HD | Analog HD | IP Camera | Analog HD |
| Resolution | 2MP | 4MP | 8MP | 1080p | 8MP |
| Lens Type | Fixed | Fixed | Fixed | Fixed | Fixed |
| Smart Features | N/A | N/A | Motion Detection | Motion Detection | ANPR |
| Mounting Type | Ceiling | Wall | Wall | Wall | Wall |
| Color | Black | Black | Black | Black | Black |
| Use Case | Retail | Perimeter Protection | Perimeter Protection | Indoor / Retail / Perimeter Protection / Warehouse | Indoor, Retail, Perimeter Protection, Warehouse |
| Focal Length | 2.8mm | 2.8mm | 2.8mm | 4mm | 4mm |
| Image Sensor | 1/3" CMOS | 1/3" CMOS | 1/3" CMOS | 1/2.8" CMOS | 1/3" CMOS |
| Frame Rate | 30 FPS | 30 FPS | 30 FPS | 30 FPS | 30 FPS |
| Infrared Night Vision | 20m | 30m | 30m | 30m | 30m |
| Low Light Technology | EXIR | EXIR | EXIR | IR | EXIR |
| Day/Night Mode | True Day/Night (ICR) | True Day/Night (ICR) | True Day/Night (ICR) | True Day/Night (ICR) | True Day/Night (ICR) |
| Video Compression | H.264 | H.264 | H.264 | H.265 | H.264 |
| Audio Support | No Audio | No Audio | No Audio | 2-Way Audio | No Audio |
| Storage Option | NVR | None | NVR | NVR | NVR |
| Max Storage Capacity | N/A | N/A | N/A | 256 GB | N/A |
| Power Type | 12V DC | 12V DC | 12V DC | PoE | 12V DC |
| Weather Rating | IP66 | IP67 | IP67 | IP67 | IP67 |
| Vandal Resistance | None | None | None | N/A | N/A |
| ONVIF Compliant | No | No | No | Yes | No |
| Product Name | DS-2CE56C0T-IRMM | DS-2CE70DF8T-PF | DS-2CE79H8T-AIT3ZF | DS-2CC52D9T-AVPIT3ZE | DS-2CE59U8T-AVPIT3 |
| Height | 2.8 inches | 4.0 in | 3.3 inches | 3.0 inches | 3.9 inches |
| Width | 2.8 inches | 3.3 in | 3.3 inches | 3.5 inches | 2.9 inches |
| Depth | 2.5 inches | 3.0 in | 4.7 inches | 3.0 inches | 2.9 inches |
| Weight | 1.1 lbs | 1.1 lbs | 1.65 lbs | 1.2 lbs | 1.8 lbs |
Reviews & Ratings
T
Trevor Nash
4
Works well for indoor corridors and offices.
G
Gavin Turner
5
Stable output and low maintenance.
D
Douglas Fry
3
Good replacement for older analog units.
L
Leonard Shaw
4
Reliable everyday performance.
Questions & Answers
What is the Hikvision DS-2CE56C0T-IRMM camera?
The DS-2CE56C0T-IRMM is a 720P analog 2-in-1 (TVI & CVBS) fixed-lens security camera featuring 2.8/3.6/6 mm lenses, ICR day-night switching, 20 m IR illumination, IP66 protection, and 12 VDC power.
Which video outputs does the DS-2CE56C0T-IRMM support?
It supports 720P HD-TVI output up to 30 fps and standard CVBS analog output (960H) for legacy DVRs.
What resolutions and frame rates are available?
In TVI mode it delivers 1280×720 at 25/30 fps; in CVBS mode it outputs up to 960×576 (PAL) or 960×480 (NTSC) at 25/30 fps.
What lens options are available?
Choose from three fixed-focus lenses: 2.8 mm (≈90° HFOV), 3.6 mm (≈70° HFOV), or 6 mm (≈40° HFOV) to suit different coverage needs.
