What redundancy features does the MX960BASE-AC provide?

The chassis offers dual Routing Engine slots, three hot-swappable AC power modules, redundant fabric tray support, and front-to-back hot-pluggable fan trays to maintain continuous operation during component maintenance or failure.

Which line cards are compatible with the MX960BASE-AC?

The MX960BASE-AC supports all Juniper MX Series line cards, including MPC2, MPC3, MPC4, and MPC5 modules, enabling flexible port densities and scalable throughput.

What are the physical dimensions and weight of the chassis?

The chassis measures 17.5 in (W) × 21.3 in (H) × 23.1 in (D) and weighs approximately 66 kg (145 lb) empty and up to 95 kg (209 lb) when fully populated with modules.

What cooling and airflow requirements does the MX960BASE-AC need?

It requires front-to-back airflow delivered by six hot-swappable fan trays, with an ambient operating temperature range of 5 °C to 40 °C and compliance with EIA-approved rack airflow management.

What are the environmental operating specifications?

The chassis operates in temperatures from 5 °C to 40 °C, relative humidity from 5% to 90% non-condensing, altitude up to 3000 m, and meets ETSI and NEBS environmental standards.

How is the MX960BASE-AC chassis installed in a rack?

The chassis mounts in a four-post 19-inch EIA rack using optional mounting brackets; installation requires two technicians, standard rack tools, and adherence to the Juniper installation and grounding guidelines.

Which Junos OS version is required for the MX960BASE-AC?

The chassis supports Junos OS Release 15.1F3 or later for full hardware feature compatibility, with ongoing maintenance releases for security and performance updates.

What is the typical power consumption of the chassis?

Under full load, the MX960BASE-AC draws up to 6 kW of AC power across its three PEMs, with actual consumption varying based on line card population and traffic patterns.

Does Juniper provide a warranty for the MX960BASE-AC chassis?

Yes, the chassis includes a one-year limited hardware warranty covering defects in materials and workmanship, with optional Juniper Care contracts for extended support.

What maintenance and support options are available?

Juniper Care offers 24×7 technical support, expedited hardware replacement, software updates, and access to proactive network management tools through the Juniper Evolve portal.

Can I upgrade the power entry modules in the future?

Yes, the MX960BASE-AC chassis supports hot-swappable PEMs, allowing you to upgrade to higher-capacity AC or DC modules without powering down the system or disrupting traffic.

Where can I find additional product documentation?

You can download the MX960BASE-AC data sheets, installation guides, and configuration manuals from Juniper’s official website by searching for SKU MX960BASE-AC in the Documentation section.

FEATURED DEAL

Name:

MX960BASE-AC

Name: CHASSIS MIDPLANE RE 2-SCB 3 AC PEM
Brand: Juniper
SKU: MX960BASE-AC
Price: 18629.00 USD
Availability: InStock
Rating: 4.2 (5 reviews)

Description:: CHASSIS MIDPLANE RE 2-SCB 3 AC PEM
Rating:: 4.2(5)
Added to cart 28 times recently
Availability:: In stock - Ready to Ship
Brand:: Juniper
GTIN:: 799789517921
Condition:
Warranty:: 3
List Price:: $87,480.00
Price:: $18,629.0078.7% off

Quantity:

Business price:

Enroll your business for free

3 Year Extended Warranty

Same-day Shipping

14-Day Money Back Guarantee

Shipping:

Payment:

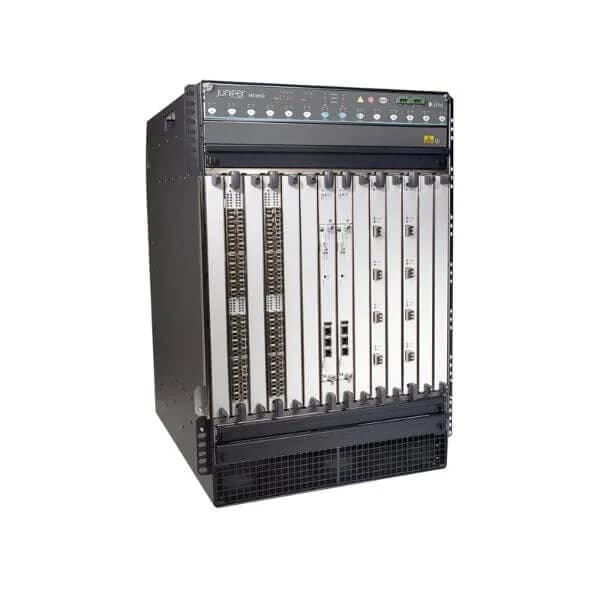

mx960base-ac chassis midplane re 2-scb 3 ac pem

3 Year Extended Warranty

Same-day Shipping

14-Day Money Back Guarantee

Need Additional Discount on Product?

Request a quote below - Get Exclusive Pricing and Support.

Shipping:

Payment:

MX960BASE-AC

CHASSIS MIDPLANE RE 2-SCB 3 AC PEM

$87,480.00 $18,629.0078.7% off

11 in Global Warehouse Global

TRUSTED, TRIED, PROVEN

$5,000,000+

Inventory Delivered By

Officially Accredited

& Verified By

Next-Gen IT

Solutions Powered By

MX960BASE-AC Overview

MX960BASE-AC is a high-performance enterprise router that leverages a fixed chassis design with integrated modular capabilities to deliver reliable routing and security performance. It features robust AC power options, multiple WAN/LAN interfaces, and advanced VPN functionality to meet mission-critical networking requirements.

MX960BASE-AC is engineered for demanding environments, offering integrated services such as voice, video, and WAN optimization alongside high throughput capacity and redundancy features. Its precise design supports advanced routing protocols, built-in firewall and security features, and high availability, making it a suitable solution for enterprise branch connectivity, data center interconnect, and campus networking use cases.

MX960BASE-AC price is $18,629.00, a 78.7% saving from the Juniper list price of $87,480.00. MX960BASE-AC is in stock and available for next-day dispatch. (terms applied)

Request bulk order quote for MX960BASE-AC for additional pricing. Browse the full Juniper Mx960 5G Universal Routing Platforms series or explore all Juniper products.

MX960BASE-AC Specifications

Product Type: Enterprise Router
VPN Support: IPSec, SSL VPN
Power Source: AC Power Supply
Routing Protocols: OSPF, BGP, EIGRP, Static Routing
Broadband: N/A
Architecture: Fixed Chassis
WAN Configuration: Dual WAN
WAN Ports: 2 x SFP+
LAN Ports: 2 x RJ-45
Ethernet Technology: 10/100/1000
Wi-Fi Standard: N/A
Connectivity Type: Wired
Network Protocols: TCP/IP, IPv6, MPLS
Remote Management: HTTPS (Meraki Dashboard), SNMP
Compliance Standards: FCC, CE, RoHS
Wireless Support: No
Speed/Capacity: Gigabit
Firewall Features: Yes
Features: VPN, Firewall, Traffic Shaping, High Availability
Use Case: Enterprise
Management: Managed
Form Factor: Chassis
Integrated Services: Voice, Video, WAN Optimization
High Availability Support: Supported
Safety: N/A
EMC: N/A
Telecom: N/A
Throughput Capacity: 3 Gbps
QoS Features: Supported
Built-in Security Features: Firewall, Intrusion Prevention, Malware Protection
Expansion Slots: N/A
Modular Slots Available: N/A
Stacking Capability: Yes
5G Support: No
Memory: 8 GB
Flash Memory: 512 MB
Interface Ports: RJ-45, SFP+
Power: 370 W
Device Type: Router
Product Name: MX960BASE-AC
Height: 1.75 in
Width: 17.2 in
Depth: 16.4 in
Weight: 25 lbs

MX960BASE-AC Use Case

5G Mobile Backhaul Aggregation with MX960BASE-AC-CHASSIS MIDPLANE RE 2-SCB 3 AC PEM

A Tier-1 mobile operator leverages the MX960BASE-AC-CHASSIS equipped with its native midplane, dual Routing Engines (RE), 2-SCB modules and three AC Power Entry Modules (PEM) to aggregate 5G cell-site traffic over 100GbE links. By enabling hitless software upgrades and N+1 power redundancy, this deployment delivers 11.2 Tbps switching capacity and sub-millisecond latency. Outcome: Ensures 99.999% network uptime, scales seamlessly for traffic spikes, and future-proofs the backhaul architecture.

Global Data Center Interconnect for Cloud Services Using MX960BASE-AC-CHASSIS MIDPLANE RE 2-SCB 3 AC PEM

A global cloud provider implements the MX960BASE-AC-CHASSIS with midplane integration, redundant Routing Engines and 2 SCB control boards alongside three AC PEMs to establish high-capacity, low-latency links between geographically dispersed data centers. The solution supports mixed 40/100/400 GbE line cards, in-service hardware upgrades and resilient power failover. Outcome: Achieves sub-5 ms round-trip latency, reduces planned downtime by 90%, and maintains business-critical application SLAs.

Regional Internet Exchange Scaling with MX960BASE-AC-CHASSIS MIDPLANE RE 2-SCB 3 AC PEM

A leading Internet Exchange Point (IXP) deploys the MX960BASE-AC-CHASSIS featuring its midplane, dual REs, 2-SCB modules and triple AC PEM architecture to support multi-tenant peering fabrics at massive scale. The platform accommodates up to 96 line cards and delivers deterministic power redundancy and control-plane failover. Outcome: Increases port density by 50%, accelerates BGP convergence by 30%, and maintains continuous service during hardware maintenance windows.

Quality Certifications

To get the detailed certification, please go to the Compliance Center.

Product Comparison Table

	MX960BASE-AC	MX960-SERVPREM3-DC	MX960-PREMIUM3-DC-ECM	CHAS-BP3-MX960-ECM-S	MX960BASE-DC
5G Support	No	No	No	No	No
Architecture	Fixed Chassis	Modular	Modular	Modular	Modular / Aggregation
Broadband	N/A	Fiber Optic	N/A	N/A	N/A
Built-in Security Features	Firewall, Intrusion Prevention, Malware Protection	Firewall, Intrusion Prevention, Malware Protection	Firewall, Intrusion Prevention, Malware Protection	Firewall / Intrusion Prevention / Malware Protection	Firewall / Intrusion Prevention / Malware Protection
Compliance Standards	FCC, CE, RoHS	CE, FCC, UL	FCC / CE	IEEE 802.1x / PCI-DSS / FIPS 140-2	CE, FCC, RoHS
Connectivity Type	Wired	Wired	Wired	Wired	Wired / Ethernet
Depth	16.4 in	18 inches	N/A	14 inches	18 inches
Device Type	Router	Router	Router	Router	Router
EMC	N/A	N/A	N/A	FCC / ICES	N/A
Ethernet Technology	10/100/1000	10/100/1000	10/100/1000 / 10G	10/100/1000	10G
Expansion Slots	N/A	NIM	NIM, EHWIC	NIM	EHWIC / SM-X
Features	VPN, Firewall, Traffic Shaping, High Availability	VPN, IPv6 Compatible, Firewall, MPLS, Syslog, CBWFQ	VPN, Firewall, IPv6 Compatible, Modular, Redundancy	VPN / IPv6 Compatible / Firewall / MPLS / Syslog	VPN / IPv6 Compatible / Firewall / MPLS
Firewall Features	Yes	Yes	Yes	Yes	Yes
Flash Memory	512 MB	512 MB	2 GB	512 MB	512 MB
Form Factor	Chassis	Chassis	Chassis	Rack-mount	Chassis
Height	1.75 in	4 inches	N/A	4 inches	4.5 inches
High Availability Support	Supported	Supported	Supported	Supported	Supported
Integrated Services	Voice, Video, WAN Optimization	Voice, Video, WAN Optimization	Voice, Video, WAN Optimization	Voice / Video / WAN Optimization	Voice / Video / WAN Optimization
Interface Ports	RJ-45, SFP+	RJ-45, SFP	RJ-45, SFP, SFP+	RJ-45 / SFP / Combo Ports	RJ-45 / SFP+
LAN Ports	2 x RJ-45	Modular LAN	Modular LAN	4 LAN Ports	Modular LAN
Management	Managed	Managed	Managed	Managed	Managed
Memory	8 GB	4 GB	16 GB	4 GB	8 GB
Modular Slots Available	N/A	2 Slots	3+ Slots	3+ Slots	3+ Slots
Network Protocols	TCP/IP, IPv6, MPLS	IPv4, IPv6, MPLS	IPv4, IPv6, MPLS, L2TP	IPv4 / IPv6	IPv4, IPv6, MPLS
Power	370 W	150W	N/A	350 Watt	650 W
Power Source	AC Power Supply	DC Power Supply / Redundant	DC Power Supply / Redundant	AC Power Supply / Redundant	DC Power Supply / Redundant
Product Name	MX960BASE-AC	MX960-SERVPREM3-DC	MX960-PREMIUM3-DC-ECM	CHAS-BP3-MX960-ECM-S	MX960BASE-DC
Product Type	Enterprise Router	Enterprise Router	Enterprise Router	Enterprise Router	Enterprise Router
QoS Features	Supported	Supported	Supported	Supported	Supported
Remote Management	HTTPS (Meraki Dashboard), SNMP	SSH, SNMP, Telnet	SSH, Telnet, SNMP, HTTPS	SSH / Telnet / SNMP	SSH, Telnet, SNMP, NetConf
Routing Protocols	OSPF, BGP, EIGRP, Static Routing	OSPF / BGP / MPLS / Static Routing	OSPF / BGP / MPLS	OSPF / BGP / EIGRP / RIP / Static Routing	OSPF / BGP / EIGRP / MPLS / IS-IS / RIP / Static Routing
Safety	N/A	N/A	N/A	UL / CE	N/A
Speed/Capacity	Gigabit	Gigabit	10gb	Gigabit	10gb
Stacking Capability	Yes	No	Yes	Yes	Yes
Telecom	N/A	N/A	N/A	TIA/EIA	N/A
Throughput Capacity	3 Gbps	10 Gbps	80 Gbps	10 Gbps	40 Gbps
Use Case	Enterprise	Enterprise	Enterprise	Enterprise	Enterprise
VPN Support	IPSec, SSL VPN	IPSec / SSL VPN / GRE / DMVPN	IPSec / SSL VPN / GRE / DMVPN	IPSec / SSL VPN	IPSec / SSL VPN / GRE / DMVPN / FlexVPN
WAN Configuration	Dual WAN	Dual WAN	Dual WAN	Dual WAN	Dual WAN
WAN Ports	2 x SFP+	Modular WAN	Modular WAN	2 WAN	Modular WAN
Weight	25 lbs	50 lbs	N/A	25 lbs	75 lbs
Wi-Fi Standard	N/A	N/A	N/A	N/A	N/A
Width	17.2 in	17 inches	N/A	17 inches	17.5 inches
Wireless Support	No	No	No	No	No

Reviews & Ratings

Paul Richardson

AC base chassis delivered strong performance and scalability.

Saad Mahmood

Easy initial deployment and solid airflow design.

Tobias Engel

Reliable base for building a premium MX960 system.

Umair Hassan

No power or stability issues observed.

Victor Lang

Confidence inspiring enterprise chassis.

Questions & Answers

What is the MX960BASE-AC chassis midplane with RE 2-SCB 3 AC PEM?

The MX960BASE-AC chassis midplane is the central connectivity backplane for the Juniper MX960 router series, equipped with two Routing Engine slots, an SCB3 slot, and three AC power entry modules to ensure high-availability operations.

What components are included with the MX960BASE-AC base chassis?

It includes the MX960 chassis shell, integrated midplane, two Routing Engine slots, one SCB3 slot, and three preinstalled AC power entry modules; line cards, fan trays, and power cords are sold separately.

Which AC power entry modules are installed in the chassis?

The MX960BASE-AC ships with three hot-swappable AC PEMs, each supporting 100–240 V AC input to provide N+1 power redundancy and facilitate live swapping without service interruption.

How many Routing Engines can the MX960BASE-AC chassis support?

It supports up to two Routing Engines in an active/backup redundant configuration for uninterrupted control-plane operations.
