What airflow direction does the S3048-ON use?

The switch employs front-to-back airflow from the IO panel toward the PSU, optimizing thermal management in data center rack environments.

What power supply does the S3048-ON include?

Each S3048-ON ships with a single hot-swappable AC power supply (250W), supporting optional redundant PSUs for increased uptime.

Which operating system runs on the S3048-ON?

The switch runs DNOS 9, Dell’s Linux-based network OS, offering industry-standard CLI, RESTful APIs, and comprehensive Layer 2/3 features.

How do I upgrade the firmware on the S3048-ON?

Use the built-in lifecycle controller or Dell’s Network Manager to upload the new DNOS 9 image, schedule a maintenance window, and follow the CLI prompts for automated validation and installation.

What management options are available for the S3048-ON?

Manage the switch via CLI, SNMP, RANCID, OpenManage Network Manager, or RESTful API for configuration, monitoring, and automation tasks.

Is the S3048-ON compatible with PoE devices?

No, the S3048-ON does not support Power over Ethernet; it is designed for data-only deployments.

What is the power consumption of the S3048-ON?

Typical power draw is 75W, with a maximum of 125W under full load, ensuring efficient operation in high-density environments.

What are the physical dimensions and weight of the S3048-ON?

The switch measures 1.72" H x 17.3" W x 17.3" D and weighs approximately 12.3 lbs (5.6 kg), fitting standard 1U rack spaces.

What warranty and support options are available?

Dell offers a 1-year hardware warranty, with optional ProSupport and ProSupport Plus services providing 24×7 expert assistance and rapid replacement.

Can I mix S3048-ON switches with other Dell switch models in a stack?

No, stacking is supported only among identical S3048-ON units to ensure firmware, feature parity, and optimal performance.

Which optics are supported in the SFP+ uplinks?

The SFP+ slots support 1/10GbE SR/LR optics, 1GbE SFPs, and DAC cables, enabling flexible uplink distances from 1m to 10km.

How do I configure VLANs on the S3048-ON?

Use the DNOS 9 CLI or GUI: navigate to interface configuration mode, define VLAN membership with the 'switchport access vlan' or 'switchport trunk allowed vlan' commands, then verify with 'show vlan brief'.

FEATURED DEAL

Name:

S3048-ON

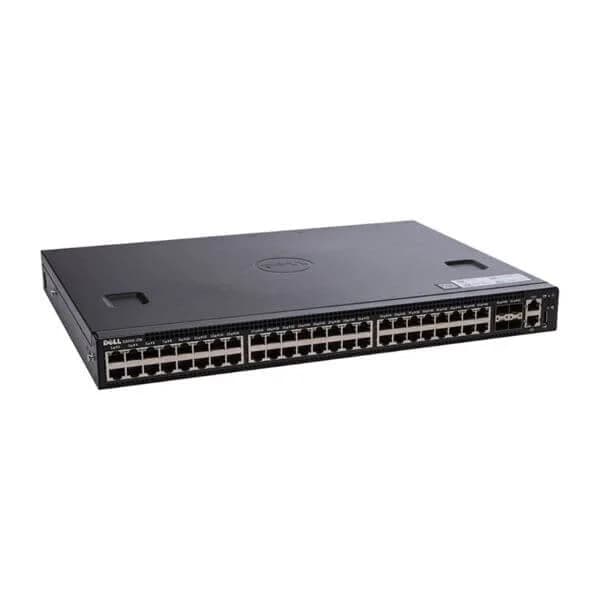

Name: Dell Networking S3048-ON, 48x 1GbE, 4x SFP + 10GbE ports, stacking, airflow from IO to PSU, 1x AC PSU, DNOS 9
Brand: Dell
SKU: S3048-ON
Rating: 4.2 (5 reviews)

Description:: Dell Networking S3048-ON, 48x 1GbE, 4x SFP + 10GbE ports, stacking, airflow from IO to PSU, 1x AC PSU, DNOS 9
Rating:: 4.2(5)
Added to cart 28 times recently
Availability:: In stock - Ready to Ship
Brand:: Dell
GTIN:: 5397063839186
Condition:

Get a Quote

3 Year Extended Warranty

Same-day Shipping

14-Day Money Back Guarantee

Shipping:

Payment:

s3048-on dell networking s3048-on, 48x 1gbe, 4x sfp + 10gbe ports, stacking, airflow from io to psu, 1x ac psu, dnos 9

3 Year Extended Warranty

Same-day Shipping

14-Day Money Back Guarantee

Need Additional Discount on Product?

Request a quote below - Get Exclusive Pricing and Support.

Shipping:

Payment:

S3048-ON

Dell Networking S3048-ON, 48x 1GbE, 4x SFP + 10GbE ports, st...

TRUSTED, TRIED, PROVEN

$5,000,000+

Inventory Delivered By

Officially Accredited

& Verified By

Next-Gen IT

Solutions Powered By

S3048-ON Overview

S3048-ON is a high-performance, stackable Layer 2/Layer 3 rack-mount switch designed for scalable enterprise networks. It features an optimized architecture that supports both copper and fiber connectivity while delivering robust performance suitable for demanding data center and campus environments.

The switch offers multiple power options and flexible port configurations, including fixed 48 Ethernet ports and 4 detachable SFP uplink ports supporting 10G connectivity. Its stacking capabilities ensure enhanced scalability and simplified management for real-world use cases that demand high throughput and reliable network performance.

S3048-ON price is is available on request. Get immediate quote.

Request bulk order quote for S3048-ON for additional pricing. Browse the full Dell Networking S3000-On Switches series or explore all Dell products.

S3048-ON Specifications

Product Type: Switch
Power Source: AC Power Supply
Layer Supported: Layer 2 / Layer 3
Form Factor: Rack-mount
Power Consumption: N/A
Number of Ethernet Ports: 24–48 Ports
Number of Downlink Ports: 48 Ports
Manageable: Managed
Ethernet Technology: 10/100/1000
Media Type Supported: Twisted Pair
Redundant Power Supply Supported: No
Manufacturer Part Number: S3048-ON
Uplink Configuration: 10G
IOS: IP Lite
POE Support: Non POE
SFP Ports: 4 SFP Ports
Memory: 256 MB
Rack Units: 1 RU
Interface Ports: 10/100/1000
Port/Expansion Slot Details: N/A
Flash Memory: 64 MB
Switching Capacity: 176 Gbps
Switching Capacity with Stacking: 352 Gbps
Product Name: Dell Networking S3048-ON Series Layer 3 Switch
Height: 1.75 inches
Width: 17.5 inches
Depth: 14 inches
Weight: 13 lbs

S3048-ON Use Case

Data Center Leaf Switch in Hybrid Cloud Environments

In a hybrid cloud deployment, the Dell Networking S3048-ON (48x1GbE, 4x SFP+ 10GbE) functions as a leaf switch, stacked across multiple racks with DNOS 9 automation and IO-to-PSU airflow for optimal cooling. Outcome: Delivers scalable 1Gb/10Gb connectivity, reduces east-west latency by up to 20%, and automates policy enforcement to accelerate VM mobility and simplify operations.

Enterprise Campus Access Aggregation

In a multi-floor corporate campus, the S3048-ON provides 48 high-density 1GbE access ports per floor, 4x 10GbE uplinks to the distribution layer, and stackable management under DNOS 9. The IO-to-PSU airflow design lowers energy consumption in shared closets. Outcome: Centralizes port provisioning, boosts network uptime to 99.99%, and cuts maintenance overhead by 30% through unified firmware and policy updates.

High-Performance Compute Cluster Leaf Switch

In an HPC cluster, the S3048-ON delivers 4x SFP+ 10GbE uplinks for low-latency interconnects between compute nodes, with stacking for N+1 redundancy and DNOS 9-driven QoS and traffic shaping. IO-to-PSU airflow ensures reliable cooling in dense rack layouts. Outcome: Maintains sub-10 µs network jitter, increases parallel-job throughput by 15%, and ensures predictable performance for compute-intensive workloads.

Quality Certifications

To get the detailed certification, please go to the Compliance Center.

Product Comparison Table

	S3048-ON	S4128F	S4048T-ON	X1052P	X1052
Depth	14 inches	18 inches	17 inches	12 inches	12 inches
Ethernet Technology	10/100/1000	10/100/1000	10/100/1000	10/100/1000	10/100/1000
Flash Memory	64 MB	64 MB	256 MB	64 MB	64 MB
Form Factor	Rack-mount	Rack-mount	Rack-mount	Rack-mount	Rack-mount
Height	1.75 inches	1.75 inches	1.75 inches	1.75 inches	1 inch
IOS	IP Lite	LAN Base	IP Services	LAN Base	IP Services
Interface Ports	10/100/1000	10/100/1000	10/100/1000	10/100/1000	10/100/1000
Layer Supported	Layer 2 / Layer 3	Layer 2	Layer 2 / Layer 3	Layer 2	Layer 2 / Layer 3
Manageable	Managed	Managed	Managed	Managed	Managed
Manufacturer Part Number	S3048-ON	S4128F	S4048T-ON	X1052P	X1052
Media Type Supported	Twisted Pair	Twisted Pair / Fiber	Twisted Pair	Combo	Twisted Pair / Fiber / Combo
Memory	256 MB	256 MB	256 MB	256 MB	256 MB
Number of Downlink Ports	48 Ports	48 Ports	48 Ports	24 Ports	24 Ports
Number of Ethernet Ports	24–48 Ports	24–48 Ports	24–48 Ports	24–48 Ports	24–48 Ports
POE Support	Non POE	POE+	Non POE	POE+	POE+
Port/Expansion Slot Details	N/A	24 x 10/100/1000 Ethernet ports, 4 x 10G SFP+ uplink ports	48×10/100/1000 RJ45 ports, 4×10G SFP+ uplink ports	N/A	2 expansion slots for additional modules
Power Consumption	N/A	150 W	N/A	150W	N/A
Power Source	AC Power Supply	Redundant Power Supply	AC Power Supply	Redundant Power Supply / AC Power Supply	Redundant Power Supply / AC Power Supply / N/A
Product Name	Dell Networking S3048-ON Series Layer 3 Switch	S4128F High-Performance Rack-Mount Switch	Dell Networking S4048T-ON	X1052P Series High-Performance Switch	X1052 Next-Generation Stackable Switch
Product Type	Switch	Switch	Switch	Switch	Switch
Rack Units	1 RU	1 RU	1 RU	1 RU	1 RU
Redundant Power Supply Supported	No	Yes	No	Yes	Yes
SFP Ports	4 SFP Ports	4 SFP Ports	4 SFP Ports	4 SFP Ports	4 SFP Ports
Switching Capacity	176 Gbps	320 Gbps	176 Gbps	128 Gbps	128 Gbps
Switching Capacity with Stacking	352 Gbps	640 Gbps	352 Gbps	256 Gbps	N/A
Uplink Configuration	10G	10G	10G	1G / 10G	10G
Weight	13 lbs	15 lbs	23 lbs	15 lbs	15 lbs
Width	17.5 inches	17.5 inches	19 inches	17.5 inches	17 inches

Reviews & Ratings

Anthony Doyle

OS9 is stable and switching performance is excellent.

Talha Qasim

Good access switch with reliable uplinks.

Jukka Rantanen

Stacking works smoothly.

Ryan Cooper

Consistent uptime in production.

Shahbaz Khan

Solid value for enterprise LANs.

Questions & Answers

What is the Dell Networking S3048-ON switch?

The Dell Networking S3048-ON is a 48-port 1GbE switching solution with 4 SFP+10GbE uplinks, advanced stacking, front-to-back airflow, a single AC PSU, and runs DNOS 9 for enterprise-class performance and reliability.

Which use cases is the S3048-ON best suited for?

The S3048-ON is ideal for top-of-rack deployments in data centers, high-performance campus networks, and virtualization environments requiring high port density, flexible uplinks, and robust stacking.

How many ports and uplinks does the S3048-ON offer?

The S3048-ON provides 48 fixed 1GbE RJ45 ports and 4 SFP+10GbE uplink slots, supporting fiber or copper SFP+ optics for scalable uplink bandwidth.

What stacking capabilities does the S3048-ON support?

It supports up to 12 units in a single stack with 80 Gbps of stacking bandwidth per module, enabling simplified management and high availability across all members.
