SF110D-16HP
Cisco SF110D-16HP 110 16-Port Fast Ethernet PoE Desktop Swit...
Trusted by the Highest-Stakes Buyers
Federal agencies and Fortune 500 operations source through ORM Systems.
US Government & Defense
Enterprise Clients
Built Global. Stocked Local.
Regional teams and 25+ distribution partners keep stock near you and accountability in your time zone.
Buyer Protection on Every Order
Pay by PayPal or Revolut with full chargeback rights. Order on PO terms, Net-30 for government.
Verified By Federal Bodies
Every registration we claim is public record — check our federal contractor status yourself before you spend a dollar.
Since 2016, Enterprise-Trusted
Ten years serving buyers who audit their vendors. From federal agencies to 20,000+ enterprise clients worldwide.

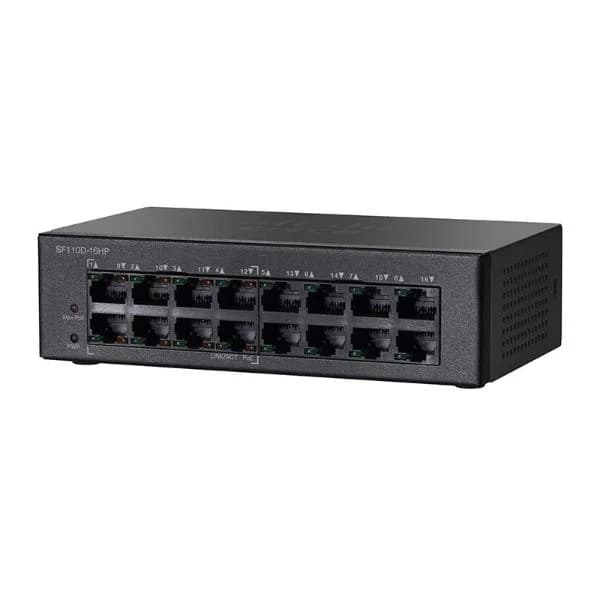

SF110D-16HP is a fanless, unmanaged Layer 2 desktop switch providing sixteen 10/100 Mbps copper connections, including eight PoE ports. All Ethernet connections are fixed, with no dedicated high-speed uplinks or removable uplink bay. The Cisco 110 Series Unmanaged Switches serve small-business offices connecting computers, printers, compatible IP phones and wireless access points. Automatic port negotiation selects connection settings when equipment is attached, rather than requiring a setup process. Compared with the discontinued SF110D-16, the powered model adds Ethernet-delivered endpoint power instead of data connectivity alone. Its desktop enclosure accommodates installations that do not require a full-width rack chassis.
SF110D-16HP price for new stock is is available on request. Get immediate quote. SF110D-16HP refurb price is $434.01.
Request bulk order quote for SF110D-16HP for additional pricing. Browse the full Cisco SF110 Switches series or explore all Cisco products.
3.2 Gbps switching capacity establishes the aggregate switching bandwidth available for traffic planning. 1.4 Mpps forwarding at 64-byte packets provides a separate packet-processing figure for assessing anticipated loads. 64W of shared PoE power must cover the combined allocations of connected powered devices; IEEE 802.3af support does not reserve the entire budget independently for each connection. Automatic QoS uses 802.1p priority and four hardware queues, with priority queuing and Weighted Round-Robin scheduling handling traffic priorities. SF110D-16HP uses store-and-forward switching to prevent damaged packets from continuing through the network, while automatic MDI/MDI-X handles cable orientation. Cisco Small Business traffic-handling functions include loop detection for accidental loops and cable diagnostics for faults or shorts. The internal supply accepts 110-240V AC, eliminating a separate external adapter from the power arrangement. The 0°C to 40°C operating range sets the ambient-temperature limits to check at the intended equipment location.
ORM Systems offers SF110D-16HP new sealed with up to a 3-year extended warranty or certified refurbished with up to 1 year; every condition includes 30-day returns, terms apply. Certified refurbished units are inspected and bench-tested for power-on and POST, rated-speed links on every port, clean boot, PSU status and PoE output under load on every powered port. Specify condition, regional power requirements and quantity on the PO; Cisco's separate limited lifetime hardware warranty is eligibility-dependent and ends with North American Cisco service on July 31, 2027. Enterprise and volume orders have PO acceptance, Net-30 for government and RMA with advance replacement, with regional stock/RMA across UK, EU, US and MEA.
| Key Specs | Key Spec Values |
|---|---|
Port Configuration | 16 x 10/100 Mbps / 8 PoE ports |
PoE Budget | 64W shared |
Cooling | Fanless |
Lifecycle Status | End of sale July 30, 2022 (North America) |
Replacement PID | CBS110-16PP-NA / Cisco-remanufactured option SF110D-16HP-NA-RF |
Scenario: A 15-user professional services firm deploys the Cisco SF110D-16P to deliver both power and data to IP phones over a single 16-port 10/100 PoE switch. Benefit: Eliminates separate power injectors, reduces cabling and installation costs by up to 30%, and ensures consistent voice quality. Outcome: Streamlined network management, reliable VoIP communications, and faster, lower-cost deployment.
Scenario: A multi-location retail chain uses the SF110D-16P 16-port 10/100 PoE Desktop Switch to power ceiling-mounted Wi-Fi access points and IP cameras in each outlet. Benefit: Provides up to 15.4W per port, centralizes power delivery, and simplifies rack-space requirements. Outcome: Optimized in-store security with continuous video feeds, enhanced guest Wi-Fi performance, and reduced operational overhead.
Scenario: An event production company deploys the SF110D-16P switch on-site at trade shows and conferences to power digital signage, wireless APs, and PoE surveillance cameras. Benefit: Plug-and-play PoE functionality cuts setup time by 50%, removes external power supplies, and delivers consistent 10/100 connectivity. Outcome: Rapid, cost-efficient event network deployment with reliable device power management and superior attendee experience.
For a small-office rollout reusing installed copper cabling, the connection plan needs Category 5e or better runs. Treat desk devices and the upstream connection as separate entries on the patching schedule, then confirm cable types and the required patch-lead quantities before releasing the purchase order.
When a staging bench must reproduce a network using larger Ethernet frames, the switch accepts jumbo frames of 9216 bytes. Matching the frame settings of attached equipment remains part of the test plan. Specify the intended frame size and the required patching arrangement before ordering bench hardware.
Gigabit Ethernet endpoint connections
SF110D-16HP ports stop at 100 Mbps. CBS110-16PP-NA provides sixteen Gigabit Ethernet ports with partial PoE and is the North American replacement.
PoE across all sixteen connections
SF110D-16HP powers only eight Ethernet ports; the other connections carry data without PoE. A requirement to power sixteen endpoints needs a switch with more powered ports.
Mon–Fri: [09:00-16:00]
Avg. response under 30 mins
| SF110D-16HP |  SF110-16 |  SF110D-16 |  SG110-24HP |  SF110D-08HP | |
|---|---|---|---|---|---|
| Depth | 90 mm | 170 mm | 90 mm | 203 mm | 129 mm |
| Ethernet Technology | Fast Ethernet | Fast Ethernet | Fast Ethernet | Gigabit Ethernet | Fast Ethernet |
| Form Factor | Desktop | Desktop | Desktop | Rack-Mount 1U | Desktop |
| Height | 44 mm | 44 mm | 44 mm | 44 mm | 30 mm |
| Manufacturer Part Number | SF110D-16HP | SF110-16 | SF110D-16 | SG110-24HP | SF110D-08HP |
| Switching Capacity | 3.2 Gbps | 3.2 Gbps | 3.2 Gbps | 48 Gbps | 1.6 Gbps |
| Weight | 1.36 kg | 1.15 kg | 0.45 kg | 2.98 kg | 0.49 kg |
| Width | 160 mm | 279 mm | 160 mm | 440 mm | 160 mm |
Every unit is authentic, sourced through trusted and authorised channels, and serial-verified on request. Genuine networking and IT hardware, guaranteed, or your money back.
New products are backed by up to 3 years of extended warranty, and certified refurbished units by up to 90 days, for dependable protection on every order. The exact term is confirmed on your quote, order confirmation and invoice.
If a unit ever falls short, our streamlined RMA process gets a replacement to you fast, with advance replacement available to keep your network running. No jargon, no runaround.
Every device is inspected, bench-tested, and firmware-verified, with configurations wiped before dispatch. Additional testing can be arranged to confirm full working condition on request.
Our specialists assist with compatibility, configuration, licensing, and installation, before and after you buy. Real hardware expertise, whenever you need it.
Same-day dispatch from regional hubs, free next-day delivery*, fully tracked and insured.
Reviewed on the 23 January 2021
Professional-grade PoE performance with minimal downtime.
Reviewed on the 29 January 2022
Ideal small PoE network switch with professional-grade reliability.
Reviewed on the 22 May 2024
16-port PoE switch offers dependable power and data delivery for small networks and devices.
Reviewed on the 27 March 2019
Easy to deploy, reliable, and durable for office applications.
Reviewed on the 17 March 2026
Stable connectivity and efficient power distribution for VoIP and cameras.
SF110D-16HP identifies a 110 Series Fast Ethernet desktop switch: SF110 denotes the family and speed class, D denotes desktop, 16 denotes sixteen ports, and HP marks the PoE version. Eight ports provide power. SF110D-16HP-NA adds the North American regional ordering suffix to the base hardware name.
SF110D-16HP operates without configuration: connect power and network devices to begin switching traffic. Automatic port negotiation handles connection settings, while built-in traffic handling operates without manual setup. The purchase decision is therefore about physical connections and endpoint requirements rather than a management workflow.
SF110D-16HP provides a shared 64W PoE budget across eight powered ports using IEEE 802.3af. The remaining eight ports carry data without supplying endpoint power. Add the attached devices' required allocations before ordering; the total budget is shared rather than reserved in full for every powered connection.
SF110D-16HP-NA is discontinued: end of sale was July 30, 2022, and the last date of Cisco support is July 31, 2027. CBS110-16PP-NA is the North American replacement. The regional suffix matters when matching lifecycle terms, so identify the exact regional ordering form before setting the support horizon.
ORM offers SF110D-16HP new sealed or certified refurbished: new units carry up to a 3-year extended warranty; certified refurbished units carry up to 1 year. Returns are 30 days for every condition, terms apply. Cisco's separate limited lifetime hardware warranty is eligibility-dependent and ends with North American Cisco service on July 31, 2027.
SF110D-16HP supplies PoE on eight ports, while SF110D-16 supplies no PoE. Both are discontinued sixteen-port Fast Ethernet desktop models. The powered version suits replacement purchases that must retain Ethernet-powered endpoints; the unpowered model suits like-for-like replacements where attached devices already have their own power supplies.
SF110D-16HP uses an internal AC supply, while SF110D-08HP uses an external adapter. Both models are discontinued. The internal-supply model suits replacements where AC connects directly to the chassis; the adapter-powered model suits an existing installation planned around a separate power adapter and its associated placement.
CBS110-16PP-NA provides Gigabit Ethernet connections, while SF110D-16HP is limited to Fast Ethernet. The discontinued SF110D-16HP suits like-for-like replacement of an existing 100 Mbps installation; CBS110-16PP-NA is the North American migration choice when the purchase requires faster copper connections and partial PoE.
SF110D-16HP cannot accept SFP optics because the switch has no optical cages or removable network-module bay. Its connections use copper Ethernet cabling. A purchase requiring a direct fiber link therefore needs different hardware; adding a transceiver to the order will not create an optical connection.
SF110D-16HP is a desktop switch measuring 160 mm wide, 90 mm deep and 44 mm high, with a weight of 1.36 kg. The enclosure is not a full-width rack chassis. Confirm the available mounting surface, cable clearance and physical placement before specifying the installation arrangement.
