Which power supply modules are supported and how many can be installed?

Up to three 1600W AC or DC power supply modules are supported, with each of the three available bays accepting one power module.

How many routing engine and line card slots does the SRX5400 chassis have?

The chassis provides three Routing Engine bays and eight Flexible PIC Concentrator (FPC) slots for line cards.

What line cards (FPC/MPC) can be installed in the SRX5400 chassis?

The chassis supports MPC3, MPC4, MPC5 and SRX Series FPCs in accordance with Juniper’s compatibility matrix.

What is the function of the installed backplane?

The backplane delivers full-mesh connectivity and high-speed data paths between routing engines, line cards and power modules for maximum throughput.

What are the physical dimensions and weight of the SRX5400 chassis?

The chassis measures 6.1 × 24.5 × 20.5 inches (H × W × D) and weighs approximately 86 lbs (39 kg).

How is the SRX5400 chassis mounted in a standard rack?

It occupies seven rack units (7RU) and is installed in a 19-inch rack using the provided rack-mounting brackets and hardware.

What are the environmental operating requirements for the chassis?

The SRX5400 operates at 32°F to 104°F (0°C to 40°C) with 5% to 85% non-condensing humidity.

Does the chassis include any software or feature licenses?

No. Software and feature licenses must be purchased and installed separately on the routing engines and line cards.

What is the recommended installation procedure for the SRX5400 chassis?

Install the chassis in a rack, mount fan trays and power supplies, then insert routing engines and FPCs following the Quick Start Guide.

What are the airflow and cooling specifications?

The chassis supports front-to-back airflow, drawing cool air in from the front and exhausting hot air at the rear at up to 1500 CFM.

Is the SRX5400-CHAS covered under warranty?

Yes. It is covered by Juniper’s standard one-year limited warranty, which can be extended with a Juniper support contract.

What technical support and replacement services are available?

Juniper offers J-Care and J-Plus support plans, providing 24×7 hardware replacement, software updates and technical assistance.

Where can I find detailed hardware documentation for the SRX5400 chassis?

Comprehensive installation, configuration and maintenance details are available in the Juniper SRX5400 Hardware Guide on the Juniper website.

FEATURED DEAL

Name:

SRX5400-CHAS

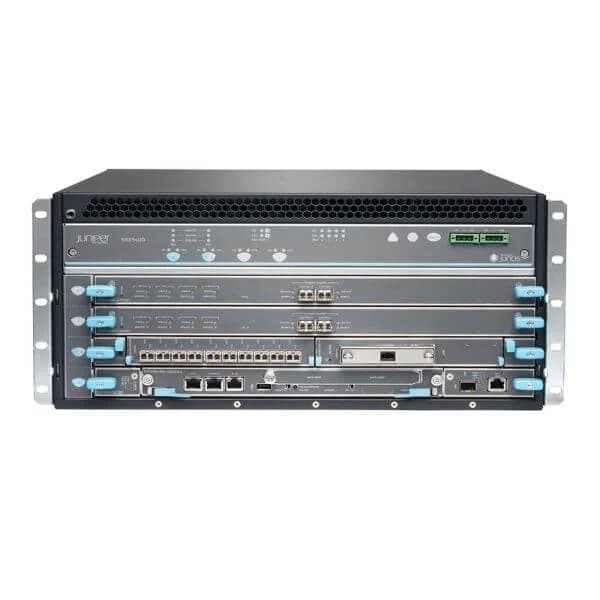

Name: SRX5400 chassis, backplane installed, no fan, no power supply
Brand: Juniper
SKU: SRX5400-CHAS
Price: 14758.00 USD
Availability: InStock
Rating: 4.2 (5 reviews)

Description:: SRX5400 chassis, backplane installed, no fan, no power supply
Rating:: 4.2(5)
Added to cart 28 times recently
Availability:: In stock - Ready to Ship
Brand:: Juniper
GTIN:: 818239500181
Condition:

Get a Quote

3 Year Extended Warranty

Same-day Shipping

14-Day Money Back Guarantee

Shipping:

Payment:

srx5400-chas srx5400 chassis, backplane installed, no fan, no power supply

3 Year Extended Warranty

Same-day Shipping

14-Day Money Back Guarantee

Need Additional Discount on Product?

Request a quote below - Get Exclusive Pricing and Support.

Shipping:

Payment:

SRX5400-CHAS

SRX5400 chassis, backplane installed, no fan, no power suppl...

TRUSTED, TRIED, PROVEN

$5,000,000+

Inventory Delivered By

Officially Accredited

& Verified By

Next-Gen IT

Solutions Powered By

SRX5400-CHAS Overview

SRX5400-CHAS is a high-performance, chassis-based security solution engineered for demanding enterprise and data center environments. Designed as a hardware appliance with a modular chassis architecture, it delivers exceptional firewall throughput while offering integrated security services including IPS, antivirus, web filtering, and VPN. Its versatile port configuration—featuring a mix of LAN, WAN, and SFP/SFP+ interfaces—ensures flexible network connectivity and dedicated performance across multiple traffic types.

SRX5400-CHAS provides redundant power supplies and robust high availability options in an active-active clustering configuration to minimize downtime. With capabilities such as scalable session handling, rapid new session processing, and comprehensive management interfaces (CLI, GUI, REST API, cloud-based options), this device is ideally suited for secure data centers, large-scale branch offices, and cloud-connected enterprises demanding uncompromised security and performance.

SRX5400-CHAS price is is available on request. Get immediate quote.

Request bulk order quote for SRX5400-CHAS for additional pricing. Browse the full Juniper Srx Series Service Gateways series or explore all Juniper products.

SRX5400-CHAS Specifications

Product Type: Firewall Appliance
Architecture: Chassis
Deployment Type: Enterprise / Data Center
Use Case: VPN / Secure Access / UTM
Firewall Layer Supported: Layer 3 / Layer 4 / Layer 7
Power Source: AC Power Supply
Redundant Power Supply Supported: Yes
Firewall Throughput: 160 Gbps
Threat Protection Throughput: 80 Gbps
IPS Throughput: 40 Gbps
VPN Throughput: 80 Gbps
Supported Applications: N/A
Centralized Configuration & Reporting: Yes
Feature: High Performance, Scalability, and High Availability
Concurrent Sessions: 7 Million
Maximum Concurrent Sessions: 14 Million
Users/Nodes: Unlimited
Integrated I/O: N/A
New Sessions Per Second: 300000
Supported VPN Types: IPSec / SSL VPN / L2TP
Routing Protocols Supported: OSPF / BGP / RIP / Static Routing
Security Services: Antivirus / Web Filtering / Application Control / IPS / VPN
High Availability: Active-Active
Interfaces: RJ-45 / SFP / SFP+ / QSFP+ / Combo Ports
WAN Ports: 4 WAN
LAN Ports: 8 LAN Ports
Switch Ports: Yes
POE Ports: No
Management Options: Cloud / CLI / GUI / Centralized / REST API / SNMP
Logging & Monitoring: Built-in / Syslog / Cloud Logging
Firewall Policies Supported: N/A
Users Supported: N/A
Memory: 16 GB
Flash Storage: 128 GB
Expansion Slots: SFP
Form Factor: Chassis
Rack Units: N/A
Device Type: NGFW
Product Name: SRX5400-CHAS
Height: N/A
Width: N/A
Depth: N/A
Weight: N/A

SRX5400-CHAS Use Case

Ultra-High-Performance Data Center Firewall with SRX5400-CHAS-SRX5400

In a hyperscale data center requiring 1.2 Tbps of threat-intelligent firewall throughput, the SRX5400-CHAS-SRX5400 chassis (backplane installed, no fan, no power supply) hosts next-gen security and DDoS protection line cards. IT teams achieve line-rate inspection and micro-segmentation for multi-tenant workloads, reducing breach risk and ensuring compliance. Benefit: Scalable capacity for zero-downtime expansion and predictable performance under peak loads.

Scalable VPN Aggregation for Global Enterprise Remote-Access

A multinational corporation deploys the SRX5400-CHAS-SRX5400 chassis as the foundation for a carrier-class VPN concentrator fabric. With the backplane ready for up to seven high-density interface cards, the security operations center rapidly scales IPsec tunnels to 100 K+ concurrent connections. Benefit: Simplified upgrade path and centralized policy enforcement deliver consistent user experience and 40% faster branch onboarding.

Modular Service-Chassis for Telecom Service Provider Fabric

A Tier-1 service provider leverages the SRX5400-CHAS-SRX5400 chassis in its edge fabric to host NFV-enabled security services and dynamic traffic steering. The installed backplane supports hot-swap line cards for firewall, IPS, and advanced routing, enabling on-demand service chaining. Benefit: Lower total cost of ownership through pay-as-you-grow modularity and guaranteed five-nines availability for mission-critical services.

Quality Certifications

To get the detailed certification, please go to the Compliance Center.

Product Comparison Table

	SRX5400-CHAS	SRX300-SYS-JB	SRX4200-SYS-JE-DC	SRX4600-AC-TAA	SRX345-SYS-JE-2AC
Product Type	Firewall Appliance	Firewall Appliance	Firewall Appliance	Firewall Appliance	Firewall Appliance
Architecture	Chassis	Rack-mount	Rack-mount	Rack-mount	Rack-mount
Deployment Type	Enterprise / Data Center	Branch Office / SMB	Data Center	Enterprise / Data Center	Enterprise/Branch Office
Use Case	VPN / Secure Access / UTM	VPN / Secure Access / UTM	VPN / Secure Access / Segmentation / UTM	VPN / Secure Access / Segmentation / UTM	UTM/VPN/IPS
Firewall Layer Supported	Layer 3 / Layer 4 / Layer 7	Layer 3 / Layer 4	Layer 3 / Layer 4 / Layer 7	Layer 3 / Layer 4 / Layer 7	Layer 3/Layer 7
Power Source	AC Power Supply	AC Power Supply	AC Power Supply	AC Power Supply	AC Power Supply
Redundant Power Supply Supported	Yes	No	Yes	Yes	Yes
Firewall Throughput	160 Gbps	1 Gbps	14 Gbps	40 Gbps	4 Gbps
Threat Protection Throughput	80 Gbps	200 Mbps	10 Gbps	9 Gbps	2 Gbps
IPS Throughput	40 Gbps	150 Mbps	10 Gbps	4 Gbps	1.2 Gbps
VPN Throughput	80 Gbps	150 Mbps	6 Gbps	15 Gbps	3 Gbps
Supported Applications	N/A	50	200	300	250
Centralized Configuration & Reporting	Yes	Juniper Security Director	Yes	Juniper Networks Junos Space	GUI, CLI, SNMP, REST API
Feature	High Performance, Scalability, and High Availability	Next-Generation Firewall	Integrated threat intelligence, high scalability, multi-level security services	Next-Generation Firewall with integrated IPS, antivirus, and web filtering	High-performance, multi-layer security and scalability
Concurrent Sessions	7 Million	32000	1 Million	700000	1000000
Maximum Concurrent Sessions	14 Million	64000	1 Million	1500000	2000000
Users/Nodes	Unlimited	Unlimited	Unlimited	Unlimited	Unlimited
Integrated I/O	N/A	4	8	N/A	N/A
New Sessions Per Second	300000	3000	75,000	25000	50000
Supported VPN Types	IPSec / SSL VPN / L2TP	IPSec / SSL VPN	IPSec / SSL VPN	IPSec / SSL VPN	IPSec/SSL VPN
Routing Protocols Supported	OSPF / BGP / RIP / Static Routing	OSPF / BGP / RIP / Static Routing	OSPF / BGP / Static Routing	OSPF / BGP / RIP / Static Routing	OSPF/BGP/RIP/Static Routing
Security Services	Antivirus / Web Filtering / Application Control / IPS / VPN	Antivirus / Web Filtering / Application Control / IPS / VPN	Antivirus / Web Filtering / Application Control / IPS / VPN	Antivirus / Web Filtering / Application Control / IPS / VPN	Antivirus/Web Filtering/Application Control/IPS/VPN
High Availability	Active-Active	Active-Passive	Active-Passive	Active-Passive	Active-Passive
Interfaces	RJ-45 / SFP / SFP+ / QSFP+ / Combo Ports	RJ-45 / SFP	RJ-45 / SFP	RJ-45 / SFP / SFP+	RJ-45/SFP
WAN Ports	4 WAN	1 WAN	2 WAN	4 WAN	2 WAN
LAN Ports	8 LAN Ports	4 LAN Ports	8 LAN Ports	8 LAN Ports	8 LAN Ports
Switch Ports	Yes	No	Yes	Yes	Yes
POE Ports	No	No	No	No	No
Management Options	Cloud / CLI / GUI / Centralized / REST API / SNMP	CLI / GUI / SNMP / REST API	Cloud / CLI / GUI / Centralized / REST API / SNMP	CLI / GUI / SNMP / REST API / Centralized	Cloud/CLI/GUI/Centralized/REST API/SNMP
Logging & Monitoring	Built-in / Syslog / Cloud Logging	Built-in / Syslog / Cloud Logging	Built-in	Built-in / Syslog / Cloud Logging	Built-in/Syslog/Cloud Logging
Firewall Policies Supported	N/A	500	100	N/A	500
Users Supported	N/A	N/A	Unlimited	Unlimited	1000000
Memory	16 GB	4 GB	8 GB	16 GB	8 GB
Flash Storage	128 GB	16 GB	32 GB	128 GB	128 GB
Expansion Slots	SFP	N/A	SFP	SFP	SFP
Form Factor	Chassis	1 RU	1 RU	Rack-mount	1 RU
Rack Units	N/A	1 RU	1 RU	2 RU	1 RU
Device Type	NGFW	NGFW	NGFW	NGFW	NGFW
Product Name	SRX5400-CHAS	SRX300-SYS-JB	SRX4200-SYS-JE-DC	SRX4600-AC-TAA	SRX345-SYS-JE-2AC Next-Generation Firewall
Height	N/A	1.75 inches	1.75 inches	3.5 inches	1 inches
Width	N/A	17.5 inches	17 inches	17.3 inches	17 inches
Depth	N/A	12 inches	18 inches	28.7 inches	15 inches
Weight	N/A	7 lbs	25 lbs	30 lbs	15 lbs

Reviews & Ratings

Gavin Turner

Strong chassis foundation for modular SRX5400 builds.

Henry Collins

Well constructed and easy to install.

Victor Lang

Reliable hardware base.

Daniel Foster

Good option when sourcing components separately.

James Bennett

Meets enterprise standards.

Questions & Answers

What is the SRX5400-CHAS chassis?

The SRX5400-CHAS is Juniper Networks’ SRX5400 services gateway chassis with the backplane installed, provided without fans or power supply modules.

Which components are included with SKU SRX5400-CHAS?

This SKU includes only the SRX5400 chassis and its backplane; it does not include fan trays, power supplies, routing engines, line cards, or cables.

Are fans and power supplies included with the SRX5400-CHAS?

No. Fans and power supply modules must be ordered and installed separately to complete the system.

Which fan trays are compatible and how many are required?

The chassis supports up to four Juniper FAN-3000DX fan trays, with a minimum of two trays required for optimal cooling.
