How many routing engines are included with SRX5800X-BASE?

The base configuration includes one SRX5K-RE-1800X4 routing engine, with support for an optional second routing engine for active/standby redundancy.

What power redundancy and efficiency features does SRX5800X-BASE offer?

The SRX5800X-BASE provides two hot-swappable high-capacity PEMs in an N+1 configuration, delivering power redundancy, load sharing, and improved energy efficiency.

How does the enhanced midplane improve SRX5800X-BASE performance?

The enhanced midplane provides a high-bandwidth, low-latency data path between line cards and routing engines, ensuring consistent throughput and scalability.

What redundancy features are available in the SRX5800X-BASE?

The SRX5800X-BASE supports redundant switch control boards, N+1 power and fan modules, optional dual routing engines, and in-service software upgrades for continuous uptime.

Can I expand the capacity of the SRX5800X-BASE?

Yes. You can add additional SCB3 switch control boards, a second routing engine, and compatible line cards to scale throughput, port density, and service capacity.

What high-speed interfaces are supported by the SRX5800X-BASE?

Each SRX5K-SCB3 supports up to 18 ports of 100 GbE or 48 ports of 10 GbE, delivering flexible high-speed connectivity for demanding network environments.

How do I perform the initial configuration of the SRX5800X-BASE?

Connect via the console port, access the Junos CLI or J-Web GUI, set the root password, configure system parameters and interfaces, install licenses, then commit your changes.

What warranty and support options are available for SRX5800X-BASE?

SRX5800X-BASE ships with a one-year Juniper hardware warranty and access to Juniper’s JTAC. Optional J-Care and advanced replacement services are also available.

What are the ideal use cases for the SRX5800X-BASE?

The SRX5800X-BASE is ideal for large enterprise data centers, service provider edge deployments, high-performance enterprise firewalls, and DDoS mitigation.

What cooling mechanisms are built into the SRX5800X-BASE?

The SRX5800X-BASE includes two hot-swappable high-capacity fan trays with front-to-back airflow and N+1 fan redundancy for optimal thermal management.

How does the SRX5800X-BASE ensure high availability?

The platform delivers high availability through redundant switch control boards, N+1 power and fan modules, optional dual routing engines, and in-service software upgrades.

FEATURED DEAL

Name:

SRX5800X-BASE

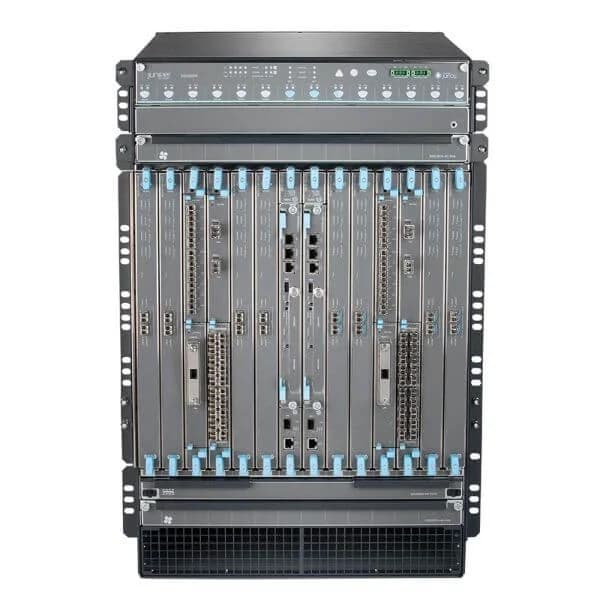

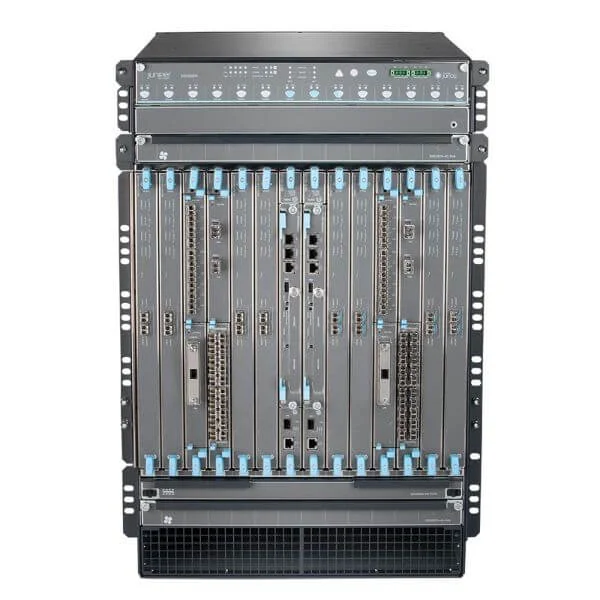

Name: SRX5800 Configuration includes: Chassis, enhanced midplane, SRX5K-RE-1800X4, 2xSRX5K-SCB3, 2xHC PEM, 2xHC fan tray; Supported by JUNOS release 15.1X49-D10 onwards
Brand: Juniper
SKU: SRX5800X-BASE
Price: 27311.00 USD
Availability: InStock
Rating: 4.2 (5 reviews)

Description:: SRX5800 Configuration includes: Chassis, enhanced midplane, SRX5K-RE-1800X4, 2xSRX5K-SCB3, 2xHC PEM, 2xHC fan tray; Supported by JUNOS release 15.1X49-D10 onwards
Rating:: 4.2(5)
Added to cart 28 times recently
Availability:: In stock - Ready to Ship
Brand:: Juniper
GTIN:: 832938062375
Condition:

Get a Quote

3 Year Extended Warranty

Same-day Shipping

14-Day Money Back Guarantee

Shipping:

Payment:

srx5800x-base srx5800 configuration includes: chassis, enhanced midplane, srx5k-re-1800x4, 2xsrx5k-scb3, 2xhc pem, 2xhc fan tray; supported by junos release 15.1x49-d10 onwards

3 Year Extended Warranty

Same-day Shipping

14-Day Money Back Guarantee

Need Additional Discount on Product?

Request a quote below - Get Exclusive Pricing and Support.

Shipping:

Payment:

SRX5800X-BASE

SRX5800 Configuration includes: Chassis, enhanced midplane,...

TRUSTED, TRIED, PROVEN

$5,000,000+

Inventory Delivered By

Officially Accredited

& Verified By

Next-Gen IT

Solutions Powered By

SRX5800X-BASE Overview

SRX5800X-BASE is a premier rack-mounted chassis appliance engineered for high-performance network security in large enterprises and data centers. Designed with advanced hardware acceleration, it offers robust firewall throughput, multiple port configurations including LAN, WAN, and SFP interfaces, and dual AC power supply redundancy for minimal downtime.

SRX5800X-BASE supports an extensive portfolio of security services such as IPS, antivirus, web filtering, and VPN, making it ideal for complex deployments ranging from enterprise networks to cloud-based environments. Its scalable architecture, high availability clustering options, and comprehensive management capabilities including CLI, GUI, and centralized reporting ensure that organizations can deploy and manage their security infrastructure efficiently.

SRX5800X-BASE price is is available on request. Get immediate quote.

Request bulk order quote for SRX5800X-BASE for additional pricing. Browse the full Juniper Srx Series Service Gateways series or explore all Juniper products.

SRX5800X-BASE Specifications

Product Type: Firewall Appliance
Architecture: Chassis
Deployment Type: Enterprise / Data Center
Use Case: VPN / Secure Access / Segmentation / UTM
Firewall Layer Supported: Layer 3 / Layer 4 / Layer 7
Power Source: AC Power Supply
Redundant Power Supply Supported: Yes
Firewall Throughput: 250 Gbps
Threat Protection Throughput: 100 Gbps
IPS Throughput: 50 Gbps
VPN Throughput: 150 Gbps
Supported Applications: 100
Centralized Configuration & Reporting: Juniper Security Director
Feature: High Performance, Scalability, and Clustering
Concurrent Sessions: 50 Million
Maximum Concurrent Sessions: 100 Million
Users/Nodes: Unlimited
Integrated I/O: N/A
New Sessions Per Second: 5 Million
Supported VPN Types: IPSec / SSL VPN
Routing Protocols Supported: OSPF / BGP / RIP / Static Routing
Security Services: Antivirus / Web Filtering / Application Control / IPS / VPN
High Availability: Active-Active
Interfaces: RJ-45 / SFP / SFP+ / QSFP+ / Combo Ports
WAN Ports: 4 WAN
LAN Ports: 8 LAN Ports
Switch Ports: Yes
POE Ports: No
Management Options: Cloud / CLI / GUI / Centralized / REST API / SNMP
Logging & Monitoring: Built-in / External / Syslog / Cloud Logging
Firewall Policies Supported: 5000
Users Supported: Unlimited
Memory: 32 GB
Flash Storage: 128 GB
Expansion Slots: SFP / NP Module
Form Factor: Chassis
Rack Units: 2 RU
Device Type: NGFW
Product Name: SRX5800X-BASE
Height: 3.5 inches
Width: 17 inches
Depth: 18 inches
Weight: 50 lbs

Quality Certifications

To get the detailed certification, please go to the Compliance Center.

Product Comparison Table

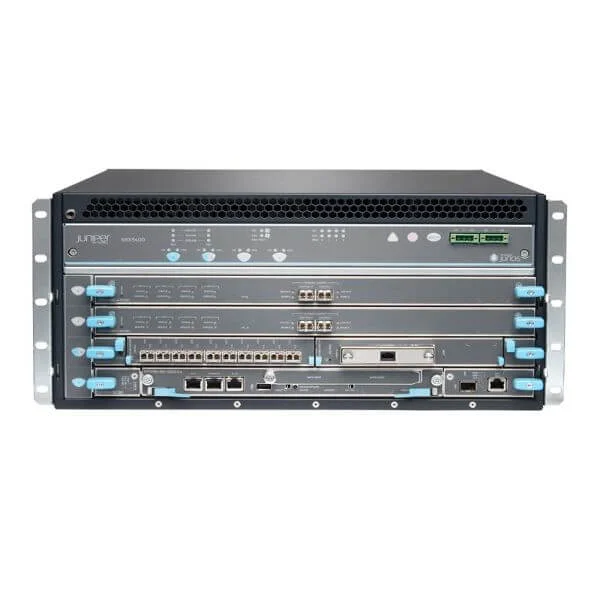

	SRX5800X-BASE	SRX340	SRX5600X-B10-DC	SRX5400E-B1-AC	SRX320-SYS-JE-P
Product Type	Firewall Appliance	Firewall Appliance	Firewall Appliance	Firewall Appliance	Firewall Appliance
Architecture	Chassis	Rack-mount	Rack-mount	Chassis	Rack-mount
Deployment Type	Enterprise / Data Center	Enterprise / Branch Office	Enterprise / Data Center	Enterprise / Data Center / Cloud	Branch Office / Enterprise
Use Case	VPN / Secure Access / Segmentation / UTM	VPN / Secure Access / Segmentation / UTM	VPN / UTM	NGFW / UTM / VPN Concentrator	VPN / Secure Access / UTM
Firewall Layer Supported	Layer 3 / Layer 4 / Layer 7	Layer 3 / Layer 7	Layer 7	Layer 3 / Layer 4 / Layer 7	Layer 3 / Layer 4 / Layer 7
Power Source	AC Power Supply	AC Power Supply	DC Power Supply	AC Power Supply	AC Power Supply
Redundant Power Supply Supported	Yes	Yes	Yes	Yes	Yes
Firewall Throughput	250 Gbps	3 Gbps	100 Gbps	80 Gbps	3 Gbps
Threat Protection Throughput	100 Gbps	1 Gbps	40 Gbps	12 Gbps	1.2 Gbps
IPS Throughput	50 Gbps	1.5 Gbps	30 Gbps	12 Gbps	700 Mbps
VPN Throughput	150 Gbps	1 Gbps	40 Gbps	20 Gbps	1 Gbps
Supported Applications	100	N/A	200	N/A	N/A
Centralized Configuration & Reporting	Juniper Security Director	Juniper Networks Junos Space	Junos Space	Yes	Yes
Feature	High Performance, Scalability, and Clustering	Next-Generation Firewall with Advanced Threat Protection	High Performance Next-Generation Firewall	Next-Generation Firewall	Next-Generation Firewall, Threat Prevention
Concurrent Sessions	50 Million	250000	2000000	10 Million	100000
Maximum Concurrent Sessions	100 Million	250000	4000000	10 Million	150000
Users/Nodes	Unlimited	N/A	Unlimited	Unlimited	Unlimited
Integrated I/O	N/A	N/A	8	8	4
New Sessions Per Second	5 Million	15000	150000	200K	2000
Supported VPN Types	IPSec / SSL VPN	IPSec / SSL VPN	IPSec / SSL VPN	IPSec / SSL VPN / L2TP / GRE	IPSec / SSL VPN
Routing Protocols Supported	OSPF / BGP / RIP / Static Routing	OSPF / BGP / RIP / Static Routing	OSPF / BGP / RIP / Static Routing	OSPF / BGP / Static Routing	OSPF / BGP / RIP / Static Routing
Security Services	Antivirus / Web Filtering / Application Control / IPS / VPN	Antivirus / Web Filtering / Application Control / IPS / VPN	Antivirus / Web Filtering / Application Control / IPS / VPN	Antivirus / Web Filtering / Application Control / IPS / VPN	Antivirus / Web Filtering / Application Control / IPS / VPN
High Availability	Active-Active	Active-Passive	Active-Passive	Active-Passive	Active-Passive
Interfaces	RJ-45 / SFP / SFP+ / QSFP+ / Combo Ports	RJ-45 / SFP	RJ-45 / SFP / SFP+ / Combo Ports	RJ-45 / SFP	RJ-45 / SFP
WAN Ports	4 WAN	2 WAN	2 WAN	2 WAN	2 WAN
LAN Ports	8 LAN Ports	8 LAN Ports	8 LAN Ports	8 LAN Ports	8 LAN Ports
Switch Ports	Yes	No	Yes	Yes	Yes
POE Ports	No	No	No	No	No
Management Options	Cloud / CLI / GUI / Centralized / REST API / SNMP	Cloud / CLI / GUI / Centralized / REST API / SNMP	Cloud / CLI / GUI / Centralized / REST API / SNMP	CLI / GUI / SNMP / REST API	CLI / GUI / SNMP
Logging & Monitoring	Built-in / External / Syslog / Cloud Logging	Built-in / External / Syslog / Cloud Logging	Built-in	Built-in / Syslog / Cloud Logging	Built-in / Syslog
Firewall Policies Supported	5000	N/A	5000	N/A	300
Users Supported	Unlimited	N/A	N/A	Unlimited	5000
Memory	32 GB	4 GB	16 GB	16 GB	4 GB
Flash Storage	128 GB	16 GB	64 GB	128 GB	16 GB
Expansion Slots	SFP / NP Module	SFP	SFP	SFP	N/A
Form Factor	Chassis	1 RU	2 RU	Chassis	1 RU
Rack Units	2 RU	1 RU	2 RU	2 RU	1 RU
Device Type	NGFW	NGFW	NGFW	NGFW	NGFW
Product Name	SRX5800X-BASE	SRX340	SRX5600X-B10-DC	SRX5400E-B1-AC	SRX320-SYS-JE-P
Height	3.5 inches	1.75 inches	3.5 inches	N/A	1.75 inches
Width	17 inches	17.2 inches	17.2 inches	N/A	17 inches
Depth	18 inches	17.7 inches	29 inches	N/A	15 inches
Weight	50 lbs	15 lbs	35 lbs	N/A	15 lbs

Reviews & Ratings

Richard Coleman

Powerful base system ready for high throughput security.

Daniel Frost

Stable routing engine and control boards.

Julian Meyer

Designed well for carrier scale deployments.

Victor Hammond

Strong performance baseline.

Oliver Shaw

Excellent core firewall foundation.

Questions & Answers

What is the SRX5800X-BASE network security platform?

The SRX5800X-BASE is a high-performance, modular network security appliance featuring a chassis with an enhanced midplane, an SRX5K-RE-1800X4 routing engine, two SRX5K-SCB3 switch control boards, two high-capacity power entry modules, and two high-capacity fan trays.

Which components are included in the SRX5800X-BASE configuration?

The SRX5800X-BASE configuration includes a chassis, enhanced midplane, one SRX5K-RE-1800X4 routing engine, two SRX5K-SCB3 switch control boards, two high-capacity PEMs, and two high-capacity fan trays.

Which Junos OS release supports the SRX5800X-BASE?

The SRX5800X-BASE is supported by Junos OS Release 15.1X49-D10 and all later releases.

What firewall throughput can the SRX5800X-BASE deliver?

The SRX5800X-BASE delivers up to 2 Tbps of firewall throughput with full services enabled, ideal for large enterprise and data center environments.
