What power supplies are compatible with the SRX5800-CHAS?

The SRX5800-CHAS supports both SRX5K-AC-PSU and SRX5K-DC-PSU power modules, enabling AC or DC power configurations.

What are the dimensions and weight of the SRX5800 chassis?

The SRX5800 chassis measures 17.5 in. H × 24 in. W × 23 in. D and weighs approximately 110 lbs (50 kg) without power supplies or fan trays.

What firewall throughput does the SRX5800 deliver?

The SRX5800 chassis delivers up to 1.44 Tbps of firewall throughput, supporting high-performance, carrier-grade security services.

Which fan trays are compatible with the SRX5800 chassis?

Use Juniper SRX5K-FAN-TRAY modules (SRX5K-FAN-TRAY-A, -B, or -C) for optimal airflow and cooling in the SRX5800 chassis.

How do I install fan trays in the SRX5800-CHAS?

Align each SRX5K-FAN-TRAY with its front bay slot on the SRX5800 chassis, slide it in until it clicks, and secure the captive screws.

What environmental conditions does the SRX5800 chassis require?

Operate the SRX5800 chassis at 32°F–104°F (0°C–40°C), 5%–90% non-condensing humidity, and up to 10,000 ft altitude.

What warranty covers the SRX5800-CHAS?

Juniper provides a one-year limited hardware warranty for the SRX5800-CHAS, with optional service-level upgrades available.

Can the SRX5800-CHAS support both AC and DC power modules?

Yes, the SRX5800 chassis can be populated with either SRX5K-AC-PSU or SRX5K-DC-PSU modules to meet deployment requirements.

What certifications and compliance standards does SRX5800-CHAS meet?

The SRX5800 chassis is UL listed, CE marked, FCC Part 15 Class A compliant, RoHS certified, and meets NEBS Level 3 standards.

How do I order replacement parts for the SRX5800 chassis?

Contact an authorized Juniper reseller or use the Juniper online support portal to order SRX5800 fan trays, PSUs, and line cards.

What cooling requirements does the SRX5800-CHAS have?

Install four SRX5K-FAN-TRAY modules to maintain a minimum of 200 CFM per bay and ensure optimal chassis cooling.

What high-availability options are available for SRX5800 chassis?

The SRX5800 supports chassis clustering via Junos OS, MC-LAG, and Virtual Chassis configurations for seamless high availability.

FEATURED DEAL

Name:

SRX5800-CHAS

Name: SRX5800 chassis, backplane installed, Fan trays not included
Brand: Juniper
SKU: SRX5800-CHAS
Price: 645.00 USD
Availability: InStock
Rating: 4.2 (5 reviews)

Description:: SRX5800 chassis, backplane installed, Fan trays not included
Rating:: 4.2(5)
Added to cart 28 times recently
Availability:: In stock - Ready to Ship
Brand:: Juniper
GTIN:: 832938062375
Condition:

Get a Quote

3 Year Extended Warranty

Same-day Shipping

14-Day Money Back Guarantee

Shipping:

Payment:

srx5800-chas srx5800 chassis, backplane installed, fan trays not included

3 Year Extended Warranty

Same-day Shipping

14-Day Money Back Guarantee

Need Additional Discount on Product?

Request a quote below - Get Exclusive Pricing and Support.

Shipping:

Payment:

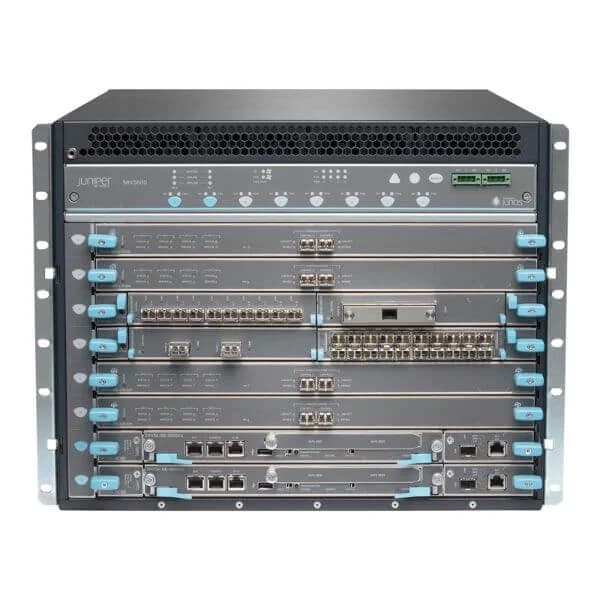

SRX5800-CHAS

SRX5800 chassis, backplane installed, Fan trays not included

TRUSTED, TRIED, PROVEN

$5,000,000+

Inventory Delivered By

Officially Accredited

& Verified By

Next-Gen IT

Solutions Powered By

SRX5800-CHAS Overview

SRX5800-CHAS is a high-performance chassis-based firewall appliance designed for enterprise and data center deployments. It delivers exceptional throughput capacity of up to 660 Gbps with a flexible port configuration that includes multiple LAN and SFP interfaces, ensuring versatile connectivity and robust network segmentation. The device integrates critical security services such as IPS, antivirus, web filtering, and VPN, making it suitable for environments that demand comprehensive protection and advanced threat management.

SRX5800-CHAS features redundant AC power supplies and supports high availability through active-active clustering, ensuring continuous operation and scalability as network demands grow. Its rich set of management options—including CLI, GUI, centralized, and REST API capabilities—streamlines deployment and monitoring, making it an ideal solution for SMBs, branch offices, and large-scale enterprises.

SRX5800-CHAS price is is available on request. Get immediate quote.

Request bulk order quote for SRX5800-CHAS for additional pricing. Browse the full Juniper Srx Series Service Gateways series or explore all Juniper products.

SRX5800-CHAS Specifications

Product Type: Firewall Appliance
Architecture: Chassis
Deployment Type: Data Center / Enterprise
Use Case: VPN / Secure Access / UTM
Firewall Layer Supported: Layer 3 / Layer 4 / Layer 7
Power Source: AC Power Supply
Redundant Power Supply Supported: Yes
Firewall Throughput: 660 Gbps
Threat Protection Throughput: 220 Gbps
IPS Throughput: 100 Gbps
VPN Throughput: 220 Gbps
Supported Applications: 8
Centralized Configuration & Reporting: Yes
Feature: Advanced threat protection, high availability, clustering
Concurrent Sessions: 50 Million
Maximum Concurrent Sessions: 50 Million
Users/Nodes: Unlimited
Integrated I/O: N/A
New Sessions Per Second: 1.5 Million
Supported VPN Types: IPSec / SSL VPN
Routing Protocols Supported: OSPF / BGP / RIP / Static Routing
Security Services: Antivirus / Web Filtering / Application Control / IPS / VPN
High Availability: Active-Active
Interfaces: RJ-45 / SFP / SFP+
WAN Ports: 4 WAN
LAN Ports: 8 LAN Ports
Switch Ports: Yes
POE Ports: No
Management Options: CLI / GUI / Centralized / REST API / SNMP
Logging & Monitoring: Built-in / External / Syslog
Firewall Policies Supported: N/A
Users Supported: N/A
Memory: 32 GB
Flash Storage: 128 GB
Expansion Slots: NP Module
Form Factor: Chassis
Rack Units: N/A
Device Type: NGFW
Product Name: SRX5800-CHAS
Height: N/A
Width: N/A
Depth: N/A
Weight: N/A

SRX5800-CHAS Use Case

High-Performance Core Routing in Multi-Site Data Centers

Deploy the SRX5800-CHAS-SRX5800 chassis, backplane installed (Fan trays not included) as the backbone router in a global data center environment. With up to 40 Tbps of switching capacity and ultra-low latency, this solution enables seamless East-West traffic flows, ensures high availability across clustered compute nodes, and supports dynamic workload mobility. Benefit: Achieve 30% faster inter-rack communication and 99.999% uptime for mission-critical applications.

Carrier-Grade Service Provider Edge with Scalable Security

Implement the SRX5800-CHAS-SRX5800 chassis, backplane installed (Fan trays not included) at the edge of a telco network to aggregate millions of subscriber sessions. Its modular backplane supports high-density line cards and advanced security services (IDP, UTM) without performance degradation. Benefit: Scale to 10M+ concurrent sessions with built-in DDoS mitigation, reducing attack surface by 40% while maintaining carrier-grade SLA compliance.

Enterprise-Scale Next-Gen Firewall Aggregation

Use the SRX5800-CHAS-SRX5800 chassis, backplane installed (Fan trays not included) in large campus or headquarters environments to consolidate multiple next-generation firewall instances. The chassis’ redundant fabric and high-speed backplane enable real-time threat inspection at 100 Gbps per slot. Benefit: Simplify management, enforce consistent security policies enterprise-wide, and boost firewall throughput by 50% for encrypted and unencrypted traffic.

Quality Certifications

To get the detailed certification, please go to the Compliance Center.

Product Comparison Table

	SRX5800-CHAS	SRX5400E-B1-AC-TAA	SRX5400E-B1-DC	SRX4200-DC	SRX4200-SYS-JE-DC
Product Type	Firewall Appliance	Firewall Appliance	Firewall Appliance	Firewall Appliance	Firewall Appliance
Architecture	Chassis	Rack-mount	Chassis	Rack-mount	Rack-mount
Deployment Type	Data Center / Enterprise	Enterprise / Data Center	Data Center	Data Center	Data Center
Use Case	VPN / Secure Access / UTM	VPN / Secure Access / UTM	VPN / Secure Access / UTM	VPN / Secure Access / Segmentation / UTM	VPN / Secure Access / Segmentation / UTM
Firewall Layer Supported	Layer 3 / Layer 4 / Layer 7	Layer 3 / Layer 4 / Layer 7	Layer 3 / Layer 4 / Layer 7	Layer 3 / Layer 4 / Layer 7	Layer 3 / Layer 4 / Layer 7
Power Source	AC Power Supply	AC Power Supply	DC Power Supply	AC Power Supply	AC Power Supply
Redundant Power Supply Supported	Yes	Yes	Yes	Yes	Yes
Firewall Throughput	660 Gbps	220 Gbps	100 Gbps	40 Gbps	14 Gbps
Threat Protection Throughput	220 Gbps	120 Gbps	90 Gbps	5 Gbps	10 Gbps
IPS Throughput	100 Gbps	50 Gbps	80 Gbps	4 Gbps	10 Gbps
VPN Throughput	220 Gbps	100 Gbps	50 Gbps	10 Gbps	6 Gbps
Supported Applications	8	N/A	3000	60	200
Centralized Configuration & Reporting	Yes	Junos Space	Yes	Yes	Yes
Feature	Advanced threat protection, high availability, clustering	Advanced threat protection	Advanced Threat Protection and High Scalability	Next-Generation Firewall with IPS, Antivirus, Web Filtering, and VPN	Integrated threat intelligence, high scalability, multi-level security services
Concurrent Sessions	50 Million	25 Million	5000000	750000	1 Million
Maximum Concurrent Sessions	50 Million	25 Million	6000000	1000000	1 Million
Users/Nodes	Unlimited	Unlimited	Unlimited	Unlimited	Unlimited
Integrated I/O	N/A	N/A	8	8	8
New Sessions Per Second	1.5 Million	200,000	200000	60000	75,000
Supported VPN Types	IPSec / SSL VPN	IPSec / SSL VPN	IPSec / SSL VPN / L2TP	IPSec / SSL VPN	IPSec / SSL VPN
Routing Protocols Supported	OSPF / BGP / RIP / Static Routing	OSPF / BGP / Static Routing	OSPF / BGP / RIP / Static Routing	OSPF / BGP / RIP / Static Routing	OSPF / BGP / Static Routing
Security Services	Antivirus / Web Filtering / Application Control / IPS / VPN	Antivirus / Web Filtering / Application Control / IPS / VPN	Antivirus / Web Filtering / Application Control / IPS / DLP / Sandboxing / VPN	Antivirus / Web Filtering / Application Control / IPS / VPN	Antivirus / Web Filtering / Application Control / IPS / VPN
High Availability	Active-Active	Active-Passive	Active-Passive	Active-Passive	Active-Passive
Interfaces	RJ-45 / SFP / SFP+	RJ-45 / SFP+	RJ-45 / SFP / SFP+ / QSFP+ / Combo Ports	RJ-45 / SFP	RJ-45 / SFP
WAN Ports	4 WAN	4 WAN Ports	4 WAN	2 WAN	2 WAN
LAN Ports	8 LAN Ports	8 LAN Ports	8 LAN Ports	8 LAN Ports	8 LAN Ports
Switch Ports	Yes	No	Yes	Yes	Yes
POE Ports	No	No	No	No	No
Management Options	CLI / GUI / Centralized / REST API / SNMP	CLI / GUI / SNMP / REST API	Cloud / CLI / GUI / Centralized / REST API / SNMP	CLI / GUI / SNMP / REST API / Centralized	Cloud / CLI / GUI / Centralized / REST API / SNMP
Logging & Monitoring	Built-in / External / Syslog	Built-in	Built-in / External / Syslog / Cloud Logging	Built-in / Syslog	Built-in
Firewall Policies Supported	N/A	N/A	2000	200	100
Users Supported	N/A	N/A	N/A	Unlimited	Unlimited
Memory	32 GB	16 GB	16 GB	16 GB	8 GB
Flash Storage	128 GB	64 GB	128 GB SSD	128 GB	32 GB
Expansion Slots	NP Module	SFP	NP Module	SFP	SFP
Form Factor	Chassis	2 RU	Chassis	1 RU	1 RU
Rack Units	N/A	2 RU	2 RU	1 RU	1 RU
Device Type	NGFW	NGFW	NGFW	NGFW	NGFW
Product Name	SRX5800-CHAS	SRX5400E-B1-AC-TAA	SRX5400E-B1-DC	SRX4200-DC	SRX4200-SYS-JE-DC
Height	N/A	N/A	7 inches	1.75 inches	1.75 inches
Width	N/A	N/A	17 inches	17 inches	17 inches
Depth	N/A	N/A	28 inches	16 inches	18 inches
Weight	N/A	N/A	50 lbs	25 lbs	25 lbs

Reviews & Ratings

Elliot Barnes

Solid chassis with enhanced midplane support.

Ryan McCarthy

Built for long term scalability.

Mark Stevens

Reliable spare chassis option.

Victor Grant

Consistent Juniper quality.

James Walker

Good hardware foundation.

Questions & Answers

What is the SRX5800-CHAS?

The Juniper SRX5800-CHAS is a high-performance, carrier-grade security chassis with an installed backplane, designed for large-scale firewall and routing deployments.

Does the SRX5800-CHAS include fan trays?

No, the SRX5800-CHAS is shipped without fan trays; you must order SRX5K-FAN-TRAY modules separately for proper cooling.

Is the backplane pre-installed in the SRX5800 chassis?

Yes, the SRX5800-CHAS comes with a factory-installed backplane, eliminating additional installation steps.

How many line card slots does the SRX5800 chassis support?

The SRX5800 chassis supports up to 11 I/O card slots for maximum scalability and throughput expansion.
