SRX550-645AP-M

SRX550-645AP-M Specification

Description

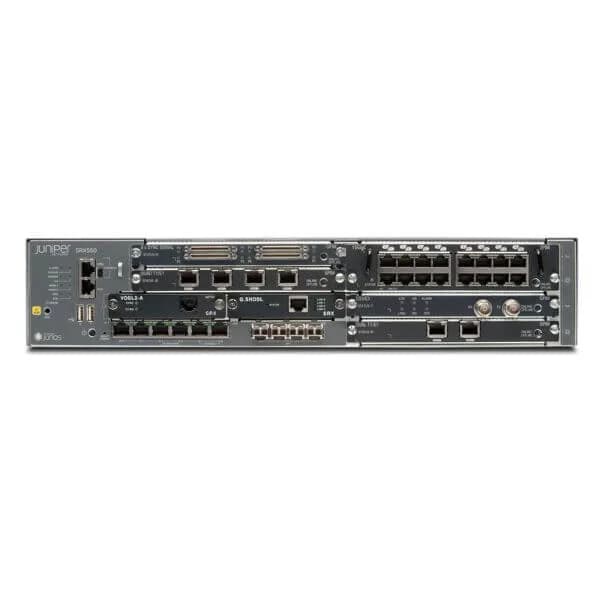

SRX550 Services Gateway with 4 GB DRAM and 8 GB CF, 2 RU height, 6 GPIM slots, 2 Mini-PIM slots, 6 10/100/1000BASE-T ports, 4GbE SFP ports, dual PS slots, fans; ships with one 645 watt AC power supply with 247 W PoE power (power cord and rack-mount kit included)

Junos OS software version tested

Junos OS 12.1

Firewall performance (max)

5.5 Gbps

IPS performance

800 Mbps

AES256+SHA-1 / 3DES+SHA-1 VPN performance

1.0 Gbps

Maximum concurrent sessions

375,000

New sessions/second (sustained, TCP, 3-way)

27,000

Maximum security policies

7256

Maximum security intelligence data feed entries in firewall rules database

600,000 IP addresses and 50,000 URLs

Fixed I/O

6 x 10/100/1000 BASE-T + 4 SFP

I/O slots

2 x SRX Series Mini-PIM, 6 x GPIM or multiple GPIM and XPIM combinations

Services and Routing Engine slots

No

Maximum number of PoE ports (PoE optional on some SRX Series models

Up to 40 ports of 802.3af/at with maximum 247 W

USB

2

Routing (Packet Mode) PPS

1000 Kpps

Concurrent VPN tunnels

2,000

Memory (DRAM)

2 GB/4 GB

Memory slots

2 DIMM

Flash memory

2 GB/8 GB CF internal

USB port for external storage

Yes

Dimensions (W x H x D)

17.5 x 3.5 x 18.2 in (44.4 x 8.8 x 46.2 cm)

Rack-mountable

Yes, 2 RU

Power supply (AC)

100€“240 VAC, single 645 W or dual 645 W

Maximum PoE power

247 W redundant, or 494 W nonredundant

Average power consumption

85 W

Average heat dissipation

238 BTU/hr

Redundant power supply (hot swappable)

Yes (up to maximum capacity of single PSU)

Operational temperature

32° to 104° F (0° to 40°C)
