403-BBMW Overview

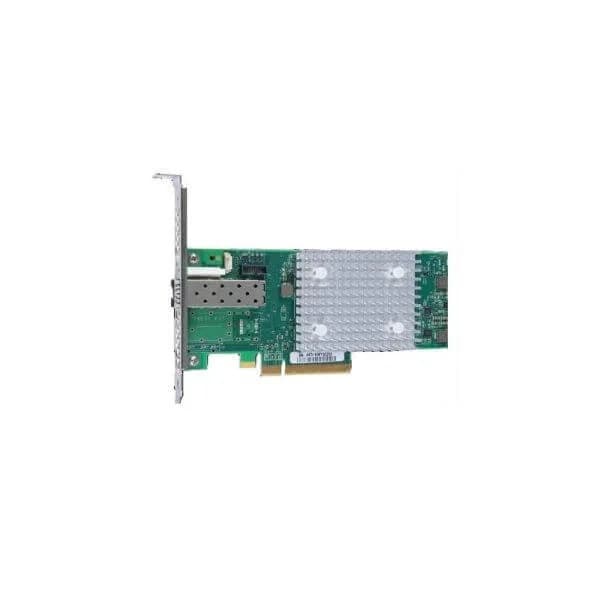

403-BBMW-QLogic 2690 Single Port 16Gb Fibre Channel HBA, PCIe Half-height is a high-performance expansion card designed specifically for storage networking in SAN environments. Built to meet rigorous reliability and throughput requirements, this Fibre Channel host bus adapter enables rapid data transfers and improved connectivity for mission‐critical server applications.
The card features a PCI Express interface – engineered to operate with PCIe 3.0 standards – and is mounted as a half-height expansion device ideal for systems with limited space. Utilizing the QLogic 2690 chipset, it offers a single SFP+ port optimized for 16Gb fibre channel communications while providing broad operating system compatibility for Windows, Linux, and VMware ESXi, making it an excellent choice for storage expansion and server enhancement in enterprise data centers.
What is the price of 403-BBMW?
Pricing for 403-BBMW is available on request. Get immediate quote or for exclusive discounts, opt for bulk quotation for 403-BBMW.
Explore more options from Server Expansion Cards or explore other Dell products.
403-BBMW Specifications
| Product Type | Expansion Card |
| Card Type | Storage Controller |
| Interface | PCIe x8 |
| PCIe Version | PCIe 3.0 |
| Chipset / Controller | QLogic 2690 |
| Supported Ports | SFP+ |
| Port Count | 1 |
| Max Data Rate | N/A |
| RAID Levels Supported | N/A |
| Capture Resolution | N/A |
| Capture Frame Rate | N/A |
| Low Profile Bracket | Yes |
| Full Height Bracket | No |
| Cooling | Passive |
| Operating System Compatibility | Windows / Linux / VMware ESXi |
| Bus Width | 64-bit |
| Power Requirements | 3.3V |
| Use Case | Storage Expansion |
| Product Name | 403-BBMW-QLogic 2690 Single Port 16Gb Fibre Channel HBA, PCIe Half-height |
| Height | N/A |
| Width | N/A |
| Depth | N/A |
| Weight | N/A |
403-BBMW Use Case
High-Speed SAN Connectivity for Virtualized Enterprise Environments
In a VMware ESXi cluster hosting 500+ virtual machines, the 403-BBMW-QLogic 2690 Single Port 16Gb Fibre Channel HBA (PCIe Half-height) delivers dedicated 16Gbps links to shared SAN arrays. By reducing storage latency up to 40% and driving throughput above 1.8 million IOPS, it accelerates VM boot and live-migration operations, supports higher VM density and strengthens SLA compliance.
Accelerating High-Transaction OLTP Database Workloads
In a global retail environment running a clustered Microsoft SQL Server platform, the 403-BBMW-QLogic 2690 HBA provides a stable 16Gb Fibre Channel connection to enterprise SAN storage. This configuration delivers sub-millisecond latency and up to 35% higher transaction throughput, ensuring real-time inventory updates, rapid query responses and continuous availability during peak sales events.
Streamlined Backup & Disaster Recovery for Mission-Critical Data
In a biotech research data center leveraging Commvault and tape-out libraries, the 403-BBMW-QLogic 2690 HBA (PCIe Half-height) links backup servers to Fibre Channel tape and disk vaults at 16Gbps. The result is a 2.5× faster nightly backup window—shrinking from 8 to 3 hours—while meeting sub-15-minute RPO targets and ensuring rapid DR readiness for critical R&D datasets.
