Name:
406-BBDZ
- Description:

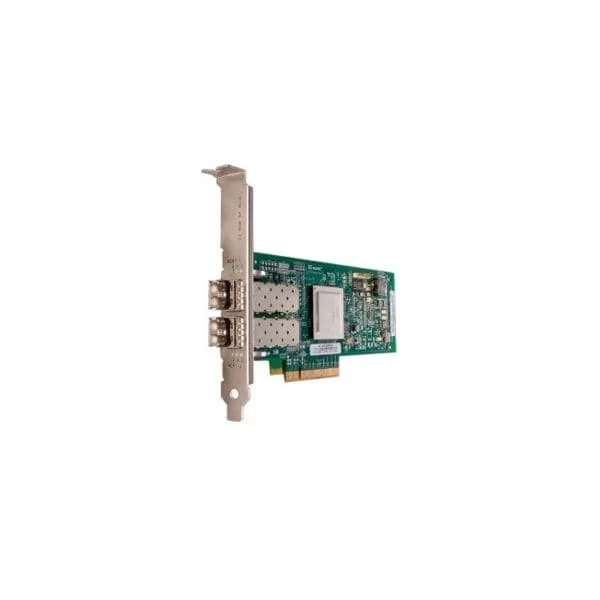

- QLogic 2562 Dual Ports 8Gb Fibre Channel HBA, PCIe Full-height
- Rating:
-
(0)
Added to cart 12 times recently
- Availability:
-
In stock - Ready to Ship
- Brand:
- Dell
- Condition:
- GTIN:
- 7436355942963
- Warranty:
-
3 - List Price:
-
- Price:
-
Quantity:
1
3 Year Extended Warranty
Same-day Shipping
14-Day Money Back Guarantee
Need Additional Discount on Product?
Request a quote below - Get Exclusive Pricing and Support.
Exclusive Bulk Discounts tailored to your order size
Priority Processing with a dedicated account manager
Fast Response: Get your custom quote within 5-10 minutes during business hours (Mon-Fri, 6:00 AM – 6:00 PM PST)
Holiday Bonus: Submissions on holidays receive priority handling the next business day
Shipping:
Payment:
Shipping as per your need
Same-day Shipping
Express Delivery Across the USA
Need it fast? Choose Express Shipping and receive your order within 1–3 business days.
Free Ground Shipping Available
Standard ground delivery across the U.S. takes 2–6 days, depending on your location — no extra charge.
International Shipments Made Simple
For all international orders, we ship via your UPS, FedEx, or DHL account — or to your U.S.-based freight forwarder.
Delivery Timelines
Under 100 KG? Ships Express.
Smaller shipments go via DHL or FedEx Express — delivered worldwide in approximately 3 business days.
Over 100 KG? Ships via Freight.
Larger orders are dispatched through freight forwarding partners. Delivery takes 7–10 business days, globally.
Always Delivered to Your Door
Every shipment is delivered directly to your address — regardless of country or carrier.
Our best-in-class warranties
3-Year Extended Warranty
Extended protection, enterprise-grade.
All enterprise hardware is backed by a 3-year warranty — triple the industry standard — covering defects under normal use.
Professional repairs & replacements.
If a hardware issue is confirmed, we’ll repair or replace the unit. Replacement parts carry either original or 3-month coverage.
RMA process, simplified.
Once an RMA is approved, return the defective unit within 10 days. We handle the rest — no service gaps.
Service Boundaries & Exclusions
What’s covered — and what’s best avoided.
Your warranty covers defects under normal use. For continued protection, avoid accidental damage, unauthorized repairs, third-party parts, or extreme environments.
Know your location’s service type.
In some regions, return-to-factory or remote service may apply. On-site service depends on infrastructure availability.
Minimal documentation required.
To initiate service, just submit the invoice and warranty card — no red tape, no waiting.
14-Day Money Back Guarantee
Free 14-Day Returns
Tested it, but it’s not a fit?
Return any product within 14 days of delivery if it doesn’t meet your technical or operational needs.
Initiate returns with ease.
Our RMA process is streamlined — just raise a request, follow the packaging guidelines, and we’ll handle the rest.
Refund or restock, your call.
Changed your mind? Get a refund (restocking fees may apply) or swap with another product.
30-Day Hardware Replacement
Covered for any early faults.
All equipment includes a 30-day replacement warranty. If something goes wrong, we’ll repair or swap it — fast.
Replacements shipped in 10 days or less.
Once your return is inspected and approved, we dispatch the replacement promptly to keep your operations moving.
RMA protocol keeps it smooth.
Just ensure all accessories and original packaging are intact — we’ll take care of the technical validation.
TRUSTED, TRIED, PROVEN
406-BBDZ Overview
406-BBDZ-QLogic 2562 Dual Ports 8Gb Fibre Channel HBA, PCIe Full-height is an expansion card engineered as a dedicated storage controller that leverages a PCIe x8 interface and the QLogic 2562 chipset for high-speed Fibre Channel connectivity. It features dual Fibre Channel ports operating at 8Gb, delivering robust performance in storage area network deployments and ensuring seamless data transfer for enterprise server environments.
Designed with a full-height bracket and passive cooling, this HBA supports a 64-bit bus architecture and is compatible with operating systems such as Windows, Linux, and VMware ESXi. Its reliable performance and optimized design make it an essential component for storage expansion and network upgrades in data centers and high-demand server applications.
What is the price of 406-BBDZ?
Pricing for 406-BBDZ is available on request. Get immediate quote or for exclusive discounts, opt for bulk quotation for 406-BBDZ.
Explore more options from Server Expansion Cards or explore other Dell products.
406-BBDZ Specifications
| Product Type | Expansion Card |
| Card Type | Storage Controller |
| Interface | PCIe x8 |
| PCIe Version | PCIe 3.0 |
| Chipset / Controller | QLogic 2562 |
| Supported Ports | N/A |
| Port Count | 2 |
| Max Data Rate | N/A |
| RAID Levels Supported | N/A |
| Capture Resolution | N/A |
| Capture Frame Rate | N/A |
| Low Profile Bracket | No |
| Full Height Bracket | Yes |
| Cooling | Passive |
| Operating System Compatibility | Windows / Linux / VMware ESXi |
| Bus Width | 64-bit |
| Power Requirements | 3.3V |
| Use Case | Storage Expansion |
| Product Name | 406-BBDZ-QLogic 2562 Dual Ports 8Gb Fibre Channel HBA, PCIe Full-height |
| Height | N/A |
| Width | N/A |
| Depth | N/A |
| Weight | N/A |
406-BBDZ Use Case
High-Throughput SAN Connectivity for Virtualized Data Centers
Scenario: A global enterprise running a VMware vSphere cluster needs predictable, low-latency access to shared storage under heavy I/O. By installing the 406-BBDZ-QLogic 2562 Dual Ports 8Gb Fibre Channel HBA, servers gain dual 8 Gb/s WWN-addressable links into the SAN fabric. Outcome: Consecutive 8 Gb/s throughput per port with automatic failover, delivering sub-2 ms latency under peak loads. Benefit: Dramatically improved VM boot, migration and application response times while ensuring uninterrupted connectivity and simplified multipathing management.
Disaster Recovery & Business Continuity in Multi-Site Fibre Channel Fabrics
Scenario: A financial services firm must replicate critical databases between its primary data center and a remote DR site over Fibre Channel. The 2562 HBA’s dual-port architecture is leveraged for active/active multipath I/O and zoned fabric replication. Outcome: Zero-impact failover during maintenance and automated switchover with RPO under 15 minutes. Benefit: Enhanced business continuity, predictable recovery objectives and full redundancy across geographically dispersed Fibre Channel fabrics.
High-Performance Database Clustering and Server Consolidation
Scenario: A healthcare provider consolidates multiple Oracle RAC nodes onto a single blade chassis, requiring sub-millisecond I/O response for transaction-heavy workloads. The 406-BBDZ-QLogic 2562 HBA delivers dual 8 Gb/s Fibre Channel connectivity into the SAN, enabling low-latency reads and writes. Outcome: 30% faster transaction processing, 40% fewer physical servers and 25% reduction in storage I/O contention. Benefit: Streamlined database clustering, lower TCO and scalable enterprise storage performance for mission-critical applications.
Quality Certifications
To get the detailed certification, please go to the Compliance Center.
Product Comparison Table
|
|
|
|
|
|
|---|---|---|---|---|---|
| Bus Width | 64-bit | 64-bit | 64-bit | 64-bit | 64-bit |
| Capture Frame Rate | N/A | N/A | N/A | N/A | N/A |
| Capture Resolution | N/A | N/A | N/A | N/A | N/A |
| Card Type | Storage Controller | Storage Controller | Storage Controller | Storage Controller | Network Interface Card |
| Chipset / Controller | QLogic 2692 | QLogic 2692 | QLogic 2562 | Emulex LPE 12002 | Intel X550 & Intel i350 |
| Cooling | Passive | Passive | Passive | Passive | Passive |
| Depth | 7.0 inches | 7.0 inches | N/A | 4.4 inches | N/A |
| Full Height Bracket | Yes | No | Yes | No | Yes |
| Height | 4.2 inches | 0.8 inches | N/A | 0.7 inches | N/A |
| Interface | PCIe x8 | PCIe x8 | PCIe x8 | PCIe x8 | PCIe x4 |
| Low Profile Bracket | No | Yes | No | Yes | Yes |
| Max Data Rate | N/A | N/A | N/A | N/A | 10Gbps |
| Operating System Compatibility | Windows / Linux / VMware ESXi | Windows / Linux / VMware ESXi | Windows / Linux / VMware ESXi | Windows / Linux / VMware ESXi | Windows / Linux / VMware ESXi |
| PCIe Version | PCIe 3.0 | PCIe 3.0 | PCIe 3.0 | PCIe 3.0 | PCIe 3.0 |
| Port Count | 2 | 2 | 2 | 2 | 4 |
| Power Requirements | 3.3V | 3.3V | 3.3V | 3.3V | 3.3V |
| Product Name | 403-BBMQ-QLogic 2692 Dual Ports 16Gb Fibre Channel HBA, PCIe Full-height | 403-BBMS-QLogic 2692 Dual Ports 16Gb Fibre Channel HBA, PCIe Half-height | 406-BBDZ-QLogic 2562 Dual Ports 8Gb Fibre Channel HBA, PCIe Full-height | 406-BBJZ-Dell Recommended Emulex LPE 12002 Dual Ports 8Gb Fibre Channel HBA, PCIe Half-height | 540-BBUZ-Intel X550 Dual Ports 10GbE BASE-T & i350 Dual Ports 1GbE BASE-T, rNDC |
| Product Type | Expansion Card | Expansion Card | Expansion Card | Expansion Card | Expansion Card |
| RAID Levels Supported | N/A | N/A | N/A | N/A | N/A |
| Supported Ports | SFP+ | SFP+ | N/A | N/A | RJ-45 |
| Use Case | Storage Expansion | Storage Expansion | Storage Expansion | Storage Expansion | Network Upgrade |
| Weight | 1.5 lbs | 0.5 lbs | N/A | 0.5 lbs | N/A |
| Width | 3.5 inches | 4.4 inches | N/A | 3.4 inches | N/A |
Showing - of 0 Results
Questions & Answers
Q
What is the QLogic 2562 Dual Ports 8Gb Fibre Channel HBA, PCIe Full-height?
A
The QLogic 2562 is a dual-port 8 Gb Fibre Channel host bus adapter in a PCIe full-height form factor, delivering high-performance SAN connectivity for enterprise servers.
Q
What bandwidth and data rates does the QLogic 2562 support?
A
Each port supports up to 8 Gb/s full-duplex data transfer with backward compatibility to 4 Gb/s and 2 Gb/s Fibre Channel speeds.
Q
Which PCI Express slot is required for installation?
A
The adapter requires a PCIe 2.0 x8 slot for full-bandwidth operation and fits standard full-height server chassis.
Q
Which operating systems are supported by the QLogic 2562 HBA?
A
It supports Microsoft Windows Server, various Linux distributions (RHEL, CentOS, SUSE), VMware ESXi, and other UNIX-based platforms.
Q
Does the QLogic 2562 support virtualization features?
A
Yes, it supports N_Port ID Virtualization (NPIV) and offloads to optimize VMware vSphere, Microsoft Hyper-V, and other hypervisors.
Q
How do I install the QLogic 2562 HBA?
A
Power down the server, insert the HBA into an available PCIe x8 slot, secure the bracket, connect Fibre Channel SFP transceivers, then install the driver in the OS.
Q
What SFP transceivers are compatible with the QLogic 2562?
A
The adapter is compatible with industry-standard 8 Gb/s Fibre Channel SFPs, such as QLogic FC-8G-SW-SN, Cisco SFP-G6524, and equivalent OEM modules.
Q
Can I use the QLogic 2562 with my existing SAN switch?
A
Yes, it interoperates with Brocade, Cisco, Juniper and other Fibre Channel switches that support 8 Gb/s links.
Q
What form factors are available for the QLogic 2562 bracket?
A
This SKU ships with a full-height bracket; low-profile brackets are available separately for 1U/2U rack servers.
Q
Does the QLogic 2562 require external power?
A
No, it draws all necessary power from the host PCIe slot and does not need additional power cables.
Q
How do I update the firmware and drivers?
A
Use QLogic’s QConvergeConsole or OEM utilities to download and install the latest firmware package and driver matching your OS.
Q
What LED indicators are available on the HBA?
A
Each port has an LED showing link status (solid green) and activity (blinking green) for easy monitoring.
Q
What is the maximum cable length supported?
A
With OM3 multimode fibre and certified 8 Gb/s SFPs, you can achieve up to 150 meters; single-mode transceivers extend reach to 10 km.
Q
Is the QLogic 2562 HBA hot-swappable?
A
No, the adapter must be installed or removed with the server powered down to prevent hardware damage.
Q
What storage protocols and features are supported?
A
It supports native Fibre Channel, N_Port, F_Port, NPIV, Fibre Channel zoning and standard SAN management protocols.
Q
What warranty coverage comes with the QLogic 2562?
A
The product includes a three-year limited warranty covering hardware defects and manufacturer-provided firmware updates.
