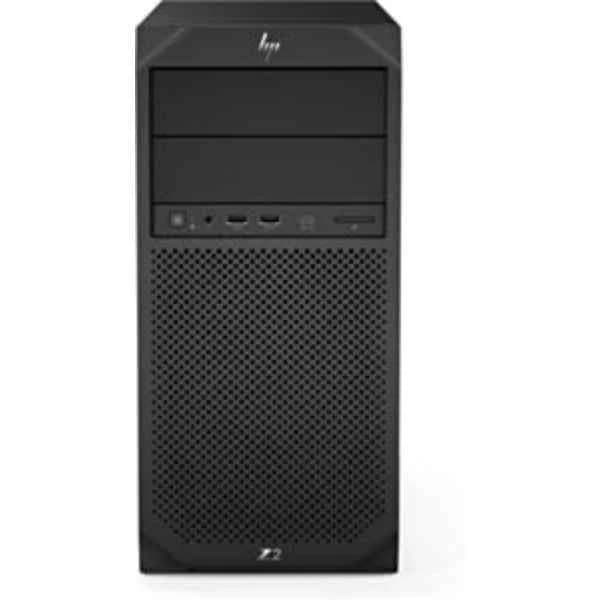

6TW12EA

Specification Of 6TW12EA

Processor
Processor manufacturer	Intel
Processor family	9th gen Intel® Core™ i7
Processor model	i7-9700
Processor cores	8
Processor frequency	3 GHz
Processor boost frequency	4.7 GHz
Processor socket	LGA 1151 (Socket H4)
Processor cache	12 MB
Processor cache type	L3
System bus rate	8 GT/s
Processor lithography	14 nm
Processor operating modes	64-bit
Processor codename	Coffee Lake
Thermal Design Power (TDP)	65 W
Tjunction	100 °C
PCI Express slots version	3.0
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16,2x8,1x8+2x4
Number of processors installed	1
Maximum internal memory supported by processor	128 GB
Memory types supported by processor	DDR4-SDRAM
Memory clock speeds supported by processor	2666 MHz
Memory bandwidth supported by processor (max)	41.6 GB/s
Memory
Internal memory	16 GB
Internal memory type	DDR4-SDRAM
Maximum internal memory	128 GB
Memory layout (slots x size)	2 x 8 GB
Memory slots	4x DIMM
Memory clock speed	2666 MHz
ECC	No
Storage
Total storage capacity	512B
Optical drive type	No
Card reader integrated	No
Storage media	SSD
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity	512 GB
SSD memory type	TLC
SSD interface	PCI Express
Software
Operating system installed	Windows 10 Pro
Operating system architecture	64-bit
Design
Chassis type	Tower
Placement supported	Vertical
Product colour	Black
Country of origin	China
Packaging content
Display included	No
Graphics
Discrete graphics adapter	No
On-board graphics adapter	Yes
Discrete graphics adapter model	Not available
On-board graphics adapter family	Intel® UHD Graphics
On-board graphics adapter model	Intel® UHD Graphics 630
On-board graphics adapter base frequency	350 MHz
On-board graphics adapter dynamic frequency (max)	1200 MHz
Maximum on-board graphics adapter memory	64 GB
Number of displays supported (on-board graphics)	3
On-board graphics adapter DirectX version	12.0
On-board graphics adapter OpenGL version	4.5
On-board graphics adapter ID	0x3E92
Performance
Product type	Workstation
Market positioning	Business
Motherboard chipset	Intel C246
Audio chip	Conexant CX20632-31Z
Ports & interfaces
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	6
DVI port	No
DisplayPorts quantity	2
Ethernet LAN (RJ-45) ports	1
Microphone in	No
Headphone outputs	1
Line-out	Yes
Line-in	Yes
Combo headphone/mic port	Yes
Network
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Wi-Fi	No
Expansion slots
PCI Express x1 (Gen 3.x) slots	2
PCI Express x16 (Gen 3.x) slots	1
Weight & dimensions
Width	169 mm
Depth	435 mm
Height	356 mm
Weight	7 kg
Processor special features
Intel 64	Yes
Enhanced Intel SpeedStep Technology	Yes
Embedded options available	No
Intel® InTru™ 3D Technology	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel Clear Video Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel TSX-NI	Yes
Idle States	Yes
Thermal Monitoring Technologies	Yes
Intel Stable Image Platform Program (SIPP)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Secure Key	Yes
Intel® OS Guard	Yes
Intel Trusted Execution Technology	Yes
Execute Disable Bit	Yes
Intel Software Guard Extensions (Intel SGX)	Yes
Processor package size	37.5 x 37.5 mm
Supported instruction sets	SSE4.1,SSE4.2,AVX 2.0
Scalability	1S
CPU configuration (max)	1
Thermal solution specification	PCG 2015C
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel Virtualization Technology (VT-x)	Yes
Processor ARK ID	191792
Intel® Turbo Boost Technology	2.0
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Quick Sync Video Technology	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Brand-specific features
HP segment	Buisiness
