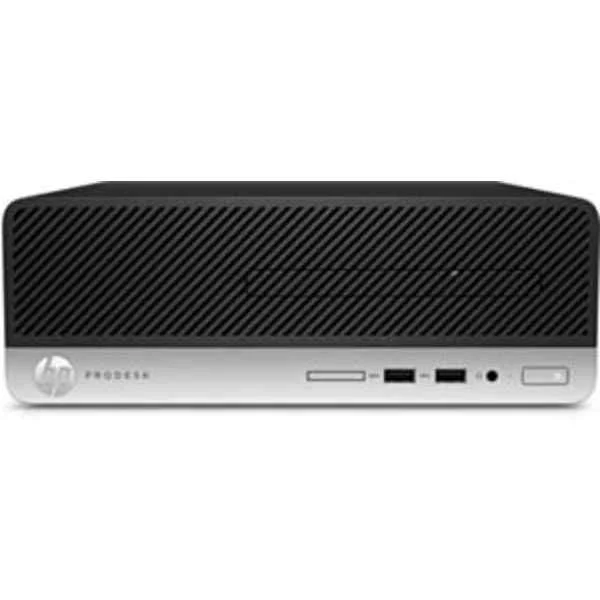

7EL96EA

Specification Of 7EL96EA

Memory
Internal memory type	DDR4-SDRAM
Internal memory	8 GB
Memory layout (slots x size)	1 x 8 GB
Memory slots	2x SO-DIMM
Memory clock speed	2666 MHz
ECC	No
Processor
Processor manufacturer	Intel
Processor family	9th gen Intel® Core™ i7
Processor model	i7-9700
Processor cores	8
Processor frequency	3 GHz
Processor boost frequency	4.7 GHz
Processor socket	LGA 1151 (Socket H4)
Processor cache	12 MB
Processor cache type	L3
Processor threads	8
System bus rate	8 GT/s
Processor lithography	14 nm
Processor operating modes	64-bit
Processor codename	Coffee Lake
Thermal Design Power (TDP)	65 W
Tjunction	100 °C
PCI Express slots version	3.0
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16,2x8,1x8+2x4
Number of processors installed	1
Maximum internal memory supported by processor	128 GB
Memory types supported by processor	DDR4-SDRAM
Memory clock speeds supported by processor	2666 MHz
Memory bandwidth supported by processor (max)	41.6 GB/s
Storage
Total storage capacity	256 GB
Optical drive type	No
Storage media	SSD
Total SSDs capacity	256 GB
Number of SSDs installed	1
SSD capacity	256 GB
SSD interface	NVMe
SSD form factor	M.2
Software
Operating system installed	Windows 10 Pro
Operating system architecture	64-bit
Design
Chassis type	SFF
Product colour	Black
Country of origin	China
Packaging content
Display included	No
Keyboard included	Yes
Graphics
Discrete graphics adapter	No
On-board graphics adapter	Yes
Discrete graphics adapter model	Not available
On-board graphics adapter family	Intel® HD Graphics
On-board graphics adapter model	Intel® HD Graphics 630
On-board graphics adapter base frequency	350 MHz
On-board graphics adapter dynamic frequency (max)	1200 MHz
Maximum on-board graphics adapter memory	64 GB
Number of displays supported (on-board graphics)	3
On-board graphics adapter DirectX version	12.0
On-board graphics adapter OpenGL version	4.5
On-board graphics adapter ID	0x3E98
Performance
Product type	PC
Market positioning	Business
Motherboard chipset	Intel® B360
Audio chip	Conexant CX20632
Operational conditions
Operating relative humidity (H-H)	5 - 90 %
Ports & interfaces
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
VGA (D-Sub) ports quantity	1
DVI port	No
DisplayPorts quantity	2
DisplayPorts version	1.2
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Microphone in	Yes
Line-out	Yes
Line-in	Yes
Combo headphone/mic port	Yes
Network
Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Wi-Fi	Yes
Bluetooth	Yes
Weight & dimensions
Width	270 mm
Depth	296 mm
Height	95 mm
Weight	4.6 kg
Package width	399 mm
Package depth	230 mm
Package height	499 mm
Package weight	7.08 kg
Processor special features
Intel 64	Yes
Enhanced Intel SpeedStep Technology	Yes
Embedded options available	No
Intel® InTru™ 3D Technology	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel Clear Video Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel TSX-NI	Yes
Idle States	Yes
Thermal Monitoring Technologies	Yes
Intel Stable Image Platform Program (SIPP)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Secure Key	Yes
Intel® OS Guard	Yes
Intel Trusted Execution Technology	Yes
Execute Disable Bit	Yes
Intel Software Guard Extensions (Intel SGX)	Yes
Processor package size	37.5 x 37.5 mm
Supported instruction sets	SSE4.1,SSE4.2,AVX 2.0
Scalability	1S
CPU configuration (max)	1
Thermal solution specification	PCG 2015A
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel Virtualization Technology (VT-x)	Yes
Processor ARK ID	191792
Intel® Turbo Boost Technology	2.0
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Quick Sync Video Technology	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Sustainability
Sustainability certificates	ENERGY STAR
Brand-specific features
HP segment	Business
