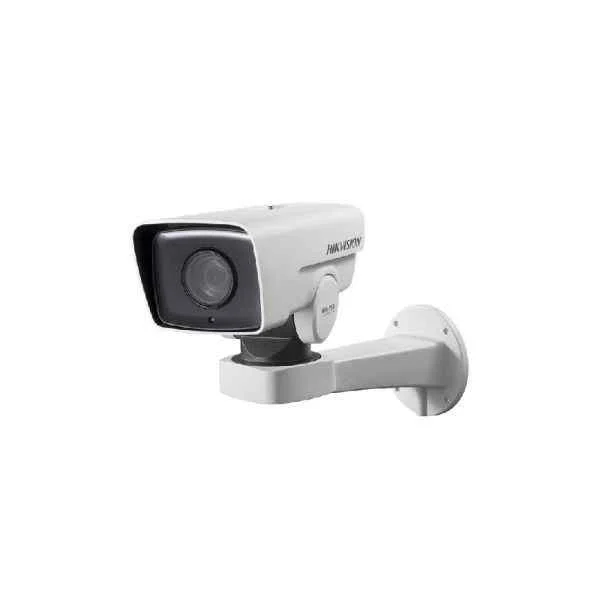

DS-2DY3320IW-DE

Specification Of DS-2DY3320IW-DE

DS-2DY3320IW-DE Specification

DS-2DY3320IW-DE Specification

• Lens
• FOV58.3° to 3.2° (Wide-Tele)
• Zoom SpeedApprox. 2.7 s (Optical Lens, Wide-Tele)
• Working Distance10 mm to 1500mm (Wide-Tele)
• Aperture RangeF1.6 to F3.5
• Focal Length4.7 mm to 94 mm, 20 Optical

• Image
• Sub-Stream50Hz: 25fps (704 576, 640 480, 352 288),60Hz: 30fps (704 480, 640 480, 352 240)
• Max. Resolution2048 1536
• Main Stream50Hz: 25fps (2048 1536, 1920 1080, 1280 960, 1280 720),50fps (1280 960, 1280 720),60Hz: 30fps (2048 1536, 1920 1080, 1280 960, 1280 720),60fps (11280 960, 1280 720)
• Third Stream50Hz: 25fps (1920 1080, 1280 960, 1280 720, 704 576, 640 480, 352 288),60Hz: 30fps (1920 1080, 1280 960, 1280 720, 704 480, 640 480, 352 240)

• Network
• ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, Bonjour
• APIOpen-ended, support ONVIF and CGI, support HIKVISION SDK and Third-Party Management Platform
• Simultaneous Live ViewUp to 20 channels
• User/HostUp to 32 users,3 levels: Administrator, Operator and User
• ClientiVMS-4200, iVMS-4500, iVMS-5200
• Web BrowserIE8+, Chrome31.0-44, Firefox30.0-51, Safari8.0+
• Security MeasuresUser authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering
• Alarm LinkageAlarm actions, such as Preset, Patrol Scan, Pattern Scan, Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc.

• Interface
• Alarm Output1-ch alarm output
• Alarm Input1-ch alarm input
• Audio Input1-ch audio input
• Audio Output1-ch audio output
• Network Interface1 RJ45 10 M/100 M Ethernet Interface; PoE (802.3at, class4)
• StorageBuilt-in memory card slot, support Micro SD/SDHC/SDXC, up to 128 GB; NAS (NPS, SMB/ CIPS), ANR

• Compression Standard
• Video CompressionMain Stream: H.265+/H.265/H.264+/H.264,Sub-Stream: H.265/H.264/MJPEG,Third Stream: H.265/H.264/MJPEG,H.264 with Baseline/Main/High Profile
• Audio CompressionG.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM

• Camera Module
• 3D DNRSupport
• AGCAuto/Manual
• Regional ExposureSupport
• Regional FocusSupport
• Image Sensor1/2.8" progressive scan CMOS
• Min. IlluminationColor: 0.05 Lux @(F1.6, AGC ON),B/W: 0.01 Lux @(F1.6, AGC ON),0 Lux with IR
• White BalanceAuto/Manual/ATW (Auto Tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp
• Shutter Time1/1 s to 1/30,000 s
• Day & NightIR Cut Filter
• Digital Zoom16
• Privacy Mask8 programmable privacy masks
• Focus ModeAuto/Semi-automatic/Manual
• BLCSupport
• Digital WDRSupport

• Supplement Light
• IR DistanceUp to 100 m
• IR IntensityAutomatically adjusted, depending on the zoom ratio

• PTZ
• Movement Range (Pan)360° endless
• Pan SpeedConfigurable, from 0.1°/s to 60°/s
• Movement Range (Tilt)From -40° to 30°
• Tilt SpeedConfigurable, from 0.1°/s to 30°/s
• Proportional ZoomSupport
• Presets300
• Patrol Scan8 patrols, up to 32 presets for each patrol
• Pattern Scan4 pattern scans, record time over 10 minutes for each scan
• Power-off MemorySupport
• Park ActionPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
• PTZ Status DisplayON/OFF
• Preset FreezingSupport
• Scheduled TaskPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust

• Smart Features
• Smart DetectionIntrusion Detection, Line Crossing Detection, Region Exiting Detection, Region Entrance Detection, Audio Exception Detection
• ROIMain stream, sub-stream and third stream respectively support two fixed areas.

• General
• Dimensions-DE: 367 mm 122 mm 242 mm (14.45" 4.80" 9.53"),-DE4: 255 mm 129 mm 195 mm (10.03" 5.08" 7.68")
• WeightApprox. 3 kg (6.61 lb)
• Protection LevelIP66 Standard; 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
• Power12 VDC & PoE (802.3at, class4),Max.: 19 W
• Working TemperatureWorking Temperature: Outdoor: -30°C to 65°C (-22°F to 149°F)
• Working HumidityWorking Humidity: ‰¤ 90%

]
