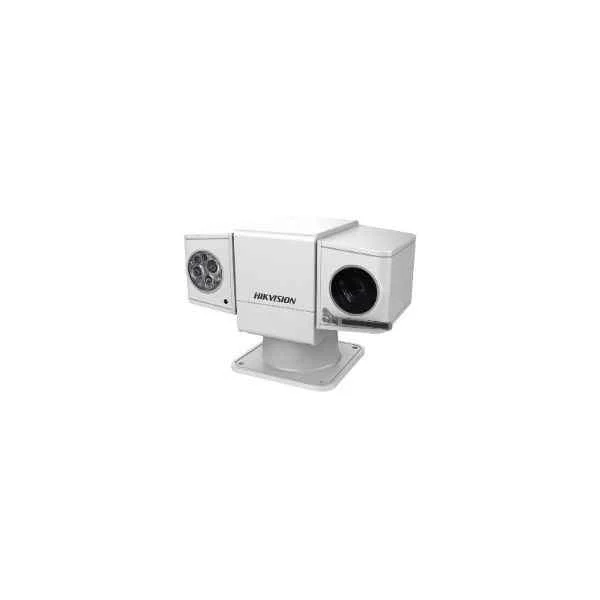

DS-2DY5223IW-AE

Specification Of DS-2DY5223IW-AE

DS-2DY5223IW-AE Specification

DS-2DY5223IW-AE Specification

• Lens
• Working Distance10 mm to 1500 mm (wide-tele)
• Aperture RangeF1.5 to F3.4
• Focal Length5.9-135.7mm, 23X
• Field of View59.8°-3.0°(Wide-Tele)

• Image
• Sub-Stream50Hz: 25fps (704 576, 640 480, 352 288), 60Hz: 30fps (704 480, 640 480, 352 240)
• Max. Resolution1920 1080
• Main Stream50Hz: 25fps (1920 1080, 1280 720),60Hz: 30fps (1920 1080, 1280 720)
• SVCYes

• Network
• ProtocolsIPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTP,TCP,UDP,IGMP,ICMP,DHCP,PPPoE
• APIONVIF (Profile S, Profile G, Profile T), ISAPI, SDK
• Simultaneous Live ViewUp to 20 channels
• User/HostUp to 32 users. 3 levels: Administrator, Operator and User
• Alarm7-ch alarm input/2-ch alarm output

• Interface
• Audio Input 1-ch audio input
• Audio Output 1-ch audio output
• Network Interface1 RJ45 10 M/100 M Ethernet Interface
• RS-485Half duplex, HIKVISION, Pelco-P, Pelco-D, self-AI2daptive
• CVBS1.0Vp-p / 75Ω, NTSC (or PAL) composite, BNC

• Compression Standard
• H.264+Yes
• H.265+Yes
• Video CompressionH.265+/H.265/H.264+/H.264/MJPEG
• Audio CompressionG.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM

• IR
• IR Distance150 m
• Smart IRYes
• IR IntensityAutomatically adjusted, depending on the zoom ratio

• Smart Feature
• Event DetectionFace detection, Intrusion detection, Line crossing detection, Audio exception detection, Region entrance detection, Region exiting detection
• ROISupport 12 areas with adjustable levels

• Camera Module
• 3D DNRYes
• Image Sensor1/1.9" Progressive Scan CMOS
• Min. IlluminationColor：0.002Lux @ (F1.5, AGC ON),B/W：0.0002Lux @(F1.5, AGC ON)
• White BalanceAuto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp
• GainAuto/Manual
• Shutter Time1/1 s to 1/10,000 s
• Day & NightICR
• Digital Zoom16
• Privacy MaskYes
• Focus ModeAuto/Semi-automatic/Manual
• WDRtrue WDR
• BLCYes
• DefogYes

• PTZ
• Movement Range (Pan)360° endless
• Pan Speed0.1°/s to 200°/s
• Movement Range (Tilt)From -90° to 90°
• Tilt Speed0.1°/s to 50°/s
• Proportional ZoomYes
• Presets300
• Patrol Scan8 patrols, up to 32 presets for each patrol
• Pattern Scan4 pattern scans, record time over 10 minutes for each scan
• Power-off Memorysupport
• Park Actionsupport
• 3D PositioningYes
• PTZ Status DisplayYes
• Preset FreezingYes

• General
• Dimensions306 mm167 mm212 mm
• WeightApprox. 7.8 kg
• Protection LevelIP66 Standard, 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
• PowerHi-PoE&24 VAC, Max. 45W
• Working Environment- 40°C to 65°C (-22°F to 149°F), Humidity: ‰¤ 95%
