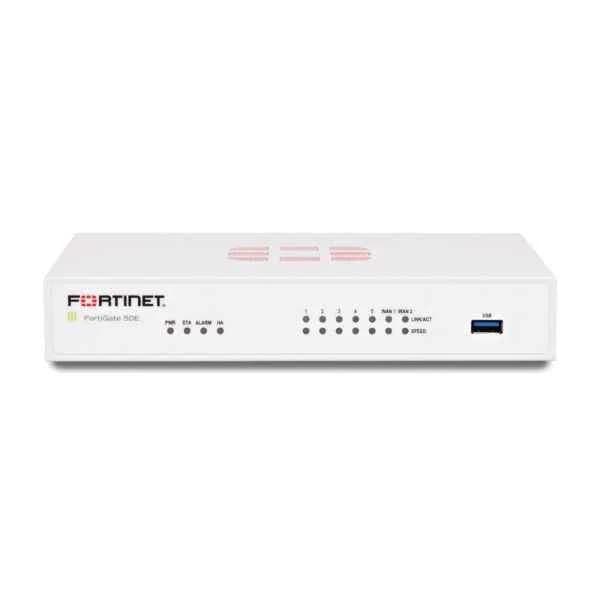

FG-50E-BDL

FG-50E-BDL Specification

Interfaces and Modules

GE RJ45 Switch Ports

5

GE RJ45 WAN Ports

2

USB Ports

1

Console (RJ45)

1

Wireless Interface

\

Internal Storage

\

System Performance €” Enterprise Traffic Mix

IPS Throughput

350 Mbps

NGFW Throughput

220 Mbps

Threat Protection Throughput

160 Mbps

System Performance

Firewall Throughput

2.5 Gbps

Firewall Latency (64 byte UDP Packets)

180 μs

Firewall Throughput (Packet per Second)

375 Kpps

Concurrent Sessions (TCP)

1.8 Million

New Sessions/Second (TCP)

21,000

Firewall Policies

5,000

IPsec VPN Throughput (512 byte)

90 Mbps

Gateway-to-Gateway IPsec VPN Tunnels

200

Client-to-Gateway IPsec VPN Tunnels

250

SSL-VPN Throughput

100 Mbps

Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode)

200

SSL Inspection Throughput (IPS, avg. HTTPS)

150 Mbps

SSL Inspection CPS (IPS, avg. HTTPS)

140

SSL Inspection Concurrent Session (IPS, avg. HTTPS)

75,000

Application Control Throughput (HTTP 64K)

450 Mbps

CAPWAP Throughput (HTTP 64K)

1.2 Gbps

Virtual Domains (Default / Maximum)

5 / 5

Maximum Number of FortiSwitches Supported

8

Maximum Number of FortiAPs (Total / Tunnel Mode)

10 / 5

Maximum Number of FortiTokens

500

Maximum Number of Registered FortiClients

200

High Availability Configurations

Active/Active, Active/Passive, Clustering

Dimensions and Environment

Height x Width x Length

1.44 x 8.52 x 5.5 inches

36.5 x 216 x 140 mm

Form Factor

Desktop

Power Required

100€“240V AC, 60€“50 Hz (External DC Power Adapter)

Maximum Current

100 V / 0.6 A, 240 V / 0.4 A

Power Consumption (Average / Maximum)

15 / 18 W

Heat Dissipation

62 BTU/h

Operating Temperature

32€“104°F (0€“40°C)

Storage Temperature

-31€“158°F (-35€“70°C)

Humidity

10€“90% non-condensing

Noise Level

Fanless 0 dBA

Operating Altitude

Up to 7,400 ft (2,250 m)

Compliance

FCC Part 15 Class B, C-Tick, VCCI, CE, UL/cUL, CB

Certifications

ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN
