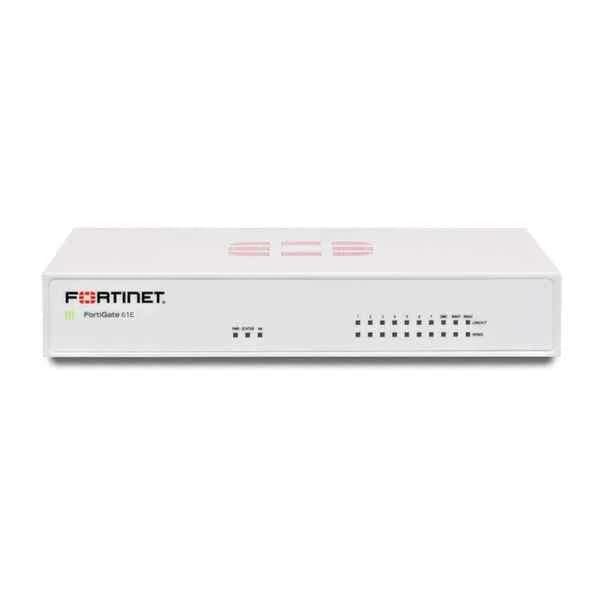

FG-61E-BDL

FG-61E-BDL Specification

Interfaces and Modules

GE RJ45 WAN / DMZ Ports

2 / 1

GE RJ45 Internal Ports

7

GE RJ45 PoE/+ Ports

\

Wireless Interface

\

USB Ports

1

Console (RJ45)

1

Internal Storage

1x 128 GB SSD

System Performance €” Enterprise Traffic Mix

IPS Throughput

2,400 Mbps

NGFW Throughput

2,4250 Mbps

Threat Protection Throughput

2, 5200 Mbps

System Performance

Firewall Throughput (1518 / 512 / 64 byte UDP packets)

3 / 3 / 3 Gbps

Firewall Latency (64 byte UDP Packets)

3 μs

Firewall Throughput (Packet per Second)

4.5 Mpps

Concurrent Sessions (TCP)

1.3 Million

New Sessions/Second (TCP)

30,000

Firewall Policies

5,000

IPsec VPN Throughput (512 byte)

2 Gbps

Gateway-to-Gateway IPsec VPN Tunnels

200

Client-to-Gateway IPsec VPN Tunnels

500

SSL-VPN Throughput

150 Mbps

Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode)

200

SSL Inspection Throughput (IPS, avg. HTTPS)

135 Mbps

SSL Inspection CPS (IPS, avg. HTTPS)

135

SSL Inspection Concurrent Session (IPS, avg. HTTPS)

75,000

Application Control Throughput (HTTP 64K)

650 Mbps

CAPWAP Throughput (HTTP 64K)

890 Mbps

Virtual Domains (Default / Maximum)

10 / 10

Maximum Number of FortiSwitches Supported

16

Maximum Number of FortiAPs (Total / Tunnel Mode)

30 / 10

Maximum Number of FortiTokens

500

Maximum Number of Registered FortiClients

200

High Availability Configurations

Active / Active, Active / Passive,Clustering

Dimensions and Environment

Height x Width x Length

1.5 x 8.5 x 6.3 inches

38 x 216 x 160 mm

Form Factor

Desktop

Power Required

100€“240V AC, 50€“60 Hz

Maximum Current

115V AC / 0.9 A, 230V AC / 0.6 A

Total Available PoE Power Budget

N/A

Power Consumption (Average / Maximum)

11.9 / 14.3 W

Operating Temperature

32€“104°F (0€“40°C)

Storage Temperature

-31€“158°F (-35€“70°C)

Humidity

10€“90% non-condensing

Noise Level

Fanless 0 dBA

Operating Altitude

Up to 7,400 ft (2,250 m)

Compliance

FCC Part 15 Class B, C-Tick, VCCI, CE, UL/cUL, CB

Certifications

ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN
