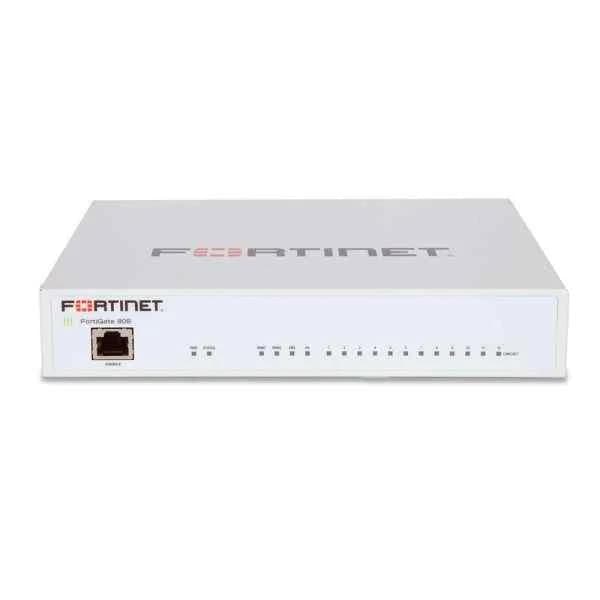

FG-80E

FG-80E Specification

Type

FORTIGATE 80E

Hardware Specifications

GE RJ45/SFP Shared Media Pairs

2

GE RJ45 Ports

12

GE RJ45 PoE/+ Ports

-

GE RJ45 DMZ/HA Ports

2

USB Ports

1

Console (RJ45)

1

Internal Storage

-

System Performance and Capacity

Firewall Throughput (1518 / 512 / 64 byte UDP packets)

4 / 4 / 4 Gbps

Firewall Latency (64 byte UDP Packets)

3 μs

Firewall Throughput (Packet per Second)

6 Mpps

Concurrent Sessions (TCP)

1.3 Million

New Sessions/Second (TCP)

30,000

Firewall Policies

5,000

IPsec VPN Throughput (512 byte)

2.5 Gbps

Gateway-to-Gateway IPsec VPN Tunnels

200

Client-to-Gateway IPsec VPN Tunnels

2,500

SSL-VPN Throughput

200 Mbps

Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode)

200

SSL Inspection Throughput (IPS, avg. HTTPS)

135 Mbps

SSL Inspection CPS (IPS, avg. HTTPS)

135

SSL Inspection Concurrent Session (IPS, avg. HTTPS)

95,000

Application Control Throughput (HTTP 64K)

900 Mbps

CAPWAP Throughput (HTTP 64K)

920 Mbps

Virtual Domains (Default / Maximum)

10 / 10

Maximum Number of Switches Supported

8

Maximum Number of FortiAPs (Total / Tunnel Mode)

32 / 16

Maximum Number of FortiTokens

500

Maximum Number of Registered FortiClients

200

High Availability Configurations

Active / Active, Active / Passive, Clustering

System Performance

IPS Throughput

450 Mbps

NGFW Throughput

360 Mbps

Threat Protection Throughput

250 Mbps

Dimensions and Power

Height x Width x Length

1.65 x 8.5 x 7 inches

42 x 216 x 178 mm

Form Factor

Desktop

Power Required

100€“240V AC, 50€“60 Hz

Power Consumption (Average / Maximum)

18 W / 25 W

Current (Maximum)

100V AC / 0.25A, 240V AC / 0.11A

Heat Dissipation

85.30 BTU/h

Operating Environment and Certifications

Operating Temperature

32€“104°F (0€“40°C)

Storage Temperature

-31€“158°F (-35€“70°C)

Humidity

10€“90% non-condensing

Noise Level

Fanless 0 dBA

Operating Altitude

Up to 16,404 ft (5,000 m)

Compliance

FCC Part 15B, Class B, CE, RCM, VCCI, UL/cUL, CB, BSMI

Certifications

ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN
