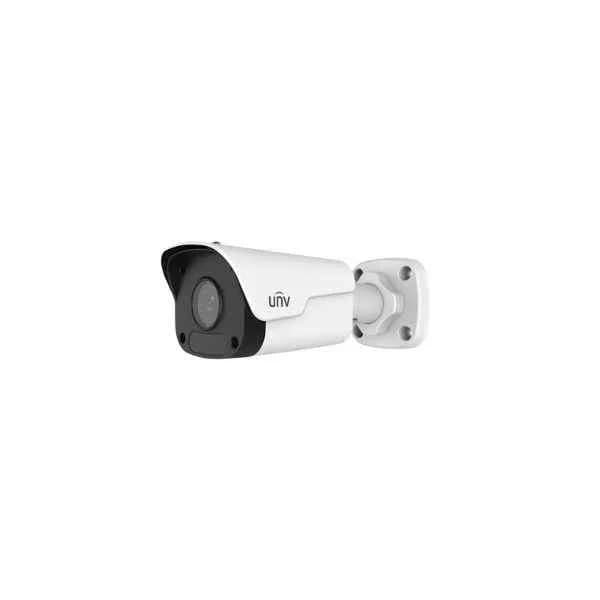

Name: 1/3" CMOS, ICR, 2592x1520:20fps, Ultra 265/H.264/MJPEG, Triple stream, DC12V & PoE,Fixed lens 4mm,6mm), IR range: up to 30m.
Brand: Uniview
SKU: IPC2124LR3-PF40M-D
Rating: 4.6 (5 reviews)

Question 1

What is the maximum resolution and frame rate of the IPC2124LR3-PF40M-D?

Accepted Answer

The IPC2124LR3-PF40M-D captures video at up to 2.5 MP (2592 × 1520) resolution at 20 fps, delivering crisp, fluid surveillance footage.

Question 2

Which video compression formats does the IPC2124LR3-PF40M-D support?

Accepted Answer

This model supports Ultra 265, H.264, and MJPEG codecs, optimizing bandwidth and storage while maintaining image quality.

Question 3

Does the IPC2124LR3-PF40M-D offer multi-streaming capabilities?

Accepted Answer

Yes, it provides triple streaming, enabling simultaneous primary, substream, and mobile-optimized feeds to suit diverse monitoring needs.

Question 4

What lens options are available for the IPC2124LR3-PF40M-D?

Accepted Answer

The camera is offered with fixed 4 mm or 6 mm lenses, allowing you to select the ideal field of view for your installation.

Question 5

What is the infrared (IR) range for night vision on this camera?

Accepted Answer

Equipped with integrated IR LEDs, the IPC2124LR3-PF40M-D delivers clear night vision up to 30 meters in complete darkness.

Question 6

How can I power the IPC2124LR3-PF40M-D?

Accepted Answer

You can power it via a 12 V DC adapter or PoE (IEEE 802.3af), simplifying installation and reducing cable clutter.

Question 7

Is the IPC2124LR3-PF40M-D ONVIF-compliant?

Accepted Answer

Yes, this camera is fully ONVIF Profile S compliant, ensuring seamless integration with third-party NVRs and VMS platforms.

Question 8

Can I view the IPC2124LR3-PF40M-D remotely on mobile devices?

Accepted Answer

Absolutely. Remote viewing is supported via the manufacturer’s iOS and Android apps, plus web browser access for real-time monitoring.

Question 9

What fixed focal lengths are best for indoor vs. outdoor use?

Accepted Answer

A 4 mm lens is ideal for indoor corridors and retail aisles, while a 6 mm lens suits outdoor perimeters and parking lots for narrower, long-range coverage.

Question 10

How does the ICR feature enhance daytime and nighttime performance?

Accepted Answer

The built-in IR cut filter removal (ICR) automatically switches between color daytime imaging and B/W nighttime mode, maximizing clarity in all lighting conditions.

Question 11

What are the recommended storage options for footage captured by this camera?

Accepted Answer

Use network video recorders (NVRs) compatible with Ultra 265/H.264, or onboard microSD up to 256 GB (if supported), to balance retention time and storage capacity.

Question 12

How do I calculate bandwidth requirements for the IPC2124LR3-PF40M-D?

Accepted Answer

Estimate ~1–2 Mbps per stream at full resolution and Ultra 265; lower bitrates apply with H.264 or MJPEG and reduced frame rates.

Question 13

What are the operating temperature and humidity ranges?

Accepted Answer

This camera operates reliably from –30 °C to 60 °C (–22 °F to 140 °F) with up to 95% non-condensing humidity, fitting most indoor and outdoor environments.

Question 14

Can I adjust video parameters such as exposure and white balance?

Accepted Answer

Yes, the IPC2124LR3-PF40M-D includes advanced image controls—exposure, gain, white balance, and backlight compensation—to fine-tune picture quality.

Question 15

What installation accessories does the IPC2124LR3-PF40M-D support?

Accepted Answer

Standard mounting options include wall and ceiling brackets; junction boxes and pendant mounts are also available for customized deployments.

Question 16

Is there a warranty for the IPC2124LR3-PF40M-D?

Accepted Answer

The camera is backed by a standard 3-year warranty covering manufacturing defects and ensuring reliable operation.

	IPC2124LR3-PF40M-D	IPC322LR3-VSPF28-D	IPC2122LR3-PF40M-D	IPC3614LR3-PF28-D	IPC324LR3-VSPF28-D
Product Type	IP Camera	IP Camera	IP Camera	IP Camera	IP Camera
Camera Type	Dome	Bullet	Dome	Dome	Dome
Mounting Option	Ceiling	Wall / Ceiling / Pole / Pendant / Corner / Flush / N/A	Ceiling	Ceiling	Ceiling
Color	White	Black	Black	White	Black
Use Case	Indoor Surveillance / Outdoor Monitoring / Office / Retail / Industrial / Traffic / Perimeter Security	Indoor Surveillance / Outdoor Monitoring / Office / Retail / Industrial / Traffic / Perimeter Security	Office / Retail / Critical Infrastructure	Indoor Surveillance / Outdoor Monitoring / Office / Retail / Critical Infrastructure	Office
Resolution	4MP	4MP	4MP	4MP	4MP
Lens Type	Fixed	Varifocal	Fixed	Fixed	Varifocal
Focal Length	2.8mm	2.7–13.5mm	4mm	3.6mm	2.7–13.5mm
Field of View	90°	90°	90°	90°	Adjustable
Image Sensor	1/3" CMOS	1/3" CMOS	1/3" CMOS	1/3" CMOS	1/3" CMOS
Frame Rate	30 FPS	30 FPS	30 FPS	30 FPS	30 FPS
Infrared Range	30m	30m	30m	30m	30m
Low Light Technology	Starlight	Starlight	Starlight	Starlight	Starlight
Day/Night Mode	True Day/Night (ICR)	True Day/Night (ICR)	True Day/Night (ICR)	True Day/Night (ICR)	True Day/Night (ICR)
Video Compression	H.265+	H.265	H.265+	H.265	H.265
Audio Support	Built-in Mic	Built-in Mic	No Audio	Built-in Mic	No Audio
Storage Options	MicroSD	MicroSD	MicroSD	MicroSD	MicroSD
Max Storage Capacity	64 GB	64 GB	128 GB	128 GB	128 GB
Power Supply	PoE	PoE	PoE	PoE	PoE
Network Interface	1 x RJ-45	1 x RJ-45	1 x RJ-45	1 x RJ-45	1 x RJ-45
Wireless Support	No	No	No	No	No
ONVIF Compliance	Yes	Yes	Yes	Yes	Yes
Smart Features	Motion Detection / Intrusion Detection / Line Crossing / Face Detection	Motion Detection / Intrusion Detection / Line Crossing / Face Detection	Motion Detection / Intrusion Detection / Line Crossing	Motion Detection / Intrusion Detection / Line Crossing / Face Detection	Motion Detection / Intrusion Detection / Line Crossing / Face Detection
Vandal Resistance	IK08	N/A	IK08	IK08	None
Weather Rating	IP66	IP65	IP66	IP67	IP66
Product Name	IPC2124LR3-PF40M-D	IPC322LR3-VSPF28-D	IPC2122LR3-PF40M-D	IPC3614LR3-PF28-D	IPC324LR3-VSPF28-D
Height	4.0 inches	4.5 inches	4 inches	3.5	4.3 inches
Width	3.8 inches	3.2 inches	4 inches	3.1	4.3 inches
Depth	3.8 inches	3.2 inches	4 inches	3.1	4.7 inches
Weight	1.1 lbs	1.5 lbs	2 lbs	1.2 lbs	1.2 lbs
