Clear 4MP footage and reliable IR performance.

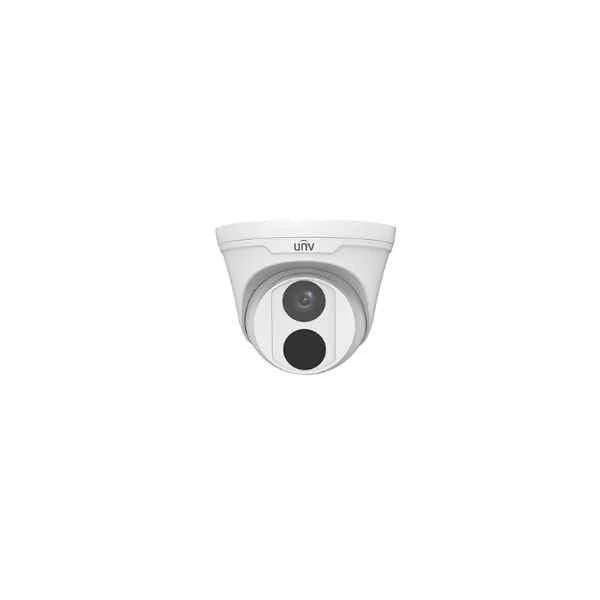

IPC3614LR3-PF28-D
1/3" CMOS, ICR, 2592x1520:20fps, Ultra 265/H.264/MJPEG, Trip...
FEATURED DEAL
Name:
IPC3614LR3-PF28-D
- Description:
- 1/3" CMOS, ICR, 2592x1520:20fps, Ultra 265/H.264/MJPEG, Triple stream, DC12V & PoE,Fixed lens (2.8mm,4mm), IR range: up to 30m, 3-Axis
- Rating:
Added to cart 28 times recently
- Availability:
In stock - Ready to Ship
- Brand:
- Uniview
- Condition:
3 Year Extended Warranty
Same-day Shipping
14-Day Money Back Guarantee
Shipping:
Payment:
3 Year Extended Warranty
Same-day Shipping
14-Day Money Back Guarantee
Need Additional Discount on Product?
Request a quote below - Get Exclusive Pricing and Support.
Shipping:
Payment:
TRUSTED, TRIED, PROVEN
Officially Accredited
& Verified By
Next-Gen IT
Solutions Powered By
IPC3614LR3-PF28-D Overview
IPC3614LR3-PF28-D is a dome IP camera offering 4MP resolution with a fixed 3.6mm lens that delivers a clear 90° field of view. It utilizes a 1/3" CMOS sensor to capture high-quality images and supports H.265 video compression, ensuring efficient bandwidth and storage management while providing robust low-light performance with Starlight technology and true Day/Night (ICR) mode.
This camera is built for versatile surveillance in environments such as offices, retail locations, parking areas, government buildings, and critical infrastructure. Featuring Power over Ethernet (PoE) for simplified installation, built-in MicroSD storage supporting up to 128 GB, ONVIF compliance, and a suite of smart detection features including motion, intrusion, line crossing, and face detection, it is designed to deliver reliable performance under various lighting and weather conditions with an IK08 vandal resistance and an IP67 rating.
IPC3614LR3-PF28-D price is is available on request. Get immediate quote.
Request bulk order quote for IPC3614LR3-PF28-D for additional pricing. Browse the full Uniview Easy L Series series or explore all Uniview products.
IPC3614LR3-PF28-D Specifications
- Wireless Support
- No
- Height
- 3.5
- Power Supply
- PoE
- Weight
- 1.2 lbs
- Product Type
- IP Camera
- Camera Type
- Dome
- Mounting Option
- Ceiling
- Color
- White
- Lens Type
- Fixed
- Focal Length
- 3.6mm
- Field of View
- 90°
- Image Sensor
- 1/3" CMOS
- Frame Rate
- 30 FPS
- Infrared Range
- 30m
- Low Light Technology
- Starlight
- Day/Night Mode
- True Day/Night (ICR)
- Video Compression
- H.265
- Storage Options
- MicroSD
- Max Storage Capacity
- 128 GB
- Network Interface
- 1 x RJ-45
- ONVIF Compliance
- Yes
- Smart Features
- Motion Detection / Intrusion Detection / Line Crossing / Face Detection
- Resolution
- 4MP
- Audio Support
- Built-in Mic
- Vandal Resistance
- IK08
- Weather Rating
- IP67
- Use Case
- Indoor Surveillance / Outdoor Monitoring / Office / Retail / Critical Infrastructure
- Product Name
- IPC3614LR3-PF28-D
- Width
- 3.1
- Depth
- 3.1
Quality Certifications
To get the detailed certification, please go to the Compliance Center.
Product Comparison Table
 IPC3614LR3-PF28-D |  IPC324LR3-VSPF28-D |  IPC3612LR3-PF28-D |  IPC322LR3-VSPF28-D |  IPC2122LR3-PF40M-D | |
|---|---|---|---|---|---|
| Product Type | IP Camera | IP Camera | IP Camera | IP Camera | IP Camera |
| Camera Type | Dome | Dome | Bullet | Bullet | Dome |
| Mounting Option | Ceiling | Ceiling | Wall | Wall / Ceiling / Pole / Pendant / Corner / Flush / N/A | Ceiling |
| Color | White | Black | Black | Black | Black |
| Use Case | Indoor Surveillance / Outdoor Monitoring / Office / Retail / Critical Infrastructure | Office | Indoor Surveillance / Outdoor Monitoring / Perimeter Security | Indoor Surveillance / Outdoor Monitoring / Office / Retail / Industrial / Traffic / Perimeter Security | Office / Retail / Critical Infrastructure |
| Resolution | 4MP | 4MP | 12MP | 4MP | 4MP |
| Lens Type | Fixed | Varifocal | Fixed | Varifocal | Fixed |
| Focal Length | 3.6mm | 2.7–13.5mm | 2.8mm | 2.7–13.5mm | 4mm |
| Field of View | 90° | Adjustable | 90° | 90° | 90° |
| Image Sensor | 1/3" CMOS | 1/3" CMOS | 1/2.8" CMOS | 1/3" CMOS | 1/3" CMOS |
| Frame Rate | 30 FPS | 30 FPS | 30 FPS | 30 FPS | 30 FPS |
| Infrared Range | 30m | 30m | 30m | 30m | 30m |
| Low Light Technology | Starlight | Starlight | EXIR | Starlight | Starlight |
| Day/Night Mode | True Day/Night (ICR) | True Day/Night (ICR) | True Day/Night (ICR) | True Day/Night (ICR) | True Day/Night (ICR) |
| Video Compression | H.265 | H.265 | H.265 | H.265 | H.265+ |
| Audio Support | Built-in Mic | No Audio | No Audio | Built-in Mic | No Audio |
| Storage Options | MicroSD | MicroSD | MicroSD | MicroSD | MicroSD |
| Max Storage Capacity | 128 GB | 128 GB | 128 GB | 64 GB | 128 GB |
| Power Supply | PoE | PoE | PoE | PoE | PoE |
| Network Interface | 1 x RJ-45 | 1 x RJ-45 | 1 x RJ-45 | 1 x RJ-45 | 1 x RJ-45 |
| Wireless Support | No | No | No | No | No |
| ONVIF Compliance | Yes | Yes | Yes | Yes | Yes |
| Smart Features | Motion Detection / Intrusion Detection / Line Crossing / Face Detection | Motion Detection / Intrusion Detection / Line Crossing / Face Detection | Motion Detection / Intrusion Detection / Line Crossing | Motion Detection / Intrusion Detection / Line Crossing / Face Detection | Motion Detection / Intrusion Detection / Line Crossing |
| Vandal Resistance | IK08 | None | IK08 | N/A | IK08 |
| Weather Rating | IP67 | IP66 | IP67 | IP65 | IP66 |
| Product Name | IPC3614LR3-PF28-D | IPC324LR3-VSPF28-D | IPC3612LR3-PF28-D | IPC322LR3-VSPF28-D | IPC2122LR3-PF40M-D |
| Height | 3.5 | 4.3 inches | 3.5 inches | 4.5 inches | 4 inches |
| Width | 3.1 | 4.3 inches | 3.0 inches | 3.2 inches | 4 inches |
| Depth | 3.1 | 4.7 inches | 3.0 inches | 3.2 inches | 4 inches |
| Weight | 1.2 lbs | 1.2 lbs | 1.2 lbs | 1.5 lbs | 2 lbs |
Reviews & Ratings
K
Khadija Noor
4
Good indoor camera with stable image quality.
R
Rene Dubois
5
Easy installation and consistent output.
A
Awais Javed
3
Works well for office surveillance.
M
Margaret Liu
4
Dependable dome camera for daily use.
Questions & Answers
What is the maximum resolution and frame rate of the IPC3614LR3-PF28-D?
The IPC3614LR3-PF28-D delivers 2592×1520 (4 MP) resolution at 20 fps for clear, high-definition video.
Which video compression standards does the IPC3614LR3-PF28-D support?
It supports Ultra265, H.264 and MJPEG compression to optimize bandwidth and storage usage.
Does the IPC3614LR3-PF28-D offer multi-streaming capabilities?
Yes, the camera provides triple streams simultaneously for live view, recording and mobile access.
What lens options are available for the IPC3614LR3-PF28-D?
This model comes with a fixed 2.8 mm or 4 mm lens, offering a wide field of view.
