Clear 4MP dome camera with reliable IR.
IPC324LR3-VSPF28-D
Original Stock
Ready to Ship
1/3" CMOS, ICR, 2592x1520:20fps, Ultra 265/H.264/MJPEG, Trip...
FEATURED DEAL
Name:
IPC324LR3-VSPF28-D
- Description:
- 1/3" CMOS, ICR, 2592x1520:20fps, Ultra 265/H.264/MJPEG, Triple stream, DC12V & PoE,Fixed lens (2.8mm,4mm), IR range: up to 30m, 2-Axis
- Rating:
Added to cart 28 times recently
- Availability:
In stock - Ready to Ship
- Brand:
- Uniview
- Condition:
3 Year Extended Warranty
Same-day Shipping
14-Day Money Back Guarantee
Shipping:
Payment:
3 Year Extended Warranty
Same-day Shipping
14-Day Money Back Guarantee
Need Additional Discount on Product?
Request a quote below - Get Exclusive Pricing and Support.
Shipping:
Payment:
TRUSTED, TRIED, PROVEN
Officially Accredited
& Verified By
Next-Gen IT
Solutions Powered By

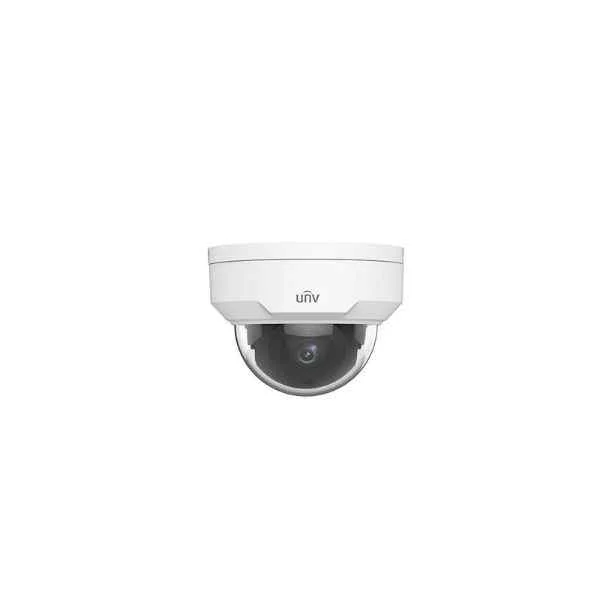

IPC324LR3-VSPF28-D Overview
IPC324LR3-VSPF28-D is a dome IP camera offering 4MP resolution with a varifocal lens featuring a focal length of 2.7–13.5mm and an adjustable field of view. It delivers efficient H.265 video compression, supports true day/night operation with Starlight low-light technology and a 30m infrared range, and is powered via PoE with built-in MicroSD storage of up to 128 GB.
The camera is ONVIF compliant and is equipped with smart detection features such as motion detection, intrusion detection, line crossing, and face detection. Its robust design makes it suitable for deployment in offices, retail environments, parking areas, government buildings, and critical infrastructure locations.
IPC324LR3-VSPF28-D price is is available on request. Get immediate quote.
Request bulk order quote for IPC324LR3-VSPF28-D for additional pricing. Browse the full Uniview Easy L Series series or explore all Uniview products.
IPC324LR3-VSPF28-D Specifications
- Product Type
- IP Camera
- Camera Type
- Dome
- Mounting Option
- Ceiling
- Color
- Black
- Use Case
- Office
- Resolution
- 4MP
- Lens Type
- Varifocal
- Focal Length
- 2.7–13.5mm
- Field of View
- Adjustable
- Image Sensor
- 1/3" CMOS
- Frame Rate
- 30 FPS
- Infrared Range
- 30m
- Low Light Technology
- Starlight
- Day/Night Mode
- True Day/Night (ICR)
- Video Compression
- H.265
- Audio Support
- No Audio
- Storage Options
- MicroSD
- Max Storage Capacity
- 128 GB
- Power Supply
- PoE
- Network Interface
- 1 x RJ-45
- Wireless Support
- No
- ONVIF Compliance
- Yes
- Smart Features
- Motion Detection / Intrusion Detection / Line Crossing / Face Detection
- Vandal Resistance
- None
- Weather Rating
- IP66
- Product Name
- IPC324LR3-VSPF28-D
- Height
- 4.3 inches
- Width
- 4.3 inches
- Depth
- 4.7 inches
- Weight
- 1.2 lbs
Quality Certifications
To get the detailed certification, please go to the Compliance Center.
Product Comparison Table
| IPC324LR3-VSPF28-D |  IPC322LR3-VSPF28-D |  IPC3614LR3-PF28-D |  IPC2122LR3-PF40M-D |  IPC2124LR3-PF40M-D | |
|---|---|---|---|---|---|
| Product Type | IP Camera | IP Camera | IP Camera | IP Camera | IP Camera |
| Camera Type | Dome | Bullet | Dome | Dome | Dome |
| Mounting Option | Ceiling | Wall / Ceiling / Pole / Pendant / Corner / Flush / N/A | Ceiling | Ceiling | Ceiling |
| Color | Black | Black | White | Black | White |
| Use Case | Office | Indoor Surveillance / Outdoor Monitoring / Office / Retail / Industrial / Traffic / Perimeter Security | Indoor Surveillance / Outdoor Monitoring / Office / Retail / Critical Infrastructure | Office / Retail / Critical Infrastructure | Indoor Surveillance / Outdoor Monitoring / Office / Retail / Industrial / Traffic / Perimeter Security |
| Resolution | 4MP | 4MP | 4MP | 4MP | 4MP |
| Lens Type | Varifocal | Varifocal | Fixed | Fixed | Fixed |
| Focal Length | 2.7–13.5mm | 2.7–13.5mm | 3.6mm | 4mm | 2.8mm |
| Field of View | Adjustable | 90° | 90° | 90° | 90° |
| Image Sensor | 1/3" CMOS | 1/3" CMOS | 1/3" CMOS | 1/3" CMOS | 1/3" CMOS |
| Frame Rate | 30 FPS | 30 FPS | 30 FPS | 30 FPS | 30 FPS |
| Infrared Range | 30m | 30m | 30m | 30m | 30m |
| Low Light Technology | Starlight | Starlight | Starlight | Starlight | Starlight |
| Day/Night Mode | True Day/Night (ICR) | True Day/Night (ICR) | True Day/Night (ICR) | True Day/Night (ICR) | True Day/Night (ICR) |
| Video Compression | H.265 | H.265 | H.265 | H.265+ | H.265+ |
| Audio Support | No Audio | Built-in Mic | Built-in Mic | No Audio | Built-in Mic |
| Storage Options | MicroSD | MicroSD | MicroSD | MicroSD | MicroSD |
| Max Storage Capacity | 128 GB | 64 GB | 128 GB | 128 GB | 64 GB |
| Power Supply | PoE | PoE | PoE | PoE | PoE |
| Network Interface | 1 x RJ-45 | 1 x RJ-45 | 1 x RJ-45 | 1 x RJ-45 | 1 x RJ-45 |
| Wireless Support | No | No | No | No | No |
| ONVIF Compliance | Yes | Yes | Yes | Yes | Yes |
| Smart Features | Motion Detection / Intrusion Detection / Line Crossing / Face Detection | Motion Detection / Intrusion Detection / Line Crossing / Face Detection | Motion Detection / Intrusion Detection / Line Crossing / Face Detection | Motion Detection / Intrusion Detection / Line Crossing | Motion Detection / Intrusion Detection / Line Crossing / Face Detection |
| Vandal Resistance | None | N/A | IK08 | IK08 | IK08 |
| Weather Rating | IP66 | IP65 | IP67 | IP66 | IP66 |
| Product Name | IPC324LR3-VSPF28-D | IPC322LR3-VSPF28-D | IPC3614LR3-PF28-D | IPC2122LR3-PF40M-D | IPC2124LR3-PF40M-D |
| Height | 4.3 inches | 4.5 inches | 3.5 | 4 inches | 4.0 inches |
| Width | 4.3 inches | 3.2 inches | 3.1 | 4 inches | 3.8 inches |
| Depth | 4.7 inches | 3.2 inches | 3.1 | 4 inches | 3.8 inches |
| Weight | 1.2 lbs | 1.5 lbs | 1.2 lbs | 2 lbs | 1.1 lbs |
Reviews & Ratings
H
Hafsa Noor
5
Good indoor coverage and consistent clarity.
J
Jan Kowalski
4
Stable performance and easy installation.
R
Rizwan Ali
5
Works well for office surveillance.
S
Sophie Turner
5
Dependable dome camera for daily monitoring.
Questions & Answers
What is the maximum resolution and frame rate of the IPC324LR3-VSPF28-D camera?
The IPC324LR3-VSPF28-D delivers a maximum resolution of 2592 × 1520 at 20 fps for sharp, detailed video capture.
Which video compression formats does the IPC324LR3-VSPF28-D support?
This model supports Ultra 265, H.264 and MJPEG compression to optimize bandwidth and storage efficiency.
How many concurrent streams can the IPC324LR3-VSPF28-D handle?
The camera supports triple streaming, enabling simultaneous high-resolution, mobile and sub-stream feeds.
What lens options are available for the IPC324LR3-VSPF28-D?
It features a fixed lens available in 2.8 mm or 4 mm focal lengths to suit different field-of-view requirements.
What is the infrared night vision range of the IPC324LR3-VSPF28-D?
Equipped with IR LEDs, it provides clear black-and-white images in complete darkness up to 30 meters.
Does the IPC324LR3-VSPF28-D support Power over Ethernet (PoE)?
Yes, the camera is PoE-compliant (IEEE 802.3af), simplifying installation by carrying power and data over a single cable.
What are the power requirements for the IPC324LR3-VSPF28-D?
It operates on 12 VDC or PoE (802.3af), offering installation flexibility in diverse environments.
Can the IPC324LR3-VSPF28-D be mounted at different angles?
Yes, its 2-axis adjustable bracket allows precise pan and tilt alignment for optimal coverage.
What image sensor does the IPC324LR3-VSPF28-D use?
It employs a 1/3" CMOS sensor for high sensitivity and low noise performance in varied lighting.
Is the IPC324LR3-VSPF28-D suitable for outdoor installations?
With a durable metal housing and IP66 weatherproof rating, it is designed for reliable outdoor operation.
What operating temperatures can the IPC324LR3-VSPF28-D withstand?
It functions reliably between –30 °C and 60 °C (–22 °F to 140 °F), accommodating extreme climates.
How do I configure the IPC324LR3-VSPF28-D for network access?
Use the web interface or a compatible NVR to assign an IP address, configure streams and set user credentials.
Which network protocols does the IPC324LR3-VSPF28-D support?
It supports TCP/IP, HTTP, HTTPS, RTSP, RTP, UDP, UPnP, DHCP, DNS, and ONVIF for seamless integration.
How much storage is needed for a day of continuous 2592×1520 video at 20 fps?
Using Ultra 265 compression, one channel at max resolution and frame rate typically requires 6–8 GB per day.
Is the IPC324LR3-VSPF28-D compatible with third-party VMS systems?
Yes, its ONVIF Profile S compliance ensures interoperability with most industry-standard video management software.
What warranty coverage does the IPC324LR3-VSPF28-D include?
It comes with a standard two-year warranty covering defects in materials and workmanship under normal use.
