Question 1

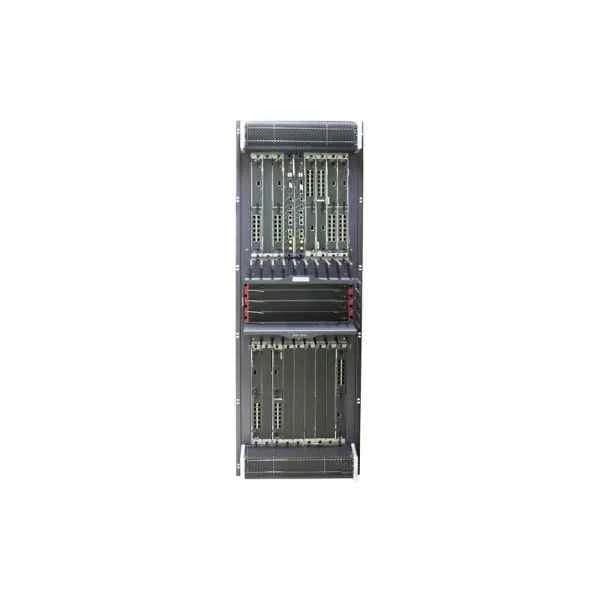

What is the ME60-X16 Integrated Chassis Components (ME60-16), 8KW?

Accepted Answer

The ME60-X16 Integrated Chassis is a high-density router chassis designed for large-scale networks, featuring 16 line-card slots and an 8 kW redundant power system.

Question 2

What are the key specifications of the ME60-16 chassis?

Accepted Answer

The ME60-16 chassis measures 442 mm × 650 mm × 133 mm, weighs 18 kg (empty), supports 16 line cards, and delivers 8 kW of total power with N+1 redundancy.

Question 3

Which line cards and modules are compatible with ME60-X16?

Accepted Answer

The ME60-X16 supports all ME60 series line cards, including 10GE, 40GE, and 100GE interfaces, as well as service modules for encryption and deep-packet inspection.

Question 4

How does the 8 kW power system work in the ME60-16 chassis?

Accepted Answer

The chassis integrates two 4 kW hot-swappable power modules in N+1 configuration, ensuring continuous operation during maintenance or module replacement.

Question 5

What cooling features are included in the ME60-X16?

Accepted Answer

The ME60-16 chassis uses front-to-back airflow with six hot-swappable fan trays, optimizing heat dissipation and enabling uninterrupted operation under full load.

Question 6

Which management interfaces does the ME60-16 offer?

Accepted Answer

It provides a dedicated out-of-band management port (Ethernet RJ45), a console port, dual USB ports, and support for SNMP, CLI, and NetConf.

Question 7

What redundancy mechanisms are built into the ME60-X16?

Accepted Answer

The chassis supports N+1 redundancy for power modules, dual control boards, and hot-swappable fans, ensuring zero single points of failure.

Question 8

What environmental requirements should I consider for installation?

Accepted Answer

Operate the ME60-16 between 0 °C and 45 °C, at 5–95% non-condensing humidity, and install in a standard 19″ rack with proper ventilation.

Question 9

How do I install the ME60-X16 chassis in a rack?

Accepted Answer

Mount the chassis on a 19″ rack using the included mounting brackets, secure all screws, connect earth grounding, and then install power modules and line cards.

Question 10

What maintenance procedures are recommended for ME60-16?

Accepted Answer

Perform visual inspections monthly, clean air filters quarterly, verify fan and power module health via the management interface, and apply software updates as released.

Question 11

What warranty and support options are available?

Accepted Answer

The ME60-16 chassis includes a one-year hardware warranty with 24×7 global support; extended support and on-site maintenance plans are available as upgrades.

Question 12

Can I mix ME60-16 modules with other ME60 chassis versions?

Accepted Answer

Yes, ME60-16 line cards and service modules are fully interoperable with ME60-8 and ME60-4 chassis under the same software release.

Question 13

What is the typical power consumption of the ME60-X16?

Accepted Answer

Under full load, the ME60-16 draws approximately 7.2 kW, leaving headroom for one additional 4 kW power module in N+1 mode.

Question 14

Which certifications does the ME60-16 chassis hold?

Accepted Answer

The chassis is certified for CE, FCC, UL, RoHS, and is ETSI-compliant for electromagnetic compatibility and safety standards.

Question 15

What network scenarios is the ME60-X16 best suited for?

Accepted Answer

It is ideal for service providers and large enterprises requiring high-performance routing, multi-service aggregation, and carrier-grade reliability.

Question 16

How do I monitor chassis health and performance?

Accepted Answer

Use the built-in web GUI or CLI to view real-time metrics for power, temperature, fan status, and interface utilization, or integrate with SNMP/NMS systems.

	ME0B0BKP1631	ME0B0BKP0830	ME0P16SFUE71	ME0P08SFUF70	ME0B0BKPA330
5G Support	No	No	No	No	No
Architecture	Modular	Modular	Modular	Modular	Modular
Broadband	Fiber Optic / DSL / 4G / LTE	Fiber Optic / DSL	Fiber Optic / DSL / 4G	N/A	Fiber Optic
Built-in Security Features	Firewall / Intrusion Prevention / Malware Protection	Firewall / Intrusion Prevention / Malware Protection	Firewall / Intrusion Prevention / Malware Protection	Firewall, Intrusion Prevention, Malware Protection	Firewall, Intrusion Prevention, Malware Protection
Compliance Standards	CE / FCC	FCC / CE	FCC, CE, RoHS	CE, FCC	FCC, CE
Connectivity Type	Wired	Wired	Wired	Wired	Wired
Depth	15.0 inches	14 inches	18 inches	15 inches	14 inches
Device Type	Router	Router	Router	Router	Router
EMC	N/A	N/A	IEC61000-6-3 / IEC61000-6-4	N/A	FCC Part 15
Ethernet Technology	10/100/1000	10/100/1000	10/100/1000	10/100/1000	10/100/1000
Expansion Slots	NIM	NIM	NIM / SFP+	NIM	NIM
Features	VPN / Firewall / IPv6 Compatible	VPN / Firewall / IPv6 Compatible / Redundancy	VPN / IPv6 Compatible / Firewall / MPLS	VPN, Firewall, High Availability, Integrated Voice/Video	VPN, IPv6 Compatible, Firewall, MPLS
Firewall Features	Yes	Yes	Yes	Yes	Yes
Flash Memory	512 MB	512 MB	512 MB	512 MB	512 MB
Form Factor	Rack-mount	Rack-mount	Rack-mount	Rack-mount	Rack-mount
Height	3.5 inches	1.75 inches	2 inches	2 inches	2 inches
High Availability Support	Supported	Supported	Supported	Supported	Supported
Integrated Services	Voice / Video / WAN Optimization	Voice / Video / WAN Optimization	Voice / Video / WAN Optimization	Voice, Video, WAN Optimization	Voice, Video, WAN Optimization
Interface Ports	RJ-45 / SFP	RJ-45 / SFP	RJ-45 / SFP	RJ-45, SFP, Combo Ports	RJ-45, SFP
LAN Ports	4 LAN Ports	8 LAN Ports	4 LAN Ports	8 LAN Ports	8 LAN Ports
Management	Managed	Managed	Managed	Managed	Managed
Memory	4 GB	4 GB	4 GB	4 GB	4 GB
Modular Slots Available	3+ Slots	3+ Slots	3+ Slots	3+ Slots	3+ Slots
Network Protocols	IPv4 / IPv6	IPv4 / IPv6	IPv4 / IPv6	IPv4, IPv6	IPv4, IPv6
Power	350W	250 W	350 Watt	350 Watt	350 Watt
Power Source	Redundant AC/DC Power Supply	AC Power Supply / DC Power Supply / Redundant	AC Power Supply with Redundant Option	AC/DC with Redundant Options	AC Power Supply / Redundant
Product Name	ME0B0BKP1631 Enterprise Modular Router	ME0B0BKP0830 Multi-Service Edge Router	ME0P16SFUE71 Enterprise Modular Router	ME0P08SFUF70 Enterprise Router	ME0B0BKPA330 Enterprise Modular Router
Product Type	Enterprise Router	Enterprise Router	Enterprise Router	Enterprise Router	Enterprise Router
QoS Features	Supported	Supported	Supported	Supported	Supported
Remote Management	SNMP / CLI	SNMP / SSH / HTTPS	SSH / Telnet / SNMP	SSH, Telnet, SNMP	SSH, Telnet, SNMP
Routing Protocols	OSPF / BGP / EIGRP / Static Routing	OSPF / BGP / EIGRP / Static Routing	OSPF / BGP / EIGRP / Static Routing	OSPF, BGP, EIGRP, Static Routing	OSPF / BGP / Static Routing
Safety	N/A	N/A	N/A	N/A	UL, cUL
Speed/Capacity	Gigabit	Gigabit	Gigabit	Gigabit	Gigabit
Stacking Capability	Yes	Yes	Yes	No	Yes
Telecom	N/A	N/A	N/A	N/A	EIA/TIA
Throughput Capacity	1 Gbps	10 Gbps	2 Gbps	10 Gbps	10 Gbps
Use Case	Enterprise	Enterprise	Enterprise	Enterprise	Enterprise
VPN Support	IPSec / SSL VPN	IPSec / SSL VPN	IPSec / SSL VPN / GRE / DMVPN / FlexVPN	IPSec, SSL VPN, GRE, DMVPN, FlexVPN	IPSec / SSL VPN
WAN Configuration	Dual WAN	Dual WAN	Dual WAN	Dual WAN	Dual WAN
WAN Ports	2 WAN	2 WAN	2 WAN	2 WAN	2 WAN
Weight	25 lbs	20 lbs	20 lbs	15 lbs	15 lbs
Wi-Fi Standard	N/A	N/A	N/A	N/A	N/A
Width	17.5 inches	17 inches	17 inches	17 inches	17 inches
Wireless Support	No	No	No	No	No
