ME0B0BKPA331
ME60-X3 Integrated AC Chassis Components, (Including Dual AC...
TRUSTED, TRIED, PROVEN
$5,000,000+
Inventory Delivered By
Officially Accredited
& Verified By
Next-Gen IT
Solutions Powered By
ME0B0BKPA331 is a high-performance enterprise router designed with a fixed architecture that integrates dual power options for continuous operation and multiple WAN/LAN interfaces to meet diverse connectivity demands. It is equipped with integrated voice, video, and WAN optimization services, offering high throughput, robust redundancy, and secure VPN capabilities to support critical business operations.
ME0B0BKPA331 delivers secure IPSec and SSL VPN features along with modular expansion slots that allow for network scalability in dynamic environments. Its impressive performance, fault tolerance, and specialized design make it an ideal solution for enterprise and industrial use cases where reliability and efficiency are paramount.
ME0B0BKPA331 price is $9,307.17, a 54% saving from the Huawei list price of $20,232.99. ME0B0BKPA331 is in stock and available for next-day dispatch. (terms applied)
Request bulk order quote for ME0B0BKPA331 for additional pricing. Browse the full Me60 Series Control Gateway series or explore all Huawei products.
To get the detailed certification, please go to the Compliance Center.
| ME0B0BKPA331 |  ME0P08BASA72 |  ME0P16BASA70 |  ME0B0BKPD330 |  ME0B0BKP0830 | |
|---|---|---|---|---|---|
| 5G Support | No | No | No | No | No |
| Architecture | Fixed | Modular | Modular | Modular | Modular |
| Broadband | N/A | Fiber Optic | Fiber Optic | N/A | Fiber Optic / DSL |
| Built-in Security Features | Firewall, Intrusion Prevention, Malware Protection | Firewall / Intrusion Prevention / Malware Protection | Firewall, Intrusion Prevention, Malware Protection | Firewall, Intrusion Prevention, Malware Protection | Firewall / Intrusion Prevention / Malware Protection |
| Compliance Standards | FCC, CE | IEEE 802.3, IEEE 802.1Q, FCC, CE | CE, FCC | FCC, CE, RoHS | FCC / CE |
| Connectivity Type | Wired | Wired | Wired | Wired | Wired |
| Depth | 12 inches | 16 inches | 18 inches | 15 inches | 14 inches |
| Device Type | Router | Router | Router | Router | Router |
| EMC | N/A | N/A | FCC / CE | FCC Part 15, CE | N/A |
| Ethernet Technology | 10/100/1000 | 10/100/1000 | 10/100/1000 | 10/100/1000 | 10/100/1000 |
| Expansion Slots | NIM | SFP+ | NIM | NIM, SFP+ | NIM |
| Features | VPN, IPv6 Compatible, Firewall | VPN / IPv6 Compatible / Firewall / MPLS | VPN, Firewall, MPLS, IPv6 Compatible | VPN, VoIP, IPv6 Compatible, Firewall | VPN / Firewall / IPv6 Compatible / Redundancy |
| Firewall Features | Yes | Yes | Yes | Yes | Yes |
| Flash Memory | 256 MB | 512 MB | 512 MB | 512 MB | 512 MB |
| Form Factor | Rack-mount | Rack-mount | Chassis | Rack-mount | Rack-mount |
| Height | 1.75 inches | 2.2 inches | 3.5 inches | 2.5 inches | 1.75 inches |
| High Availability Support | Supported | Supported | Supported | Supported | Supported |
| Integrated Services | Voice, Video, WAN Optimization | Voice / Video / WAN Optimization | Voice, WAN Optimization | Voice, Video, WAN Optimization | Voice / Video / WAN Optimization |
| Interface Ports | RJ-45, SFP | RJ-45 / SFP | RJ-45, SFP | RJ-45, SFP+ | RJ-45 / SFP |
| LAN Ports | 4 LAN Ports | 24 LAN Ports | 8 LAN Ports | 4 LAN Ports | 8 LAN Ports |
| Management | Managed | Managed | Managed | Managed | Managed |
| Memory | 1 GB | 4 GB | 4 GB | 4 GB | 4 GB |
| Modular Slots Available | 2 Slots | 3+ Slots | 3+ Slots | 3+ Slots | 3+ Slots |
| Network Protocols | IPv4, IPv6 | TCP/IP, UDP, ICMP | IPv4, IPv6 | IPv4, IPv6 | IPv4 / IPv6 |
| Power | 65 Watt | 350 Watt | 350 W | 250W | 250 W |
| Power Source | AC Power Supply / DC Power Supply / Redundant | AC Power Supply / Redundant | AC Power Supply / Redundant | Redundant AC Power Supply | AC Power Supply / DC Power Supply / Redundant |
| Product Name | ME0B0BKPA331 | ME0P08BASA72 Enterprise Modular Router | Enterprise Modular Router ME0P16BASA70 | ME0B0BKPD330 | ME0B0BKP0830 Multi-Service Edge Router |
| Product Type | Enterprise Router | Enterprise Router | Enterprise Router | Enterprise Router | Enterprise Router |
| QoS Features | Supported | Supported | Supported | Supported | Supported |
| Remote Management | Telnet, SSH | SSH, Telnet, SNMP | SSH, Telnet, SNMP | SSH, HTTPS, SNMP | SNMP / SSH / HTTPS |
| Routing Protocols | OSPF / BGP / EIGRP / Static Routing | OSPF / BGP / EIGRP / MPLS / IS-IS / Static Routing | OSPF / BGP / EIGRP / IS-IS / RIP / Static Routing | OSPF / BGP / EIGRP / Static Routing | OSPF / BGP / EIGRP / Static Routing |
| Safety | N/A | N/A | UL Listed / CE Certified | UL Listed | N/A |
| Speed/Capacity | Gigabit | Gigabit | Gigabit | Gigabit | Gigabit |
| Stacking Capability | Yes | Yes | Yes | Yes | Yes |
| Telecom | N/A | N/A | ETSI / FCC | TIA/EIA-568 | N/A |
| Throughput Capacity | 1 Gbps | 10 Gbps | 10 Gbps | 10 Gbps | 10 Gbps |
| Use Case | Enterprise | Enterprise | Enterprise | Enterprise | Enterprise |
| VPN Support | IPSec / SSL VPN | IPSec / SSL VPN / DMVPN | IPSec / SSL VPN | IPSec / SSL VPN | IPSec / SSL VPN |
| WAN Configuration | Dual WAN | Dual WAN | Dual WAN | Dual WAN | Dual WAN |
| WAN Ports | 2 WAN | 2 WAN | 2 WAN | 2 WAN | 2 WAN |
| Weight | 10 lbs | 25 lbs | 25 lbs | 15 lbs | 20 lbs |
| Wi-Fi Standard | N/A | N/A | N/A | N/A | N/A |
| Width | 17 inches | 17 inches | 17 inches | 17 inches | 17 inches |
| Wireless Support | No | No | No | No | No |
ME60-X3 integrated AC chassis components deliver dependable power and stable routing support.
Reliable dual AC integration with consistent uptime.
Professional chassis configuration for expanding networks.
Strong structural stability and predictable hardware performance.
Smooth integration into existing ME60 environments.
Consistent reliability in core deployments.

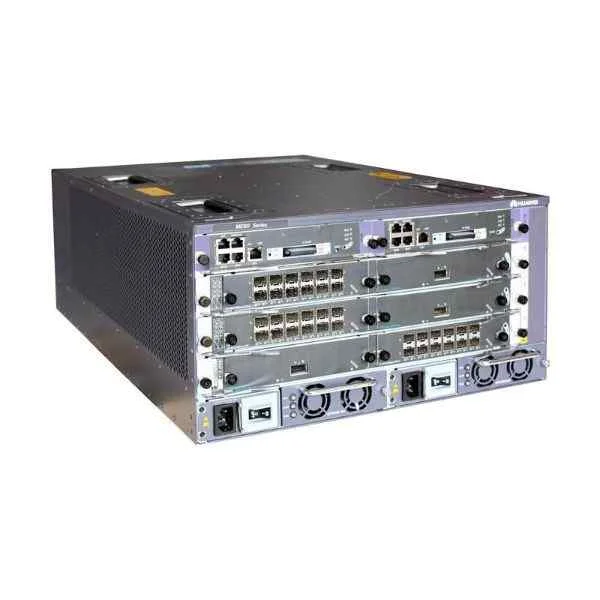

The ME60-X3 Integrated AC Chassis Components (SKU: ME0B0BKPA331) is a compact, high-density aggregation platform featuring dual AC power modules for carrier-grade reliability and 10-slot line-card scalability.
The ME60-X3 chassis includes two hot-swappable AC power modules (220 V AC input) offering N+1 redundancy to ensure uninterrupted operation during maintenance or single-module failure.
The ME60-X3 chassis measures 442 mm (W) × 530 mm (D) × 87 mm (H) and weighs approximately 12 kg without line cards or power modules.
The ME60-X3 chassis supports up to ten line cards, enabling flexible interface configurations for Ethernet, TDM, and service aggregation in a single 2U form factor.
Yes. Both AC power modules in the ME60-X3 chassis are hot-swappable, allowing replacement or upgrade without service interruption when redundancy is configured.
The ME60-X3 chassis employs front-to-rear variable-speed fans with automatic airflow control to maintain optimal operating temperatures and reduce acoustic noise.
The ME60-X3 chassis provides out-of-band management via a dedicated RJ45 console port, USB port for local configuration, and an RJ45 Ethernet port for web or SSH access.
The ME60-X3 chassis operates reliably between 0 °C and 45 °C, ensuring performance in standard data center and telecom environments.
The ME60-X3 chassis holds CE, UL, FCC, and RoHS certifications, complying with international safety, electromagnetic compatibility, and environmental standards.
Yes. The ME60-X3 chassis is fully backward-compatible with all ME60 series line cards, allowing seamless migration and reuse of existing modules.
The ME60-X3 chassis offers dual AC power redundancy, dual control-plane cards, and optional dual switch fabrics to ensure zero-impact failover.
Mount the ME60-X3 chassis in a standard 19-inch rack using included brackets, secure with four rack screws, connect AC power modules, and attach network cables.
The ME60-X3 Integrated AC Chassis is backed by a one-year hardware warranty with optional extended support agreements available through certified resellers.
Use the built-in CLI or SNMP MIBs to query real-time power consumption and module status, or view graphical power metrics via the web management interface.
Yes. The ME60-X3 chassis management interfaces fully support IPv4 and IPv6 for remote configuration, monitoring, and automation via SSH or SNMPv3.
