What throughput can the SRX5800 deliver?

The SRX5800 delivers up to 1.4 Tbps of firewall throughput and up to 1.0 Tbps of IPS throughput, depending on module configuration.

How many modular interface cards can the SRX5800 support?

The SRX5800 chassis supports up to eight modular interface cards for maximum port density and flexibility.

Does the SRX5800 support high availability?

Yes. It offers active/active and active/passive clustering with nonstop operation and stateful session synchronization.

What power and cooling redundancy does the SRX5800 Configuration 1 include?

Configuration 1 provides two hot-swappable AC high-capacity power entry modules and two high-capacity fan trays for N+1 redundancy and efficient cooling.

What security features are available on the SRX5800?

It includes advanced threat protection, intrusion prevention, application visibility, and Sky ATP threat intelligence integration.

How is licensing handled for the SRX5800?

Licensing is modular and perpetual; you can activate firewall, threat prevention, and advanced services through Juniper Software Advantage (JSA) or JSA+.

Can the services processing card be upgraded in Configuration 1?

Yes. The SRX5K-SPC-4-15-320 can be upgraded to higher-capacity SPC models to increase processing power as requirements grow.

What management options are available for the SRX5800?

Management options include Junos CLI, J-Web GUI, Juniper Networks Security Director, and Junos Space Security Director for centralized control.

What are the dimensions and rack requirements of the SRX5800?

The chassis occupies 11 RU, measures 19" wide by 24" deep, and mounts in a standard 23" EIA rack with 100–240 V AC power.

What deployment scenarios is the SRX5800 designed for?

It is ideal for large data centers, service provider edges, campus cores, and enterprise aggregation requiring high throughput and multi-service security.

What support and warranty options are available for the SRX5800?

Juniper offers a one-year limited hardware warranty, 90-day software updates, and optional 24/7 Juniper Care and J-Care support packages.

FEATURED DEAL

Name:

SRX5800E-B1-AC-TAA

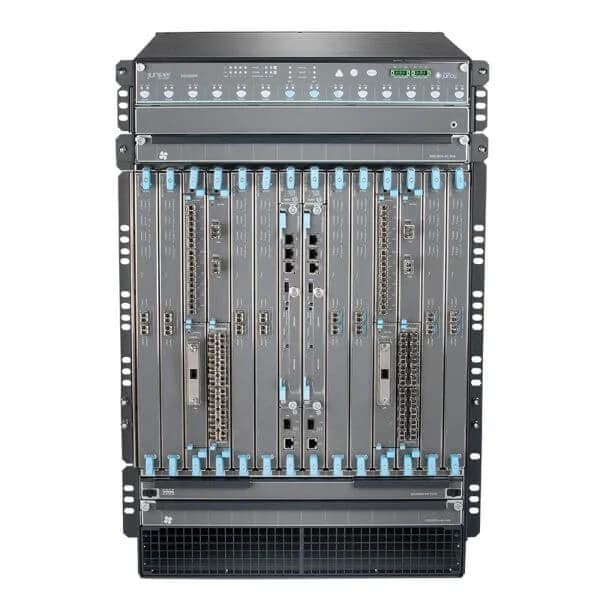

Name: SRX5800 Configuration 1 includes chassis, midplane, SRX5K-RE-1800X4, 2xSRX5K-SCBE, 2xAC HC PEM, 2x HC fan tray, SRX5K-SPC-4-15-320,SRX5K-MPC, and SRX-MIC-10XG-SFPP, Supported by Junos 12.1X47-D15 onwards, TAA
Brand: Juniper
SKU: SRX5800E-B1-AC-TAA
Rating: 4.2 (5 reviews)

Description:: SRX5800 Configuration 1 includes chassis, midplane, SRX5K-RE-1800X4, 2xSRX5K-SCBE, 2xAC HC PEM, 2x HC fan tray, SRX5K-SPC-4-15-320,SRX5K-MPC, and SRX-MIC-10XG-SFPP, Supported by Junos 12.1X47-D15 onwards, TAA
Rating:: 4.2(5)
Added to cart 28 times recently
Availability:: In stock - Ready to Ship
Brand:: Juniper
GTIN:: 832938062375
Condition:

Get a Quote

3 Year Extended Warranty

Same-day Shipping

14-Day Money Back Guarantee

Shipping:

Payment:

srx5800e-b1-ac-taa srx5800 configuration 1 includes chassis, midplane, srx5k-re-1800x4, 2xsrx5k-scbe, 2xac hc pem, 2x hc fan tray, srx5k-spc-4-15-320,srx5k-mpc, and srx-mic-10xg-sfpp, supported by junos 12.1x47-d15 onwards, taa

3 Year Extended Warranty

Same-day Shipping

14-Day Money Back Guarantee

Need Additional Discount on Product?

Request a quote below - Get Exclusive Pricing and Support.

Shipping:

Payment:

SRX5800E-B1-AC-TAA

SRX5800 Configuration 1 includes chassis, midplane, SRX5K-RE...

TRUSTED, TRIED, PROVEN

$5,000,000+

Inventory Delivered By

Officially Accredited

& Verified By

Next-Gen IT

Solutions Powered By

SRX5800E-B1-AC-TAA Overview

SRX5800E-B1-AC-TAA is a high-performance, chassis-based firewall appliance designed for critical data center, enterprise, and cloud edge deployments. Engineered with modular port configurations that support SFP, SFP+, and QSFP+ interfaces, it delivers up to 1 Tbps of firewall throughput while featuring an AC power supply with redundant support for uninterrupted operation.

This model integrates robust security services including IPS, antivirus, web filtering, application control, and VPN capabilities. With centralized management options via CLI, GUI, SNMP, and REST API and built-in clustering for active-active high availability, SRX5800E-B1-AC-TAA is ideally suited for secure access, segmentation, and UTM use cases in scalable and mission-critical environments.

SRX5800E-B1-AC-TAA price is is available on request. Get immediate quote.

Request bulk order quote for SRX5800E-B1-AC-TAA for additional pricing. Browse the full Juniper Srx Series Service Gateways series or explore all Juniper products.

SRX5800E-B1-AC-TAA Specifications

Product Type: Firewall Appliance
Architecture: Chassis
Deployment Type: Data Center / Enterprise / Cloud Edge
Use Case: VPN / Secure Access / Segmentation / UTM
Firewall Layer Supported: Layer 3 / Layer 4 / Layer 7
Power Source: AC Power Supply
Redundant Power Supply Supported: Yes
Firewall Throughput: 1 Tbps
Threat Protection Throughput: 350 Gbps
IPS Throughput: 200 Gbps
VPN Throughput: 250 Gbps
Supported Applications: N/A
Centralized Configuration & Reporting: Yes
Feature: Advanced Threat Prevention
Concurrent Sessions: 60 Million
Maximum Concurrent Sessions: 60 Million
Users/Nodes: N/A
Integrated I/O: N/A
New Sessions Per Second: N/A
Supported VPN Types: IPSec / SSL VPN
Routing Protocols Supported: OSPF / BGP / RIP / Static Routing
Security Services: Antivirus / Web Filtering / Application Control / IPS / VPN
High Availability: Active-Active
Interfaces: SFP / SFP+ / QSFP+
WAN Ports: N/A
LAN Ports: N/A
Switch Ports: No
POE Ports: No
Management Options: CLI / GUI / SNMP / REST API
Logging & Monitoring: Built-in
Firewall Policies Supported: N/A
Users Supported: N/A
Memory: 16 GB
Flash Storage: 128 GB
Expansion Slots: NP Module
Form Factor: Chassis
Rack Units: 4 RU
Device Type: NGFW
Product Name: SRX5800E-B1-AC-TAA
Height: N/A
Width: N/A
Depth: N/A
Weight: N/A

SRX5800E-B1-AC-TAA Use Case

Hyperscale Data Center Perimeter Firewall Consolidation

Global enterprises deploy the SRX5800E-B1-AC-TAA with chassis, midplane, SRX5K-RE-1800X4, 2×SRX5K-SCBE, SRX5K-SPC-4-15-320, SRX5K-MPC and SRX-MIC-10XG-SFPP modules under Junos 12.1X47-D15 to consolidate multiple appliance clusters into a single high-performance firewall. Dual AC HC PEMs and HC fan trays deliver 320 Gbps encrypted throughput and stateful inspection at scale. Outcome: 50% fewer rack units, 30% lower TCO, seamless capacity growth and real-time threat intelligence feeds.

Carrier-Grade Multi-Tenant Edge Security for Service Providers

Tier-1 service providers integrate SRX5800E-B1-AC-TAA with dual SRX5K-RE-1800X4 route engines, 2×SRX5K-SCBE, SRX5K-SPC-4-15-320 packet control, and SRX-MIC-10XG-SFPP for 10 GbE subscriber ports. Running Junos 12.1X47-D15, the platform enforces per-tenant firewall policies, BGP/MPLS VPN segmentation and DDoS scrubbing in a fully redundant chassis. Outcome: 99.999% SLA compliance, support for 100 000+ subscribers, guaranteed performance isolation and on-demand security scaling.

TAA-Compliant Unified Security Fabric for Federal Agencies

U.S. federal networks implement SRX5800E-B1-AC-TAA chassis with SRX5K-RE-1800X4, 2×SRX5K-SCBE, 2×AC HC PEM, 2×HC fan trays, SRX5K-SPC-4-15-320, SRX5K-MPC and SRX-MIC-10XG-SFPP under Junos 12.1X47-D15 to meet Trade Agreements Act requirements. The platform delivers FIPS-certified crypto, centralized policy orchestration and high-velocity threat correlation across multi-site environments. Outcome: full TAA compliance, FedRAMP readiness, consolidated security operations and accelerated incident response.

Quality Certifications

To get the detailed certification, please go to the Compliance Center.

Product Comparison Table

	SRX5800E-B1-AC-TAA	SRX5800-CHAS	SRX4100-SYS-JB-DC	SRX320-SYS-JB-P	SRX4100-SYS-JB-AC
Product Type	Firewall Appliance	Firewall Appliance	Firewall Appliance	Firewall Appliance	Firewall Appliance
Architecture	Chassis	Chassis	Rack-mount	Rack-mount	Rack-mount
Deployment Type	Data Center / Enterprise / Cloud Edge	Data Center / Enterprise	Enterprise / Data Center / Branch Office	Branch Office	Enterprise
Use Case	VPN / Secure Access / Segmentation / UTM	VPN / Secure Access / UTM	VPN / Secure Access / UTM	VPN / Secure Access / UTM	VPN
Firewall Layer Supported	Layer 3 / Layer 4 / Layer 7	Layer 3 / Layer 4 / Layer 7	Layer 3 / Layer 4 / Layer 7	Layer 3 / Layer 4	Layer 7
Power Source	AC Power Supply	AC Power Supply	AC Power Supply	AC Power Supply	AC Power Supply
Redundant Power Supply Supported	Yes	Yes	Yes	No	Yes
Firewall Throughput	1 Tbps	660 Gbps	4 Gbps	1.0 Gbps	10 Gbps
Threat Protection Throughput	350 Gbps	220 Gbps	2.5 Gbps	300 Mbps	4 Gbps
IPS Throughput	200 Gbps	100 Gbps	2.5 Gbps	250 Mbps	3 Gbps
VPN Throughput	250 Gbps	220 Gbps	1.3 Gbps	350 Mbps	3 Gbps
Supported Applications	N/A	8	250	N/A	N/A
Centralized Configuration & Reporting	Yes	Yes	Yes	Yes	Yes
Feature	Advanced Threat Prevention	Advanced threat protection, high availability, clustering	High Availability, Redundant Power, Clustering	High Performance Firewall, IPS, VPN, UTM	Next-Generation Firewall with Integrated Threat Intelligence
Concurrent Sessions	60 Million	50 Million	800000	80,000	300,000
Maximum Concurrent Sessions	60 Million	50 Million	800000	80,000	300,000
Users/Nodes	N/A	Unlimited	Unlimited	N/A	Unlimited
Integrated I/O	N/A	N/A	8	N/A	N/A
New Sessions Per Second	N/A	1.5 Million	20000	4,000	75,000
Supported VPN Types	IPSec / SSL VPN	IPSec / SSL VPN	IPSec / SSL VPN	IPSec / SSL VPN	IPSec / SSL VPN
Routing Protocols Supported	OSPF / BGP / RIP / Static Routing	OSPF / BGP / RIP / Static Routing	OSPF / BGP / RIP / Static Routing	OSPF / BGP / RIP / Static Routing	OSPF / BGP / RIP / Static Routing
Security Services	Antivirus / Web Filtering / Application Control / IPS / VPN	Antivirus / Web Filtering / Application Control / IPS / VPN	Antivirus / Web Filtering / Application Control / IPS / VPN	Antivirus / Web Filtering / Application Control / IPS / VPN	Antivirus / Web Filtering / Application Control / IPS / VPN
High Availability	Active-Active	Active-Active	Active-Passive	Active-Passive	Active-Passive
Interfaces	SFP / SFP+ / QSFP+	RJ-45 / SFP / SFP+	RJ-45 / SFP	RJ-45 / SFP	RJ-45 / SFP / SFP+
WAN Ports	N/A	4 WAN	2 WAN	2 WAN	2 WAN
LAN Ports	N/A	8 LAN Ports	8 LAN Ports	8 LAN Ports	8 LAN Ports
Switch Ports	No	Yes	Yes	No	Yes
POE Ports	No	No	No	No	No
Management Options	CLI / GUI / SNMP / REST API	CLI / GUI / Centralized / REST API / SNMP	Cloud / CLI / GUI / Centralized / REST API / SNMP	CLI / GUI / SNMP / Centralized	Cloud / CLI / GUI / Centralized / REST API / SNMP
Logging & Monitoring	Built-in	Built-in / External / Syslog	Built-in / External / Syslog / Cloud Logging	Built-in	Built-in
Firewall Policies Supported	N/A	N/A	500	N/A	500
Users Supported	N/A	N/A	800000	N/A	N/A
Memory	16 GB	32 GB	8 GB	2 GB	8 GB
Flash Storage	128 GB	128 GB	128 GB	16 GB	128 GB
Expansion Slots	NP Module	NP Module	SFP	N/A	SFP
Form Factor	Chassis	Chassis	1 RU	1 RU	2 RU
Rack Units	4 RU	N/A	1 RU	1 RU	2 RU
Device Type	NGFW	NGFW	NGFW	NGFW	NGFW
Product Name	SRX5800E-B1-AC-TAA	SRX5800-CHAS	SRX4100-SYS-JB-DC	SRX320-SYS-JB-P	SRX4100-SYS-JB-AC
Height	N/A	N/A	1.75 inches	1.75 inches	3.5 inches
Width	N/A	N/A	17.0 inches	17.2 inches	17 inches
Depth	N/A	N/A	16.5 inches	11.1 inches	18 inches
Weight	N/A	N/A	22 lbs	10 lbs	25 lbs

Reviews & Ratings

Harvey Mitchell

TAA compliant bundle simplified regulated deployment.

Lucas Freeman

Strong performance with included SPC and MIC.

Daniel Ross

Stable and secure under heavy traffic.

Victor Reynolds

Excellent for government environments.

Patrick O'Neil

Well packaged configuration.

Questions & Answers

What is the Juniper SRX5800E-B1-AC-TAA?

The SRX5800E-B1-AC-TAA is a high-performance, TAA-compliant next-generation firewall chassis offering modular scalability and carrier-grade reliability.

What components are included in SRX5800 Configuration 1?

Configuration 1 includes the chassis, midplane, one SRX5K-RE-1800X4 Routing Engine, two SRX5K-SCBE switch control boards, two AC high-capacity power entry modules, two high-capacity fan trays, one SRX5K-SPC-4-15-320 services card, one SRX5K-MPC port concentrator, and one SRX-MIC-10XG-SFPP interface card.

Which Junos OS version supports the SRX5800 Configuration 1?

The SRX5800 Configuration 1 is supported from Junos 12.1X47-D15 onward, ensuring access to the latest security and routing features.

Is the SRX5800E-B1-AC-TAA Trade Agreements Act (TAA) compliant?

Yes. The SRX5800E-B1-AC-TAA meets TAA requirements, making it eligible for U.S. federal government procurement.
