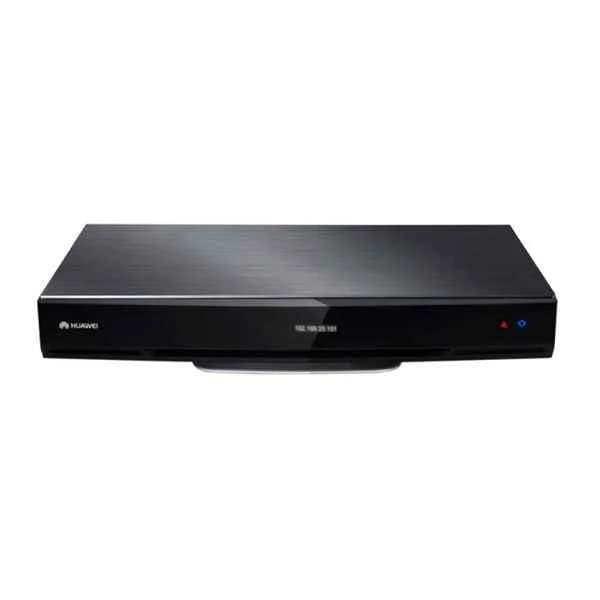

VC61HDPD

TE50-1080P30-W-P-02 Specification

positioning

Professional

Scenarios

Large and middle-sized conference rooms

People Video Resolution

1080p @ 60 fps from 1Mbps (Optional)
1080p @ 30 fps from 512 Kbps
1080i @ 60 fps from 512 Kbps
720p @ 50/60 fps from 512 Kbps
720p @ 25/30 fps from 384 Kbps

Dual stream

Dual 1080p @ 60 fps (Optional); Dual 1080p @ 30 fps

Video Inputs

1 x HD-VI / DVI
1 x HDMI / DVI
1 x VGA/YPbPr
1 x 3G-SDI
1 x CVBS

Video Outputs

2 x HDMI / DVI
1 x VGA/YPbPr
1 x 3G-SDI
1 x CVBS

Audio Inputs

1 x XLR
2 x RCA
1 x 3.5mm
1 x HDMI
1 x HD-AI (Mic Array/Audio external)

Audio Outputs

4 x RCA
2 x HDMI

Other Interfaces

IP: 10/100/1000 Base-T, 2 x RJ45;
PSTN(#): 1 x RJ11
Wireless: Built-in Wi-Fi;
2 x RS232 COM
2USB 2.0 Host

Multi-view

2-view

Bandwidth

IP: 64kbps～8Mbps

Dimensions

Codec dimensions (L x W x H): 435 mm x 265.5 mm x 72.5 mm
Package dimensions (L x W x H): 545 mm x 355 mm x 220 mm
Net weight: 4.1 kg
Package Weight: 6.0 kg

Electrical

Working voltage: 100V to 240V AC
Working frequency: 50 Hz to 60 Hz
Power consumption: 60 W
Embedded AC/DC power module

Pack Weight(kg)

12.2

Pack Volume(m^3)

0.098226

Pack Dimension(D*W*H mm)

535*360*510

Net Dimension(D*W*H mm)

535*360*510

Typic Power(W)

57
