05-25704-00 Overview

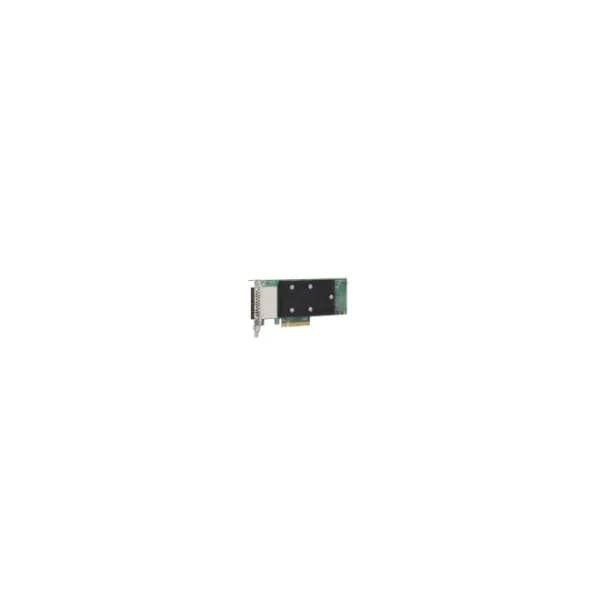

05-25704-00-9305-16e - PCIe - PCIe - SAS - Mini-SAS - Low-profile - PCIe 3.0 - SATA - Aluminium - Black - Green is a storage controller expansion card built on a PCIe 3.0 platform that facilitates high-speed data transfer for storage expansion and server enhancement applications. It integrates SAS and SATA connectivity in a mini-SAS form factor while featuring a low-profile bracket designed to accommodate compact system builds.
Constructed with a durable aluminium chassis and finished in a distinctive black and green design, this expansion card is optimized for use in environments where space is at a premium. Its PCIe interface and storage-specific port configuration deliver robust performance for network upgrade and storage expansion, making it a reliable solution in server and data center deployments.
What is the price of 05-25704-00?
Pricing for 05-25704-00 is available on request. Get immediate quote or for exclusive discounts, opt for bulk quotation for 05-25704-00.
Explore more options from Server Expansion Cards or explore other Broadcom products.
05-25704-00 Specifications
| Product Type | Expansion Card |
| Card Type | Storage Controller |
| Interface | PCIe x4 |
| PCIe Version | PCIe 3.0 |
| Chipset / Controller | N/A |
| Supported Ports | N/A |
| Port Count | N/A |
| Max Data Rate | N/A |
| RAID Levels Supported | N/A |
| Capture Resolution | N/A |
| Capture Frame Rate | N/A |
| Low Profile Bracket | Yes |
| Full Height Bracket | No |
| Cooling | Passive |
| Operating System Compatibility | Windows |
| Bus Width | 64-bit |
| Power Requirements | 3.3V |
| Use Case | Storage Expansion |
| Product Name | 05-25704-00-9305-16e - PCIe - PCIe - SAS - Mini-SAS - Low-profile - PCIe 3.0 - SATA - Aluminium - Black - Green |
| Height | N/A |
| Width | N/A |
| Depth | N/A |
| Weight | N/A |
Quality Certifications
To get the detailed certification, please go to the Compliance Center.
Product Comparison Table
|
|
|
|
|
|
|---|---|---|---|---|---|
| Bus Width | N/A | 64-bit | 64-bit | 64-bit | 64-bit |
| Capture Frame Rate | N/A | N/A | N/A | N/A | N/A |
| Capture Resolution | N/A | N/A | N/A | N/A | N/A |
| Card Type | RAID Controller | Storage Controller | Storage Controller | RAID Controller | Storage Controller |
| Chipset / Controller | LSI SAS 3108 | SAS 9300-4i | N/A | MegaRAID SAS 9380 | N/A |
| Cooling | Passive | Passive | Passive | Passive | Passive |
| Depth | N/A | N/A | N/A | N/A | N/A |
| Full Height Bracket | Yes | Yes | No | Yes | No |
| Height | N/A | N/A | N/A | N/A | N/A |
| Interface | PCIe x8 | PCIe x4 | PCIe x8 | PCIe x8 | PCIe x4 |
| Low Profile Bracket | No | No | Yes | No | Yes |
| Max Data Rate | N/A | N/A | N/A | N/A | N/A |
| Operating System Compatibility | Windows / Linux / VMware ESXi | Windows / Linux / VMware ESXi | N/A | Windows / Linux / VMware ESXi | Windows |
| PCIe Version | PCIe 3.0 | PCIe 3.0 | PCIe 3.0 | PCIe 3.0 | PCIe 3.0 |
| Port Count | 8 | 1 | N/A | 8 | N/A |
| Power Requirements | 3.3V | 3.3V | 3.3V | 3.3V | 3.3V |
| Product Name | 05-25420-17-MegaRAID SAS 9361-8i (2G) - SAS - Serial ATA - PCI Express x8 - 12 Gbit/s - 2048 MB - DDR3 - 1866 MHz | H5-25473-00-SAS 9300-4i - PCIe - SAS,SATA - 1 x Mini SAS HD SFF8643 - Green - Grey - 2800000 h - EMC: Class B-US (CFR 47 - P15B); ICES-00; V-3/02.04; EN55022/EN55024; AS/NZS 3548; N-B… | 05-25699-00-9305-24i - PCIe - PCIe - Mini-SAS - Low-profile - PCIe 3.0 - SATA - Aluminium - Black - Green | 05-25528-04-MegaRAID SAS 9380-8e SGL 8-Port Int, 12Gb/s SATA+SAS - Serial Attached SCSI (SAS) | 05-25704-00-9305-16e - PCIe - PCIe - SAS - Mini-SAS - Low-profile - PCIe 3.0 - SATA - Aluminium - Black - Green |
| Product Type | Expansion Card | Expansion Card | Expansion Card | Expansion Card | Expansion Card |
| RAID Levels Supported | RAID 0 / RAID 1 / RAID 5 / RAID 6 / RAID 10 / RAID 50 / RAID 60 / JBOD | N/A | N/A | RAID 0 / RAID 1 / RAID 5 / RAID 6 / RAID 10 / RAID 50 / RAID 60 / JBOD | N/A |
| Supported Ports | N/A | N/A | N/A | N/A | N/A |
| Use Case | Storage Expansion | Storage Expansion | Storage Expansion | Storage Expansion | Storage Expansion |
| Weight | N/A | N/A | N/A | N/A | N/A |
| Width | N/A | N/A | N/A | N/A | N/A |
Showing - of 0 Results
Questions & Answers
Q
What is the 05-25704-00 (9305-16e) PCIe SAS adapter?
A
The 05-25704-00 is an LSI 9305-16e PCIe 3.0 x8 SAS host bus adapter that provides two external Mini-SAS HD (SFF-8644) ports supporting up to 16 SAS/SATA lanes.
Q
Which PCIe generation and lane configuration does this adapter use?
A
It uses PCIe 3.0 with an x8 lane configuration, delivering up to 7.88 GB/s of bidirectional throughput.
Q
How many drives can I connect to the 9305-16e adapter?
A
You can connect up to 16 SAS or SATA drives using two external Mini-SAS HD ports, each supporting eight lanes.
Q
Is the adapter compatible with SATA devices?
A
Yes. The 9305-16e supports both SAS and SATA drives, enabling mixed-drive environments without performance loss.
Q
What operating systems are supported by this HBA?
A
It offers broad OS support including Windows Server, Linux (RHEL, CentOS, SUSE), VMware ESXi, and FreeBSD with vendor-provided drivers.
Q
Does the card include a low-profile bracket?
A
Yes. The package includes both standard and low-profile brackets for compatibility with full-height and low-profile chassis.
Q
What cables are required to connect drives to this adapter?
A
Use SFF-8644 to SFF-8087 or SFF-8644 to SATA breakout cables to connect SAS or SATA drives to the Mini-SAS HD ports.
Q
Does the 9305-16e require an external power source?
A
No external power is required; it draws all necessary power directly from the PCIe slot.
Q
What is the typical latency of this SAS HBA?
A
The adapter delivers ultra-low latency under 10 microseconds for SAS workloads, ensuring high I/O performance.
Q
How do I install firmware or update drivers?
A
Download the latest firmware and drivers from the manufacturer’s support website, then use the MegaRAID CLI or ASM utility for installation.
Q
What form factor and materials are used?
A
The card features a low-profile aluminum heatsink in black with green accenting for optimal cooling and durability.
Q
Does this adapter support RAID?
A
No. The 9305-16e is a Host Bus Adapter (HBA) for pass-through connectivity; it does not provide hardware RAID.
Q
What cooling requirements does the SAS adapter have?
A
It relies on chassis airflow; ensure at least 200 LFM of front-to-back airflow for stable operation in high-density environments.
Q
How can I monitor drive health on this HBA?
A
Use the vendor’s MegaRAID Storage Manager or CLI to view SMART stats, temperature, and link status in real time.
Q
What warranty does the 05-25704-00 include?
A
It includes a limited three-year warranty covering hardware defects and firmware updates.
Q
What LED indicators are available on the 9305-16e?
A
Each Mini-SAS port has activity and link LEDs: green for link status and amber for drive activity.
