H5-25460-00 Overview

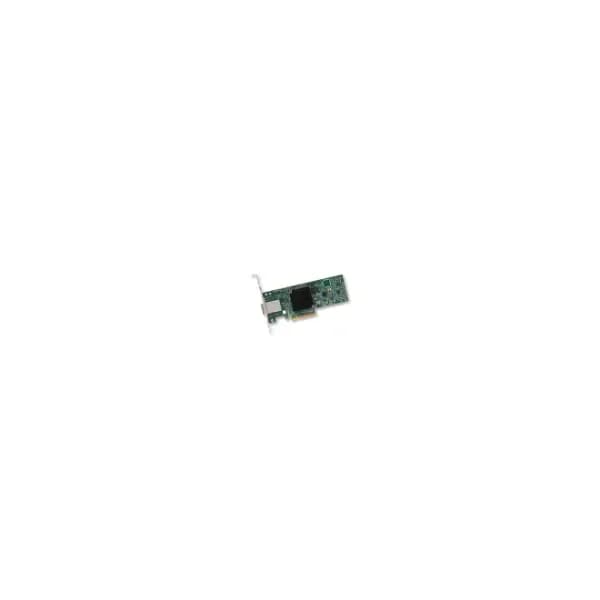

H5-25460-00-SAS 9300-8e - PCIe - Mini-SAS - Low-profile - PCIe 3.0 - Green - 2800000 h is a high-performance expansion card engineered for robust storage and server enhancement. Built as a storage controller, it utilises a PCIe x8 interface based on the PCIe 3.0 standard to ensure rapid data transfers and efficient connectivity, ideal for demanding enterprise environments.
Featuring the SAS 9300 chipset and a low-profile bracket design, this mini-SAS card supports eight external port connections for storage expansion and server applications. The card is compatible with major operating systems such as Windows and Linux and is designed with a passive cooling solution, making it a reliable choice for network upgrade, broadcast, and NAS deployments.
H5-25460-00 price is is available on request. Get immediate quote.
Request bulk order quote for H5-25460-00 for additional pricing. Browse the full Controller Cards series or explore all Broadcom products.
H5-25460-00 Specifications
- Weight
- N/A
- Height
- N/A
- Depth
- N/A
- Width
- N/A
- PCIe Version
- PCIe 3.0
- Product Type
- Expansion Card
- Interface
- PCIe x8
- Supported Ports
- N/A
- Max Data Rate
- N/A
- RAID Levels Supported
- N/A
- Capture Resolution
- N/A
- Capture Frame Rate
- N/A
- Low Profile Bracket
- Yes
- Cooling
- Passive
- Operating System Compatibility
- Windows / Linux
- Bus Width
- 64-bit
- Power Requirements
- 3.3V
- Use Case
- Storage Expansion
- Card Type
- Storage Controller
- Full Height Bracket
- No
- Port Count
- 8
- Chipset / Controller
- SAS 9300
- Product Name
- H5-25460-00-SAS 9300-8e - PCIe - Mini-SAS - Low-profile - PCIe 3.0 - Green - 2800000 h
Quality Certifications
To get the detailed certification, please go to the Compliance Center.
Product Comparison Table
| H5-25460-00 |  L5-25188-04 |  05-50008-02 |  05-25420-08 |  05-25699-00 | |
|---|---|---|---|---|---|
| Product Type | Expansion Card | Expansion Card | Expansion Card | Expansion Card | Expansion Card |
| Card Type | Storage Controller | Storage Controller | RAID Controller | Storage Controller | Storage Controller |
| Interface | PCIe x8 | PCIe x8 | PCIe x8 | PCIe x8 | PCIe x8 |
| PCIe Version | PCIe 3.0 | PCIe 3.0 | N/A | PCIe 3.0 | PCIe 3.0 |
| Chipset / Controller | SAS 9300 | MegaRAID CacheCade Pro 2.0 | MegaRAID 9440-8i | LSI SAS3108 | N/A |
| Supported Ports | N/A | N/A | N/A | N/A | N/A |
| Port Count | 8 | N/A | 8 | 8 | N/A |
| Max Data Rate | N/A | N/A | N/A | N/A | N/A |
| RAID Levels Supported | N/A | N/A | RAID 0 / RAID 1 / RAID 5 / RAID 6 / RAID 10 | RAID 0 / RAID 1 / RAID 5 / RAID 6 / RAID 10 / RAID 50 / RAID 60 / JBOD | N/A |
| Capture Resolution | N/A | N/A | N/A | N/A | N/A |
| Capture Frame Rate | N/A | N/A | N/A | N/A | N/A |
| Low Profile Bracket | Yes | Yes | Yes | No | Yes |
| Full Height Bracket | No | Yes | No | Yes | No |
| Cooling | Passive | Passive | Passive | Passive | Passive |
| Operating System Compatibility | Windows / Linux | Windows / Linux / VMware ESXi | Windows / Linux / VMware ESXi | Windows / Linux / VMware ESXi | N/A |
| Bus Width | 64-bit | 64-bit | N/A | 64-bit | 64-bit |
| Power Requirements | 3.3V | 3.3V | 3.3V | 3.3V | 3.3V |
| Use Case | Storage Expansion | Storage Expansion | Storage Expansion | Storage Expansion | Storage Expansion |
| Product Name | H5-25460-00-SAS 9300-8e - PCIe - Mini-SAS - Low-profile - PCIe 3.0 - Green - 2800000 h | L5-25188-04-MegaRAID CacheCade Pro 2.0 | 05-50008-02-MegaRAID 9440-8i - SAS,Serial ATA - PCI Express x8 - 12 Gbit/s - Low Profile MD2 Card - 3000000 h - AS/NZS CISPR 22 - ICES -003 - Class B - EN55022/EN55024 - VCCI V-3 - RRA no 2013-24 & 25 - RoHS,… | 05-25420-08-MegaRAID SAS 9361-8i - SAS - Serial ATA - PCI Express x8 - 12 Gbit/s - 1024 MB - DDR3 - 1866 MHz | 05-25699-00-9305-24i - PCIe - PCIe - Mini-SAS - Low-profile - PCIe 3.0 - SATA - Aluminium - Black - Green |
| Height | N/A | N/A | N/A | 1.73 inches | N/A |
| Width | N/A | N/A | N/A | 9.5 inches | N/A |
| Depth | N/A | N/A | N/A | 7.1 inches | N/A |
| Weight | N/A | N/A | N/A | 1.3 lbs | N/A |
Reviews & Ratings
T
Tara Whitlockson
4
Stable PCIe integration with consistent 12Gb speeds.
D
Damon Prescott
4
Excellent compatibility with expansion storage arrays.
E
Elise Langford
5
Professional-grade external HBA for enterprise racks.
G
Gavin Morrison
5
Durable design and predictable throughput.
B
Bianca Ellison
5
Reliable connectivity solution for high-capacity storage.
Questions & Answers
What is the H5-25460-00 SAS 9300-8e PCIe Mini-SAS HBA?
The H5-25460-00 SAS 9300-8e is a low-profile PCIe 3.0 host bus adapter that provides eight external Mini-SAS (SFF-8644) ports for high-performance SAS and SATA connectivity.
Which interface does the SAS 9300-8e support?
The SAS 9300-8e uses a PCI Express 3.0 x8 interface, delivering up to 8 GT/s per lane for maximum throughput.
How many external ports are available on the card?
This HBA features eight external Mini-SAS SFF-8644 ports, allowing connection to up to 64 SAS or SATA devices with breakout cables.
What is the maximum data transfer rate?
Each Mini-SAS port supports up to 12 Gb/s per lane, delivering aggregated bandwidth of 96 Gb/s.
Is the SAS 9300-8e compatible with PCIe 3.0 slots?
Yes, the card is fully compatible with PCIe 3.0 x8 slots and can also operate in PCIe 2.0 x8 slots at reduced speeds.
Does the card support low-profile brackets?
Yes, the SAS 9300-8e includes a low-profile bracket for 1U and 2U servers as well as a standard bracket.
What cable type is required for connectivity?
Use Mini-SAS SFF-8644 to SAS/SATA breakout cables or SFF-8644 fan-out cables to connect drives or backplanes.
Which operating systems are supported?
The SAS 9300-8e supports Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi, and other Linux distributions with included drivers.
Can this HBA support both SAS and SATA drives?
Yes, the HBA is fully compatible with SAS 3.0, SAS 2.0, SAS 1.0, and SATA III drives and SSDs.
What is the mean time between failures (MTBF)?
The SAS 9300-8e is rated for an MTBF of 2,800,000 hours under standard operating conditions.
Is the card backward compatible with PCIe 2.0?
Yes, it operates in PCIe 2.0 x8 slots at up to 5 GT/s per lane with full backward compatibility.
What form factor does the SAS 9300-8e use?
The adapter is designed in a half-height, low-profile form factor suitable for space-constrained server environments.
How do I install the SAS 9300-8e in my server?
Power down your server, insert the card into an available PCIe 3.0 x8 slot, secure the bracket, install breakout cables, and power on to load OS drivers.
What system requirements are needed?
You need an available PCIe 3.0 x8 slot, a compatible operating system, and Mini-SAS cabling for drive connectivity.
What applications are best suited for this HBA?
Ideal for high-density storage arrays, data warehousing, virtualization, backup servers, and high-performance computing clusters.
What warranty does the H5-25460-00 include?
It comes with a three-year limited hardware warranty covering defects in materials and workmanship.
