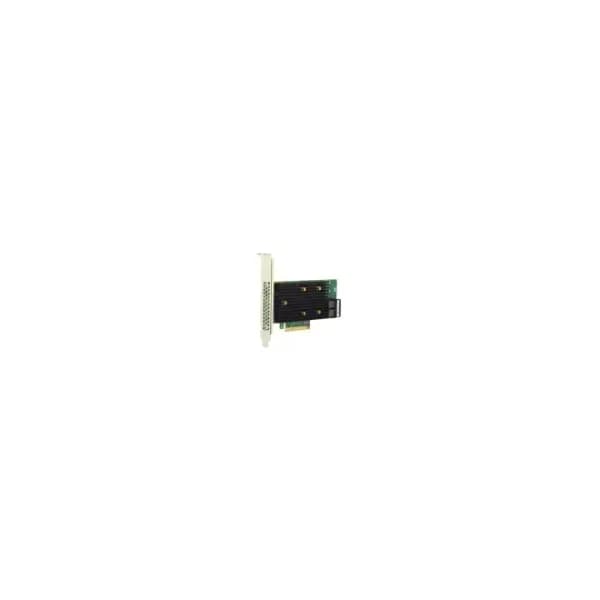

05-50008-02

Specification Of 05-50008-02

Ports & interfaces
Supported storage drive interfaces	SAS,Serial ATA
Host interface	PCI Express x8
PCI Express slots version	3.1
Internal mini-SAS ports	2
Performance
RAID levels	0,1,5,6,10,50,60
RAID Level Migration	Yes
Data transfer rate	12 Gbit/s
Form factor	Low Profile MD2 Card
SSD support	Yes
S.M.A.R.T. support	Yes
Number of devices supported	63
Online Capacity Expansion	Yes
Mean time between failures (MTBF)	3000000 h
Certification	AS/NZS CISPR 22, ICES -003, Class B, EN55022/EN55024, VCCI V-3, RRA no 2013-24 & 25, RoHS, EN/IEC/UL 60950, CNS 13438, USA (FCC 47 CFR part 15 Subpart B, class B, WEEE
System requirements
Windows operating systems supported	Yes
Power
Voltage	3.3, 12 V
Operational conditions
Operating temperature (T-T)	10 - 55 °C
Storage temperature (T-T)	-45 - 105 °C
Operating relative humidity (H-H)	20 - 90%
Storage relative humidity (H-H)	5 - 95%
Weight & dimensions
Width	155.7 mm
Depth	68.9 mm
Other features
Connector(s)	2 x Mini-SAS HD x4 SFF-8643
Ports quantity	8
