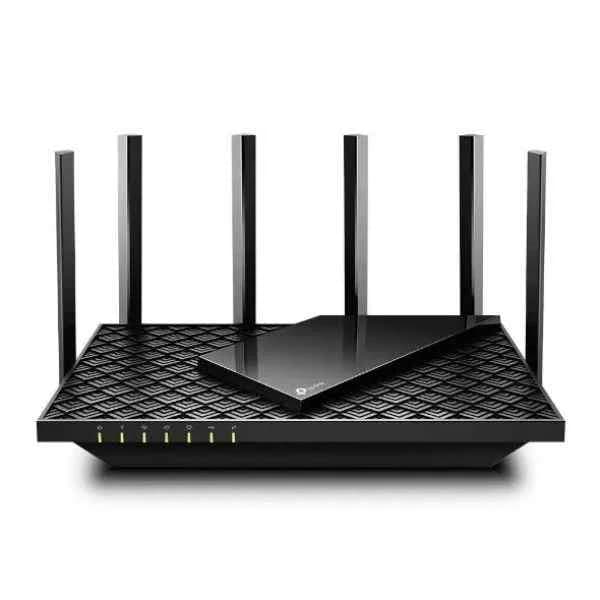

ARCHER AX73

Specification Of ARCHER AX73

WAN connection
Ethernet WAN	Yes
WAN connection type	RJ-45
Wireless LAN features
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
WLAN data transfer rate (max)	5400 Mbit/s
Wi-Fi standards	802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax)
WLAN data transfer rate (first band)	4804 Mbit/s
WLAN data transfer rate (second band)	574 Mbit/s
Modulation	1024-QAM,OFDM
Network
Ethernet LAN	Yes
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11a,IEEE 802.11ac,IEEE 802.11ax,IEEE 802.11b,IEEE 802.11g
Port forwarding	Yes
Port triggering	Yes
Dynamic DNS (DDNS)	Yes
Wireless Distribution System (WDS) bridge	Yes
Support Samba (storage)	Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports	4
USB port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Management features
Web-based management	Yes
Quality of Service (QoS) support	Yes
Reset button	Yes
WPS push button	Yes
MU-MIMO technology	Yes
Security
Security algorithms	WPA,WPA-Enterprise,WPA2,WPA2-Enterprise,WPA3
Firewall	Yes
Access Control List (ACL)	Yes
Stateful Packet Inspection (SPI)	Yes
DoS attack prevention	Yes
Parental control	Yes
Filtering	Yes
MAC address filtering	Yes
IP address filtering	Yes
DMZ support	Yes
Network address translation (NAT)	Yes
Protocols
DHCP client	Yes
Universal Plug and Play (UPnP)	Yes
Design
Product colour	Black
On/off switch	Yes
Product type	Portable router
Antenna
Antenna type	External
Antennas quantity	6
Features
Built-in processor	Yes
Processor frequency	1500 MHz
Processor cores	3
Power
Power source type	DC
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Weight & dimensions
Width	272.5 mm
Depth	147.2 mm
Height	49.2 mm
Packaging data
Cables included	LAN (RJ-45)
Quick installation guide	Yes
