What is the maximum forwarding capacity of the C9500-NM-2Q=?

The module delivers up to 160 Gbps of bidirectional switching capacity per slot when used with Catalyst 9500 series hardware.

Does the C9500-NM-2Q= support stacking or virtual chassis features?

Yes, when installed in Catalyst 9500 platforms with Cisco StackWise Virtual enabled, it participates fully in multi-chassis stacking and redundancy.

Is a software license required for full functionality of C9500-NM-2Q=?

No additional license is required beyond the Cisco IOS XE feature set; you only need the Network Advantage or Network Essentials license on the host switch.

How do I install the C9500-NM-2Q= in my switch?

Insert the module into an available network-module slot, secure it with captive screws, power on the switch, and verify detection via the show module command.

How can I verify that the module is operating correctly?

Use the show interfaces status and show module detail commands in the CLI to confirm port status, link integrity, and module health.

What environmental specifications apply to the C9500-NM-2Q=?

It operates in 0 °C to 45 °C ambient temperature, with a relative humidity range of 5 % to 95 % non-condensing.

What power budget does the C9500-NM-2Q= require?

The module consumes approximately 15 W of power and is supported by the Catalyst 9500 series’ power-supply subsystem for normal operation and redundancy.

What software features are supported on C9500-NM-2Q=?

It supports advanced features including MPLS, EVPN, VXLAN, Segment Routing, Quality of Service, and full layer 3 routing protocols under Cisco IOS XE.

What warranty and support options are available for this module?

Cisco provides a limited lifetime warranty for Catalyst modules, plus optional Smart Net Total Care for 24x7 support, hardware replacement, and software updates.

How do I order a spare or replacement for C9500-NM-2Q=?

Order via Cisco or an authorized reseller using SKU C9500-NM-2Q=, or reference Cisco’s Spare Parts Locator for regional part numbers.

Can I return or exchange the module if it doesn’t meet requirements?

Returns and exchanges are subject to Cisco’s RMA policy; contact your reseller or open a Cisco TAC case within the return-window period.

What are common deployment use cases for the Catalyst 9500 2x40GE module?

Typical use cases include spine-and-leaf data center fabrics, high-density uplinks for campus aggregation, and 40 GbE trunks for service provider edge.

FEATURED DEAL

Name:

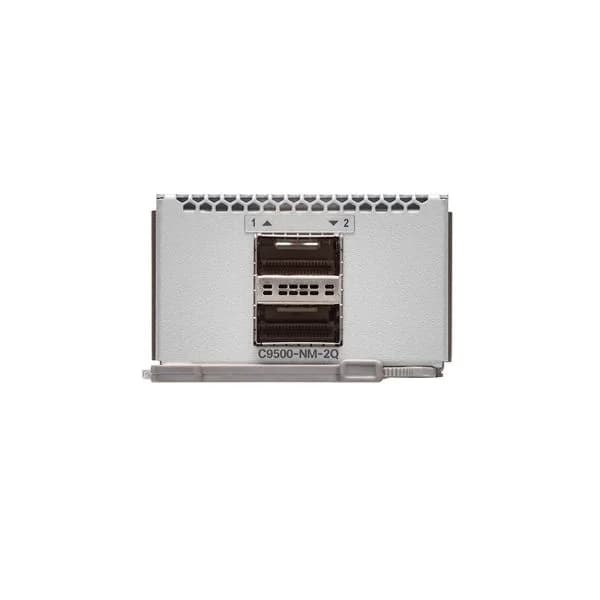

C9500-NM-2Q=

Name: CATALYST 9500 2X40GE NTWK MOD
Brand: Cisco
SKU: C9500-NM-2Q=
Price: 1248.00 USD
Availability: InStock
Rating: 4.2 (5 reviews)

Description:: CATALYST 9500 2X40GE NTWK MOD
Rating:: 4.2(5)
Added to cart 28 times recently
Availability:: In stock - Ready to Ship
Brand:: Cisco
GTIN:: 818251065736
Condition:
Warranty:: 3
List Price:: $4,979.00
Price:: $1,248.0074.9% off

Quantity:

Business price:

Enroll your business for free

3 Year Extended Warranty

Same-day Shipping

14-Day Money Back Guarantee

Shipping:

Payment:

c9500-nm-2q= catalyst 9500 2x40ge ntwk mod

3 Year Extended Warranty

Same-day Shipping

14-Day Money Back Guarantee

Need Additional Discount on Product?

Request a quote below - Get Exclusive Pricing and Support.

Shipping:

Payment:

C9500-NM-2Q=

CATALYST 9500 2X40GE NTWK MOD

$4,979.00 $1,248.0074.9% off

11 in Global Warehouse Global

TRUSTED, TRIED, PROVEN

$5,000,000+

Inventory Delivered By

Officially Accredited

& Verified By

Next-Gen IT

Solutions Powered By

C9500-NM-2Q= Overview

C9500-NM-2Q= is a high-performance network module designed specifically for the Cisco Catalyst 9500 Series switches. Engineered for enterprise-grade high-speed connectivity, this module features two QSFP ports that support data rates up to 40Gbps, enabling robust uplink performance suitable for modern data centers and campus networks.

Optimized for modular installation, the C9500-NM-2Q= integrates seamlessly with Cisco Catalyst platforms and supports standard TCP/IP protocols for effective routing and network management. Its design ensures reliable connections and scalability, making it an excellent choice for expanding network capacity and facilitating high-speed interconnectivity in mission-critical environments.

C9500-NM-2Q= price is $1,248.00, a 74.9% saving from the Cisco list price of $4,979.00. C9500-NM-2Q= is in stock and available for next-day dispatch. (terms applied)

Request bulk order quote for C9500-NM-2Q= for additional pricing. Browse the full Cisco Catalyst 9000 Switch Modules series or explore all Cisco products.

C9500-NM-2Q= Specifications

Product Type: Network Module
Module Type: QSFP
Data Rate: 40Gbps
Connector Type: QSFP
Supported Protocols: TCP/IP
Form Factor: Modular
Operating Temperature: 0 to 70°C
Storage Temperature: -40 to 85°C
Input Voltage: 3.3V
Compatibility: Cisco Catalyst 9500 Series
Max Speed: 40Gbps
Supported Features: Auto-negotiation / Jumbo Frames / QoS
Power Consumption: N/A
Interface Ports: QSFP
Expansion Slots: N/A
Product Name: Cisco Catalyst 9500-NM-2Q=
Height: N/A
Width: N/A
Depth: N/A
Weight: N/A

C9500-NM-2Q= Use Case

Data Center Spine High-Bandwidth Uplinks with C9500-NM-2Q Catalyst 9500 2x40GE Network Module

In a multi-pod data center, enterprises face inter-spine bottlenecks that degrade application performance. By deploying the C9500-NM-2Q Catalyst 9500 2x40GE Network Module in aggregation switches, dual 40GbE QSFP+ uplinks to Nexus 9000 spine nodes are provisioned under EVPN-VXLAN. This delivers scalable 80Gbps bandwidth, reduces latency, enforces micro-segmentation, and simplifies operational workflows for consistent, high-performance workloads.

Campus Core High-Capacity Aggregation Using C9500-NM-2Q Catalyst 9500 2x40GE Network Module

University and enterprise campuses deploying Wi-Fi 6, IoT and video conferencing require robust core aggregation. Integrating the C9500-NM-2Q Catalyst 9500 2x40GE Network Module in the core switch enables dual 40GbE trunks to distribution switches and future 100GbE expansion. The result is low-jitter, high-throughput connectivity that accelerates digital learning initiatives, secures BYOD access and streamlines network scaling.

Cloud On-Ramp and Service-Provider Interconnect with C9500-NM-2Q Catalyst 9500 2x40GE Network Module

Global organizations migrating to AWS Direct Connect, Azure ExpressRoute or private clouds demand high-speed, low-latency links. Installing the C9500-NM-2Q Catalyst 9500 2x40GE Network Module at the WAN edge provides dual 40GbE interfaces to SP routers. This ensures 80Gbps of dedicated bandwidth, consistent SLA compliance, seamless cloud bursting and accelerated deployment of business-critical applications.

Quality Certifications

To get the detailed certification, please go to the Compliance Center.

Product Comparison Table

	C9500-NM-2Q=	C9400-LC-48P	C9400-SUP-1=	C9300-NM-4M=	C9400-LC-48H-B1
Product Type	Network Module	Network Module / Network Card	Switch Supervisor Module	Network Module / Network Card	Network Module
Module Type	QSFP	Ethernet	Supervisor Engine	Ethernet Module	Ethernet
Data Rate	40Gbps	1Gbps	N/A	1Gbps	1Gbps
Connector Type	QSFP	RJ-45	N/A	RJ-45	RJ-45
Supported Protocols	TCP/IP	TCP/IP	TCP/IP, Routing Protocols, Secure Management Protocols	TCP/IP	TCP/IP
Form Factor	Modular	Modular	Modular	Modular	Modular
Operating Temperature	0 to 70°C	0 to 40°C	0 to 60°C	0 to 70°C	0 to 40°C
Storage Temperature	-40 to 85°C	-40 to 70°C	-40 to 85°C	-40 to 85°C	-40 to 70°C
Input Voltage	3.3V	N/A	N/A	N/A	N/A
Compatibility	Cisco Catalyst 9500 Series	Cisco	Cisco Catalyst 9400 Series	Cisco	Cisco
Max Speed	40Gbps	1Gbps	N/A	1Gbps	1Gbps
Supported Features	Auto-negotiation / Jumbo Frames / QoS	PoE, Auto-negotiation, Jumbo Frames, QoS	High Availability, Secure Boot, Modular Scalability	Auto-negotiation, Jumbo Frames, QoS	Auto-negotiation / Jumbo Frames / QoS
Power Consumption	N/A	Up to 370W	N/A	N/A	N/A
Interface Ports	QSFP	Ethernet	N/A	Ethernet	Ethernet
Expansion Slots	N/A	N/A	N/A	N/A	N/A
Product Name	Cisco Catalyst 9500-NM-2Q=	Cisco Catalyst 9400 Series 48-Port PoE Line Card (C9400-LC-48P)	Cisco Catalyst 9400 Series Supervisor Engine-1	Cisco Catalyst 9300-NM-4M=	Cisco Catalyst 9400-LC-48H-B1
Height	N/A	N/A	N/A	N/A	N/A
Width	N/A	N/A	N/A	N/A	N/A
Depth	N/A	N/A	N/A	N/A	N/A
Weight	N/A	N/A	N/A	N/A	N/A

Reviews & Ratings

Michael Carter

The Catalyst 9500 2x40GE Network Module delivers exceptional throughput and scalability, improving network performance and meeting our enterprise needs with ease.

Olivia Harris

We upgraded to the C9500-NM-2Q, and it's been an excellent decision. The module provides robust connectivity and handles our high-speed traffic without issue.

Benjamin Clark

The Catalyst 9500 2x40GE module is perfect for our growing network. It provides high-speed data transfer and has been incredibly reliable.

Liam Robinson

This network module has enhanced our infrastructure significantly. The performance is outstanding, and it integrates seamlessly into our existing network setup.

Sophia Wright

The Catalyst 9500 2x40GE module has been a game-changer. It's reliable, easy to deploy, and offers high performance for our high-demand network.

Questions & Answers

What is the Cisco C9500-NM-2Q= Catalyst 9500 2x40GE network module?

The Cisco C9500-NM-2Q= is a high-performance network module providing two native QSFP+ ports for 40 GbE connectivity on Catalyst 9500 series switches.

Which Cisco Catalyst 9500 platforms support the C9500-NM-2Q= module?

The C9500-NM-2Q= is compatible with all fixed and modular Catalyst 9500 series switches running Cisco IOS XE, including 9500-24X, 9500-48X, 9500-24Y4C and 9500-48Y4C models.

How many 40 GbE ports does the C9500-NM-2Q= provide?

This module delivers two QSFP+ ports, each supporting native 40 GbE, for a total of 80 Gbps of bidirectional throughput.

Which optics and transceivers are compatible with C9500-NM-2Q=?

It supports any Cisco QSFP+ optics and DAC cables, including QSFP-40G-SR4, QSFP-40G-LR4, and compatible third-party QSFP+ modules.
