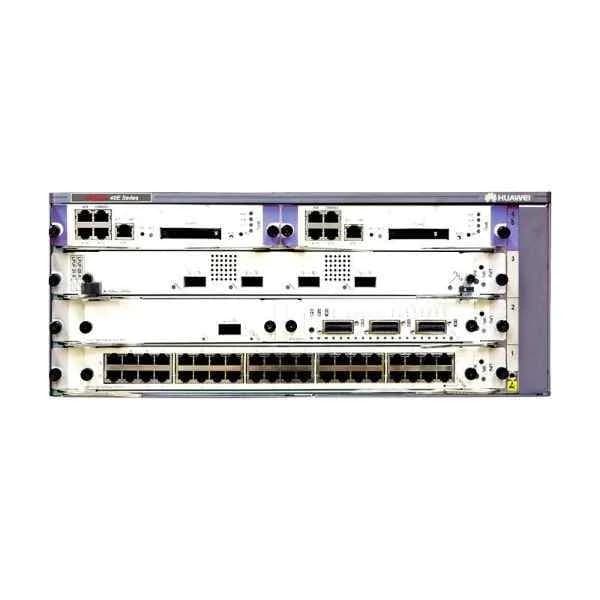

Name: NE40E-X3 Basic Configuration (Include NE40E-X3 Chassis, 2 MPUs, 2 DC Power, without Software Charge and Document)
Brand: Huawei
SKU: CR5P03BASD73
Price: 6360.00 USD
Availability: InStock
Rating: 4.3 (6 reviews)

Question 1

What components are included in the NE40E-X3 Basic Configuration (SKU CR5P03BASD73)?

Accepted Answer

The NE40E-X3 Basic Configuration includes one NE40E-X3 chassis, two modular processing units (MPUs), and two −48 V DC power modules. Software licenses and documentation are not included.

Question 2

Does the NE40E-X3 Basic Configuration include software licenses?

Accepted Answer

No. The SKU CR5P03BASD73 does not include any software licenses, feature packages, or maintenance agreements. All software charges must be purchased separately.

Question 3

How many MPUs are provided in SKU CR5P03BASD73?

Accepted Answer

This configuration ships with two MPUs, providing redundant control-plane processing for enhanced reliability.

Question 4

What type of power supply is included in the basic configuration?

Accepted Answer

The package includes two hot-swappable −48 V DC power modules with built-in redundancy for uninterrupted operation.

Question 5

Is user documentation included in the NE40E-X3 Basic Configuration?

Accepted Answer

No. Technical manuals, installation guides, and configuration documents are sold separately and can be downloaded or ordered from your reseller.

Question 6

Can I add more MPUs to the NE40E-X3 chassis?

Accepted Answer

Yes. The NE40E-X3 chassis provides additional MPU slots for future scalability. Contact your sales representative for compatibility and licensing details.

Question 7

What are the physical dimensions and weight of the NE40E-X3 chassis?

Accepted Answer

The chassis measures approximately 436 mm (W) × 84.3 mm (H) × 763 mm (D) and weighs about 32 kg without modules installed.

Question 8

What is the maximum system throughput and port density?

Accepted Answer

The NE40E-X3 supports up to eight line-card slots with a total system capacity of 15.36 Tbps. It can host multiple 10 GE, 40 GE, and 100 GE interface boards for high port density.

Question 9

Which service and interface modules are compatible with the NE40E-X3?

Accepted Answer

The chassis supports the full range of NE40E-X3 service boards, including Ethernet, MPLS, OTN, and DWDM modules. Refer to the Huawei compatibility matrix for details.

Question 10

What is the supported voltage range for the DC power modules?

Accepted Answer

Each DC power module operates over a −40.5 V to −72 V range, meeting common telecom DC-feed standards.

Question 11

Does the basic configuration support power-module redundancy?

Accepted Answer

Yes. With two DC power modules installed, the NE40E-X3 delivers N+1 redundancy to ensure continuous operation.

Question 12

What warranty options are available for the NE40E-X3?

Accepted Answer

Huawei provides a standard one-year hardware warranty. Extended warranty and support packages (software updates, on-site maintenance) are available for purchase.

Question 13

How do I install the NE40E-X3 chassis in my data center?

Accepted Answer

Mount the chassis in a standard 19-inch rack, secure mounting brackets, insert MPUs and service boards per slot guidelines, then connect the DC power cables as described in the installation guide.

Question 14

What environmental conditions does the NE40E-X3 support?

Accepted Answer

Operating temperature: 0 °C to 45 °C; storage temperature: –40 °C to 70 °C; relative humidity: 5%–95% non-condensing. Ensure proper airflow for cooling.

Question 15

How do I purchase software licenses and support services separately?

Accepted Answer

Contact a Huawei authorized reseller or log into the Huawei Support Portal to configure and purchase the required software feature licenses and maintenance contracts.

Question 16

What cooling mechanism does the NE40E-X3 use?

Accepted Answer

The chassis employs front-to-back redundant hot-swap fans with intelligent speed control, optimizing airflow and minimizing power consumption.

	CR5P03BASD73	CR52-NE40E-X3-BASE-DC	CR5P08BASA7D	CR5P16BASA76	CR5B0BKP0370
5G Support	No	No	No	No	No
Architecture	Modular	Modular	Modular	Modular	Modular
Broadband	Fiber Optic	N/A	Fiber Optic, DSL	Fiber Optic	N/A
Built-in Security Features	Firewall / Intrusion Prevention / Malware Protection	Firewall, Intrusion Prevention, Malware Protection	Firewall, Intrusion Prevention, Malware Protection	Firewall / Intrusion Prevention	Firewall, Intrusion Prevention, Malware Protection
Compliance Standards	FCC, CE, RoHS	CE, FCC, RoHS	FCC, CE	FCC / CE / RoHS	FCC, CE, RoHS
Connectivity Type	Wired	Wired	Wired	Wired	Wired
Depth	15 inches	18 inches	18 inches	12 inches	15 inches
Device Type	Router	Router	Router	Router	Router
EMC	N/A	EN 55032	EN 55032	N/A	N/A
Ethernet Technology	10/100/1000	10/100/1000	10/100/1000	10/100/1000	10/100/1000
Expansion Slots	NIM / SFP+	SFP+	NIM	SFP+	NIM, SFP+
Features	VPN / IPv6 Compatible / Firewall / MPLS / POE	VPN, IPv6 Compatible, Firewall, MPLS	VPN, Firewall, IPv6 Compatible	VPN / Firewall / High Availability / Redundancy / QoS	VPN, Firewall, IPv6 Compatible, Redundancy, High Availability
Firewall Features	Yes	Yes	Yes	Yes	Yes
Flash Memory	512 MB	512 MB	1 GB	512 MB	512 MB
Form Factor	Rack-mount	Chassis	Rack-mount	Rack-mount	Rack-mount
Height	2 inches	4 inches	2 inches	2 inches	4 inches
High Availability Support	Supported	Supported	Supported	Supported	Supported
Integrated Services	Voice / Video / WAN Optimization	Voice, Video, WAN Optimization	Voice, Video, WAN Optimization	Voice / Video / WAN Optimization	Voice, Video, WAN Optimization
Interface Ports	RJ-45 / SFP	RJ-45, SFP, SFP+	RJ-45, SFP+	RJ-45 / SFP+	RJ-45, SFP+
LAN Ports	8 LAN Ports	4 x 10/100/1000 LAN Ports (Modular)	8 LAN Ports	8 LAN Ports	8 LAN Ports
Management	Managed	Managed	Managed	Managed	Managed
Memory	4 GB	8 GB	4 GB	4 GB	2 GB
Modular Slots Available	3+ Slots	3+ Slots	3+ Slots	3+ Slots	3+ Slots
Network Protocols	IPv4, IPv6	OSPF, BGP, IS-IS, RIP, Static Routing	IPv4, IPv6	IPv4 / IPv6 / TCP/IP	IPv4, IPv6, MPLS
Power	350W	250W	350 Watt	300 W	350W
Power Source	AC Power Supply / DC Power Supply / Redundant	DC Power Supply / Redundant	AC Power Supply, Redundant	AC Power Supply / DC Power Supply / Redundant	AC Power Supply with Redundant Options
Product Name	CR5P03BASD73 Enterprise Router	CR52-NE40E-X3-BASE-DC	CR5P08BASA7D Enterprise Modular Router	CR5P16BASA76 Enterprise Modular Router	CR5B0BKP0370 Enterprise Modular Router
Product Type	Enterprise Router	Enterprise Router	Enterprise Router	Enterprise Router	Enterprise Router
QoS Features	Supported	Supported	Supported	Supported	Supported
Remote Management	Telnet, SSH, SNMP	SSH, SNMP, Telnet	SSH, Telnet	SSH / Telnet / SNMP	SNMP, SSH, Telnet, HTTPS
Routing Protocols	OSPF / BGP / EIGRP / MPLS / Static Routing	OSPF / BGP / IS-IS / Static Routing	OSPF, BGP, RIP, Static Routing	OSPF / BGP / Static Routing	OSPF / BGP / EIGRP / Static Routing
Safety	N/A	IEC 60950	IEC 60950	N/A	N/A
Speed/Capacity	Gigabit	Gigabit	Gigabit	Gigabit	Gigabit
Stacking Capability	Yes	Yes	Yes	Yes	Yes
Telecom	N/A	ETSI EN 300 328	ITU-T	N/A	N/A
Throughput Capacity	10 Gbps	1 Gbps	10 Gbps	2 Gbps	10 Gbps
Use Case	Enterprise	Enterprise	Enterprise, Business	Enterprise	Enterprise
VPN Support	IPSec / SSL VPN / GRE / DMVPN / FlexVPN / N/A	IPSec / SSL VPN	IPSec / SSL VPN	IPSec / SSL VPN	IPSec / SSL VPN
WAN Configuration	Dual WAN	Dual WAN	Dual WAN	Dual WAN	Dual WAN
WAN Ports	2 WAN	2 WAN Ports (Modular)	2 WAN	2 WAN	2 WAN
Weight	25 lbs	35 lbs	25 lbs	25 lbs	20 lbs
Wi-Fi Standard	WiFi 6	N/A	N/A	N/A	N/A
Width	17 inches	17 inches	19 inches	15 inches	17 inches
Wireless Support	No	No	No	No	No
