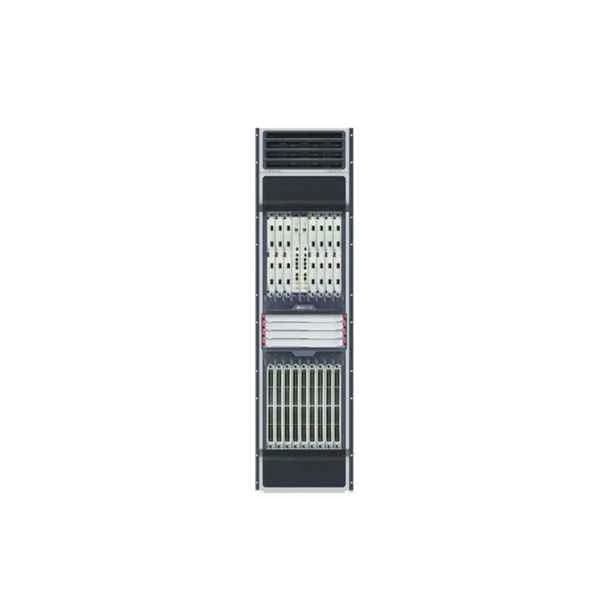

Name: Huawei NE40E-X16A Basic Configuration (Including NE40E-X16A Chassis, 2 MPUs, 4 SFUs(1 T),10 DC Power,6 Fan Tray, without Software Charge and Document)
Brand: Huawei
SKU: CR5P16BASD77
Price: 137098.68 USD
Availability: InStock
Rating: 4.3 (6 reviews)

Question 1

What is the Huawei NE40E-X16A Basic Configuration (SKU: CR5P16BASD77)?

Accepted Answer

The Huawei NE40E-X16A Basic Configuration (SKU: CR5P16BASD77) is a carrier-grade router chassis bundle that includes 2 MPUs, 4 SFUs (1 T each), 10 DC power modules and 6 fan trays without software licenses or documentation.

Question 2

Which components are included in the NE40E-X16A Basic Configuration?

Accepted Answer

The package includes one NE40E-X16A chassis, 2 MPUs (control units), 4 SFUs (service cards with 1 T capacity each), 10 DC power modules and 6 fan trays.

Question 3

Does the NE40E-X16A Basic Configuration include software licenses?

Accepted Answer

No. Software licenses and related feature packages must be purchased separately to enable routing protocols and advanced functions.

Question 4

How many MPUs (Main Processing Units) are provided?

Accepted Answer

This basic configuration provides 2 MPUs for control-plane redundancy and high availability.

Question 5

What is the aggregate throughput of the SFUs in this configuration?

Accepted Answer

The 4 SFUs deliver a combined forwarding capacity of 4 Tbps (each SFU supports 1 Tbps).

Question 6

What type of power supply does the chassis use?

Accepted Answer

The NE40E-X16A uses 10 hot-swappable 48 V DC power modules, supporting N+1 redundancy for uninterrupted operation.

Question 7

How many fan trays are included and what is their role?

Accepted Answer

Six hot-swappable fan trays are included to ensure efficient cooling and optimal system reliability.

Question 8

What are the physical dimensions and weight of the chassis?

Accepted Answer

The NE40E-X16A chassis measures 482.6 × 444.7 × 133.6 mm (W×D×H) and weighs approximately 24 kg without modules.

Question 9

What are the recommended operating environmental conditions?

Accepted Answer

Operating temperature: –5 °C to 55 °C; humidity: 5% to 95% (non-condensing); altitude: up to 5,000 m.

Question 10

Is user documentation supplied with the basic configuration?

Accepted Answer

No. Detailed installation guides and configuration manuals must be downloaded separately from Huawei’s support portal.

Question 11

What rack-mount requirements does the NE40E-X16A have?

Accepted Answer

The chassis is 4 U high and fits standard 19-inch racks. It includes mounting brackets and cable management accessories.

Question 12

Can I upgrade the basic configuration to higher throughput?

Accepted Answer

Yes. You can add SFUs, MPUs or line cards to scale capacity and enable additional features as needed.

Question 13

How do I purchase software licenses for the NE40E-X16A?

Accepted Answer

Contact your Huawei sales representative or authorized reseller to select and purchase the required software feature packages.

Question 14

What warranty and support options are available?

Accepted Answer

Huawei provides a limited hardware warranty with optional software and advanced-replacement support plans. Details vary by region.

Question 15

How do I order the NE40E-X16A Basic Configuration (CR5P16BASD77)?

Accepted Answer

Place your order through an authorized Huawei channel partner or the official Huawei e-commerce platform using SKU CR5P16BASD77.

Question 16

What is the typical delivery lead time for this configuration?

Accepted Answer

Standard lead time is 4–6 weeks, depending on regional stock availability and shipping arrangements.

	CR5P16BASD77	CR5P08BASA77	CR5B0BKP0872	CR5B0BKP0370	CR5P03BASA71
5G Support	No	No	No	No	No
Architecture	Modular	Modular	Modular	Modular	Modular
Broadband	Fiber Optic / DSL	Fiber Optic	Fiber Optic / DSL	N/A	Fiber Optic
Built-in Security Features	Firewall / Intrusion Prevention / Malware Protection	Firewall, Intrusion Prevention, Malware Protection	Firewall / Intrusion Prevention / Malware Protection	Firewall, Intrusion Prevention, Malware Protection	Firewall / Intrusion Prevention
Compliance Standards	CE / FCC	IEEE / FCC	FCC, CE	FCC, CE, RoHS	FCC / CE / RoHS
Connectivity Type	Wired	Wired	Wired	Wired	Wired
Depth	18 inches	18 inches	18 inches	15 inches	15 inches
Device Type	Router	Router	Router	Router	Router
EMC	N/A	CISPR 22 / FCC Part 15	N/A	N/A	N/A
Ethernet Technology	10G	10/100/1000	10/100/1000	10/100/1000	10/100/1000
Expansion Slots	NIM / SFP+	NIM / SFP+	SFP+	NIM, SFP+	NIM / SFP+
Features	VPN / Firewall / MPLS / IPv6 Compatible	VPN, Firewall, QoS, Redundancy, Modular	VPN, IPv6 Compatible, Firewall, MPLS	VPN, Firewall, IPv6 Compatible, Redundancy, High Availability	VPN / Firewall / MPLS / IPv6 Compatible / QoS
Firewall Features	Yes	Yes	Yes	Yes	Yes
Flash Memory	512 MB	512 MB	256 MB	512 MB	512 MB
Form Factor	Rack-mount	Rack-mount	Rack-mount	Rack-mount	Rack-mount
Height	4 inches	4 inches	2 inches	4 inches	1.75 inches
High Availability Support	Supported	Supported	Supported	Supported	Supported
Integrated Services	Voice / Video / WAN Optimization	Voice / Video / WAN Optimization	Voice / Video / WAN Optimization	Voice, Video, WAN Optimization	Voice / Video / WAN Optimization
Interface Ports	RJ-45 / SFP+	RJ-45 / SFP+	RJ-45 / SFP+ / Combo Ports	RJ-45, SFP+	RJ-45 / SFP+ / Combo Ports
LAN Ports	8 LAN Ports	8 LAN Ports	8 LAN Ports	8 LAN Ports	8 LAN Ports
Management	Managed	Managed	Managed	Managed	Managed
Memory	4 GB	4 GB	8 GB	2 GB	4 GB
Modular Slots Available	3+ Slots	3+ Slots	3+ Slots	3+ Slots	3+ Slots
Network Protocols	IPv4 / IPv6	IPv4, IPv6, MPLS	IPv4, IPv6	IPv4, IPv6, MPLS	IPv4 / IPv6 / MPLS
Power	250 Watt	250W	350 Watt	350W	350 Watt
Power Source	AC Power Supply / Redundant	Redundant AC/DC Power Supply	Redundant AC Power Supply	AC Power Supply with Redundant Options	AC Power Supply / DC Power Supply / Redundant
Product Name	CR5P16BASD77 Enterprise Router	CR5P08BASA77 Enterprise Router	CR5B0BKP0872 Enterprise Router	CR5B0BKP0370 Enterprise Modular Router	CR5P03BASA71 Enterprise Modular Router
Product Type	Enterprise Router	Enterprise Router	Enterprise Router	Enterprise Router	Enterprise Router
QoS Features	Supported	Supported	Supported	Supported	Supported
Remote Management	SSH / Telnet / SNMP	SNMP / CLI / Web UI	SSH, Telnet, SNMP	SNMP, SSH, Telnet, HTTPS	SNMP / SSH / HTTPS
Routing Protocols	OSPF / BGP / RIP / Static Routing	OSPF / BGP / EIGRP / MPLS / Static Routing	OSPF / BGP / EIGRP / Static Routing	OSPF / BGP / EIGRP / Static Routing	OSPF / BGP / EIGRP / Static Routing
Safety	N/A	IEC	N/A	N/A	N/A
Speed/Capacity	10G	Gigabit	Gigabit	Gigabit	Gigabit
Stacking Capability	Yes	Yes	Yes	Yes	Yes
Telecom	N/A	N/A	N/A	N/A	N/A
Throughput Capacity	40 Gbps	10 Gbps	10Gbps	10 Gbps	10 Gbps
Use Case	Enterprise	Enterprise	Enterprise	Enterprise	Enterprise / Industrial
VPN Support	IPSec / SSL VPN / DMVPN	IPSec / SSL VPN	IPSec / SSL VPN	IPSec / SSL VPN	IPSec / SSL VPN / GRE
WAN Configuration	Dual WAN	Dual WAN	Dual WAN	Dual WAN	Dual WAN
WAN Ports	2 WAN	2 WAN	2 WAN	2 WAN	2 WAN
Weight	25 lbs	25 lbs	15 lbs	20 lbs	12 lbs
Wi-Fi Standard	N/A	N/A	N/A	N/A	N/A
Width	19 inches	17 inches	17 inches	17 inches	17.5 inches
Wireless Support	No	No	No	No	No
