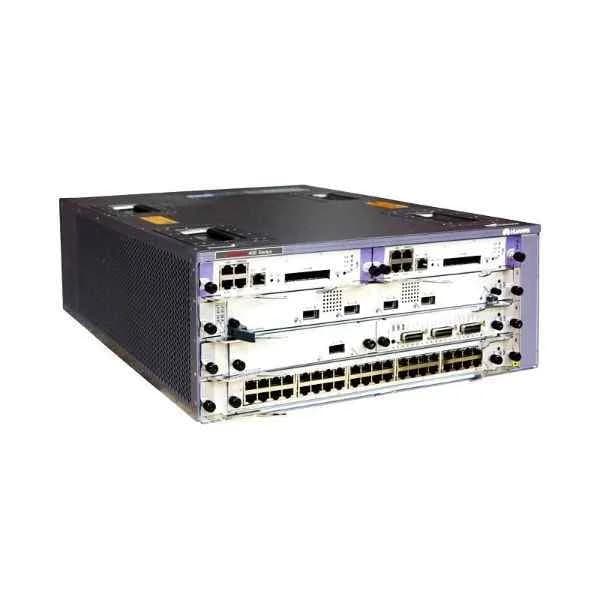

Name: NE40E-X3 Basic Configuration (Include NE40E-X3 Chassis, 2 MPUs, 2 AC Power, without Software Charge and Document)
Brand: Huawei
SKU: CR5P03BASA71
Price: 6794.39 USD
Availability: InStock
Rating: 4.3 (6 reviews)

Question 1

What components are included in the NE40E-X3 Basic Configuration (SKU CR5P03BASA71)?

Accepted Answer

The NE40E-X3 Basic Configuration includes one NE40E-X3 chassis, two MPUs (main control cards), and two AC power modules. Software licenses and printed documentation are not included.

Question 2

What is the forwarding capacity of the NE40E-X3 Basic Configuration?

Accepted Answer

The NE40E-X3 Basic Configuration delivers up to 3.2 Tbps of forwarding capacity, supporting high-performance routing for large-scale campus and core networks.

Question 3

How many line-card slots does the NE40E-X3 chassis support?

Accepted Answer

The NE40E-X3 chassis provides eight full-size line-card slots, enabling scalable interface expansion to meet growing bandwidth requirements.

Question 4

Are MPUs redundant in this basic configuration?

Accepted Answer

Yes. The basic configuration includes two MPUs for active/standby redundancy, ensuring uninterrupted control-plane operations.

Question 5

Which power modules are supplied with the NE40E-X3 Basic Configuration?

Accepted Answer

Two AC power modules (220 VAC, 6 A) are supplied, supporting N+1 redundancy and hot-swap capability for continuous power availability.

Question 6

Is software licensing included with SKU CR5P03BASA71?

Accepted Answer

No. This SKU does not include software licenses. You must purchase the required routing and security software packages separately.

Question 7

Does the NE40E-X3 Basic Configuration include user documentation?

Accepted Answer

No. Printed manuals and software documentation are not included. Documentation can be downloaded from the Huawei support portal.

Question 8

What are the physical dimensions and weight of the chassis?

Accepted Answer

The chassis measures 443 mm (W) × 520 mm (D) × 133 mm (H) and weighs approximately 15 kg without line cards and fans.

Question 9

Which network interfaces are supported on the NE40E-X3?

Accepted Answer

The NE40E-X3 supports 10GE/40GE QSFP+, 1GE/10GE SFP+, OC-48/STM-16, OC-192/STM-64, and POS interfaces via compatible line cards.

Question 10

Can I upgrade the power modules in the NE40E-X3 chassis?

Accepted Answer

Yes. The AC power modules support hot-swap upgrades. You can install higher-capacity or redundant modules without powering down the chassis.

Question 11

What environmental conditions does the NE40E-X3 operate in?

Accepted Answer

Operating temperature: 0–45 °C; storage temperature: –40–70 °C; relative humidity: 5–95% (non-condensing); altitude: up to 5,000 meters.

Question 12

How do I install the NE40E-X3 chassis in a rack?

Accepted Answer

Mount the chassis in a standard 19-inch rack using the supplied brackets and screws. Connect AC power modules, install MPUs and line cards, then power on.

Question 13

Which software versions are compatible with the NE40E-X3 Basic Configuration?

Accepted Answer

The chassis supports VRP 8.180 and later releases. Always verify software compatibility on the Huawei support site before deployment.

Question 14

What service and warranty options are available for SKU CR5P03BASA71?

Accepted Answer

Standard one-year hardware warranty is included. Extended maintenance, on-site support, and advanced replacement services are available separately.

Question 15

What are the recommended use cases for the NE40E-X3?

Accepted Answer

Ideal for enterprise core, data center aggregation, and service provider edge deployments requiring high throughput, carrier-grade reliability, and modular scalability.

Question 16

How do I order additional line cards and software for the NE40E-X3?

Accepted Answer

Contact your Huawei sales representative or authorized partner with your SKU and requirement details. Provide the chassis serial number for compatibility confirmation.

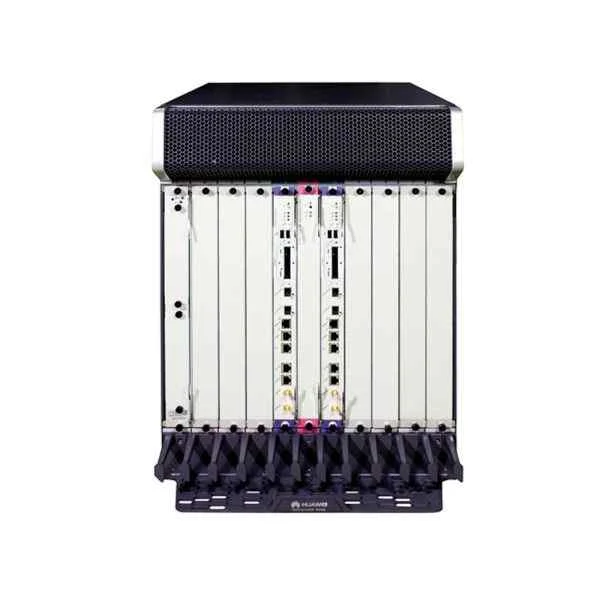

	CR5P03BASA71	CR5P08BASD76	CR5P16BASA76	CR52-BKPE-4U-DC	CR5B0BKP1673
5G Support	No	No	No	No	No
Architecture	Modular	Modular	Modular	Modular	Modular
Broadband	Fiber Optic	Fiber Optic / DSL	Fiber Optic	N/A	Fiber Optic / DSL
Built-in Security Features	Firewall / Intrusion Prevention	Firewall / Intrusion Prevention / Malware Protection	Firewall / Intrusion Prevention	Firewall / Intrusion Prevention / Malware Protection	Firewall / Intrusion Prevention / Malware Protection
Compliance Standards	FCC / CE / RoHS	FCC / CE	FCC / CE / RoHS	RoHS, CE, FCC	CE / FCC / RoHS
Connectivity Type	Wired	Wired	Wired	Wired	Wired
Depth	15 inches	18 inches	12 inches	24 inches	15 inches
Device Type	Router	Router	Router	Router	Router
EMC	N/A	FCC / CE	N/A	N/A	FCC Part 15
Ethernet Technology	10/100/1000	10/100/1000	10/100/1000	10/100/1000	10/100/1000
Expansion Slots	NIM / SFP+	NIM / SFP+	SFP+	NIM	NIM / SFP+
Features	VPN / Firewall / MPLS / IPv6 Compatible / QoS	VPN / Firewall / IPv6 Compatible / Redundancy	VPN / Firewall / High Availability / Redundancy / QoS	VPN / IPv6 Compatible / Firewall	VPN / IPv6 Compatible / Firewall
Firewall Features	Yes	Yes	Yes	Yes	Yes
Flash Memory	512 MB	512 MB	512 MB	512 MB	512 MB
Form Factor	Rack-mount	Chassis	Rack-mount	Rack-mount	Rack-mount
Height	1.75 inches	4 inches	2 inches	6.7 inches	2.5 inches
High Availability Support	Supported	Supported	Supported	Supported	Supported
Integrated Services	Voice / Video / WAN Optimization	Voice / Video / WAN Optimization	Voice / Video / WAN Optimization	Voice / Video / WAN Optimization	Voice / Video / WAN Optimization
Interface Ports	RJ-45 / SFP+ / Combo Ports	RJ-45 / SFP / SFP+	RJ-45 / SFP+	RJ-45, SFP	RJ-45 / SFP
LAN Ports	8 LAN Ports	8 LAN Ports	8 LAN Ports	4 LAN Ports	8 LAN Ports
Management	Managed	Managed	Managed	Managed	Managed
Memory	4 GB	8 GB	4 GB	8 GB	4 GB
Modular Slots Available	3+ Slots	3+ Slots	3+ Slots	2 Slots	2 Slots
Network Protocols	IPv4 / IPv6 / MPLS	IPv4, IPv6	IPv4 / IPv6 / TCP/IP	IPv4, IPv6	IPv4 / IPv6
Power	350 Watt	350 Watt	300 W	150 Watt	350 Watt
Power Source	AC Power Supply / DC Power Supply / Redundant	AC Power Supply / DC Power Supply / Redundant	AC Power Supply / DC Power Supply / Redundant	DC Power Supply	Redundant AC Power Supply
Product Name	CR5P03BASA71 Enterprise Modular Router	CR5P08BASD76 Enterprise Modular Router	CR5P16BASA76 Enterprise Modular Router	CR52-BKPE-4U-DC	CR5B0BKP1673 Enterprise Router
Product Type	Enterprise Router	Enterprise Router	Enterprise Router	Enterprise Router	Enterprise Router
QoS Features	Supported	Supported	Supported	Supported	Supported
Remote Management	SNMP / SSH / HTTPS	SNMP / CLI / HTTPS	SSH / Telnet / SNMP	SSH, Telnet, SNMP	SSH / Telnet / SNMP
Routing Protocols	OSPF / BGP / EIGRP / Static Routing	OSPF / BGP / EIGRP / RIP	OSPF / BGP / Static Routing	OSPF / BGP / EIGRP / Static Routing	OSPF / BGP / EIGRP / Static Routing
Safety	N/A	UL / CSA	N/A	N/A	UL Listed
Speed/Capacity	Gigabit	Gigabit	Gigabit	Gigabit	Gigabit
Stacking Capability	Yes	Yes	Yes	Yes	Yes
Telecom	N/A	N/A	N/A	N/A	TELEC Certified
Throughput Capacity	10 Gbps	10 Gbps	2 Gbps	10 Gbps	2 Gbps
Use Case	Enterprise / Industrial	Enterprise	Enterprise	Enterprise	Enterprise
VPN Support	IPSec / SSL VPN / GRE	IPSec / SSL VPN / DMVPN	IPSec / SSL VPN	IPSec / SSL VPN	IPSec / SSL VPN / DMVPN
WAN Configuration	Dual WAN	Dual WAN	Dual WAN	Dual WAN	Dual WAN
WAN Ports	2 WAN	2 WAN	2 WAN	2 WAN	2 WAN
Weight	12 lbs	25 lbs	25 lbs	50 lbs	20 lbs
Wi-Fi Standard	N/A	N/A	N/A	N/A	N/A
Width	17.5 inches	17 inches	15 inches	19 inches	17 inches
Wireless Support	No	No	No	No	No
