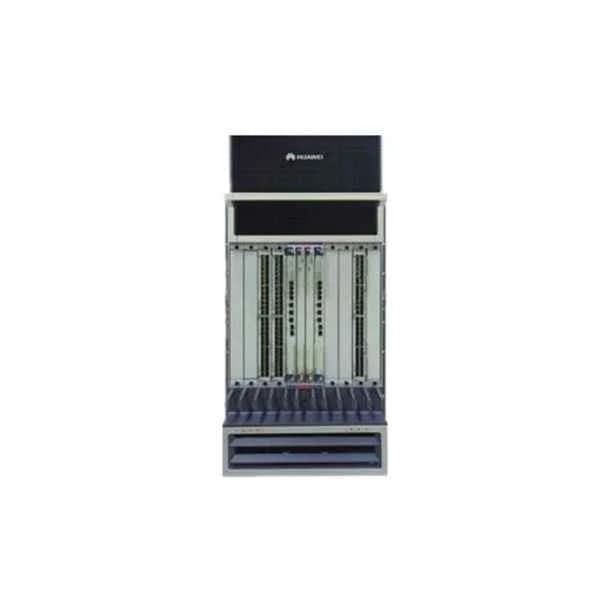

Name: Huawei NE40E-X8A Basic Configuration (Including NE40E-X8A Chassis, 2 MPUs, 2 SFUs(1 T),6 DC Power,3 Fan Tray, without Software Charge and Document)
Brand: Huawei
SKU: CR5P08BASD77
Price: 81822.00 USD
Availability: InStock
Rating: 4.3 (6 reviews)

Question 1

What components are included in the Huawei NE40E-X8A Basic Configuration?

Accepted Answer

The basic configuration includes the NE40E-X8A chassis, 2 MPUs, 2 SFUs (1 Tbps), six DC power modules, and three fan trays.

Question 2

What is the Huawei NE40E-X8A designed for?

Accepted Answer

The NE40E-X8A is a high-performance carrier-grade router engineered for large-scale ISP core networks, data center interconnects, and enterprise backbones.

Question 3

What is the switching capacity of the basic configuration?

Accepted Answer

In its basic setup, the router delivers 1 Tbps of aggregated switching capacity, which is scalable through additional SFUs and service boards.

Question 4

How many MPUs and SFUs are provided in this package?

Accepted Answer

This configuration provides two MPUs for control-plane processing and two SFUs that collectively deliver 1 Tbps of switching throughput.

Question 5

What power supply modules are included and how is redundancy handled?

Accepted Answer

It includes six hot-swappable 48 V DC power modules arranged for N+1 redundancy, ensuring uninterrupted operation.

Question 6

Are software licenses included in the basic configuration?

Accepted Answer

No. Software and service licenses must be procured separately to enable routing protocols and advanced features.

Question 7

What warranty and support options are available?

Accepted Answer

Huawei provides a one-year hardware warranty with options to extend up to five years, plus 24×7 global technical support and software updates.

Question 8

Can I upgrade this basic configuration?

Accepted Answer

Yes. You can upgrade by adding SFUs for higher throughput, installing additional service boards, and purchasing required software licenses.

Question 9

What are the physical dimensions and weight of the chassis?

Accepted Answer

The chassis measures 442 mm (W) × 598 mm (H) × 686 mm (D) and weighs approximately 58 kg.

Question 10

What are the operating environment requirements?

Accepted Answer

Supported conditions are 0 °C to 45 °C, 5% to 95% non-condensing humidity, and altitudes up to 5,000 m.

Question 11

How energy efficient is the NE40E-X8A?

Accepted Answer

Featuring intelligent power management, the basic setup typically consumes 850 W, with dynamic scaling based on load.

Question 12

Which interface cards are compatible with the base chassis?

Accepted Answer

Compatible line cards include GE, 10 GE, 40 GE, and 100 GE service boards, as well as various MPLS and VPN modules.

Question 13

What deployment scenarios are recommended for this router?

Accepted Answer

It is ideal for ISP core and edge routing, large-scale VPN services, data center peering, and metro network aggregation.

Question 14

How do I install and set up the NE40E-X8A chassis?

Accepted Answer

Mount the chassis in a standard 19″ rack, connect DC inputs, install MPUs/SFUs, then power on and run the Quick Start Guide for initial configuration.

Question 15

What documentation is provided with this configuration?

Accepted Answer

Documentation includes the Hardware Installation Guide, Maintenance Manual, Command Reference, and Online Help Center access.

Question 16

How can I order spare parts for this configuration?

Accepted Answer

Spare parts such as power modules, fan trays, MPUs, and SFUs can be ordered through Huawei’s official channels or authorized partners using the SKU references.

	CR5P08BASD77	CR5P08BASA77	CR5B0BKP0870	CR52-BKPE-5U-AC	Huawei NE40E-X8 with 2+1 Redundant 100G SRU/SFU, 4*AC Power (CR5P08BASA73)
5G Support	No	No	No	No	No
Architecture	Modular	Modular	Modular	Modular	Modular / Chassis
Broadband	Fiber Optic	Fiber Optic	Fiber Optic / DSL	N/A	N/A
Built-in Security Features	Firewall, Intrusion Prevention, Malware Protection	Firewall, Intrusion Prevention, Malware Protection	Firewall / Intrusion Prevention / Malware Protection	Firewall, Intrusion Prevention	Firewall, Intrusion Prevention, Malware Protection
Compliance Standards	RoHS, FCC, CE	IEEE / FCC	FCC, CE, RoHS	FCC, CE, RoHS	CE, FCC, RoHS
Connectivity Type	Wired	Wired	Wired	Wired	Wired
Depth	20 inches	18 inches	15 inches	13 inches	N/A
Device Type	Router	Router	Router	Router	Router
EMC	FCC, CE	CISPR 22 / FCC Part 15	N/A	N/A	N/A
Ethernet Technology	10/100/1000	10/100/1000	10/100/1000	10/100/1000	100G
Expansion Slots	NIM	NIM / SFP+	SFP+	NIM	SRU/SFU Modules
Features	VPN, Firewall, IPv6 Compatible	VPN, Firewall, QoS, Redundancy, Modular	Mesh / VPN / IPv6 Compatible / Firewall / POE	VPN, IPv6 Compatible, Firewall, MPLS	VPN, MPLS, High-Availability, Redundancy
Firewall Features	Yes	Yes	Yes	Yes	Yes
Flash Memory	512 MB	512 MB	512 MB	256 MB	256 MB
Form Factor	Rack-mount	Rack-mount	Rack-mount	Rack-mount	Rack-mount Chassis
Height	2 inches	4 inches	4 inches	1U	N/A
High Availability Support	Supported	Supported	Supported	Supported	Supported
Integrated Services	Voice, WAN Optimization	Voice / Video / WAN Optimization	Voice / Video / WAN Optimization	Voice, Video, WAN Optimization	Routing, VPN, MPLS
Interface Ports	RJ-45 / SFP	RJ-45 / SFP+	RJ-45 / SFP+	RJ-45, SFP	QSFP28, SFP+
LAN Ports	8 LAN Ports	8 LAN Ports	8 LAN Ports	4 LAN Ports	Modular LAN
Management	Managed	Managed	Managed	Managed	Managed
Memory	2 GB	4 GB	4 GB	4 GB	16 GB
Modular Slots Available	3+ Slots	3+ Slots	3+ Slots	2 Slots	2+1 Redundant
Network Protocols	TCP/IP, UDP, ICMP, SNMP	IPv4, IPv6, MPLS	IPv4, IPv6, TCP/IP, UDP	IPv4, IPv6, MPLS	IPv4, IPv6, MPLS
Power	350 Watt	250W	300 Watts	65 Watt	Varies (AC, redundant)
Power Source	AC Power Supply / DC Power Supply / Redundant	Redundant AC/DC Power Supply	AC Power Supply / DC Power Supply / Redundant	AC Power Supply	AC Power Supply, Redundant
Product Name	CR5P08BASD77 Enterprise Modular Router	CR5P08BASA77 Enterprise Router	CR5B0BKP0870 Series Enterprise Router	CR52-BKPE-5U-AC	Huawei NE40E-X8 with 2+1 Redundant 100G SRU/SFU, 4*AC Power (CR5P08BASA73)
Product Type	Enterprise Router	Enterprise Router	Enterprise Router	Enterprise Router	Carrier-Grade Router
QoS Features	Supported	Supported	Supported	Supported	Supported
Remote Management	SSH, Telnet, HTTP, HTTPS	SNMP / CLI / Web UI	SSH, SNMP, Telnet	SSH, Telnet, SNMP, HTTPS	CLI, SNMP, SSH
Routing Protocols	OSPF / BGP / EIGRP / MPLS / Static Routing	OSPF / BGP / EIGRP / MPLS / Static Routing	OSPF / BGP / EIGRP / MPLS / IS-IS / RIP / Static Routing	OSPF / BGP / EIGRP / Static Routing	OSPF / BGP / IS-IS / MPLS / RIP
Safety	IEC 60950	IEC	N/A	N/A	N/A
Speed/Capacity	Gigabit	Gigabit	Gigabit	Gigabit	100G
Stacking Capability	Yes	Yes	Yes	Yes	No
Telecom	ITU-T	N/A	N/A	N/A	N/A
Throughput Capacity	10 Gbps	10 Gbps	10 Gbps	5 Gbps	100 Gbps
Use Case	Enterprise	Enterprise	Enterprise	Enterprise	Carrier / Enterprise
VPN Support	IPSec / SSL VPN	IPSec / SSL VPN	IPSec / SSL VPN / GRE / DMVPN / FlexVPN	IPSec / SSL VPN	IPSec / SSL VPN / GRE
WAN Configuration	Dual WAN	Dual WAN	Dual WAN	Dual WAN	Dual WAN
WAN Ports	2 WAN	2 WAN	2 WAN	2 WAN	Modular WAN
Weight	25 lbs	25 lbs	25 lbs	15 lbs	N/A
Wi-Fi Standard	N/A	N/A	WiFi 6	N/A	N/A
Width	18 inches	17 inches	17 inches	17 inches	N/A
Wireless Support	No	No	No	No	No
