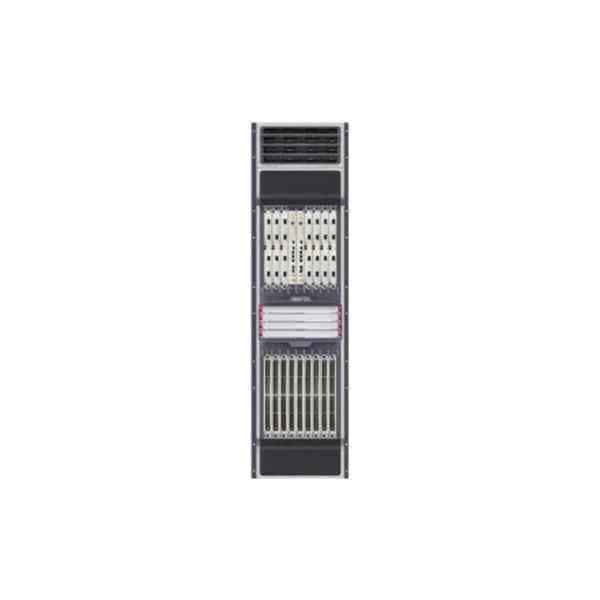

Name: NE40E-X16A Integrated DC Chassis Components (Including 4 Fan Tray)
Brand: Huawei
SKU: CR5B0BKP1673
Price: 20231.00 USD
Availability: InStock
Rating: 4.3 (6 reviews)

Question 1

What is the NE40E-X16A Integrated DC Chassis Components (SKU: CR5B0BKP1673)?

Accepted Answer

The NE40E-X16A Integrated DC Chassis Components (SKU: CR5B0BKP1673) is a factory-configured chassis assembly that includes four hot-swappable fan trays and all internal DC power distribution modules required for NE40E-X16A routers.

Question 2

Which devices are compatible with this chassis kit?

Accepted Answer

This chassis kit is fully compatible with Huawei NE40E-X16A series routers and integrates seamlessly into existing NE40E-X16A deployments without additional adapters.

Question 3

What cooling solution does the kit provide?

Accepted Answer

The kit includes four hot-swappable fan trays that deliver redundant, front-to-back airflow, ensuring optimal thermal management under full load conditions.

Question 4

How do I install the NE40E-X16A Integrated DC Chassis Components?

Accepted Answer

Installation involves sliding the chassis assembly into the NE40E-X16A router frame, securing it with the provided screws, and connecting the DC input cables to the power distribution modules.

Question 5

Are the fan trays hot-swappable?

Accepted Answer

Yes, all four fan trays are hot-swappable, allowing you to replace individual fans without powering down the router or disrupting network services.

Question 6

What DC input voltage range is supported?

Accepted Answer

The chassis supports a DC input voltage range of –36 V to –75 V, accommodating standard telecom and data-center power feeds.

Question 7

How many power distribution modules are included?

Accepted Answer

The assembly includes integrated DC power distribution modules that distribute input power across the router’s line cards and control boards.

Question 8

Does this kit include power cables?

Accepted Answer

No, DC input cables are not included. You must supply customer-provided cables that meet the –36 V to –75 V specification and appropriate gauge requirements.

Question 9

What are the dimensions and weight of the chassis assembly?

Accepted Answer

The chassis assembly measures 442 mm (W) x 315 mm (D) x 50 mm (H) and weighs approximately 7.5 kg, including fan trays and power modules.

Question 10

Is remote monitoring supported?

Accepted Answer

Yes, remote monitoring is supported via SNMP and the NE40E series management interface, providing real-time alerts on fan status, input voltage, and thermal metrics.

Question 11

What is the expected MTBF for the fan trays?

Accepted Answer

Each fan tray has an MTBF (Mean Time Between Failures) of over 100,000 hours under standard operating conditions.

Question 12

How do I perform routine maintenance?

Accepted Answer

Routine maintenance involves cleaning air filters, verifying fan operation via management logs, and replacing any fan tray flagged with reduced performance or failure.

Question 13

What warranty covers this chassis kit?

Accepted Answer

The kit is covered by a one-year limited hardware warranty, including parts replacement for any manufacturing defects.

Question 14

Can I expand the chassis with additional modules?

Accepted Answer

No, this kit is specifically designed for the NE40E-X16A base chassis and cannot be expanded with additional DC or fan modules beyond the included components.

Question 15

How do I order replacement fan trays?

Accepted Answer

Replacement fan trays can be ordered through your authorized Huawei reseller using the SKU references provided in the NE40E-X16A maintenance manual.

Question 16

What safety certifications does this kit have?

Accepted Answer

The assembly holds CE, FCC, and UL safety certifications, ensuring compliance with international electrical and electromagnetic standards.

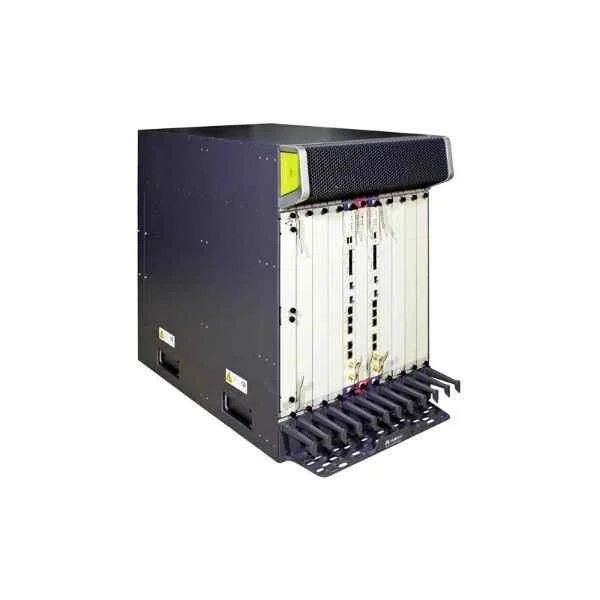

	CR5B0BKP1673	CR5P08BASA7D	Huawei NE40E-X8 with 2+1 Redundant SRU/SFU, 4*DC Power (CR5P08BASD70)	Huawei NE40E-X8 with 2+1 Redundant 200G SRU/SFU, 4*DC Power (CR5P08BASD71)	CR5P16BASD76
5G Support	No	No	No	No	No
Architecture	Modular	Modular	Modular / Chassis	Modular Chassis	Modular
Broadband	Fiber Optic / DSL	Fiber Optic, DSL	N/A	Fiber Optic	Fiber Optic
Built-in Security Features	Firewall / Intrusion Prevention / Malware Protection	Firewall, Intrusion Prevention, Malware Protection	Firewall, Intrusion Prevention, Malware Protection	Firewall / Intrusion Prevention	Firewall / Intrusion Prevention / Malware Protection
Compliance Standards	CE / FCC / RoHS	FCC, CE	CE, FCC	CE / FCC	FCC, CE, RoHS
Connectivity Type	Wired	Wired	Wired	Wired	Wired
Depth	15 inches	18 inches	N/A	N/A	18 inches
Device Type	Router	Router	Router	Router	Router
EMC	FCC Part 15	EN 55032	N/A	N/A	N/A
Ethernet Technology	10/100/1000	10/100/1000	10/100/1000; 10G	10/100/1000 / 10G / 40G / 100G	10/100/1000
Expansion Slots	NIM / SFP+	NIM	SFP, NIM	SRU/SFU	NIM
Features	VPN / IPv6 Compatible / Firewall	VPN, Firewall, IPv6 Compatible	VPN, IPv6 Compatible, Redundancy, High Throughput	VPN / IPv6 Compatible / High Availability / Redundancy	VPN / IPv6 Compatible / Firewall / MPLS
Firewall Features	Yes	Yes	Yes	Yes	Yes
Flash Memory	512 MB	1 GB	1 GB	512 MB	512 MB
Form Factor	Rack-mount	Rack-mount	Chassis	Chassis	Rack-mount
Height	2.5 inches	2 inches	N/A	N/A	4 inches
High Availability Support	Supported	Supported	Supported	Supported	Supported
Integrated Services	Voice / Video / WAN Optimization	Voice, Video, WAN Optimization	Voice, Video, VPN	WAN Optimization / VPN	Voice / Video / WAN Optimization
Interface Ports	RJ-45 / SFP	RJ-45, SFP+	RJ-45, SFP	SFP / SFP+	RJ-45 / SFP
LAN Ports	8 LAN Ports	8 LAN Ports	Modular LAN	Modular LAN	8 LAN Ports
Management	Managed	Managed	Managed	Managed	Managed
Memory	4 GB	4 GB	8 GB	16 GB	4 GB
Modular Slots Available	2 Slots	3+ Slots	3+ Slots	3+ Slots	3+ Slots
Network Protocols	IPv4 / IPv6	IPv4, IPv6	BGP, OSPF, IS-IS, MPLS	MPLS / IP	IPv4, IPv6, MPLS
Power	350 Watt	350 Watt	Redundant 4*DC (CR5P08BASD70)	N/A	350W
Power Source	Redundant AC Power Supply	AC Power Supply, Redundant	DC Power Supply / Redundant	4*DC Power Supply, Redundant	AC Power Supply / Redundant
Product Name	CR5B0BKP1673 Enterprise Router	CR5P08BASA7D Enterprise Modular Router	Huawei NE40E-X8 with 2+1 Redundant SRU/SFU, 4*DC Power (CR5P08BASD70)	Huawei NE40E-X8 with 2+1 Redundant 200G SRU/SFU, 4*DC Power (CR5P08BASD71)	CR5P16BASD76 Enterprise Modular Router
Product Type	Enterprise Router	Enterprise Router	Enterprise Router	Carrier-Grade Router	Enterprise Router
QoS Features	Supported	Supported	Supported	Supported	Supported
Remote Management	SSH / Telnet / SNMP	SSH, Telnet	Telnet, SSH, SNMP	Telnet / SSH / SNMP	SNMP, SSH, Telnet, HTTPS
Routing Protocols	OSPF / BGP / EIGRP / Static Routing	OSPF, BGP, RIP, Static Routing	OSPF / BGP / IS-IS / Static Routing / MPLS	OSPF / BGP / IS-IS / Static Routing	OSPF / BGP / EIGRP / RIP / Static Routing
Safety	UL Listed	IEC 60950	N/A	N/A	N/A
Speed/Capacity	Gigabit	Gigabit	Up to 80 Gbps	200G	Gigabit
Stacking Capability	Yes	Yes	No	No	Yes
Telecom	TELEC Certified	ITU-T	N/A	N/A	N/A
Throughput Capacity	2 Gbps	10 Gbps	80 Gbps	200 Gbps	10Gbps
Use Case	Enterprise	Enterprise, Business	Enterprise / Service Provider	Carrier / Enterprise	Enterprise
VPN Support	IPSec / SSL VPN / DMVPN	IPSec / SSL VPN	IPSec / GRE / MPLS	IPSec / SSL VPN / GRE	IPSec / SSL VPN
WAN Configuration	Dual WAN	Dual WAN	Dual WAN	Modular WAN	Dual WAN
WAN Ports	2 WAN	2 WAN	Modular WAN	Modular WAN	2 WAN
Weight	20 lbs	25 lbs	N/A	N/A	25 lbs
Wi-Fi Standard	N/A	N/A	N/A	N/A	N/A
Width	17 inches	19 inches	N/A	N/A	17 inches
Wireless Support	No	No	No	No	No
