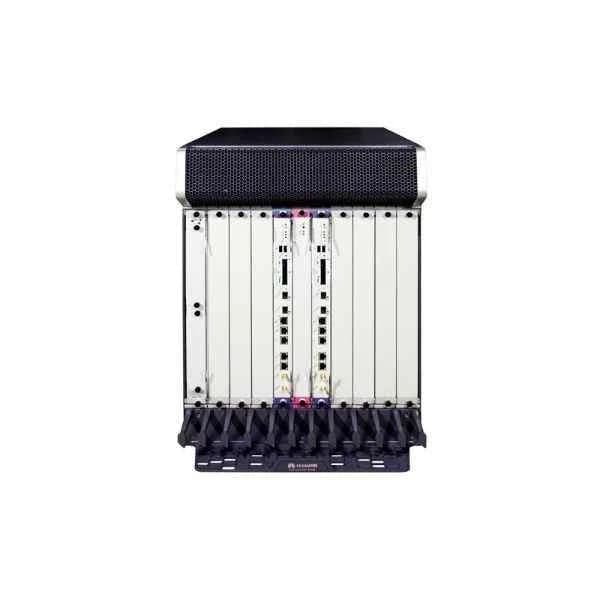

Name: NE40E-X8 100G SFU Bundle Configuration(Including 2*SRUs,1*SFU)
Brand: Huawei
SKU: CR5P08SFUA71
Availability: OutOfStock
Rating: 4.3 (6 reviews)

Question 1

What is included in the NE40E-X8 100G SFU Bundle (SKU: CR5P08SFUA71)?

Accepted Answer

The bundle includes one 100G Service Forwarding Unit (SFU) and two Service Routing Units (SRUs) for comprehensive high-capacity routing and forwarding.

Question 2

What performance does the NE40E-X8 100G SFU deliver?

Accepted Answer

It delivers up to 1.6 Tbps of system throughput and supports up to eight 100G ports to meet carrier-grade requirements.

Question 3

Which slots does the SFU occupy in the NE40E-X8 chassis?

Accepted Answer

The SFU occupies one full-height line-card slot, while each SRU occupies a dedicated service-processing slot in the NE40E-X8.

Question 4

What types of interfaces are supported on this 100G SFU module?

Accepted Answer

It supports 100G QSFP28 ports with DWDM, CWDM, and SR4 optics for flexible metro and long-haul deployments.

Question 5

How do SRUs enhance the NE40E-X8’s capabilities?

Accepted Answer

SRUs offload control-plane processing, enabling advanced services such as VPN, multicast and BGP at scale without impacting forwarding performance.

Question 6

Is the NE40E-X8 100G SFU Bundle compatible with existing NE40E line cards?

Accepted Answer

Yes, the bundle is fully backward-compatible with NE40E-X8 chassis and existing line cards running V800R019C00 or later.

Question 7

What software version is required for the CR5P08SFUA71 bundle?

Accepted Answer

Huawei VRP V8R19C00 or later is required to enable full functionality of the NE40E-X8 100G SFU and SRUs.

Question 8

How do I install the 100G SFU and SRUs in my chassis?

Accepted Answer

Power down the chassis, insert the SFU and SRUs into designated slots, secure with screws, and power up to auto-detect modules.

Question 9

What are the primary use cases for the NE40E-X8 100G SFU Bundle?

Accepted Answer

Ideal for large-scale IP backbone, data center interconnect, and high-density metro aggregation applications.

Question 10

What monitoring and management features are supported?

Accepted Answer

It supports NetStream, iMaster NCE, SNMP, and CLI for real-time traffic monitoring, fault management, and configuration.

Question 11

How does the bundle improve network scalability?

Accepted Answer

By combining high-density 100G ports with dedicated SRUs, it scales routing capacity independently from forwarding functions.

Question 12

What redundancy options are available?

Accepted Answer

The NE40E-X8 supports load-sharing SFU pairs, redundant SRUs, and dual control-plane cards for high availability.

Question 13

What is the power consumption of the 100G SFU and SRUs?

Accepted Answer

The SFU consumes up to 250 W and each SRU up to 120 W under full load; actual usage varies by port and traffic.

Question 14

What warranty and support services are provided?

Accepted Answer

Standard Huawei one-year hardware warranty with options for extended care, on-site support, and 24/7 TAC assistance.

Question 15

Can I upgrade to higher capacity cards later?

Accepted Answer

Yes, the modular NE40E-X8 chassis allows seamless upgrade to higher-density SFUs or SRUs without service interruption.

Question 16

How do I order spare optics and cables for this bundle?

Accepted Answer

Order compatible QSFP28 SR4, LR4, or ER4 transceivers and MPO/MTP cables via part numbers listed in the Huawei NE40E-X8 optics guide.

	CR5P08SFUA71	CR5B0BKP0370	CR5P16BASD74	CR5P03BASD75	Huawei NE40E-X8 with 2+1 Redundant 200G SRU/SFU, 4*DC Power (CR5P08BASD71)
5G Support	No	No	No	No	No
Architecture	Modular	Modular	Modular	Modular	Modular Chassis
Broadband	Fiber Optic / 4G	N/A	Fiber Optic	Fiber Optic / DSL / 4G / N/A	Fiber Optic
Built-in Security Features	Firewall / Intrusion Prevention	Firewall, Intrusion Prevention, Malware Protection	Firewall, Intrusion Prevention, Malware Protection	Firewall / Intrusion Prevention / Malware Protection	Firewall / Intrusion Prevention
Compliance Standards	FCC / CE	FCC, CE, RoHS	RoHS, CE, FCC	IEEE 802.3 / CE / FCC	CE / FCC
Connectivity Type	Wired	Wired	Wired	Wired	Wired
Depth	17 inches	15 inches	18 inches	18 inches	N/A
Device Type	Router	Router	Router	Router	Router
EMC	N/A	N/A	N/A	FCC Part 15 / CE	N/A
Ethernet Technology	10/100/1000	10/100/1000	10/100/1000	10/100/1000	10/100/1000 / 10G / 40G / 100G
Expansion Slots	NIM / SFP+	NIM, SFP+	NIM, SFP+	NIM / SFP+	SRU/SFU
Features	VPN / Firewall / IPv6 Compatible	VPN, Firewall, IPv6 Compatible, Redundancy, High Availability	VPN, Firewall, IPv6 Compatible, WAN Optimization	VPN / Firewall / Intrusion Prevention / IPv6 Compatible	VPN / IPv6 Compatible / High Availability / Redundancy
Firewall Features	Yes	Yes	Yes	Yes	Yes
Flash Memory	512 MB	512 MB	512 MB	1 GB	512 MB
Form Factor	Rack-mount	Rack-mount	Rack-mount	Rack-mount	Chassis
Height	4 inches	4 inches	1.75 inches	4 inches	N/A
High Availability Support	Supported	Supported	Supported	Supported	Supported
Integrated Services	Voice / Video	Voice, Video, WAN Optimization	Voice, Video, WAN Optimization	Voice / Video / WAN Optimization	WAN Optimization / VPN
Interface Ports	RJ-45 / SFP+	RJ-45, SFP+	RJ-45, SFP	RJ-45 / SFP / SFP+	SFP / SFP+
LAN Ports	8 LAN Ports	8 LAN Ports	8 LAN Ports	8 LAN Ports	Modular LAN
Management	Managed	Managed	Managed	Managed	Managed
Memory	4 GB	2 GB	4 GB	4 GB	16 GB
Modular Slots Available	3+ Slots	3+ Slots	3+ Slots	3+ Slots	3+ Slots
Network Protocols	IPv4 / IPv6	IPv4, IPv6, MPLS	IPv4, IPv6, MPLS	IPv4 / IPv6	MPLS / IP
Power	250W	350W	250 W	250 Watt	N/A
Power Source	AC Power Supply / Redundant	AC Power Supply with Redundant Options	AC Power Supply / Redundant	AC Power Supply / DC Power Supply / Redundant	4*DC Power Supply, Redundant
Product Name	CR5P08SFUA71 Enterprise Modular Router	CR5B0BKP0370 Enterprise Modular Router	CR5P16BASD74 Enterprise Modular Router	CR5P03BASD75 Enterprise Router	Huawei NE40E-X8 with 2+1 Redundant 200G SRU/SFU, 4*DC Power (CR5P08BASD71)
Product Type	Enterprise Router	Enterprise Router	Enterprise Router	Enterprise Router	Carrier-Grade Router
QoS Features	Supported	Supported	Supported	Supported	Supported
Remote Management	SSH / HTTPS / SNMP	SNMP, SSH, Telnet, HTTPS	SNMP, SSH, Telnet	SSH / HTTPS / SNMP	Telnet / SSH / SNMP
Routing Protocols	OSPF / BGP / EIGRP / Static Routing	OSPF / BGP / EIGRP / Static Routing	OSPF / BGP / EIGRP / RIP / Static Routing	OSPF / BGP / EIGRP / Static Routing	OSPF / BGP / IS-IS / Static Routing
Safety	N/A	N/A	N/A	UL Listed	N/A
Speed/Capacity	Gigabit	Gigabit	Gigabit	Gigabit	200G
Stacking Capability	Yes	Yes	Yes	Yes	No
Telecom	N/A	N/A	N/A	N/A	N/A
Throughput Capacity	10 Gbps	10 Gbps	10 Gbps	10 Gbps	200 Gbps
Use Case	Enterprise	Enterprise	Enterprise	Enterprise / Business / Industrial	Carrier / Enterprise
VPN Support	IPSec / SSL VPN / GRE	IPSec / SSL VPN	IPSec / SSL VPN / GRE / DMVPN / FlexVPN	IPSec / SSL VPN / N/A	IPSec / SSL VPN / GRE
WAN Configuration	Dual WAN	Dual WAN	Dual WAN	Dual WAN	Modular WAN
WAN Ports	2 WAN	2 WAN	2 WAN	2 WAN	Modular WAN
Weight	20 lbs	20 lbs	15 lbs	25 lbs	N/A
Wi-Fi Standard	N/A	N/A	N/A	N/A	N/A
Width	17 inches	17 inches	17.5 inches	17 inches	N/A
Wireless Support	No	No	No	No	No
